MicroniK 200

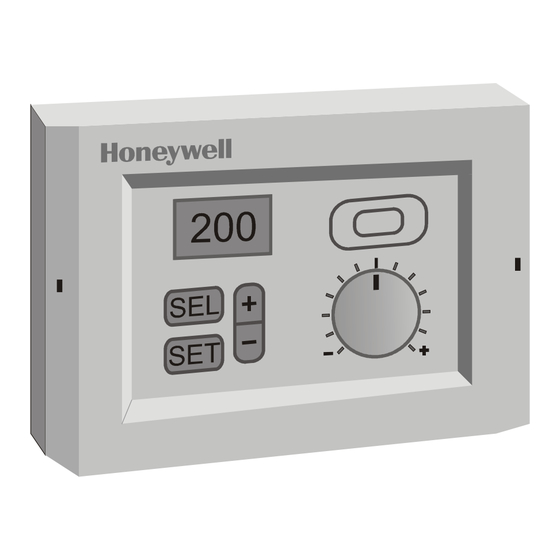

Fig. 1. Temperature controller
Fig. 2. LC Display
TEMPERATURE CONTROLLER
WITH REAL-TIME CLOCK
GENERAL
The R7426A temperature controller covers all space, air or
water flow temperature applications within the selectable
control range of 0...50°C
(LOw range)
with optional high or low limit control and outside air
temperature compensation reset of the main setpoint. The
controller can be configured to perform space-discharge air
or supply water temperature cascade control.
FEATURES
Weekly time schedule with up to six switching points
per day
Automatic daylight saving time change
Four different operating modes: Comfort, Standby,
Night, and OFF
Yearly holiday programming in advance
Three types of holiday schedules
Self-adaptive optimum start program for room control
system
Night cycle program
Order Numbers
Order-No.
Controller Description
R7426A2014
Temperature controller with integrated
real-time clock (RTC), Plant/System
ON/OFF output, and one 3-position
floating output. The controller offers the
choice of selectable output signals to
drive solid-state relays or step relays.
R7426A
SPECIFICATION DATA
or 0...130°C
(HI range)
EN0B-0299GE51 R0104

Advertisement

Table of Contents
loading

Related Manuals for Honeywell Micronik 200

Summary of Contents for Honeywell Micronik 200

  • Page 1 R7426A MicroniK 200 TEMPERATURE CONTROLLER WITH REAL-TIME CLOCK SPECIFICATION DATA GENERAL The R7426A temperature controller covers all space, air or water flow temperature applications within the selectable control range of 0...50°C (LOw range) or 0...130°C (HI range) with optional high or low limit control and outside air temperature compensation reset of the main setpoint.

  • Page 2: Technical Data

    R7426A TEMPERATURE CONTROLLER TECHNICAL DATA General Electronic 8-bit microcontroller, 10-bit A/D converter, EEPROM, and LC display Power supply 24 Vac +10...-15%, 50/60 Hz Power consumption 3 VA + Actuator power requirements Control range 0...50°C (LOw range) or 0..+130C (HI range) Battery Type CR2032 (life time ...
  • Page 3 R7426A TEMPERATURE CONTROLLER CONTROL AND CONFIGURATION PARAMETER The controller includes two groups of settings (A and B) for control and configuration parameters that are automatically selected during programming. For parameter Ctrltyp = Lo setting A is selected and for parameter Ctrltyp = Hi setting B is selected.
  • Page 4 R7426A TEMPERATURE CONTROLLER FUNCTIONS setpoint (CTRP1) and generates an internal deviation signal ). CTPR1 is the sum of the OAT compensation effect, the Real-Time Clock CPA, and the mode-dependent offset. Depending on the deviation signal, the control output (Y1) The time clock performs automatic change of the controller value is calculated and converted to a floating signal.

  • Page 5: Controller Functions

    R7426B,C TEMPERATURE CONTROLLER The integral reset time and the throttling range of the P+I Freeze Protection control for the submaster can be adjusted by the control If the contact connected to the freeze protection input is open parameters tr2 and X the following actions will be executed: High limit of CTRP2 is performed if control parameter LimTyp = 1 and low limit of CTRP2 is performed if control...
  • Page 6 ON/OFF Output 0.5mm 0.18C 0.3C The ON/OFF output is provided to switch fans, pumps, or (AWG20) (0.324F) (0.54F) other MicroniK 200 controller without RTC. 1.0mm 0.09C 0.15C If one of the following conditions occur, the controller negligible (AWG17) (0.162F) (0.27F)
  • Page 7 R7426A TEMPERATURE CONTROLLER CONNECTIONS R7426A or Summer/Winter Changeover Occupancy CPA/SPA 24 V W 303 Jumper State Description closed T3 supplied by this controller W303 Freeze open T3 supplied from another controller prot. Default jumper position = closed Only cut (open) jumper W303 if the T3 input is fed from another controller (parallel connection, max.

  • Page 8: Mounting And Dimensions

    (cut-out for cables) 180 +/-0.2 wall mounting front panel mounting Fig. 4. Mounting and dimensions HONEYWELL Automation and Control Solutions Honeywell GmbH Böblinger Straße 17 D-71101 Schönaich Phone: (49) 7031 63701 Fax: (49) 7031 637493 http://europe.hbc.honeywell.com Subject to change without notice. Printed in Germany...
