Summary of Contents for Haier HWM90DD

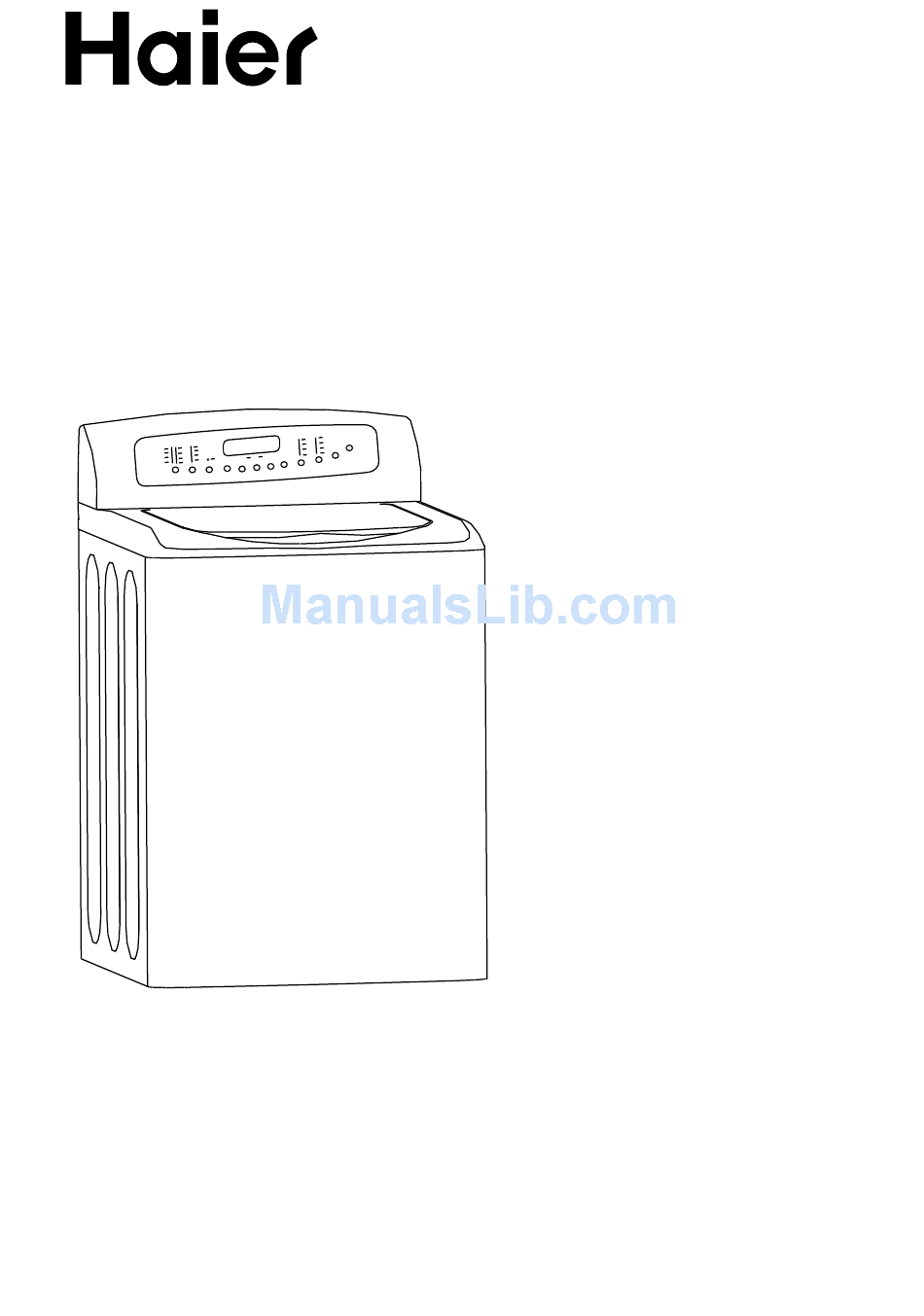

- Page 1 Haier Washing Machine HWM90DD...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Warning - To reduce the risk of fire, electric shock, or injury when using your appliance, follow basic precautions,including the following: 1. Read all instructions before using the appliance. 2. Use this appliance only for its intended purpose as described in this user and care guide. - Page 3 16. Do not use this appliance for commercial clothes washing. 17. Do not operate this appliance unless all enclosure panels are properly in place. 18. Do not tamper with controls. 19. The appliance is not instruct for use of young children of infirm persons without supervision.
-
Page 4: Table Of Contents
TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS... OPERATING INSTRUCTIONS Parts and Features..Operations..Normal Operating Sounds..Lint Filter ..Install the linner cover ... CARE AND CLEANING GUIDE... Cleaning and Maintenance... Moving & Vacationing ... Storage of Your Washer in Cold Environment... TROUBLE SHOOTING... -
Page 5: Operating Instructions
OPERATING INSTRUCTIONS Parts and Features Soak Heavy Duty Hand Wash Normal Wash Quick wash Rinse Whites Delicate Casual Colors Spin Wrinkle Control Extra Cycles Process Rinse Top lid Control panel Control panel seat Cabinet Leveling legs Inner cover Delay Time Estimated Time Wash Spin... -
Page 6: Operations
Operations Heavy Duty Soak Hand Wash Quick Wash Wash Normal Whites Rinse Delicate Casual Colors Wrinkle Control Spin Extra Cycles Process Rinse Delay When not activated, the display shows cycle remaining time through the wash process. When delay is selected the indicator light will display a minimum delay of 2 hours. -
Page 7: Extra Rinse
Water level indicator will shut off if only Spin is selected. Extra Rinse Once a program is selected, press this button to have a extra rinse.The washer will add a extra rinse. Wash Speed/Spin Speed For selecting the speed of washing or spinning . Water level Water levels may be set at the beginning of the wash or at pause. -
Page 8: Loading The Washer
Indicates remaining hours during delay process. Indicates fault codes or conditions that are not normal. Loading the Washer: Load each item loosely. Separate the white and colored clothes.Separate heavy clothes from light clothes. Carefully check all pockets and cuffs for small items. They can easily slide in to the tub and may damage the tub. -
Page 9: Normal Operating Sounds
Note:Use only liquid bleach in dispenser. Warning: Be careful not to spill undiluted bleach on the washer cabinet or your clothes.As it is a storng chemical,it maydamage some of your clothes or the finish of the washer if not properly diluted. Use the manufacturer s chart,on product container for recommended use of liquid or powder bleach. -
Page 10: Lint Filter
Lint Filter The lint filter must be used during washing. It must be cleaned after each wash. Take off the lint filter. Clean out the lint in the filter. Install the lint filter. Install the inner cover (To prevent water spillage from tub) 1.Open the top lid of the washing machine. -
Page 11: Care And Cleaning Guide
CARE AND CLEANING GUIDE Warning: Always unplug your washer to avoid electric shock before cleaning. Ignoring this warning may result in injury. Before using cleaning products, always read and follow manufacturer warnings to avoid personal Injury or product damage. Cleaning and Maintenance Use only damp or sudsy cloth for cleaning control panel. -
Page 12: Storage Of Your Washer In Cold Environment
Storage of Your Washer The washer must be stored at room temperature. If you just got delivery of a washer when outside temperature is below freezing,do not operate until washer has warmed to room temperature. Do not install or operate your washer where room temperature is below freezing. -
Page 13: Trouble Shooting
TROUBLE SHOOTING Washer does not operate: Check if unit is plugged in. The plug may have come loose. Check if the electrical wall receptacle is of proper voltage. Check if the circuit breaker needs to be reset or if the fuse need to be replaced. - Page 14 Washer load may need to be re-balanced, as the load may be uneven. Coins, loose change, buttons or other heavy objects could make noise(read Operating Guide-Normal Operating Sounds). Squealing sound: Due to overloaded wash tub. Vibration Noise: Due to not leveling washer properly on the floor and uneven distribution of clothes in the tub.
-
Page 15: Installation Instructions
INSTALLATION INSTRUCTIONS Tools and Materials Required You will need to have following tools to help you with the installation of your washer: Pliers Wrench Tape Measure Gloves Level Accessories Supplied 1.Hot & Cold inlet hoses 2.Drain Hose Hook 3.Pipe Hoop 4.Inner Tub Cover 5.Outer Drain Hose Quantity... -
Page 16: Unpacking Your Washer
Unpacking Your Washer Remove all packing materials. This Includes the foam base and all adhesive tape holding the washer accessories inside and outside Open the top lid to remove the styrofoam drum brace. Pull to remove. Before using this washing machine, please remove this shipping bar by pulling handle and dispose it properly, otherwise the washing... -
Page 17: Steps For Installation
Steps for Installation Select a away suitable location for the washer on a hard even surface from direct sunlight or heat source e.g. radiators, base board heaters, cooking appliances etc.Any floor unevenness should be corrected with the leveling legs located on the bottom corners of the washer.The washer must be placed at room temperature.You must not place washer where the temperature is at below freezing. - Page 18 4. Install the drain hose to the side of the washer using the drain hose damp provided. The drain hose must be placed into a drain pipe or sink at least 1 1/2inches in diameter. Use the goose neck to the hose in place.
-
Page 19: Electrical Requirements
ELECTRICAL REQUIREMENTS Grounding Instructions This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounded plug. The plug must be inserted into an outlet that is properly installed and grounded. -
Page 20: Specification
SPECIFICATION Rated voltage frequency Rated washing / spinning capacity Spin speed max Water level/Water quantity (about L) Max water consumption Injection pressure Weight(approx) 220-240V~ 50Hz 9.0kg 700rpm 1/28 2/36 3/49 4/54 5/61 6/67 7/73 8/79 9/89 10/95 About 122L(Normal program) 0.03MPa-1.0MPa 79kg...
