User Manual
Weather Station
Model: BAR310HG
USER MANUAL
EN
INTRODUCTION
Thank you for selecting this Oregon Scientific
weather
TM
station.
NOTE
Please keep this manual handy as you use your
new product. It contains practical step-by-step instructions,
as well as technical specifications and warnings you
should know about.
CLOCK OVERVIEW
FRONT VIEW
1
4
2
5
6
3
1. SNOOZE
2. MODE: Change settings / display
3.
: View alarm status; set alarm
4. MEM: Viewcurrent, maximum and minimum temperature
5.
/
: Increase / decrease setting; activate /
deactivate clock reception signal.
6 . CH: Switch remote sensor display
BACK VIEW
5
1
2
3
4
6
1. RESET: Reset unit to default settings
2. PRESSURE: Select pressure unit; set altitude
3. °C / °F: Select temperature unit
4. Battery compartment
5. Wall mount
6. Stand
LCD DISPLAY
1
10
11
2
12
3
13
4
14
5
6
15
7
8
9
16
BAR310HG_IM_ENIT_R10.indd 1
1. Pressure trend
2. Weather forecast
3. Max / min temperature icon
4. Sensor reception icon
5. Sensor battery low
6. Max / min humidity icon
7. Clock reception icon
8. Alarm set
9. Alarm mode icon
10. Altitude
11. Main unit battery low
12. Temperature trend
13. Temperature
14. Humidity trend
15. Humidity
16. Clock
REMOTE SENSOR
1
3
1
4
2
5
6
1. LED indicator
1. Wall mount
2. Battery compartment
3. Battery compartment
cover
4. RESET hole
5. CHANNEL switch
GETTING STARTED
BATTERIES
Insert batteries before first use, matching the polarity (+
and -). Press RESET after each battery change.
indicates that the batteries are low.
NOTE
Do not use rechargeable batteries. We recommended
that you use alkaline batteries with this product for longer
usage and lithium batteries in temperatures below freezing.
WALL MOUNT
Remove the stand at attach as
shown.
2
1
REMOTE SENSOR
The sensor collects temperature readings approx. every
40 seconds and sends them to the main
unit.
The main unit
can collect data from up to 3 sensors.
To set up the sensor:
1. Remove the battery door.
2. Insert the batteries, matching the polarity (+ / -).
Reset after each battery change.
3. Select a channel. Make sure you use a different
channel for each sensor.
4. Close the battery compartment.
5. Place the sensor next to the main unit.
6. Initiate a sensor search on the main unit to start receiving
temperature data from the sensor.
7. Secure the sensor in the desired location using the
table stand or wall mount.
The transmission range may vary depending on many
factors. You may need to experiment with various locations
to get the best results.
Standard Alkaline batteries contain significant amounts of
water. Because of this they will freeze in low temperatures
of approximately -12°C (10°F). Disposable Lithium
batteries have a much lower threshold for temperature with
an estimated freezing range of below -30°C (-22°F).
Wireless ranges can be impacted by a variety of factors
such as extremely cold temperatures. Extreme cold may
temporarily reduce the effective range between the sensor
and the base station. If the unit’s performance fails due to
low temperature, the unit will resume proper functioning
as the temperature rises to within the normal temperature
range (i.e. no permanent damage will occur to the unit due
to low temperatures).
SENSOR DATA TRANSMISSION
The sensor reception icon shows the status.
ICON
DESCRIPTION
Main unit is searching for
the sensor(s)
A
channel
has
been
found
Sensor 1 is sending data
The sensor cannot be
and “--.-”
found. Search for the
sensor or check batteries
(temperature area
)
To search for a sensor:
Simultaneously, press and hold MEM and CH for 2
seconds.
NOTE
If the sensor is still not found, check the batteries,
obstructions, and remote unit location.
CLOCK
CLOCK RECEPTION
This product is designed to synchronize its calendar clock
automatically once it is brought within range of a radio
signal:
•
DCF-77 generated from Frankfurt, Germany for Central
Europe.
The clock collects the radio signals whenever it is within
1500 km (932 miles) of a signal.
RECEPTION SIGNAL
To enable and force a signal search:
Press and hold
for 2 seconds.
To disable the signal reception:
Press and hold
for 2 seconds.
Clock signal reception indicator:
STRONG
WEAK
NO SIGNAL
SIGNAL
SIGNAL
SET CLOCK
If the clock signal reception is enabled and a signal is being
received the clock does not need to be manually set..
1. Press and hold MODE for 2 seconds.
2. Press
or
to change the settings.
3. Press MODE to confirm.
4. The settings order is: time zone offset, 12/24 hr format,
hour, minute, year, day/month format, month, day and
language.
NOTE
The time zone offset can be used to set the clock
up to + / - 9 hours from the received clock signal time. If
you have disabled the clock signal reception (i.e. manually
setting the clock), do not set a value for time zone offset.
NOTE
The language options are English (E), German
(D), French (F), Italian (I), and Spanish (S).
Press MODE to choose between the following display
modes:
• Clock with seconds.
• Clock with weekday.
• Clock with calendar.
• Clock with time zone offset.
ALARM
To set the alarm:
1. Press
to enter alarm mode.
2. Press and hold
for 2 seconds.
3. Press
/
to set hour / minute.
4. Press
to confirm.
indicates alarm is ON.
To activate / deactivate the alarm:
1. Press
to display alarm time.
2. Press
again to turn alarm ON / OFF.
To silence the alarm:
•
Press SNOOZE to silence it for 8 minutes
OR
•
Press any key except SNOOZE to turn the alarm off
and activate it again after 24 hours.
BAROMETER
Barometer readings from the past 24 hours are stored by
the main unit and used to provide weather forecast.
To select barometer measurement unit:
Press PRESSURE to toggle between mb and inHg.
SET ALTITUDE
To ensure barometric readings are reliable set the altitude
to reflect distance from sea level at your position.
1. Press and hold PRESSURE for 2 seconds.
2. Use
and
to set the altitude in 10 M (33 ft)
increments from -100 m (-328 ft) to 2500 m (8202 ft).
3. Press PRESSURE to confirm.
NOTE
The maximum operating altitude for the barometer
and weather forecast is 2500m (8202 ft).
WEATHER FORECAST
This product forecasts the next 12 to 24 hours of weather
within a 30-50 km (19-31 mile) radius based on barometric
pressure trend readings.
ICON
DESCRIPTION
Clear
Partially Cloudy
Cloudy
Rainy
TEMPERATURE AND HUMIDITY
The sensor reception icon indicates the temperature data
displayed:
•
for indoor temperature
•
for outdoor temperature (number indicates the
sensor channel displayed)
NOTE
The unit will display indoor humidity unless an
outdoor humidity sensor (sold separately) is selected.
To view outdoor sensors temperature readings:
Press CH.
To toggle temperature unit:
Press °C / °F.
To auto-scan between sensors:
Press and hold CH for 2 seconds.
To end auto-scan:
Press CH.
To toggle between current, minimum and maximum
records for the selected sensor:
Press MEM repeatedly.
To clear the records:
Press and hold MEM for 2 seconds.
TEMPERATURE, HUMIDITY AND
PRESSURE TRENDS
The trend icons are based on recent readings.
RISE
STEADY
FALL
RESET
To return to the default settings press RESET.
PRECAUTIONS
This product is engineered to give you years of satisfactory
service if you handle it carefully. Here are a few
precautions:
• Do not subject the unit to excessive force,
shock, dust, temperature or humidity, which may
result in malfunction, shorter electronic life span,
damaged battery and distorted parts.
• Do not immerse the unit in water. If you spill liquid over
it, dry it immediately with a soft, lint-free cloth.
• Do not clean the unit with abrasive or corrosivematerials.
• Do not tamper with the unit ’s internal components.
Doing so will invalidate the warranty on the unit and
may cause unnecessary damage. The unit contains no
user-serviceable parts.
• Only use fresh batteries as specified in the user’s
instructions. Do not mix new and old batteries.
• Due to printing limitations, the displays shown in this
manual may differ from the actual display.
• The contents of this manual may not be reproduced
without the permission of the manufacturer.
• Do not dispose this product as unsorted municipal
waste.Collection of such waste separately for special
treatment is necessary.
NOTE
The technical specifications for this product and
the contents of the user manual are subject to change
without notice.
SPECIFICATIONS
TYPE
DESCRIPTION
MAIN UNIT
86 x 28 x 159.5 mm
L x W x H
(3.38 x 1.02x 6.28in)
156 g (5.5 oz)
Weight
without battery
Temperature unit
°C / °F
-5°C to 50°C
Temperature range.
(23°F to 122°F)
Resolution
0.1°C (0.2°F)
Clock frequency
DCF-77
Synchronization
Auto or disabled
Signal frequency
433 MHz
Clock
Auto or manual (disabled)
Humidity range
25% - 95%
Humidity resolution
1%
Min / Max relative humidity
Memory
and temp.
Alarm duration
2 minutes
Snooze
8 minutes
HH:MM:SS
Clock display
HH:MM: Day of Week
Hour format
12 / 24 hour format
MM / DD or DD / MM
Calendar
language selectable:
E, I, F, G and S
Power
3 x UM-3 (AA) 1.5 V batteries
REMOTE UNIT THN132N
96 x 50 x 22 mm
L x W x H
(3.8 x 2.0 x 0.9 in)
Weight
48 g (1.7 oz)
Transmission range
30 m (98 ft) unobstructed
-30°C to 60°C
Temperature Range
(-22°F to 140°F)
Power
1 x UM-3 (AA) 1.5 V battery
NOTE
We recommended that you use alkaline batteries
with this product for longer usage and lithium batteries in
temperatures below freezing.
ABOUT OREGON SCIENTIFIC
Visit our website (www.oregonscientific.com) to learn more
about Oregon Scientific products such as digital cameras;
MP3 players; children’s electronic learning products and
games; projection clocks; health and fitness gear; weather
stations; and digital and conference phones. The website
also includes contact information for our Customer Care
department in case you need to reach us, as well as
frequently asked questions and customer downloads.
We hope you will find all the information you need on our
website, however if you’re in the US and would like to
contact the Oregon Scientific Customer Care department
directly, please visit:
www2.oregonscientific.com/service/support
OR
Call 1-800-853-8883.
For international inquiries, please visit:
www2.oregonscientific.com/about/international
EU-DECLARATION OF CONFORMITY
Hereby, Oregon Scientific, declares that the Weather
Station (Model BAR310HG) is in compliance with the
essential requirements and other relevant provisions
of Directive 1999/5/EC.A copy of the signed and dated
Declaration of Conformity is available on request via our
Oregon Scientific Customer Service
COUNTRIES RTTE APPROVAL COMPLIED
All EU countries, Switzerland CH
and Norway
N
.
2006.7.5 9:33:15 AM
Advertisement
Related Manuals for Oregon Scientific BAR310HG
Summary of Contents for Oregon Scientific BAR310HG

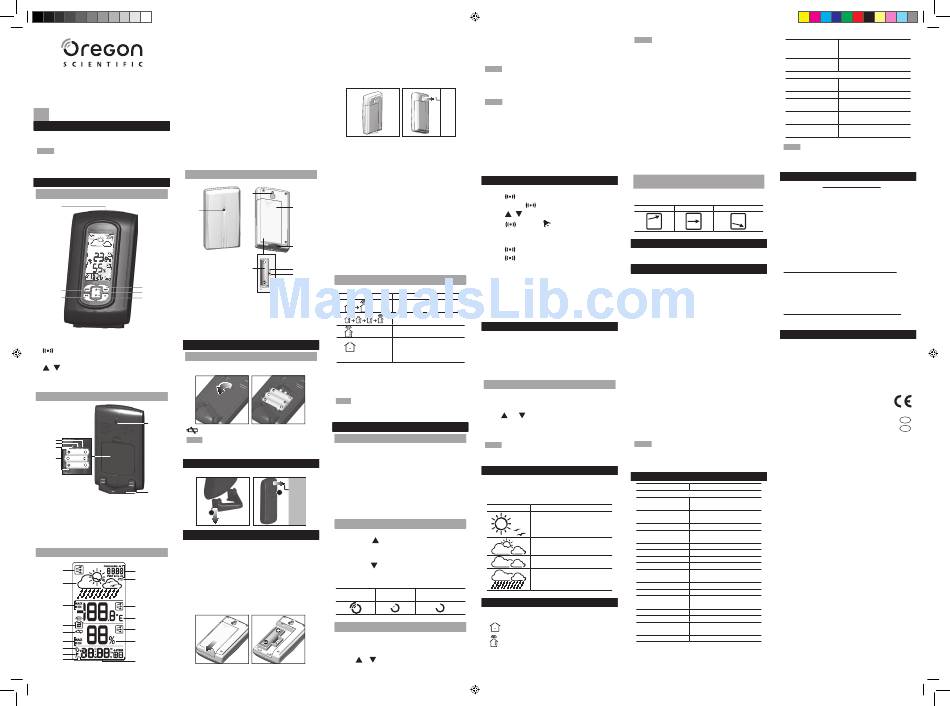

- Page 1 Hereby, Oregon Scientific, declares that the Weather GETTING STARTED The sensor cannot be • Do not tamper with the unit ’s internal components. Station (Model BAR310HG) is in compliance with the and “--.-” found. Search for the : View alarm status; set alarm...
- Page 2 4. Chiudere il vano batterie. 86 x 28 x 159.5 mm Nuvoloso B x A x P 8. Sveglia impostata Grazie per aver scelto questa stazione meteo (BAR310HG) (3.38 x 1.02 x 6.28 pollici) SEGNALE SEGNALE NESSUN 5. Per cominciare a ricevere i dati della temperatura Oregon Scientific...
