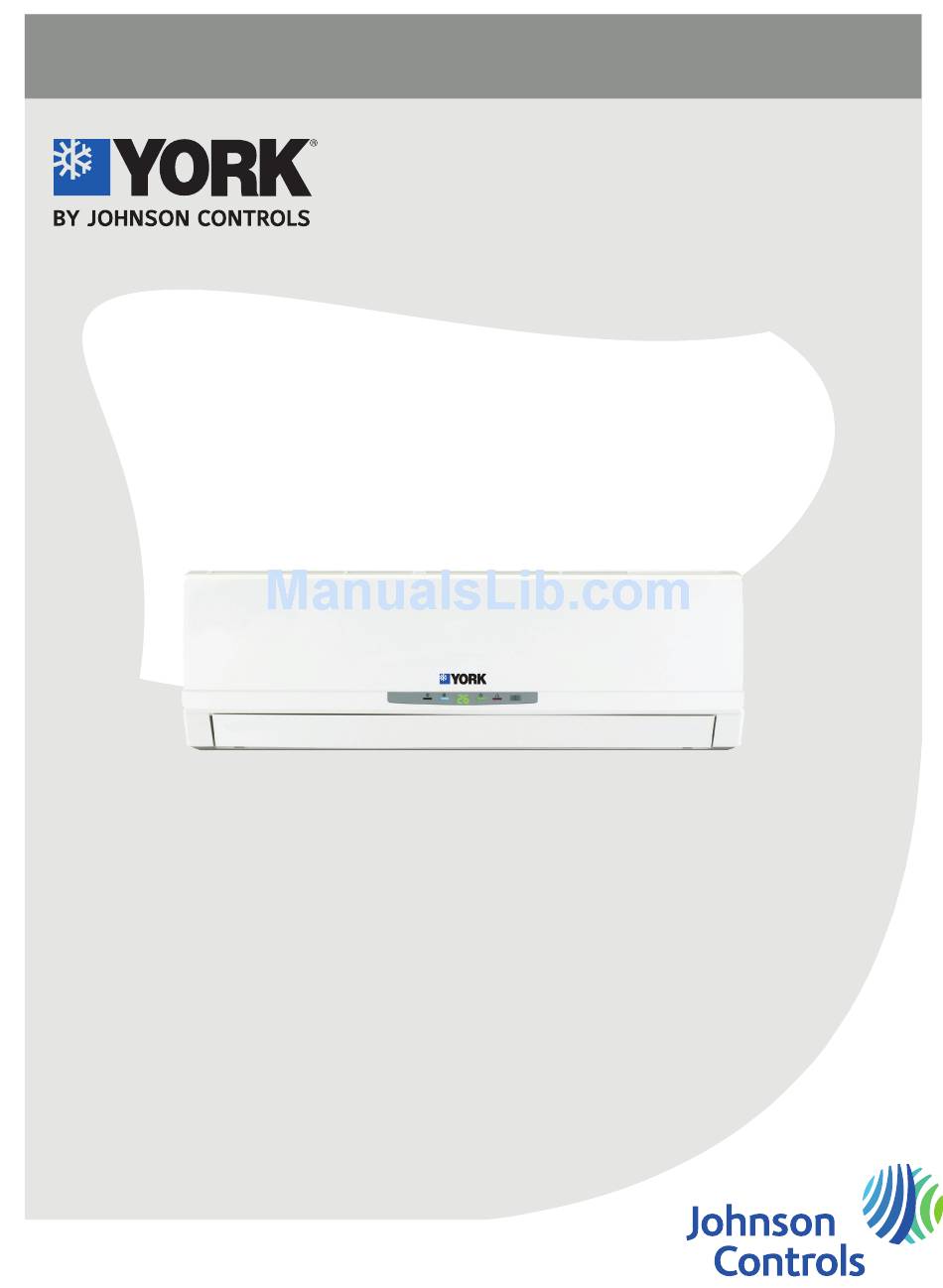

- Page 1 USER’S MANUAL Mini-Split Air Conditioner YEHNZH018/21/24BAMKAFX Read this manual before installation and operation Make sure that it is well kept for later reference UUHNZHAMQ-120305...
-
Page 2: Table Of Contents
CONTENTS Operation and maintenance Notices for operation ........1 ■ Notices for use ........3 ■ Names and functions of each part ■ ......5 ■ Operation of wireless remote control ......6 ■ Emergency operation ........11 ■ ........12 Clean and care Troubleshooting ■... -
Page 3: Operation And Maintenance
Operation and maintenance-notices for operation ★ ★ ★ Be sure to pull out the power plug Earth:The ground be Select the most appropriate temperature. when not using the air conditioner connected! for a long time. Keep room cooler than outside about 5 degree. -
Page 4: Notices For Operation
Notices for operation ★ The airflow direction can be adjusted appro- ★ If the supply cord is damaged, it must be replaced priately. At operating, adjust the vertical airflow by the manufacturer or its service agent or a direction by adjusting the louvers of upward/do- similarly qualified person in order to avoid a wnward direction. -
Page 5: Notices For Use
Notices for use Working principle and special functions for cooling Principle: Air conditioner absorbs heat in the room and transmit to outdoor and discharged, so that indoor ambient temperature decreased, its cooling capacity will increase or decrease by outdoor ambient temperature. Anti-freezing function: If the unit is running in COOL mode and in low temperature, there will be frost formed on the heat exchanger, when indoor heat exchanger temperature decreased below 0... -
Page 6: Working Temperature Range
Notices for use Anti-cool wind function: In "Heat" mode, under the following three kinds of state, if indoor heat exchanger doesn't arrive at certain temp., indoor fan will not act, in order to prevent cool wind blowing(within 2 mins): 1. Heating starts. 2.After Auto Defrost finished. 3.Heating under the low temperature. Gentle Breeze In the following situation, the indoor unit may blow gentle breeze, and the guide louver rotate to a certain position:... -
Page 7: Names And Functions Of Each Part
Names and functions of each part Indoor unit Air in ⑵ Air out ⑸ ⑶ ⑷ ⑹ Wireless ⑴ Remote control ⑻ remote control ⑵ Front panel ⑴ ⑶ Filter ⑷ Guide louver ⑸ Outdoor unit Wall pipe ⑹ Bind tape Air in ⑺... -
Page 8: Operation Of Wireless Remote Control
Operation of wireless remote control Names and functions of wireless remote control Note:Be sure that there are no obstructions between receiver and remote controller; Don't drop or throw the remote control;Don't let any liquid in the remote control and put the remote control directly under the sunlight or any place where is very hot. SLEEP Signal transmitter SLEEP button... -
Page 9: Names And Functions Of Wireless Remote Control
Operation of wireless remote control Names and functions of wireless remote control Notice:This is a general use remote controller, it could be used for the air conditioners with multifunction; For some function, which the model dosen't have, if press the corresponding button on the remote controller that the unit will keep the original running status. - Page 10 Operation of wireless remote control Names and functions of wireless remote control Notice:This is a general use remote controller, it could be used for the air conditioners with multifunction; For some function, which the model dosen't have, if press the corresponding button on the remote controller that the unit will keep the original running status.
- Page 11 Operation of wireless remote control Guide for operation- General operation 1. After powered on, press ON/OFF button, the unit will start to run.(Note: When it is powered on, the guide louver of main unit will close automatically.) 2. Press MODE button, select desired running mode. 3.
-
Page 12: Changing Batteries And Notices
Operation of wireless remote control ★ About lock Press +and - buttons simultaneously to lock or unlock the keyboard. If the remote controller is locked, the icon will be displayed on it, in which case, press any button, the mark will flicker for three times. -
Page 13: Emergency Operation
Emergency operation Displayer indicator light control of indoor unit It's a special selective button for the users ,who are not accustomed to the light at sleeping. Get the displayer indicator light on: When setting the light function,the mark will ● display on the remote controller screen by pressing this button. -
Page 14: Clean And Care
Clean and care Caution Turn power off and pull out the power plug before cleaning air conditioner, or it may cause electric ● ● shock. Never sprinkle water on the indoor unit and the outdoor unit for cleaning because it can cause an ●... - Page 15 Clean and care Check before use ① Be sure that nothing obstructs the air outlet and intake vents. ② Check that whether ground wire is properly connected or not. Check that whether the batteries of air conditioner are ③ changed or not. ④...
-
Page 16: Troubleshooting
Troubleshooting CAUTION Don't attempt to repair the air conditioner by yourself, it can cause an electric shock or fire. Please check the following items before asking for repair, it can save your time and money. Phenomenon Troubleshooting Not operate immediately when the air Once the air conditioner is stopped, it will ●... - Page 17 Troubleshooting Phenomenon Troubleshooting Has the power been shut down? The unit can not run. Is power plug loosed? Is the circuit protection device tripped off or not? Is voltage higher or lower? (Tested by professionals) Breaking off Is the TIMER correctly used? Is Temp.
- Page 18 Troubleshooting Phenomenon Troubleshooting Indoor unit cannot deliver air. In HEAT mode, when the temperature of indoor ● heat exchanger is very low, that will stop deliver air in order to prevent cool air. (Within 2min) In HEAT mode, when the outdoor temperature ●...
-
Page 19: Notices For Installation
Notices for installation Important Notices The unit installation work must be done by qualified personnel according to the local rules and this manual. Before installation, please contact with local authorized maintenance center, if unit is not installed by the authorized maintenance center, the malfunction may not solved, due to discommodious contacts. - Page 20 Notices for installation Safety Requirements For Electric Appliances 1. The power supply should be used the rated voltage and AC exclusive circuit, the power cable diameter should be satisfied. 2. Don't drag the power cable emphatically. It should be reliably earthed, and it should be connected to the special earth device, the installation work should be operated by the professional.
-
Page 21: Installation Dimension Diagram
Installation dimension diagram Installation dimension diagram Space to the ceiling Above Space to the wall Above Above Space to the wall Above Above Air outlet side Space to the floor The dimensions of the space necessary for correct ● installation of the appliance including the minimum permissible distances to adjacent structures NOTE: The indoor unit installation of dual split type unit is taking one of the indoor units for example,... -
Page 22: Install Indoor Unit
Install indoor unit Install the rear panel 1.Always mount the rear panel horizontally. Due to the water tray of indoor unit has been adopted the both-way drainage design, the outlet of water tray should be adjusted slightly down when installing, that is taking the outlet of the water tray as the center of a circle, the included angle between the evaporator and level should be 0 or more, that is good for condensing water drainage. -
Page 23: Install The Indoor Unit
Install indoor unit NOTE: When connecting the electric wire if the wire length is not enough, please contact with the authorized service shop to buy a exclusive electric wire that is long enough and the joint on the wire are not allowed. The electric wiring must be correctly connected, wrong connection may cause spare parts ●... -
Page 24: Install Outdoor Unit
Install outdoor unit Electric wiring Disassemble the front side plate on the outdoor unit (4pc screw) Take off wire clamp. Connect and fix power connect cord, signal controlwire (only for heat pump type), power cord to terminal of line bank. Wiring should fit that of indoor unit. Fix the power connection cord, signal control Cool only type: A UNIT:... -
Page 25: Check After Installation And Test Operation
Check after installation and test operation Check after installation Items to be checked Possible malfunction Has it been fixed firmly? The unit may drop, shake or emit noise. It may cause insufficient cooling(heating) Have you done the refrigerant leakage test? capacity It may cause condensation and dripping. -
Page 26: Installation And Maintenance Of Healthy Filter
Installation and Maintenance of Healthy Filter Installation Instructions 1. Forcibly pull the panel for a specific angle from the two ends of the front panel according to the arrow direction. Then pull the air filter downwards to remove it. (See Fig.a) Fig. - Page 27 www.johnsoncontrols.com 2012 Johnson Controls, Inc. Doc. No.:UUHNZHAMQ-120305...
