1
SERVICE MANUAL
Level 1&2
RM-640 / RM-662
Transceiver characteristics
Band:
GSM bands: 850/900/1800/1900 (RM-640/RM-662)
WCDMA bands: 850/900/1900/2100 (RM-640)
Display:
QVGA 2.4" 240x320 touch screen with 262k colors
Camera:
5Mpx full focus
Led flash
Operating System:
Series 40 6th edition / Touch
Connections:
Micro USB connector/charger plug
2mm DC charging plug
3.5mm AV connector
Bluetooth version 2.1+EDR
MicroSD memory card
Transceiver with BL-5CT battery pack
Talk time
GSM:
Up to 5.6 hours
WCDMA:
Up to 3.4 hours
Note:
Talk times are dependent on network parameters
and phone settings
Confidential | Copyright © 2010 Nokia | All rights reserved

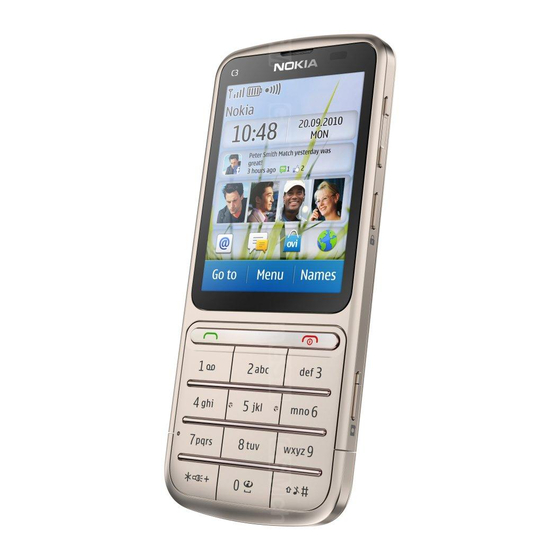

Nokia C3-01/C3-01m
RM-640/RM-662
Service Manual Level 1&2
Standby
GSM:
Up to 405 hours
WCDMA:
Up to 440 hours
Version 1.0
Advertisement
Table of Contents
Related Manuals for Nokia C3-01
Summary of Contents for Nokia C3-01
- Page 1 Up to 5.6 hours Up to 405 hours WCDMA: WCDMA: Up to 3.4 hours Up to 440 hours Note: Talk times are dependent on network parameters and phone settings Confidential | Copyright © 2010 Nokia | All rights reserved Version 1.0...
-
Page 2: Table Of Contents
BATTERY INFORMATION ............................8 EXPLODED VIEW ............................... 9 SERVICE DEVICES ..............................10 SOFTWARE UPDATE ............................... 11 DISASSEMBLY INSTRUCTIONS ..........................12 ASSEMBLY HINTS ..............................21 SOLDER COMPONENTS ............................24 Confidential | Copyright © 2010 Nokia | All rights reserved Version 1.0... - Page 3 24.09.2010 First approved version The purpose of this document is to help NOKIA service levels 1 and 2 workshop technicians to carry out service to NOKIA products. This Service Manual is to be used only by authorized NOKIA service suppliers, and the content of it is confidential. Please note that NOKIA provides also other guidance documents (e.g.
-
Page 4: Copyright
Nokia operates a policy of continuous development. Nokia reserves the right to make changes and improvements to any of the products described in this document without prior notice. Under no circumstances shall Nokia be responsible for any loss of data or income or any special, incidental, consequential or indirect damages howsoever caused. -
Page 5: Warnings And Cautions
3. Use only approved components as specified in the parts list. 4. Ensure all components, modules screws and insulators are correctly re–fitted after servicing and alignment. 5. Ensure all cables and wires are repositioned correctly Confidential | Copyright © 2010 Nokia | All rights reserved Version 1.0... -
Page 6: Esd Protection
RM-640/RM-662 Service Manual Level 1&2 3. ESD PROTECTION Nokia requires that service points have sufficient ESD protection (against static electricity) when servicing the phone. Any product of which the covers are removed must be handled with ESD protection. The SIM card can be replaced without ESD protection if the product is otherwise ready for use. -
Page 7: Care And Maintenance
All of the above suggestions apply equally to the product, battery, charger or any accessory. Confidential | Copyright © 2010 Nokia | All rights reserved Version 1.0... -
Page 8: Battery Information
Batteries’ performance is particularly limited in temperatures well below freezing. Do not dispose batteries in a fire! Dispose of batteries according to local regulations (e.g. recycling). Do not dispose as household waste. Confidential | Copyright © 2010 Nokia | All rights reserved Version 1.0... -
Page 9: Exploded View
AV JACK I0012 I0016 DC JACK I0015 SCREW TORX+ 4 I0020 BATTERY COVER I0021 Only available Not reuseable Repair/swap Ver. 1.0 as assembly after removal only in level 3 Confidential | Copyright © 2010 Nokia | All rights reserved Version 1.0... -
Page 10: Service Devices
Service Bulletin (SB-011) on Nokia Online. Supplier or manufacturer contacts for tool re-order can be SS-88 Camera Removal tool found in “Recommended service equipment” document on Nokia Online. Confidential | Copyright © 2010 Nokia | All rights reserved Version 1.0... -
Page 11: Software Update
To use the FLS-5 Flash Dongle, follow the user guide inside the sales package. Please check always for the latest version of flash software, which is available on Nokia Online. Confidential | Copyright © 2010 Nokia | All rights reserved... -
Page 12: Disassembly Instructions
5) Remove the BATTERY COVER. If there is a battery 6) Unscrew the six TORX+ size 4 screws in the order inserted, remove it also. shown. Do not use them again! Confidential | Copyright © 2010 Nokia | All rights reserved Version 1.0... - Page 13 10) Release also the clip on the other side of the KEYMAT. 11) Lift the A-COVER from the bottom end. 12) Turn carefully the A-COVER as shown. Be careful not to damage the flex while turning the A-COVER. Confidential | Copyright © 2010 Nokia | All rights reserved Version 1.0...
- Page 14 Release also the clip on carefully with the SS-93. Be careful not to damage the other corner. Pull out the KEYMAT and remove it. the connector or nearby components. Confidential | Copyright © 2010 Nokia | All rights reserved Version 1.0...
- Page 15 23) Turn the UI/READER MODULE as shown. Be careful 24) Disconnect the DISPLAY connector carefully with not to damage the flex. the SS-93. Be careful not to damage the connector! Confidential | Copyright © 2010 Nokia | All rights reserved Version 1.0...
- Page 16 28) Use the dental tool to detach the EARPIECE. 29) Remove the EARPIECE with the tweezers. Discard 30) Use the tweezers to peel off the EARPIECE ADHESIVE. Discard it. Confidential | Copyright © 2010 Nokia | All rights reserved Version 1.0...
- Page 17 36) Release the SIDE-KEY PWB by pushing the clip in the B-COVER. Push down to detach the clip shown with the sharp end of the SS-93. holding the ENGINE BOARD. Confidential | Copyright © 2010 Nokia | All rights reserved Version 1.0...
- Page 18 42) Push the SS-93 outwards as shown to detach the two shown clips holding the ENGINE BOARD on the UI/READER MODULE. Be careful not to damage any nearby components. The UI/READER MODULE can now be removed. Confidential | Copyright © 2010 Nokia | All rights reserved Version 1.0...
- Page 19 45) Use the DC plug to lift the DC JACK from its socket. 46) Remove the DC JACK with the tweezers. 47) Use the AV plug to lift the AV JACK from its 48) Remove the AV JACK with the tweezers. socket. Confidential | Copyright © 2010 Nokia | All rights reserved Version 1.0...
- Page 20 53) Detach the third clip of the METAL INLAY with the 54) Nokia C3-01 disassembly is now complete. dental tool as shown. The METAL INLAY can now be removed. -END OF DISASSEMBLY- Confidential | Copyright © 2010 Nokia | All rights reserved Version 1.0...
-
Page 21: Assembly Hints
5) Remove the protective film from the DISPLAY. 6) Turn the UI/READER MODULE over as shown and insert the bottom in the B-COVER by pressing it carefully. Confidential | Copyright © 2010 Nokia | All rights reserved Version 1.0... - Page 22 CARRIER. Be careful not to damage the flex. A-COVER to the B-COVER. 11) Repeat the procedure on the other side. 12) Press also from the bottom to fix the KEYMAT to the B-COVER. Confidential | Copyright © 2010 Nokia | All rights reserved Version 1.0...
- Page 23 Nokia C3-01/C3-01m RM-640/RM-662 Service Manual Level 1&2 13) Tighten the six TORX+ size 4 screws to the torque of 14 Ncm in the order shown. Confidential | Copyright © 2010 Nokia | All rights reserved Version 1.0...
-
Page 24: Solder Components
Nokia C3-01/C3-01m RM-640/RM-662 Service Manual Level 1&2 11. SOLDER COMPONENTS Confidential | Copyright © 2010 Nokia | All rights reserved Version 1.0...
