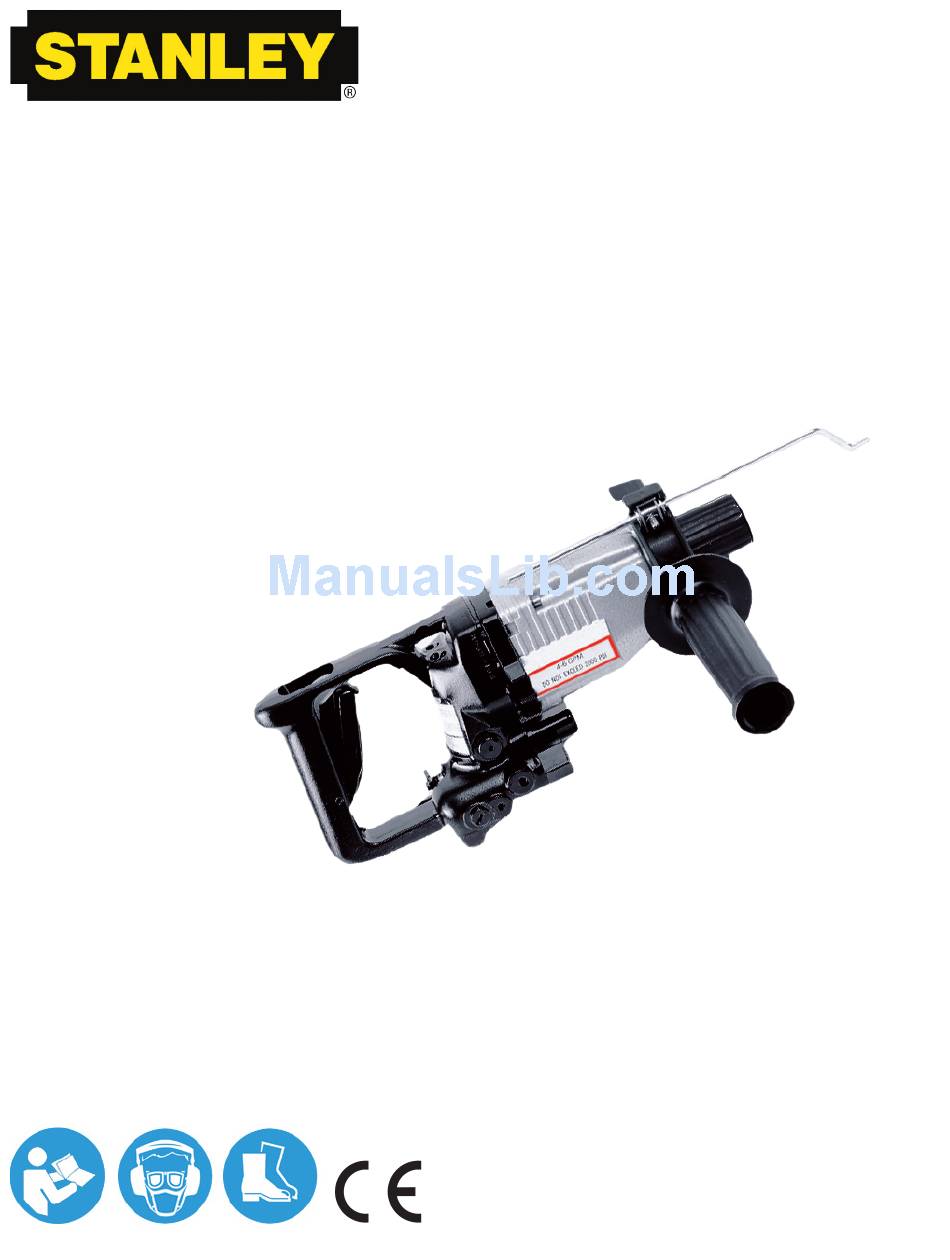

- Page 1 HD08 Hydraulic Hammer drill afety peratiOn and aintenance USer ManUaL © 2011 Stanley Black & Decker, Inc. New Britain, CT 06053 U.S.A. 65301 2/2011 Ver. 4...
-
Page 2: Declaration Of Conformity
Provisiones especiales: Disposizioni speciali: Representative in the Union: Patrick Vervier, Stanley Dubuis 17-19, rue Jules Berthonneau-BP 3406 41034 Blois Cedex, France. Vertreter in der Union/Représentant dans l’union/Representante en la Union/Rappresentante presso l’Unione Done at/Ort/Fait à/Dado en/Fatto a Stanley Hydraulic Tools, Milwaukie, Oregon USA... -
Page 3: Table Of Contents
REPAIRS AND / OR SERVICE TO THIS TOOL MUST ONLY BE DONE BY AN AUTHORIZED AND CERTIFIED DEALER. For the nearest authorized and certified dealer, call Stanley Hydraulic Tools at the number listed on the back of this manual and ask for a Customer Service Representative. -
Page 4: Safety Symbols
Always observe safety symbols. They are included for your safety and for the protection of the tool. LOCAL SAFETY REGULATIONS Enter any local safety regulations here. Keep these instructions in an area accessible to the operator and mainte- nance personnel. 4 ► HD08 user manual... -
Page 5: Safety Precautions
• When working near electrical conductors, always The model HD08 Hydraulic Hammer Drill will provide assume that all conductors are energized and that safe and dependable service if operated in accordance insulation, clothing and hoses can conduct electric- with the instructions given in this manual. -
Page 6: Tool Stickers & Tags
OPERATION MANUAL. OPERATION MANUAL. taG to Be remoVed oNly By taG to Be remoVed oNly By TOOL OPERATOR. TOOL OPERATOR. See otHer Side See otHer Side SAFETY TAG P/N 15875 (Shown smaller then actual size) 6 ► HD08 user manual... -
Page 7: Hose Types
HOSE SAFETY TAGS To help ensure your safety, the following DANGER tags are attached to all hose purchased from Stanley Hydraulic Tools. DO NOT REMOVE THESE TAGS. -
Page 8: Hose Recommendations
HOSE RECOMMENDATIONS 8 ► HD08 user manual... -
Page 9: Htma Requirements
When choosing hydraulic fluid, the expected oil temperature extremes that will be experienced in service determine the most suitable temperature viscosity characteristics. Hydraulic fluids with a viscosity index over 140 will meet the requirements over a wide range of operating temperatures. *SSU = Saybolt Seconds Universal HD08 user Manual ◄ 9... -
Page 10: Operation
Verify correct connection of the hoses before continuing. DETERMINE TOOL MODEL open-center or closed-center models Closed-center models have a closed-center decal on Figure 2. Operator Controls the bottom of the handle. 10 ► HD08 user manual... -
Page 11: Figure 3. Hammer Drill Accessories
To adjust the side handle to a comfortable position, twist the hand grip in a counterclockwise direction and reposi- Most HD08 operations will be to drill holes in brittle ma- tion the handle assembly. Once in position, tighten the terials such as rock, concrete, or other aggregate. This... -
Page 12: Drill Operation
DRILL OPERATION (by clamping in a vise or otherwise securing it to the work surface) so that the piece is not turned by the drill Operate the HD08 Hammer Drill as follows: bit during drilling. 1. Observe all safety precautions. -
Page 13: Tool Protection & Care
This can cause damage to internal seals. • Always replace hoses, couplings and other parts with replacement parts recommended by Stanley Hydraulic Tools. Supply hoses must have a mini- mum working pressure rating of 2500 psi/172 bar. •... -
Page 14: Troubleshooting
Prevent reverse flow by using only one port from the valve for pressure, the return tool hose to the cooler and the filter line. Correct the quick-disconnect male/female routing per instructions and the arrows on the fittings. 14 ► HD08 user manual... - Page 15 Use pump size and rpm for producing needed controls. flow only. Eliminate circuit heating causes. Circuit has contaminants that have Replace worn pump and valves. Install a large caused wear and high heat generation. clean filter and keep the fluid clean. HD08 user Manual ◄ 15...
-
Page 16: Specifications
Part NumBer 1/2-inch Geared Chuck (requires chuck adapter P/N 16770)................16769 Chuck Adapter (used with geared chuck P/N 16769) ..................16770 SERVICE PARTS deScriPtioN Part NumBer Service Kit, Includes Shaft Keeper and Knob....................17183 Seal Kit ................................18142 16 ► HD08 user manual... -
Page 17: Hd08 Parts Illustration
HD08 PARTS ILLUSTRATION HD08 user Manual ◄ 17... -
Page 18: Hd08 Parts List
16598 TRIGGER 16647 COMPRESSION COIL SPRING 16648 ROLL PIN, 5/32 × 5/8 17815 TRIGGER STRUT 17817 KNOB 02837 SET SCREW 07626 O-RING, 1/2 × 5/8 × 1/16 15904 REVERSING SPOOL 17897 SET SCREW 04939 LEVER 18 ► HD08 user manual... - Page 20 Stanley Hydraulic Tools 3810 SE Naef Road Milwaukie, Oregon 503-659-5660 / Fax 503-652-1780 www.stanleyhydraulic.com IMPORTANT To fill out a Product Warranty Recording form, and for information on your warranty, visit Stanleyhydraulic.com and select the Warranty tab. (Note: The warranty recording form must be submitted to validate the warranty).
