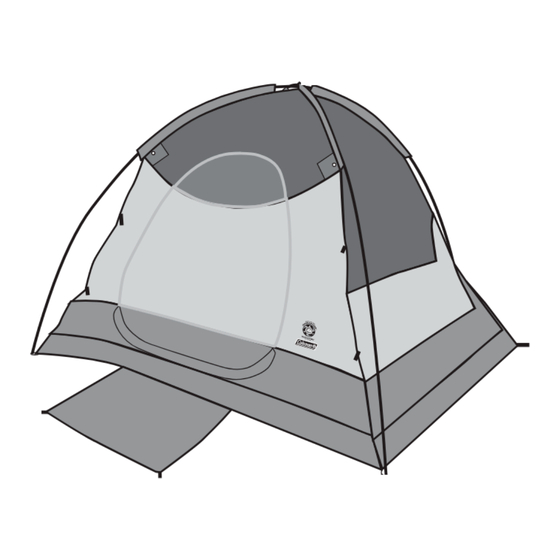

Coleman Outsider 9261-131 Instructions

When You Are Ready To Set Up
Your Tent
–Select a level campsite clear of rocks,
branches and other hard or sharp objects.
–Do not set up your tent under trees.
–For best results in windy conditions, do not
position the door of tent into the wind.
–See owners manual for more tips.
1 Layout & Positioning
of Tent, Pole Assembly
–Layout and position tent with door
facing desired direction. (illus. 1)
–Unzip door.
–Stake down tent corners, and tent
sides using the rings at the end of the
stake loops and the side stake loops.
(illus 2) Keep the floor taut.
–Assemble frame poles by interlocking
shock-corded poles. This will make two
long poles.
–Insert the poles diagonally into pole
sleeves.The center of the poles should
cross forming an "X" in the middle of
tent. (illus. 1)
–Fasten frame tie on top of tent over
both poles. (illus. 1), (illus. 3)
illus. 1
Assembled poles
inserted through
pole sleeves
13 x 11 Outsider
Instructions apply to Part Number 9261-131
POLE ASSEMBLY PARTS
Part No. 9261-831
Main Tent
Poles
Part No. 9261-832
Rainfly
Pole
Rainfly Part No. 9261-833
Frame tie
illus. 2
Tent stake
through ring
2 Connect Frame to Tent
–Insert one end of main tent pole
onto pin, of pin & ring system, at
tent corner. (illus. 4)
–Go to opposite end of pole and
gradually apply pressure to the pole
forming an arch until you are able to
insert the pin into the pole.
–Repeat for second pole.
Tent frame
set-up
Tent
™
illus. 3
Frame tie
illus.4
Insert pole tip onto
pin & ring
