Garland GF60-10RR Instruction Manual

GF Series 60" Gas
Restaurant Range
Models:
 GF60-10RR
 GFE60-10RR
Model GF60-10RR
NOTE: Ranges supplied with casters must
be installed with an approved restraining
device.

Specifications:

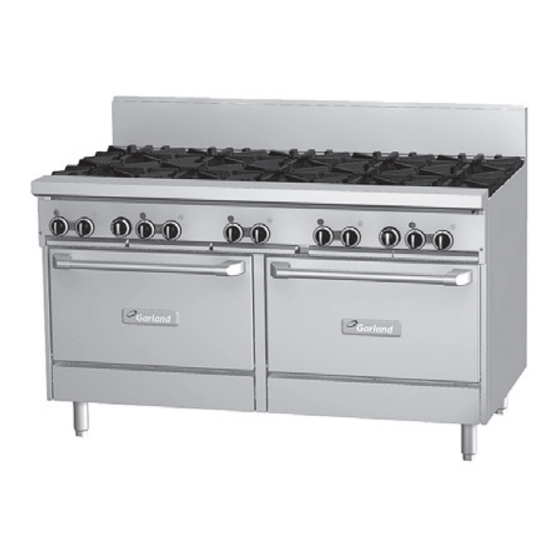

Gas restaurant series range with large capacity (standard)
oven. 59 1/16" (1500mm) wide and 27 1/4" (686mm) deep
work top surfaces. Total flame failure protection for all burn-
ers. Stainless steel front, sides and 5" (127mm) wide front rail.
6" (152mm) legs with adjustable feet. Ten Starfire-Pro 2 piece,
26.000 Btuh/7.61 kW, cast open burners set in split cast iron
ergonomic grates. Griddle or optional hot top with cast iron
"H" style burners. Porcelain oven interior with ribbed oven bot-
tom and door. "Keep cool" oven door handle. Heavy cast iron
Garland Commercial Garland Commercial Ranges Ltd
Industries, LLC 1177 Kamato Road,
185 East South Street Mississauga, Ontario
Freeland, PA 18224 L4W 1X4 CANADA
Phone: (570) 636-1000 Phone: 905-624-0260
Fax: (570) 636-3903 Fax: 905-624-5669
 GF60-8G12RR  GF60-6G24RR
 GFE60-8G12RR  GFE60-6G24RR

Standard Features:

• Flame failure protection: all burners
• Spark ignition on all concealed burn-
ers (open top burners manual igni-
tion)
• Large 27" (686mm) work top surface
• Stainless steel front and sides
• Stainless steel 5" (127mm) plate rail
• Stainless steel low profile back guard
• 12" (305mm) section stamped drip
trays w/ dimpled bottom
• 6" (152mm) adj. stainless steel legs
• Large easy-to-use control knobs
• Gas regulator 1" NPT rear gas connec-
tion
Standard on Applicable Models:
• Electric spark ignition on all burners,
requiring single phase 115V 60Hz or
240V 50Hz (specify) prefix GFE models
• Ergonomic split cast iron top ring
grates
• 26,000 Btuh/7.61 kW 2 piece cast iron
Starfire- Pro open top burner
• 5/8" (15mm) thick steel griddle plate
with snap action modulating griddle
control 175° to 425° F ( 79° to 218°C),
23" (584mm) working depth surface,
on right; optional on left
• 4-1/4" (108mm) wide grease trough
• 18,000 Btuh/5.27 kW cast iron "H"
style griddle burner per 12"(305mm)
width of griddle
• 38,000 Btuh/ 11.13 kW cast iron "H"
style oven burner
 GF60-4G36RR
 GFE60-4G36RR
•
•
•
•
•

Optional Features:

 Convection oven motor 240V
 Grooved griddle in 1/2 or full plate
 Hot top 12" (305mm) plate in lieu of
 Stainless steel backguard, w/remov-
 Stainless steel back panels for back-
 Additional oven racks
 6" (152mm) levelling swivel casters (4),
 Flanged deck mount legs
 Celsius temperature dials
"H" 38,000 Btuh/11.13 kW (natural gas) oven burner controlled
by even bake, fast recovery snap action modulating oven ther-
mostat. Available with convection or standard oven bases.
Enodis UK LTD
5E Langley Business Centre,
Station Road
Langley SL3 8DS Great Britain
Phone: 01753 485900
Fax: 01753 485901
Item: ______________________________
Quantity: __________________________
Project: ____________________________
Approval: __________________________
Date: ______________________________
Snap action modulating oven ther-
mostat low to 500° F
Large porcelain oven interior, fits stan-
dard sheet pans in both directions for
standard ovens
Strong, keep-cool oven door handle
Nickel plated oven rack and 3-posi-
tion removable oven rack guide
Convection oven w/3 nickel plated
oven racks and removable rack
guides in lieu of standard oven w/
1/3HP 120v 60 Hz single phase fan
motor; change suffix RR to CR (1) or
CC (2) convection ovens, CR ovens
standard on right
50/60 Hz single phase.
section widths
two open burners, manual valve con-
trolled w/18,000 Btuh/5.27 kW cast
iron "H" burner standard on left side
able stainless shelf
guards or range
w/front locking
TM
