La Crosse Technology BC-900 Instruction Manual

INTRODUCTION:
Congratulations on purchasing this intelligent charging unit which enables quick and optimum charging to "AA" and "AAA" rechargeable batteries. With
charging, discharging, refreshing and capacity test functions as well as individual LCD displays for charging compartments; this charging unit is reliable,
user-friendly and ideal for use in the home, office or on a journey.

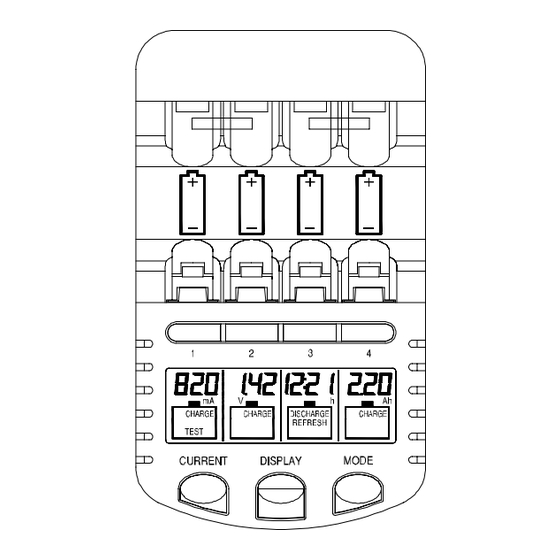

The Charging unit
CAUTIONS:
1. The charger is restricted to charging NiCd and NiMH rechargeable batteries only. Never use this charger for other types of batteries such as
alkaline, lithium, carbon zinc or other types that are not specified.
2. The charging unit shall only be used at normal indoor room conditions.
3. Always follow the charging instructions for the rechargeable battery. Observe the recommended charging current of the rechargeable batteries.
Never use a charging current higher than recommended in the charging process.
4. Never use any power cable and transformer other than those originally supplied with the charging unit.
5. The rechargeable batteries may become hot during charging (especially when a high charging current is chosen). User shall take extra care when
taking out the batteries after charging.
6. Unplug the charging unit from the power source when not in use.
FEATURES:
The Charging unit
Charging rechargeable battery in various current (200, 500, 700 or 1000 mA). The charging current can be set up to 1500 or 1800 mAh when two
batteries are charged.
Fast charging – 70 mins to charge up 2000 mAh batteries
Individual LCD display for all compartments
Charging both "AA" and "AAA" rechargeable batteries simultaneously
Overheat detection to protect rechargeable batteries from over-charging
Minus delta voltage (-dV) detection for charge termination
Damaged batteries detection
Discharge mode (first discharging and then charging) to remove memory effect of rechargeable batteries
Refreshing old rechargeable batteries by discharging/ charging cycles
Test function to check the capacities of rechargeable batteries
Charging/ Discharging functions can be launched independently and simultaneously to each rechargeable battery in the compartments
Various display modes during charging/ discharging – the charging current (in mA), time elapsed (in hh:mm), the terminal voltage (in V) and
accumulated capacities (in mAh or Ah)
INVENTORY OF CONTENTS
1. Charging unit
2. Transformer
3. Size "C" battery adapter (4) & Size "D" battery adapter (4)
4. Holding Bag
5. "AA" rechargeable battery (4) & "AAA" rechargeable battery (4)
6. Instruction Manual
FUNCTION KEYS:
There are three easy-to-use function keys and four number keys on the charging unit:
CURRENT key
DISPLAY
Compartment Number key
Press and release the Number key to select a particular battery compartment for charge modes and/or display mode adjustment.
MODE key
The mode key shall first be pressed and held for 1 second to activate the mode change. The subsequent pressing of the mode key will toggle between
the "Charge", "Discharge", "Test" and "Refresh" mode. To change the operating mode for an individual rechargeable battery, first press the corresponding
NUMBER key then press the MODE key.
DISPLAY key
Press and release to select the displays of the charging current (in mA), time elapsed (in hh:mm), the terminal voltage (in V) and accumulated capacities
(in mAh or Ah) during the charging or discharging process.
To change the display content of a particular rechargeable battery, first press the corresponding NUMBER key then press the DISPLAY key.
BATTERY CHARGER BC-900
Instruction Manual
Compartment
Number keys
MODE key
