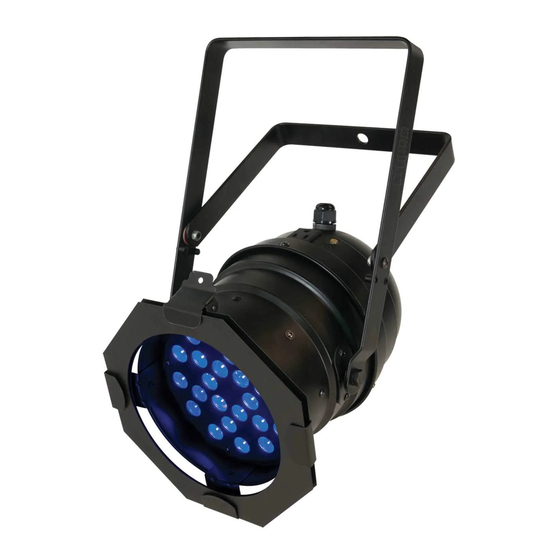

LED PAR 56-24UVB
User Manual

Advertisement

Table of Contents
loading

Summary of Contents for Chauvet LED PAR 56-24UVB

  • Page 1 LED PAR 56-24UVB User Manual...
  • Page 2: Table Of Contents

    3-Pin to 5-Pin Conversion Chart .................................... 14   Setting up a DMX Daisy Chain ....................................14 ..................................15   ENERAL AINTENANCE ..................................15   ETURNS ROCEDURE ......................................15   LAIMS   TECHNICAL SPECIFICATIONS ............................16   CONTACT US ..................................17 CHAUVET®, 2010, All Rights Reserved  Information and specifications in this User Manual are subject to change without notice. CHAUVET® assumes no  responsibility or liability for any errors or inaccuracies that may appear in this manual.   Rev02 ...
  • Page 3: Before You Begin

    In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Manual Conventions CHAUVET® manuals use the following conventions to differentiate certain types of information from the regular text. EANING...
  • Page 4: Safety Instructions

    Safety Instructions Please read these instructions carefully. It includes important information about the installation, usage and maintenance of this product. • Please keep this User Manual for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. •...
  • Page 5: Introduction

    2. I NTRODUCTION Product Overview Control Panel (LED display) Microphone Microphone Sensitivity Adjustment Knob Fuseholder DMX In DMX Out Power Input Bracket Adjustment Knob Attachment Bolt (not meant to be adjusted) Power Output Hanging/mounting (13 mm hole) Gel Frame Release Gel Frame Power Output Bracket...
  • Page 6: Setup

    This fixture contains power linking via the Edison outlet located in front of the power input cable. Please see the diagram below for further explanation. The maximum quantity of LED PAR 56-24UVB that may be linked is 18. Fixture 1...
  • Page 7: Mounting

    Mounting Orientation The LED PAR 56-24UVB may be mounted in any position provided there is adequate room for ventilation. Rigging Be sure that the structure can support the weight of the fixture. Please see the “Technical Specifications” section of this manual for a detailed weight listing. Mount the fixture securely. Use a screw, nut and bolt, or a hanging clamp.
  • Page 8: Operating Instructions

    Configuring the Starting Address The LED PAR 56-24UVB fixture uses two DMX channels. The highest channel that the fixture may be set to in order to function properly is 511. Any address higher than this will prevent access to all of the channels.
  • Page 9: Dmx Operation

    DMX Operation This operating mode allows control of the fixture with an external DMX controller. You must set the starting address for this mode. If this is your first time using DMX, then it is recommended that you refer to the “DMX Primer” section in the “Appendix” of this manual. Press <MENU>...
  • Page 10: Automatic

    Automatic This fixture has a preprogrammed pulsating chase with adjustable speed. Access this via the control panel of the front of the fixture. Please see the instructions below for further details. Press <MENU> until appears on the LED screen. Using <UP> and <DOWN>, select the desired speed ( Press <ENTER>.
  • Page 11: Appendix

    #32. • Keep DMX cables separated from • Interference from AC wires power cables or black lights. If you still have a problem after trying the above solutions, please contact CHAUVET® Technical Support. 5. Appendix 9/13/2010 2:33 PM...
  • Page 12: Dmx Primer

    Maximum recommended number of fixtures on a daisy chain: 32 Data Cabling To link fixtures together you must obtain data cables. You can purchase CHAUVET® certified DMX cables directly from a dealer/distributor or construct your own cable. If you choose to create your own cable please use data-grade cables that can carry a high quality signal and are less prone to electromagnetic interference.
  • Page 13: Cable Connectors

    Cable Connectors Cabling must have a male XLR connector on one end and a female XLR connector on the other end. DMX connector configuration COMMON DMX + INPUT OUTPUT Terminator To avoid signal transmission problems and interference, it is always advisable to connect a DMX signal terminator.
  • Page 14: 3-Pin To 5-Pin Conversion Chart

    3-Pin to 5-Pin Conversion Chart If you use a controller with a 5-pin DMX output connector, you will need to use a 5-pin to 3-pin adapter. The chart below details a proper cable conversion: IN TO ONVERSION HART Conductor 3-Pin Female (Output) 5-Pin Male (Input) Ground/Shield Pin 1...
  • Page 15: General Maintenance

    Package must be clearly labeled with a Return Merchandize Authorization Number (RMA #). Products returned without the RMA # will be refused. Call CHAUVET® and request an RMA # prior to shipping the fixture. Be prepared to provide the model number, serial number and a brief description of the cause for the return.
  • Page 16: Technical Specifications

    LED ....................24 1 W (UV) 50,000 hrs PHOTO OPTIC Coverage angle........................23° INDOOR/OUTDOOR Rating ......................For indoor use only THERMAL Maximum ambient temperature ................ 104° F (40° C) ORDERING INFORMATION LED PAR 56-24UVB .................. LEDPAR5624UVB WARRANTY INFORMATION Warranty ....................2-year limited warranty...
  • Page 17: Contact Us

    ONTACT W o r l d W i d e General Information CHAUVET® 5200 NW 108 Sunrise, FL 33351 voice: 954.929.1115 fax: 954.929.5560 toll free: 800.762.1084 Technical Support CHAUVET® 5200 NW 108 Sunrise, FL 33351 voice: 954.929.1115 (Press 4) fax: 954.929.5560 (Attention: Service)
