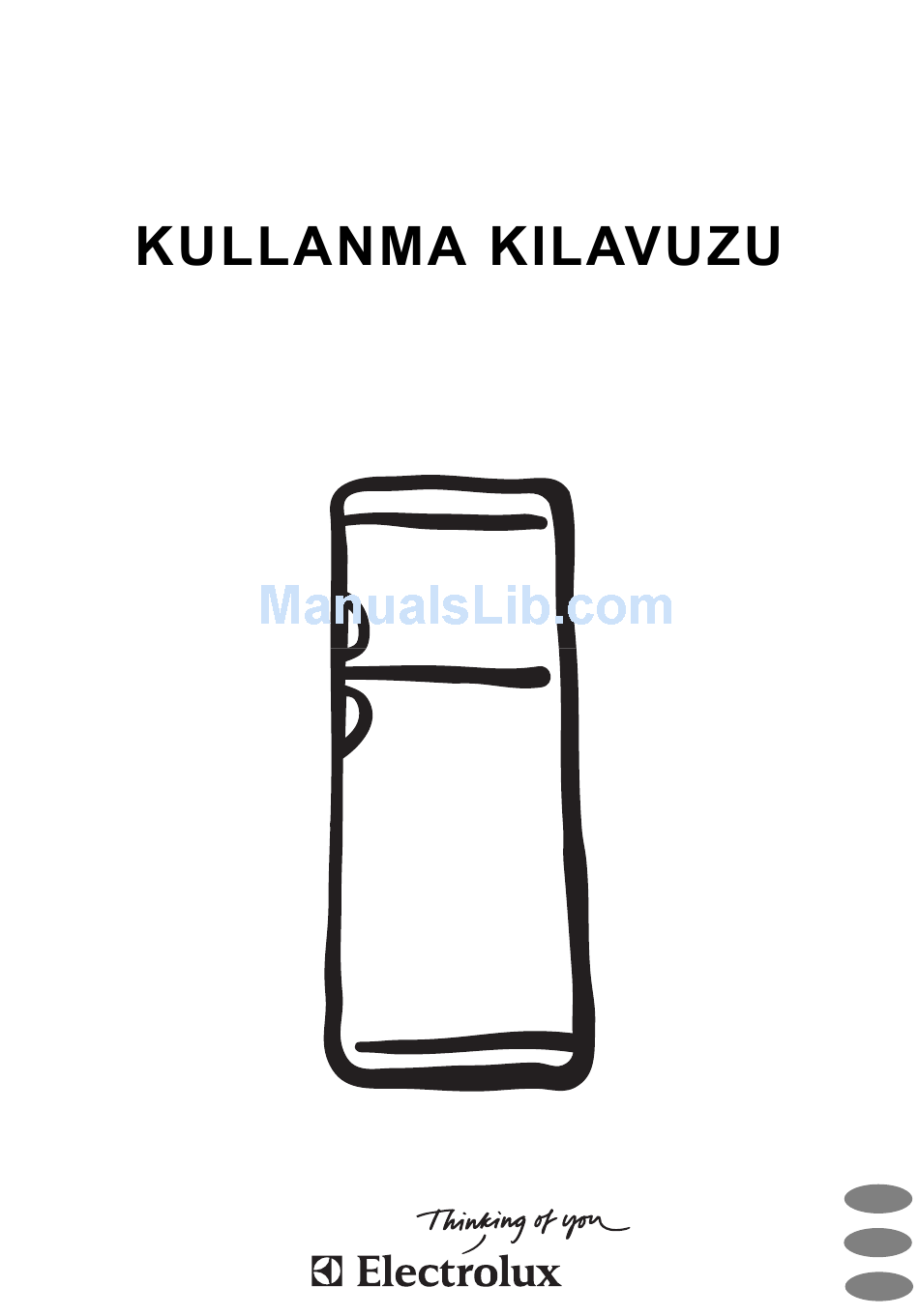

Page 1: User Manual
ð u t u c u - d o n d u r u c u ø õ ã å é ï ê á ô á ø ý ê ô ç ò USER MANUAL ÅÃ×ÅÉÑÉÄÉÏ ×ÑÇÓÔÇ ERD 43391 X 2223 401-91... -
Page 2: Warnings
WARNINGS It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure that the book is supplied with the appliance in order that the new owner can be acquainted with the functioning of the appliance and the relevant warnings. -
Page 3: Table Of Contents
Installation Environment Protection • During normal operation, the condenser and compressor at the back of the appliance heat up This appliance does not contain gasses which considerably. For safety reasons, minimum could damage the ozone layer, in either its ventilation must be as shown in the instructions. refrigerant circuit or insulation materials. -
Page 4: Use
Fresh food refrigeration Cleaning the interior To obtain the best performance: Before using the appliance for the first time, wash the interior and all internal accessories with luke- • do not store warm food or evaporating liquids in warm water and some neutral soap so as to remove the refrigerator;... -
Page 5: Movable Shelves
Movable shelves The walls of the refrigerator are equipped with a series of runners so that the shelves can be positioned as desired. Bottle rack Place bottles in the rack with the bottleneck to the front. Important: Only store unopened bottles horizontally. The bottle rack can be tilted for storing opened bottles. -
Page 6: Air Recycling
Air recycling The refrigerator compartment is equipped with a special fan which can be turned on with the switch ( see fig.). The green light, when on, means that the fan is working. It is suggested that the fan be used when the ambient temperature exceeds 25°C . -
Page 7: Freezing Fresh Food
Freezing fresh food Important The 4-star compartment is suitable for In the event of accidental defrosting, for example long term storage of commercially frozen food, and due to a power failure, if the power has been off for freezing fresh food. for longer that the value shown in the technical To freeze fresh foods it is not necessary to change characteristics chart under “rising time”, the... -
Page 8: Hints
HINTS Hints for refrigeration Useful hints: Meat (all types): wrap in polythene bags and place • it is advisable to show the freezing-in date on on the glass shelf above the vegetable drawer. each individual pack to enable you to keep tab of the storage time;... -
Page 9: Maintenance
MAINTENANCE Unplug the appliance before carrying out Periods of non-operation any maintenance operation. When the appliance is not in use for long periods, Warning take the following precautions: This appliance contains hydrocarbons in its cooling remove the plug from the wall socket; unit;... -
Page 10: Customer Service And Spare Parts
The freezer compartment, however, will become progressively covered with frost. This should be removed with a plastic scraper, whenever the thickness of the frost exceeds 4 mm. During this operation it is not necessary to switch off the power supply or to remove the foodstuffs. Never use sharp metal tools to scrape off frost from the evaporator as you could damage it. -
Page 11: Technical Information
TECHNICAL INFORMATION Net Fridge Capacity lt. Net Freezer Capacity lt. Energy Consumption kWh/24h 0,890 Energy Consumption kWh/year Freezing Capacity 24h Rising time Dimensions mm High 1800 Width Depth The technical infomation are situated in the rating plate on the internal left side of the appliance . INSTALLATION Location The appliance should be installed well away from... -
Page 12: Electrical Connection
Electrical connection Before plugging in, ensure that the voltage and frequency shown on the serial number plate correspond to your domestic power supply. Voltage can vary by ±6% of the rated voltage. For operation with different voltages, a suitably sized auto-transformer must be used. -
Page 13: Changing The Opening Direction Of The Doors
Door reversibility The side at which the door opens can be changed from the right side (factory adjustment) to the left side, if the installation site requires. Warning! When changing the side at which the door opens, the appliance may not be connected to the mains. Remove plug from the mains beforehand. - Page 18 w w w w w w . . e e l l e e c c t t r r o o l l u u x x . . c c o o m m w w w w w w . . e e l l e e c c t t r r o o l l u u x x . . c c o o m m . . t t r r...
