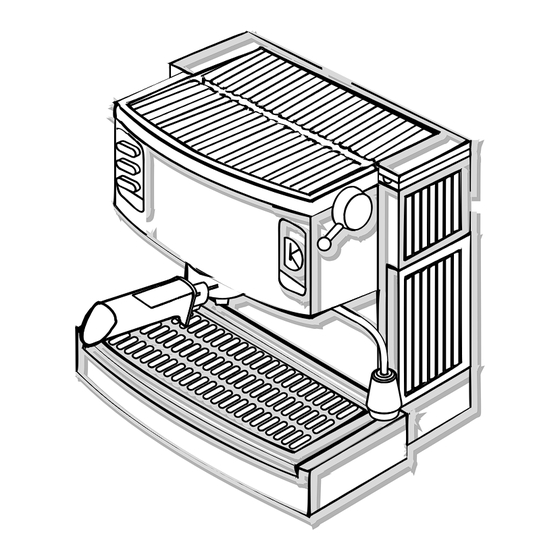

- Page 1 EC610/615 UK 16-05-2002 16:26 Pagina 1 Coffee Maker...
- Page 2 EC610/615 UK 16-05-2002 16:26 Pagina 2 Coffee ON/OFF light delivery switch ON/OFF Compartment switch for accessories Cup warmer Steam outlet lever OK/Ready Steam switch light Steam light Filter for coffee Pressure gauge with frother Water tank Filter holder ground coffee...
-
Page 3: Installation
EC610/615 UK 16-05-2002 16:26 Pagina 3 Thank you for choosing this coffee machine. To get the very best out of your new coffee machine it is advisable to read these instructions before using the appliance. This is the only way to ensure optimum results and maximum safety. - Page 4 EC610/615 UK 16-05-2002 16:26 Pagina 4 How to prepare espresso coffee Filling the water tank Remove the water tank by pulling it sideways, at the same time lift- ing the tubes (fig. 1). Rinse the water tank and fill with fresh water up to the upper mark (fig.
- Page 5 EC610/615 UK 16-05-2002 16:26 Pagina 5 How to prepare espresso coffee using the filter holder for ground coffee 1. After preheating the appliance as described in the previous sec- tion, the machine is ready to be used. Insert the ground coffee filter with frother into the filter holder, making sure the tab is correctly inserted into the housing as shown in fig.
- Page 6 EC610/615 UK 16-05-2002 16:26 Pagina 6 7. T o remove the used coffee lock the filter with the built-in lever and let the coffee fall out by knocking the over turned filter holder (fig. 12). 8. To switch off the coffee machine, press the ON/OFF switch (fig 3)
-
Page 7: How To Make Cappuccino
EC610/615 UK 16-05-2002 16:26 Pagina 7 Using the pressure gauge (if fitted) In order to obtain a good espresso coffee, it is necessary that the delivery take place with the boiler at its optimum pressure.This pressure is attained when the pointer of the pressure gauge is within the grey-coloured section (fig. -
Page 8: Producing Hot Water
EC610/615 UK 16-05-2002 16:26 Pagina 8 3. Check that the three holes shown in fig. 22 are not blocked. If necessary, clean them with a pin. 4. Clean the steam delivery tube (carefully to avoid be burnt. 5. Screw the steam nozzle back on. -
Page 9: Other Cleaning Operations
EC610/615 UK 16-05-2002 16:26 Pagina 9 Cleaning the filter holder for pods (if supplied) About every 300 coffees, clean the filter holder for pods as fol- lows: • Press the filter holder button and remove the filter (fig. 28). Clean the inside of the filter holder and the rubber gasket. - Page 10 EC610/615 UK 16-05-2002 16:26 Pagina 10 3. Check that the filter holder is not attached and place a contain- er under the outlet of the machine.Turn the steam outlet lever to let some descaling solution to flow out of the steam tube.
-
Page 11: Problem Solving
EC610/615 UK 16-05-2002 16:26 Pagina 11 Problem solving PROBLEM POSSIBLE CAUSES SOLUTION Espresso coffee no longer • Lack of water in the tank. • Fill the water tank. • The holes in the filter • Clean the holes in the comes out. - Page 12 EC610/615 UK 16-05-2002 16:26 Pagina 12 PROBLEM POSSIBLE CAUSES SOLUTION The coffee crema is dark • The ground coffee is too • Press the coffee less. tightly pressed. (the coffee comes out • The quantity of ground • Decrease the quantity slowly from the spout).
-
Page 13: Safety Warnings
EC610/615 UK 16-05-2002 16:26 Pagina 13 Safety Warnings • This machine has been built to make coffee and to reheat bev- erages; please be careful to avoid burns from the sprays of hot water or steam and avoid any improper use. -
Page 14: Electrical Requirements
EC610/615 UK 16-05-2002 16:26 Pagina 14 Electrical requirements Green and Yellow to Earth Before using this appliance ensure that the voltage indicated on the product corresponds with the main voltage in your 13 amp home, if you are in any doubt about your supply contact your Fuse local electricity company.
