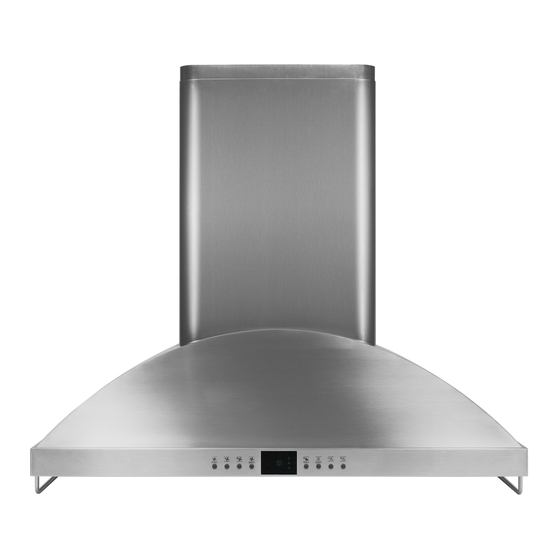

36" stainless steel vent hood
Hide thumbs Also See for MONOGRAM ZV950:

Advertisement

Installation
Instructions
If you have questions, call 800.GE.CARES or visit our website at: www.monogram.com
124 Cover Art
ZV950
36" Stainless Steel
Vent Hood

Advertisement

Table of Contents
loading

Summary of Contents for GE MONOGRAM ZV950

  • Page 1 Installation Instructions If you have questions, call 800.GE.CARES or visit our website at: www.monogram.com 124 Cover Art ZV950 36" Stainless Steel Vent Hood...
  • Page 2: Safety Information

    BEFORE YOU BEGIN Read these instructions completely and carefully. IMPORTANT • – Save these instructions for local inspector’s use. IMPORTANT • – Observe all governing codes and ordinances. Note to Installer • – Be sure to leave these instructions with the Consumer. Note to Consumer •...
  • Page 3: Table Of Contents

    CONTENTS Design Information Product Dimensions and Clearances ... 3–4 Optional Accessories ... 4 Installation Preparation Advance Planning, Ductwork, Framing ... 5 Power Supply ... 5 Duct Fittings ... 6 Tools and Materials Required ... 7 Remove the Packaging... 7 Check Installation Hardware ... 8 PRODUCT DIMENSIONS AND CLEARANCES 36"...
  • Page 4: Design Information

    PRODUCT DIMENSIONS AND CLEARANCES (cont.) Using Duct Cover Accessories A Duct Cover Accessory may be required for your hood installation height. Use this chart to determine installation height and accessory for your ceiling height. ZV950SDSS Installation Heights Actual Ceiling * Possible Hood Height Installation Height 7′...
  • Page 5: Installation Preparation

    ADVANCE PLANNING Ductwork Planning • Determine the exact location of the vent hood. • Plan the route for venting exhaust to the outdoors. • Use the shortest and straightest duct route possible. For satisfactory performance, duct run should not exceed 100 equivalent length for any duct configurations.
  • Page 6: Duct Fittings

    * Actual length of straight duct plus duct fitting equivalent. Equivalent length of duct pieces are based on actual tests conducted by GE Evaluation Engineering and reflect requirements for good venting performance with any ventilation hood. Total Equivalent Quantity Equivalent Length*...
  • Page 7: Tools And Materials Required

    TOOLS AND MATERIALS REQUIRED (NOT SUPPLIED) • Tape measure • Knife • Spirit level • Wire cutter/stripper • Wire nuts • Electric drill with 1/8" and 3/8" bits • Phillips and flat blade screwdrivers • Hammer • Pliers REMOVE THE PACKAGING The vent hood is shipped secured to a shipping board with a shipping bracket and 4 screws.
  • Page 8: Check Installation Hardware

    CHECK INSTALLATION HARDWARE Locate the hardware accessory box packed with the hood and check contents. 8 Wood Screws 2 Large 124Dia10 Flat Washers 2 Mounting Brackets 124Dia9 124Dia8 3 Stainless Steel Grease Filters 124Dia13 16" 124Dia7 Duct Cover Bracket 24" 23"...
  • Page 9: Installation Instructions

    1 INSTALL FRAMING FOR HOOD SUPPORT IMPORTANT: Framing must be capable of supporting 100 lbs. 8" Min. Opening for Ductwork Centerline of Installation Space If drywall is present, mark the screw hole locations for the top mounting brackets. Remove the template. •...
  • Page 10: Step 3, Install Duct Bracket

    3 INSTALL DUCT BRACKET The duct bracket must be installed against the ceiling. This bracket will hold the decorative duct cover in place at the top. • Install the 2 small screws into the sides of the duct bracket. Remove the screws. Pre-tapping the holes will insure ease of final installation.
  • Page 11: Step 5, Connect Ductwork

    5 CONNECT DUCTWORK • Install ductwork, making connections in direction of airflow as illustrated. • Push duct over the exhaust outlet until it reaches the duct stops. • Secure joints in ductwork with sheetmetal screws. • Wrap all duct joints with duct tape for an airtight seal. •...
  • Page 12: Step 8, Install Filters

    8 INSTALL FILTERS • Remove protective film on the filters. • Tip the filter into the slots at the rear of the opening. Lift the filter and pull the knob forward until the filter rests on the slots. • Install all 3 grease filters. 9 FINALIZE INSTALLATION •...
