DDS Series Satellite Dimmer Packs
DESCRIPTION
DDS satellite dimmers are fully UL listed digital
products that provide reliable, responsive
performance with smooth, accurate dimming
curves. Extensive epoxy encased toroidal
filtering reduces the potential of dimmer
generated noise. Individual channels are user
assignable as dimmers or on/off relays for
non-dim applications. All DDS Dimmers have
built-in chase effects for stand-alone operation,
perfect for all display type applications.
DIMENSIONAL DATA - IN. [CM] LBS. [KG]
5600 6000
Width 7.5 [9.1] 9.5 [24.1]
2.6 [6.6]
Depth 3.75 [9.5]
Height 9.5 [24.1] 10.9 [27.7]
Shipping 10 [4.54] 14 [6.3]
Weight
Mounting 8.25 [21] 8.25 [21]
Holes (OC)
Leviton Mfg. Co., Inc. Lighting & Energy Solutions
20497 SW Teton Avenue, Tualatin, OR 97062 1-800-736-6682 Tech Line: 1-800-959-6004 Fax: 503-404-5594 www.leviton.com/les
© 2013 Leviton Manufacturing Co., Inc. All rights reserved. Subject to change without notice.

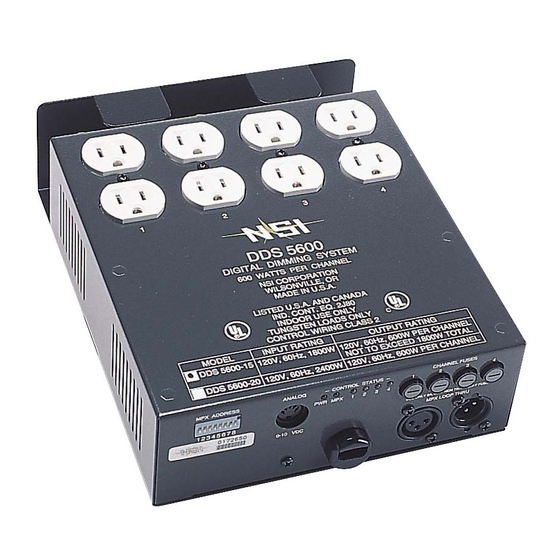

DDS 5600
FEATURES
• 4 individual dimmer or relay channels
• Microprocessor digital phase control
dimming or zero-crossing relay modes
are user selectable (3600R is relay only)
• 512 channel address capable
• User select for soft start operation to
increase lamp life
• User select for 8 auto sequence control
programs
• Sequence rate adjustable from 1 to 60
seconds
• Toroidal noise
• Dual SCR circuit design ensures reliable
operation
• Control status indicator LED
6000+
• Power on LED indicator
• Individual channel function LEDs
9.5 [24.1]
• External fusing for each individual channel
3.75 [9.5]
• NSI 128 channel Micro-Plex (3-pin XLR male
10.9 [27.7]
and female)
15 [6.8]
• 0 to 10 volt analog input (5-pin DIN)
• Optional DMX512 digital control (5-pin XLR
male and female)
DDS 6000, 6000+
