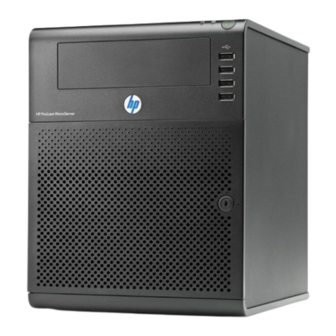

Page 1 QuickSpecs HP ProLiant MicroServer Overview Front View: Rear View: NIC LED Power Supply Outlet Power Button PSU Fan HDD LED PCI Holder USB Ports PCI Bracket 1 Health LED PCI Bracket 2 Hard Drive Bays e-SATA Connector System Board USB 2.0 Ports...
Page 2 Ultra Micro tower Warranty: This product is covered by a global limited warranty and supported by HP Services and a worldwide network of HP Authorized Channel Partners. Hardware diagnostic support and repair is available for one year from date of purchase.
Page 3: Standard Features
QuickSpecs HP ProLiant MicroServer Standard Features Processor Dual-Core Processor AMD Turion II Processor Model Neo N54L (2.20 GHz, 15W, 2MB) Cache Memory 2x 1MB Level 2 cache Chipset AMD RS785E/SB820M Memory Protection Memory Type PC3-10600E unbuffered DDR3 ECC operating at 800MHz...
Page 4 Microsoft Windows Server Red Hat Enterprise Linux (RHEL) NOTE: For more information on HP's Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server, please visit our Support Matrix at: http://www.hp.com/go/ossupport...
Page 5: Service And Support
These days, you need to get the most out of your server investment-you can't afford not to. When you buy HP server products and solutions, it's also a good time to think about what levels of service and support you may need. To help take the worry out of deploying, designing, maintaining, and managing your environment, we've designed a portfolio of service options that are as: flexible, reliable and scalable as your server.
Page 6 Service delivery at a mutually scheduled time Allows your IT resources to stay focused on their core tasks and priorities Availability of an HP service specialist to answer questions during the onsite delivery of this service http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-9356EN.pdf DA - 13716 Worldwide — Version 22 — December 9, 2013...
Page 7 As an alternative to our recommended support level, for customers who need same day response service level 24x7. Provides you with an HP authorized representative who will arrive at the Customer's site any time and day of the year to begin hardware maintenance service within 4 hours of the service request being logged.
Page 8 Recent honors and award reflect our services team's dedications, technical expertise, professionalism and uncompromising commitment to customer satisfaction. Additional Services To learn more on HP ProLiant servers and HP BladeSystem, please contact your HP sales representative or HP Authorized Channel Partner, or visit: www.hp.com/services/proliant Information www.hp.com/services/bladesystem...
Page 9 QuickSpecs HP ProLiant MicroServer Models SATA Models NOTE: Not all models are available in all regions. Check with your local country HP offices for availability. HP ProLiant MicroServer Processor (1) AMD Turion™ II Neo N54L processor (2.2 GHz, 15W, 2MB)
Page 10 QuickSpecs HP ProLiant MicroServer Models Internal Storage Non-Hot Plug SATA 8.0TB (4 x 2TB) Maximum Optical Drive SATA DVD-RW JB Drive Power Supply 150W Non-Hot Plug, Non-Redundant Power Supply Warranty 1-1-1 Form Factor Ultra Micro Tower Country Code Key xx=00...
Page 11: Core Options
QuickSpecs for details. SATA Non-Hot Plug LFF (3.5-inch) Midline (MDL) Drives HP 2TB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Midline 1yr Warranty Hard Drive 507774-B21 HP 1TB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Midline 1yr Warranty Hard Drive 507772-B21 HP 500GB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Midline 1yr Warranty Hard...
Page 12: Additional Options
HP Disk Backup NOTE: For the complete range of RDX drives and media see: http://www.hp.com/go/rdx. For hardware and software compatibility of HP disk backup products see: http://www.hp.com/storage/SPOCK. USB Removable Media RDX Disk Backup Systems HP RDX320 USB3.0 Internal Disk Backup System B7B62A HP RDX320 USB3.0 External Disk Backup System...
Page 13 HP ProLiant MicroServer Additional Options HP Uninterruptible Power HP Tower - UPS Systems HP T750 G2 750VA NA Tower Uninterruptible Power System AF446A HP T750 G2 750VA INTL Tower Uninterruptible Power System AF447A HP T750J JP Uninterruptible Power System AF456A NOTE: For additional information please go to: http://www.hp.com/go/rackandpower...
Page 14 UR483E HP 3 year 4 hour 24x7 ProLiant MicroServer Hardware Support UR484E HP 3 year 24x7 24 hour Call to Repair ProLiant MicroServer Hardware Support UR492E HP 3 year 24x7 6 hour Call to Repair ProLiant MicroServer Hardware Support UR494E...
Page 15 4 GB 4 GB Following are memory options available from HP: HP Memory HP 4GB (1x4GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit 593923-B21 HP 1GB (1x1GB) Single Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit 500668-B21 DA - 13716 Worldwide — Version 22 — December 9, 2013...
Page 16: Drive Support
QuickSpecs HP ProLiant MicroServer Storage Optical Drive Bay 2, 3, 4, 5 Four (4) Non-Hot Plug Drive Bays Drive Support Quantity Position Supported Supported Controller Removable Media DVD-RW JackBlack Optical Integrated SATA Drive DVD ROM JackBlack Optical Integrated SATA Drive Hard Drives (SATA Models only) NOTE: The components of a storage subsystem (e.g.
Page 17 NOTE: For the complete range of tape drives, autoloaders, libraries and media, including the internal fitting models, see: http://www.hp.com/go/tape. For the complete range of D2D Backup Systems see: http://www.hp.com/go/d2d. For the complete range of RDX drives and media see: http://www.hp.com/go/rdx. For hardware and software compatibility of HP disk and tape backup products see: http://www.hp.com/storage/SPOCK.
Page 18: Power Specifications
Maximum Inrush Current duration (mS) To review typical system power ratings use the Active Answers HP Power Advisor which is available via the online tool located at URL: http://www.hp.com/go/hppoweradvisor To drill down to calculators: - Click on: "ProLiant Servers"...
Page 19: System Specifications
QuickSpecs HP ProLiant MicroServer System Specifications Power** HP ProLiant MicroServer Fully Configured (see**) Fully Loaded System output Wattage (W) 72.3 W Fully Loaded System Input Current (A rms) 0.63A@115V; 0.35A@230V Fully Loaded System Thermal (BTU- Hr) 115v@247.055; 230v@274.505 Fully Loaded System VA (Volt-Amp) 115v@72.45;...
Page 20: Technical Specifications
QuickSpecs HP ProLiant MicroServer Technical Specifications System Unit Dimensions (HxWxD) 10.5 x 8.3 x 10.2 in (26.7x 21.0 x 26.0 cm) (with feet) Weight (approximate) Maximum 21.16 lb (9.6 kg) (all hard drives, power supplies, and processors installed) Minimum 13.18 lb (5.98 kg)
Page 21 QuickSpecs HP ProLiant MicroServer Technical Specifications Operating L WAd 4.1 BELS L pAm 24.4 dBA Acoustic Noise Idle (Lightly Loaded) L WAd 3.7 BELS L pAm 21.3 dBA Operating L WAd 3.8 BELS L pAm 22.0 dBA Emissions Classification FCC Rating...
Page 22 AMD, the AMD Arrow logo, AMD Opteron™, and combinations thereof, are trademarks of Advanced Micro Devices, Inc. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
