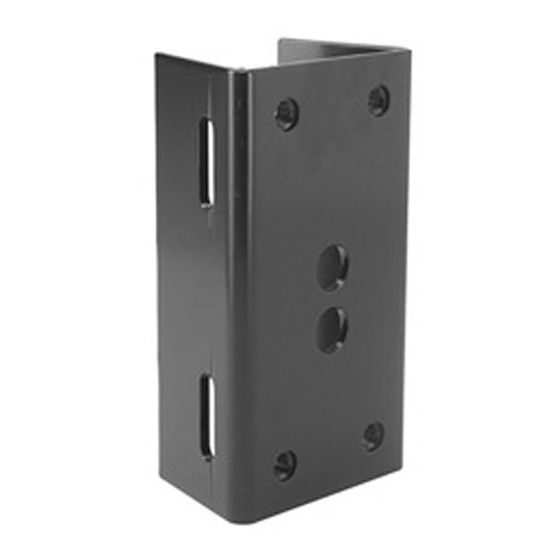

Panasonic PACA2 Product Instructions

Manufactured by:
Before attempting to connect or operate this product, please read these instructions completely.
MODEL: Accessories
PAPM3/PACA2
PRECAUTIONS ON INSTALLATION
1. Both the pole mount adapter PAPM3 and the corner mount
adapter PACA2 are designed for outdoor use in conjunc-
tion with a wall mount bracket.
2. The combined weight of camera, lens, housing, pan/tilt,
and the wall mount bracket must not exceed 75 lbs.
(34 kg).
3. Select a location where the combined weight of the
bracket, housing, pan/tilt and the wall mount bracket can
be properly supported.
STANDARD INSTALLATION PROCEDURE
INCLUDES MODELS: PAPM3
STANDARD ACCESSORIES (Supplied)
4 - Hex Head Bolts (3/8" - 16 x 1")
4 - Lock Washers (3/8")
4 - Flat Wahwer (3/8")
INSTALLATION
1. Mount the bracket assembly to the pole using metal
straps (not provided). Place the straps through the slots on
the PAPM3 and then around the pole. Tighten straps.
2. Combine the wall mount bracket with the pole mount
adapter and securely attach the four hex head bolts, lock
washers, and flat washers provided into the 3/8" inserts on
the PAPM3.
STANDARD INSTALLATION PROCEDURE
INCLUDES MODELS: PACA2
STANDARD ACCESSORIES (Supplied)
4 - Hex Head Bolts (3/8" - 16 x 1")
4 - Lock Washers (3/8")
4 - Flat Wahwer (3/8")
2525 Park Central Blvd. • Decatur, Ga 30035 • (770) 987-7550 • 800-554-1124 U.S. & Canada (USA AT&T Direct) • Fax 800-826-0366
for
INSTALLATION
1. Mount the bracket assembly to the selected corner location
using appropriate hardware (not provided).
2. Combine the wall mount bracket with the corner mount
adapter and securely attach the four hex head bolts, lock
washers, and flat washers provided into the 3/8" inserts on
the PACA2.
PRODUCT INSTRUCTIONS
45 45˚ ˚
5.69 5.69
(4) .438" DIA. holes
3.82 3.82
(4) 3/8-16 inserts
2X 2X Ø Ø .75 .75
.88 .88
2.00 2.00
5.50 5.50
11.87 11.87
PACA2 Dimensions
2.62
76˚
4.00
(4) 3/8-16 inserts
.75
2.00
1.00
7.00
2.00
PAPM3 Dimensions
81-IN3054-9922
.40 .40
1.80 1.80
6.70 6.70
2.55 2.55
1.00 1.00
1.00 1.00
7.25 7.25
1.00 1.00
.88
2X Ø .75
5.50
