Owner's Manual

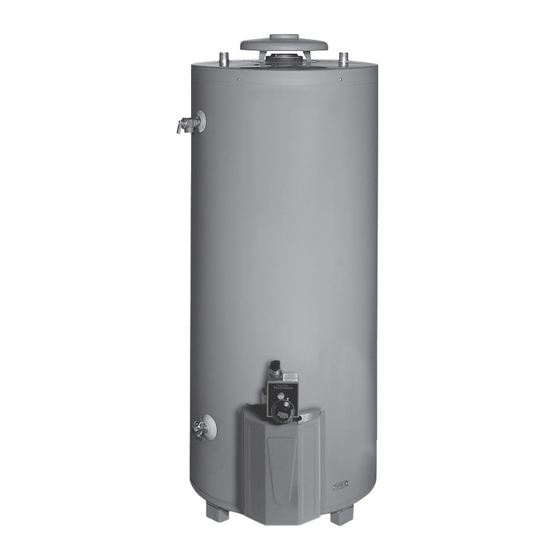

POWERMISER™ 12
GAS WATER HEATER
FOR POTABLE WATER HEATING ONLY
NOT SUITABLE FOR SPACE HEATING
NOT FOR USE IN MOBILE HOMES
MODEL NO.
153.331761
For Your Safety
AN ODORANT IS ADDED TO THE GAS USED
BY THIS WATER HEATER.
ADVERTENCIA
Si no puede leer o entender el inglés y necesita el manual
instructivo y/o etiquetas en español puede obtenerlos llamando al
1-800-821-2017. NO TRATE DE INSTALAR O OPERAR ESTE
CALENTADOR DE AGUA si no entiende la información en las etiquetas
o en el manual instructivo. No hacer caso de esta advertencia podría
resultar en la MUERTE O GRAVES LESIONES CORPORALES.
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A
PRINTED 1208
CAPACITY
74 Gallon (280 Liter)
www.sears.com
• Safety Instruction
• Installation
• Operation
• Care and Maintenance
• Troubleshooting
• Parts List
1
186079-001
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Kenmore POWERMISE 12
Summary of Contents for Kenmore POWERMISE 12
-
Page 1: For Your Safety
Owner’s Manual POWERMISER™ 12 GAS WATER HEATER FOR POTABLE WATER HEATING ONLY NOT SUITABLE FOR SPACE HEATING NOT FOR USE IN MOBILE HOMES MODEL NO. CAPACITY 153.331761 74 Gallon (280 Liter) • Safety Instruction • Installation • Operation • Care and Maintenance • Troubleshooting • Parts List For Your Safety AN ODORANT IS ADDED TO THE GAS USED... -
Page 2: Safe Installation, Use And Service
SAFE INSTALLATION, USE AND SERVICE Your safety and the safety of others is extremely important in the installation, use and servicing of this water heater. Many safety-related messages and instructions have been provided in this manual and on your own water heater to warn you and others of a potential injury hazard. Read and obey all safety messages and instructions throughout this manual. It is very important that the meaning of each safety message is understood by you and others who install, use or service this water heater. This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. DANGER indicates an imminently hazardous DANGER situation which, if not avoided, will result in death or injury. WARNING indicates a potentially hazardous WARNING situation which, if not avoided, could result in death or injury. CAUTION indicates a potentially hazardous CAUTION situation which, if not avoided, could result in minor or moderate injury. CAUTION used without the safety alert symbol indicates a potentially hazardous CAUTION... -
Page 3: Safety Precautions
SAFETY PRECAUTIONS... -
Page 4: Table Of Contents
TABLE OF CONTENTS SAFE INSTALLATION, USE AND SERVICE........................2 SAFETY PRECAUTIONS ...............................3 TABLE OF CONTENTS ..............................4 CUSTOMER RESPONSIBILITIES ..........................5 PRODUCT SPECIFICATIONS ............................5 MATERIALS AND BASIC TOOLS NEEDED ........................6 Material Needed ...............................6 Basic Tools................................6 TYPICAL INSTALLATION ...............................7 INSTALLATION INSTRUCTIONS ..........................8-17 Removing the Old Water Heater ..........................8 Facts to Consider About the Location ........................9,10 Insulation Blankets ............................ -
Page 5: Customer Responsibilities
CUSTOMER RESPONSIBILITIES • The installation must conform with these instructions and Thank You for purchasing a Kenmore water heater. Properly the local code authority having jurisdiction. In the absence installed and maintained, it should give you years of trouble free of local codes, installations should comply with the current service. -
Page 6: Materials And Basic Tools Needed
MATERIALS AND BASIC TOOLS NEEDED Materials Needed To simplify the installation Sears has available the installation parts shown below. You may or may not need all of these materials, depending on your type of installation. METAL DRAIN PANS AVAILABLE IN 20”... -
Page 7: Typical Installation
TYPICAL INSTALLATION GET TO KNOW YOUR WATER HEATER - GAS MODELS Q Temperature-Pressure Relief Valve A Vent Pipe I Ground Joint Union R Rating Plate B Draft Hood J Drip Leg (Sediment Trap) S Flue Baffle(s) C Anode K Inner Door T Gas Control Valve Thermostat D Hot Water Outlet L Outer door U Drain Valve E Outlet M Union... -
Page 8: Installation Instructions
INSTALLATION INSTRUCTIONS Removing the Old Water Heater 4. Attach a hose to the water heater drain valve and put the other end in a floor drain or outdoors. Open the water heater drain valve. Open a nearby hot water faucet which will relieve pressure in the water heater and speed draining. The water passing out of the drain valve may be extremely hot. -
Page 9: Facts To Consider About The Location
Facts to Consider About the Location Carefully choose an indoor location for the new water heater, because the placement is a very important consideration for the safety of the occupants in the building and for the most economical use of the appliance. This water heater is not for use in manufactured (mobile) homes or outdoor installation. -
Page 10: Insulation Blankets
Insulation Blankets Insulation blankets available to the general public for external use on gas water heaters are not necessary with Kenmore products. The purpose of an insulation blanket is to reduce the standby heat loss encountered with storage tank heaters. Your... -
Page 11: Combustion Air And Ventilation For Appliances Located In Unconfined Spaces
• Do not cover the instruction manual. Keep it on the side of B. ALL AIR FROM OUTDOORS: (See Figures 9, 11,12 and 13) the water heater or nearby for future reference. The confined space should be provided with two permanent • Do obtain new warning and instruction labels from Sears for openings, one commencing within 12 inches (30 cm) of the top placement on the blanket directly over the existing labels. -
Page 12: Water Piping
Water Piping FIGURE 13 • When ducts are used, they should be of the same cross- HOTTER WATER CAN SCALD: sectional area as the free area of the openings to which they Water heaters are intended to produce hot water. Water connect. The minimum short side dimension of rectangular heated to a temperature which will satisfy space heating, air ducts should not be less than 3 inches (76.2 mm), see clothes washing, dish washing, cleaning and other sanitizing Figure 14. -
Page 13: Water Piping
This water heater should not be connected to any heating TYPICAL INSTALLATION systems or component(s) used with a non-potable water heating appliance. All piping components connected to this unit for space heating applications should be suitable for use with potable water. Toxic chemicals, such as those used for boiler treatment should not be introduced into this system. -
Page 14: Temperature Pressure Relief Valve
Temperature-Pressure Relief Valve FIGURE 17. This heater is provided with a properly certified combination temperature - pressure relief valve by the manufacturer. No valve or other obstruction is to be placed between the relief valve and the tank. Do not connect tubing directly T h e v a l v e i s c e r t i f i e d b y a n a t i o n a l l y r e c o g n i z e d to discharge drain unless a 6 inch air gap is provided. -
Page 15: Filling The Water Heater
Venting The temperature-pressure relief valve must be manually operated at least once a year. Caution should be taken to ensure that (1) no one is in front of or around the outlet of the temperature-pressure relief valve discharge line, and (2) the water manually discharged will not cause any bodily injury or property damage because the water may be extremely hot. -
Page 16: Gas Piping
• For proper draft hood attachment, the draft hood legs may be angled slightly inward. • Place the draft hood legs in the receiving holes on the top of the water heater. The legs will snap in the holes to give a tight fit. Secure the legs of the draft hood with the supplied draft hood brackets. • Place the vent pipe over the draft hood. With the vent pipe in position, drill a small hole through both the vent pipe and draft hood. -
Page 17: Sediment Trap
• A readily accessible manual shut off valve in the gas supply pound per square inch (3.5 kPa). It should be isolated from the line serving the water heater, and gas supply piping system by closing its individual manual shut-off valve during any pressure testing of the gas supply piping system • A drip leg (sediment trap) ahead of the gas control valve to help at test pressures equal to or less than 1/2 pound per square inch prevent dirt and foreign materials from entering gas control valve. -
Page 19: Temperature Regulation
Temperature Regulation Never allow small children to use a hot water tap, or to draw their own bath water. Never leave a child or handicapped person unattended in a bathtub or shower. Due to the nature of the typical gas water heater, the water temperature in certain situations may vary up to 30°F (16.7°... -
Page 20: Service And Adjustment
SERVICE AND ADJUSTMENT Tank (Sediment) Cleaning Burner Inspection Sediment build-up on the tank bottom may create varying amount Flood damage to a water heater may not be readily visible of noise, and if left in the tank will cause permanent tank failure. or immediately detectable. However, over a period of time In some water areas, you may not be able to drain all sediment a flooded water heater will create dangerous conditions deposits by simply draining the tank. -
Page 21: Housekeeping
Housekeeping Anode deterioration depends on water conductivity, not necessarily water condition. A corroded or pitted anode rod indicates high water conductivity and should be checked and/ Vacuum around base of water heater for dust, dirt, and lint on or replaced more often than an anode rod that appears to be a regular basis. -
Page 22: Draining
Draining 5. OPEN the water heater drain valve to allow for tank draining. NOTE: If the water heater is going to be shut down and drained for an extended period, the drain valve should be left open with hose connected allowing water to terminate to an adequate drain. 6. CLOSE the drain valve. 7. Follow instructions in the Filling The Water heater section. 8. Follow the lighting instructions in the Lighting section to restart the water heater. -
Page 23: Troubleshooting Guide
TROUBLESHOOTING GUIDE Start Up Conditions Thermal Expansion Water supply system may, because of such events as high line pressure, frequent cut-offs, and the effects of water hammer have installed devices such as pressure reducing valves, check valves, back flow preventers, etc., to control these types of problems. When these devices are not equipped with an internal by-pass, FIGURE 26A. -
Page 24: Smoke/Odor
• A new water heater is filled with cold water for the first time. • little or no dissolved oxygen in the water. • a sulfate reducing bacteria within the water heater. (This • Burning gas produces water vapor in water heaters, harmless bacteria is non-toxic to humans.) particularly high efficiency models where flue temperatures are lower. • an excess of active hydrogen in the tank. This is caused by the corrosion protective action of the anode. • Large amounts of hot water are used in a short time and the refill water in the tank is very cold. -
Page 25: Operational Conditions
Operational Conditions (Continued) Read this manual first. Then before checking the water heater make sure the gas supply has been turned “OFF”, and never turn the gas “ON” before the tank is completely full of water. Leakage Checkpoints Never use this water heater unless it is completely filled with water. To prevent damage to the tank, the tank must be filled with water. Water must flow from the hot water faucet before turning “ON” gas to the water heater, see Figure 27. A. Water at the draft hood is water vapor which has condensed out of the combustion products. This is caused by a problem in the vent. -
Page 26: Troubleshooting Items
TROUBLESHOOTING GUIDE (Continued) These guidelines should be used by a qualified service agent. Call Sears Service at 1-800-4-MY-HOME (1-800-469-4663) for assistance. ® Problem Cause Solution Improperly sealed, hot or cold supply connection, Tighten threaded connections. relief valve, drain valve, or thermostat threads. WATER LEAKS Leakage from other appliances or water lines. Inspect other appliances near water heater. Condensation of flue products. -
Page 27: Parts Order List
PARTS ORDER LIST GAS WATER HEATER MODEL NO’S 153.331761 74 U.S. Gal. (280 Liters) BURNER ASSEMBLY Model Number No. Part Description 153.331761 Anode Rod 9001829 Burner Head 9006200 Burner Orifice 9003732 (#21) Burner Tube 9006199 Dip Tube 9006214 Draft Hood 9003737 Draft Hood Bracket 9003738 Drain Valve 9000058... -
Page 28: Warranty
Master Protection Agreements • Power surge protection against electrical damage due to Congratulations on making a smart purchase. Your new Kenmore ® power fluctuations. product is designed and manufactured for years of dependable operation. But like all products, it may require preventive maintenance •...
