Superior UVFCE Series Installation Instructions Manual

Built-in unvented fireboxes standard series

Advertisement

RETAIN THESE INSTRUCTIONS
FOR FUTURE REFERENCE
WARNING: IF THE INFORMATION IN THIS MANUAL
IS NOT FOLLOWED EXACTLY, A FIRE OR EXPLO-
SION MAY RESULT CAUSING PROPERTY DAMAGE,
PERSONAL INJURY OR LOSS OF LIFE.
FOR YOUR SAFETY: Do not store or use gasoline
or other flammable vapors or liquids in the vicinity
of this or any other appliance.
FOR YOUR SAFETY: What to do if you smell gas:
• DO NOT light any appliance.
• DO NOT touch any electrical switches.
• DO NOT use any phone in your building.
• Immediately call your gas supplier from a
neighbor's phone.
Follow your gas suppliers instructions.
• If your gas supplier cannot be reached, call the
fire department.
Installation and service must be performed by a
qualified installer, service agency or the gas sup-
plier.
INSTALLATION
INSTRUCTIONS

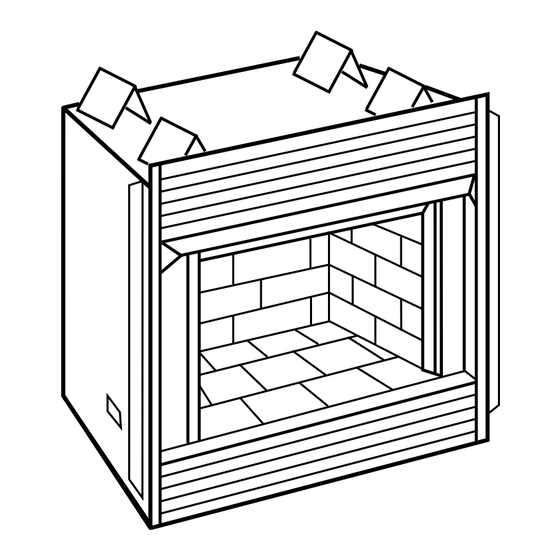

Built-In Unvented Fireboxes
P/N 903761 REV. E 02/2004
MODELS
UVFCE Series
FOR USE ONLY WITH DECORATIVE TYPE UNVENTED ROOM
HEATERS.
DO NOT BUILD A WOOD FIRE.
WARNING: IMPROPER INSTALLATION, ADJUSTMENT, AL-
TERATION, SERVICE OR MAINTENANCE CAN CAUSE IN-
JURY OR PROPERTY DAMAGE. REFER TO THIS MANUAL.
FOR ASSISTANCE OR ADDITIONAL INFORMATION CON-
SULT A QUALIFIED INSTALLER, SERVICE AGENCY OR THE
GAS SUPPLIER.
WARNING: DO NOT BURN WOOD OR OTHER MATERIAL IN
THESE APPLIANCES.
CAREFULLY REVIEW THE INSTRUCTIONS SUPPLIED WITH
THE DECORATIVE TYPE UNVENTED ROOM HEATER FOR
THE MINIMUM FIREPLACE SIZE REQUIREMENT.
DO NOT INSTALL THE APPLIANCE IN THIS FIREBOX, UN-
LESS THIS FIREBOX MEETS THE MINIMUM DIMENSIONS
REQUIRED FOR THE INSTALLATIONS.
This is an unvented gas-fired heater. It uses air
(oxygen) from the room in which it is installed.
Provisions for adequate combustion and ventila-
tion air must be provided. Refer to Combustion
and Ventilation Air Section, Page 3.
Due to high temperatures, the appliance should be located out
of traffic and away from furniture or draperies.
Do not place clothing or other materials on or near this appli-
ance.
IMPORTANT: READ AND UNDERSTAND THESE INSTRUCTIONS
COMPLETELY BEFORE INSTALLING YOUR UNVENTED ROOM
HEATERS.
NOTE: DIAGRAMS & ILLUSTRATION NOT TO SCALE.
STANDARD SERIES
1

Advertisement

Table of Contents
loading

Summary of Contents for Superior UVFCE Series

  • Page 1 INSTALLATION INSTRUCTIONS STANDARD SERIES Built-In Unvented Fireboxes P/N 903761 REV. E 02/2004 MODELS UVFCE Series FOR USE ONLY WITH DECORATIVE TYPE UNVENTED ROOM RETAIN THESE INSTRUCTIONS HEATERS. FOR FUTURE REFERENCE DO NOT BUILD A WOOD FIRE. WARNING: IMPROPER INSTALLATION, ADJUSTMENT, AL- TERATION, SERVICE OR MAINTENANCE CAN CAUSE IN- JURY OR PROPERTY DAMAGE.
  • Page 2: Table Of Contents

    TABLE OF CONTENTS The UVFCE Series are unvented fireboxes. Pliers They feature a self-contained heat-circulating Square system. Piping complying with local codes Firebox/Log Set Reference Chart ..page Pipe wrench General Information ......page This installation manual will enable you to Tee joint Inventory .........
  • Page 3: Codes

    • Young children should be carefully super- CODES Use the following equations to determine if you vised when they are in the same room with the have a confined or unconfined space. heater. Adhere to all local codes or in their absence the 1.
  • Page 4: Location Of Firebox

    • Location should be out of high traffic areas Clearances WARNING: IF THE AREA IN WHICH THE and away from furniture and draperies due to HEATER MAY BE OPERATED IS SMALLER heat from firebox. WARNING: DO NOT INSTALL THESE THAN THAT DEFINED AS AN UNCON- BUILT-IN UNVENTED FIREBOXES IN FINED SPACE, PROVIDE ADEQUATE •...
  • Page 5: Assembly Steps

    Noncombustible materials, such as slate and If your mantel profile is unsafe, you may either: Note: The following steps represent the normal marble, must be at least " thick. sequence of installation. Each installation is unique, however, and might require a different •...
  • Page 6: Firebox Framing

    Ensure that a sediment trap is installed in the Usually, no special floor support is needed for For an easier connection to the Unvented Gas existing gas line, if not, install a sediment trap the firebox, however, to be certain: Log Room Heaters, connection fittings have upstream of the heater to prevent moisture been supplied with the firebox.
  • Page 7: Firebox Specifications

    FIREBOX SPECIFICATIONS " " " " " 21" 40 = 38" 45 = 42 " 7" 40 = 40 " " 45 = 45 " UVFCE Front View " Gas Line Knockout " " " " " J Box Cover "...
  • Page 8: Framing Specifications

    FRAMING SPECIFICATIONS Header Framing Dimensions Opening 40" 45" " " 39" 39" Figure 9 29" " " " " " Back Wall Of Chase/Enclosure Including Finishing Materials " " If Any " " 8" 8" " 54" Rough Framing Face (Unfinished Shown) Corner Installation Figure 10...
  • Page 9: Canopy Installation

    Step 4. Firebox may be anchored to floor. Bend Canopy Installation WARNING: DO NOT PACK OR FILL RE- down four (4) anchor tabs located at the base of QUIRED AIR SPACES WITH INSULATION the firebox and secure to the floor by nailing The factory-supplied canopy must be installed OR OTHER MATERIAL.
  • Page 10: Trim Kits

    Trim Kits FIREBOX FINISHES ACCESSORIES AND COMPONENTS The UVFCE fireboxes can be enhanced with There are a wide variety of “finished looks” for stylish trim kits, Models 40 HTK-SPB and your UVFCE built-in unvented fireboxes from 45HTK-SPB. Refer to the installation instruc- formal wall decor with elaborate mantels to tions provided with the trim kits for installation rustic wood paneling or warm brick facings.
  • Page 11: Replacement Parts List

    REPLACEMENT PARTS LIST UVFCE-40 UVFCE-45 Description Part No. Part No. Side Refractory, Right 026042 026042 Side Refractory, Left 026041 026041 Bottom Refractory 044991 044992 Rear Refractory 026021 026022 Screen Panel 099648 099649 Screen Rod (2) 011382 010234 Canopy 054291 054300 Gas Line, "...
  • Page 12: Warranty

    This Warranty covers only parts and labor as provided above. In no case shall LHP be responsible for materials, components, or construction which are not manufactured or supplied by LHP, or for the labor necessary to install, repair, or remove such materials, components or construction. All replacement or repair components will be shipped F.O.B. the nearest Superior Fireplace Company factory. QUALIFICATIONS TO THE WARRANTY The Unvented Gas Room Heater Warranty outlined above is further subject to the following qualifications: (1) The Unvented Gas Room Heater must be installed in accordance with LHP installation instructions and local building codes.
