Ultra Start 1271M series Install Manual

Manual transmission vehicle
Hide thumbs Also See for 1271M series:

Advertisement

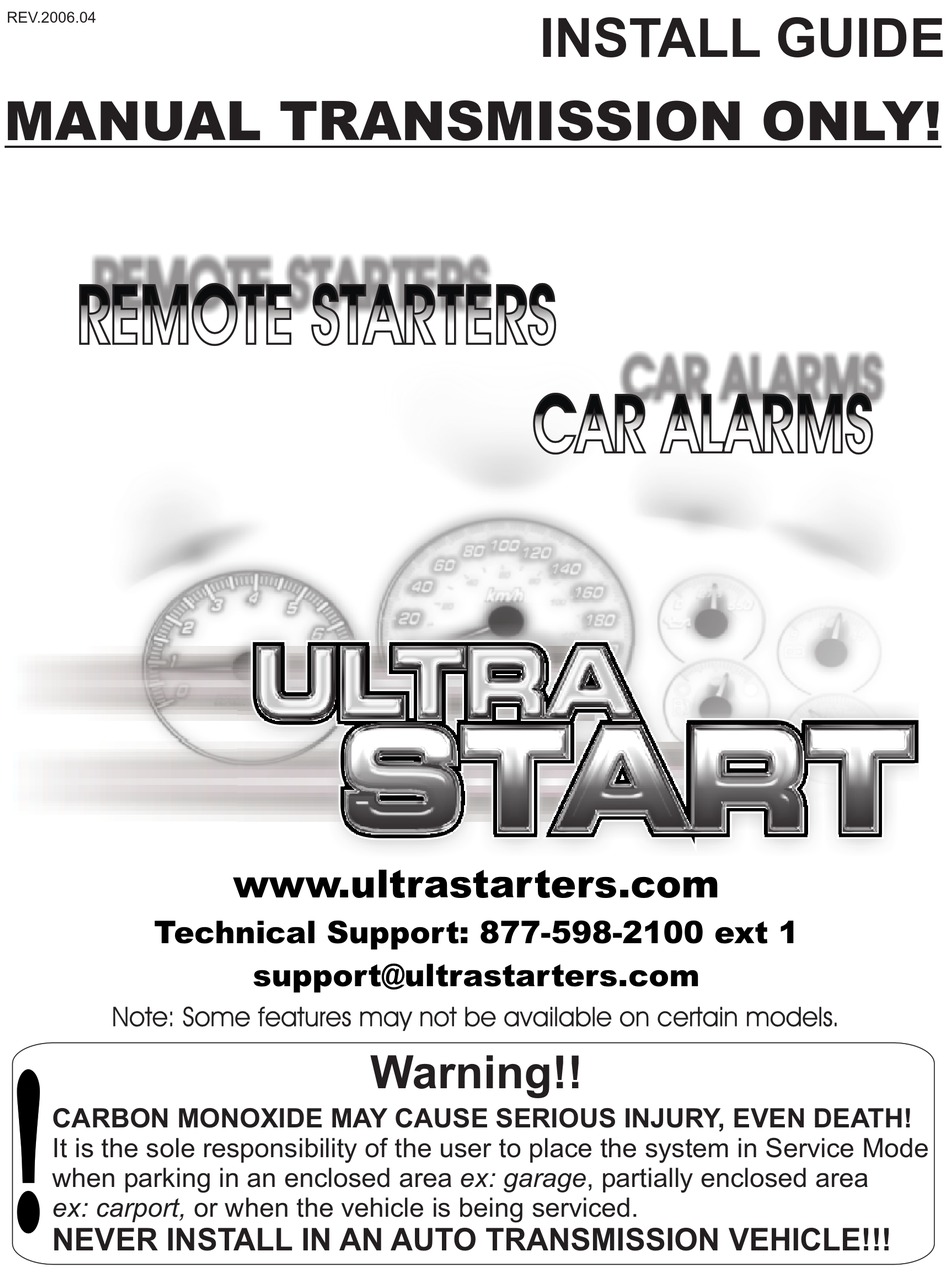

REV.2006.04
MANUAL TRANSMISSION ONLY!
Technical Support: 877-598-2100 ext 1
The system must be placed into Service Mode before any service work is started on the
CARBON MONOXIDE MAY CAUSE SERIOUS INJURY, EVEN DEATH!
vehicle. It is the sole responsibility of the vehicle owner to ensure that this is done. The
It is the sole responsibility of the user to place the system in Service Mode
manufacturer accepts no liability or responsibility for accidental starting of the vehicle.
when parking in an enclosed area ex: garage, partially enclosed area
CARBON MONOXIDE - Never Start in an Enclosed Building (Garage, Carport etc...)
ex: carport, or when the vehicle is being serviced.
- The Hood Pin Safety Switch Must Always be Installed!
NEVER INSTALL IN AN AUTO TRANSMISSION VEHICLE!!!
www.ultrastarters.com
support@ultrastarters.com
Warning!!
INSTALL GUIDE

Advertisement

Table of Contents
loading

Summary of Contents for Ultra Start 1271M series

  • Page 1 REV.2006.04 INSTALL GUIDE MANUAL TRANSMISSION ONLY! www.ultrastarters.com Technical Support: 877-598-2100 ext 1 support@ultrastarters.com Warning!! The system must be placed into Service Mode before any service work is started on the CARBON MONOXIDE MAY CAUSE SERIOUS INJURY, EVEN DEATH! vehicle. It is the sole responsibility of the vehicle owner to ensure that this is done. The It is the sole responsibility of the user to place the system in Service Mode manufacturer accepts no liability or responsibility for accidental starting of the vehicle.
  • Page 2: Table Of Contents

    INSTALL GUIDE PAGE 2 Table of Contents Table of Contents Page 2 Component/Feature List Page 3 Recommend Installation Procedures Pages 4-5 Wiring Diagrams Pages 6-7 Wiring Descriptions Pages 8-10 6 Pin Connector Auxiliary Connectors Clutch Bypass Quick Start Installation Page 11 Basic Installation Important Tach Notes Pages 12-13...
  • Page 3: Feature List

    INSTALL GUIDE PAGE 3 Components - Control module - 2 Remote Transmitters - Antenna with built in Program Button and LEDs - 6 pin Main harness - 14 pin auxiliary harness - 3 pin keyless entry harness - 3 pin auxiliary harness (not available on all models) - Owner and Install guide’s - Hood pin switch Feature List...
  • Page 4: Recommend Installation Procedures

    INSTALL GUIDE PAGE 4 Recommended Installation Procedures Remote car starters and alarms should be professionally installed. Review the installation and owner manuals and acquire a vehicle wiring diagram for the vehicle to be worked on. Take a few moments to walk around the vehicle looking for any damages and make note if any are found.
  • Page 5 INSTALL GUIDE PAGE 5 Recommended Installation Procedures Mounting The Control Module - Never mount the module in the engine compartment. Select a location under the dash to install the main module. Be certain that the module is securely attached and does not obstruct any serviceable areas.
  • Page 6: Wiring Diagram

    INSTALL GUIDE PAGE 6 Wiring Diagram Starter Output (+) YELLOW Heater/Accessory Output (+) GREEN 12volt Input (+)30amp 12volt Input (+)30amp Selectable Output (+) WHITE* Ignition Output (+) BLUE Re-arm Output (-)250ma YELLOW Trunk Release Output (-)250ma RED/WHITE Dis-arm Output (-)250ma BROWN Anti-Grind/Starter Kill Output (-)250ma ORANGE...
  • Page 7 INSTALL GUIDE PAGE 7 Wiring Diagram *The centre pin of the keyless entry harness is ONLY available with plug-in devices such as the VP-1, DL-3, DL-7 and Data Bus Modules. Overloading this output will damage the remote starter. Door Lock Output (-)250ma GREEN 12v Output (+)250ma (see notes above)
  • Page 8: Wiring Descriptions

    INSTALL GUIDE PAGE 8 Wiring Descriptions MAIN CONNECTOR (6pin) Function Description 1-YELLOW Starter Output - This wire will test 0V in OFF, ACCESSORY and in the ON key positions. 12v during START ONLY. 2-GREEN Heater/Acc Output - This wire will test 0V in the OFF and START key positions.
  • Page 9: Auxiliary Connectors

    INSTALL GUIDE PAGE 9 Wiring Descriptions AUXILIARY CONNECTOR (14 pin) Function Description 1-YELLOW Re-arm(-) - 0.75 second pulse output when button is pressed and after remote start shutdown. Used for factory alarm re-arm.(menu 3) 2-RED/ Trunk Release(-) - Programmable output. Hold the button WHITE for 3 seconds, output will stay active (max...
  • Page 10: Clutch Bypass

    INSTALL GUIDE PAGE 10 Wiring Descriptions LOCK/ UNLOCK CONNECTOR (3pin red) Function Description 1-GREEN Lock(-) - Programmable LOCK output. (Menu 1) 2-RED 12volts - 250ma 12volt output. 3-BLUE Unlock(-) -Programmable UNLOCK output ANTENNA CONNECTOR (4pin Blue) RF Antenna with Program Button and LEDs AUXILIARY BYPASS CONNECTOR (3pin white) Function Description...
  • Page 11 INSTALL GUIDE PAGE 11 Step 1 - Connect All Of the Following Wires Main Connector (6pin) YELLOW Starter Output - 12volts during start position only. GREEN Heater/Acc Output - 12volts in the accessory position off during start and 14volts during run. 12volt 30amp Input - 12volts from ignition harness or battery.
  • Page 12 INSTALL GUIDE PAGE 12 Auto Tach/Tachless Learn IMPORTANT! The system must be Tach Learned before remote starting. 1) Turn the ignition key to the “ON” position. The park lights will turn “ON” 2) Start the vehicle with the key. The LEDs on the antenna will turn on if a proper tach signal is detected**, after 30-35 seconds the park lights will flash and the siren will chirp twice to confirm Tach Learn.
  • Page 13: Important Tach Notes

    INSTALL GUIDE PAGE 13 Important Tach Notes Tach Learning the remote starter is one of the most important steps in the installation process. Do not tach learn vehicle while the engine is in high idle. To ensure the best possible tach setting, ensure that the vehicle is at low idle/ normal operating RPM.
  • Page 14: System Reset

    INSTALL GUIDE PAGE 14 System Reset The system reset will clear any changes made to the Program Menu as well as the Tach setting. 1) Turn the ignition key from “Off” to “On” 3 times, ON-OFF-ON-OFF- ON within three seconds. (Leave the key in the ON position) 2) Press and release the Program Button located on the antenna.
  • Page 15: Entering Program Mode

    INSTALL GUIDE PAGE 15 Entering Program Mode For Menu 1, For Menu 2, Ignition 3x Press and For Menu 3, For Menu 4, press the press the On/Off Release the press the press the button button On/Off On Program Button button button 1) With the ignition in the OFF position, turn the ignition key from “Off”...
  • Page 16: Quick View Programming

    INSTALL GUIDE PAGE 16 Quick View Programming Menu 1 - Press 1 Flash 2 Flashes 3 Flashes 1 Ignition Lock Enabled Lock Only Disabled 2 Siren Output Type 1 Type 2 All chirps 3 Lock&Unlock Options Double Unlock 3 second 3/4 second 4 Unlock/Disarm 125ms...
  • Page 17 INSTALL GUIDE PAGE 17 Menu 1- User Settings Press and Hold Press and Press and Press and Release Ignition 3x the Program Button Release the Release the the Program Button On/Off to Change Option Program button for Number of Times for On/Off On Button Menu 1...
  • Page 18 INSTALL GUIDE PAGE 18 Menu 1- User Settings ...continued Setting 6 Sensor Enable/Disable (2271M/4271M/4266M series ONLY) 1) Sensor Disabled 1 Flash/Chirp Impact Sensor Disabled *2) Sensor Enabled 2 Flashes/Chirps Impact Sensor Enabled Press & Release the Program Button 6 Times (Setting 6) Confirmed with 6 LED flashes. Press &...
  • Page 19 INSTALL GUIDE PAGE 19 Menu 2- Additional Settings Press and Press and Release Press and Press and Hold Ignition 3x Release the the Program Button the Program Button Release the On/Off Program Number of Times for to Change Option button for On/Off On Button the Setting Chosen...
  • Page 20 INSTALL GUIDE PAGE 20 Menu 3- Starter Settings Press and Press and Hold Press and Press and Release Ignition 3x Release the the Program Button Release the the Program Button On/Off Program to Change Option button for Number of Times for On/Off On Button Menu 3...
  • Page 21 INSTALL GUIDE PAGE 21 Menu 3- Starter Settings - continued Setting 5 Maximum Crank Time 1) 10 Seconds 1 Flash/Chirp 10 sec max time that the starter will stay engaged. 3 Seconds 2 Flashes/Chirps 3 sec max time that the starter will stay engaged. *3) 5 Seconds 3 Flashes/Chirps 5 sec max time that the starter will stay engaged.
  • Page 22 INSTALL GUIDE PAGE 22 Menu 4- Tach Settings Press and Press and Press and Hold Press and Release Ignition 3x Release the Release the the Program Button the Program Button On/Off Program button for to Change Option Number of Times for On/Off On Button Menu 4...
  • Page 23: Remote Transmitter Learn

    INSTALL GUIDE PAGE 23 Remote Transmitter Learn STEP 1 - Within 3 seconds turn the ignition key to the “ON” position three times leaving “ON” the third time. STEP 2 - Press and hold the Program Button. The park lights will turn “ON” and the siren will chirp once.
  • Page 24: Shock Sensor

    INSTALL GUIDE PAGE 24 Shock Sensor 2271M/4271M/4266M series Shock Sensor Programming/ Adjustment To enter shock sensor programming: Press and hold the and the buttons for three seconds. The park lights will flash and the siren will three times. While the park lights are “ON”, strike the vehicle with the amount of force wanted to trigger the alarm.
  • Page 25: Reservation Mode

    INSTALL GUIDE PAGE 25 Reservation Mode Very Important! Do not set Reservation Mode if the vehicle is occupied. Manual transmission remote starters must be set into Reservation Mode before the remote starter will activate. The activation type of Reservation Mode is determined when the system is installed.
  • Page 26: Door Lock Relay Wiring Diagrams

    INSTALL GUIDE PAGE 26 Door Lock Relay Wiring Diagrams Negative Type Door Locks 250ma Vehicle Lock To Control Lock/Unlock Relay or Switch Actuators lock Green Blue Negative Door Locks (More Than 250ma) Fused +12V Vehicle Ground Lock/Unlock Lock lock Switch Green Blue To Control Relay...
  • Page 27: Diagnostics

    INSTALL GUIDE PAGE 27 Door Lock Relay Wiring Diagrams 5 Wire / Reverse Polarity Type Door Locks Fused +12V Green Blue Lock Vehicle To Actuator Lock/Unlock Switch lock Aftermarket Doorlock Actuators Ground Vacuum Type Door Locks DIAGNOSTICS Ground Fused +12V Green Blue Lock...
  • Page 28: Diagnostic Memory

    INSTALL GUIDE PAGE 28 DIAGNOSTICS If the remote starter does not activate when the start button is pressed the park lights will flash a diagnostic to indicate what shutdown input has been triggered. For example: If the button is pressed the park lights flash 3 times slowly. Looking at the chart below this would indicate that the system is in Service Mode, simply follow the instructions listed in the owners manual on exiting Service Mode and the remote starter will begin to function as normal.
