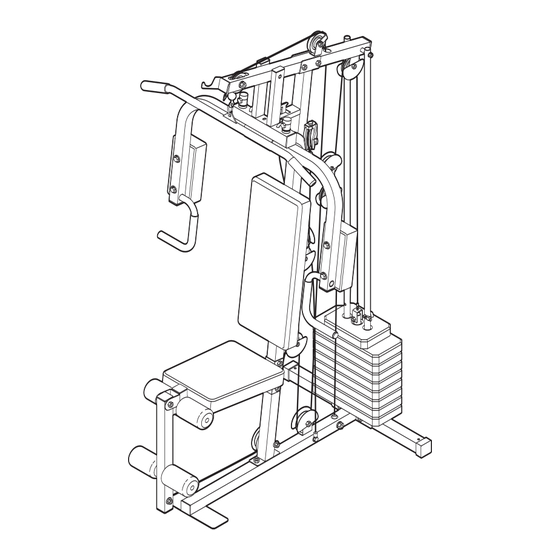

Weslo Gym 750 User Manual
  1. Manuals
  2. Brands
  3. Weslo Manuals
  4. Fitness Equipment
  5. Gym 750
  6. User manual
Weslo Gym 750 User Manual

Weslo Gym 750 User Manual

Uk manual
Hide thumbs Also See for Gym 750:
Table of Contents

Advertisement

Quick Links

Download this manual
Model No. WLEVSY1825.0
Serial No.
Write the serial number in the
space above for future reference.
Serial Number Decal (Under Seat)
QUESTIONS?
As a manufacturer, we are com-
mitted to providing complete
customer satisfaction. If you have
questions, or if there are missing
parts, please call:
08457 089 009
Or write:
ICON Health & Fitness, Ltd.
Unit 4
Revie Road Industrial Estate
Revie Road
Beeston
Leeds, LS118JG
UK
email: csuk@iconeurope.com
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
USER'S MANUAL
Visit our website at
www.iconeurope.com

Advertisement

Table of Contents
loading

Related Manuals for Weslo Gym 750

Summary of Contents for Weslo Gym 750

  • Page 1 Model No. WLEVSY1825.0 Serial No. Write the serial number in the space above for future reference. USER'S MANUAL Serial Number Decal (Under Seat) QUESTIONS? As a manufacturer, we are com- mitted to providing complete customer satisfaction. If you have questions, or if there are missing parts, please call: 08457 089 009 Or write:...

  • Page 2: Table Of Contents

    Apply the decal in the location shown. VERTICAL WARNING PN 218558 – Black Text/Clear Background PN 218559 – White Text/Clear Background WESLO is a registered trademark of ICON IP, Inc.

  • Page 3: Important Precautions

    IMPORTANT PRECAUTIONS WARNING: To reduce the risk of serious injury, read the following important precau- tions before using the weight system. 1. Read all instructions in this manual and in 6. Inspect and properly tighten all parts regular- the accompanying literature and all warn- ly.

  • Page 4: Before You Begin

    BEFORE YOU BEGIN Thank you for selecting the versatile WESLO ® reading this manual, see the front cover of this manu- 750 weight system. The weight system offers a selec- al. To help us assist you, please note the product tion of weight stations designed to develop every model number and serial number before contacting us.

  • Page 5: Assembly

    ASSEMBLY • As you assemble the weight system, make sure Make Things Easier for Yourself all parts are oriented as shown in the drawings. Everything in this manual is designed to ensure • For help identifying small parts, use the PART that the weight system can be assembled suc- IDENTIFICATION CHART.
  • Page 6 2. Attach the Upright (3) to the Base (1) with the two M8 x 63mm Carriage Bolts (58) and two M8 Nylon Locknuts (69). Do not tighten the Locknuts. Attach the Press Frame Lock (39) to the Upright (3) with an M8 x 63mm Bolt (66), two M8 Washers (71), and an M8 Nylon Locknut (69).
  • Page 7 4. Slide the eight Weights (15) onto the Weight Guides (10), with the slot for the Weight Pin (not shown) on the bottom and on the side away from the Upright (3). Lubricate Insert the Weight Tube (12) into the Weights (15). Lubricate the indicated holes in the Top Weight (14) with grease.
  • Page 8 ARM ASSEMBLY Grease 7. Apply grease to an M10 x 70mm Bolt (57). Attach the Leg Lever (9) to the Seat Frame (8) with the Bolt and an M10 Nylon Locknut (68). Do not overtighten the Locknut; the Leg Lever must be able to pivot easily.
  • Page 9 10. Insert the post on the Left Arm (7) through the hole in the Press Frame (5). Make sure the Arm is behind the indicated bracket on the Press Frame. Slide a 25mm Washer (29) over the post on the Left Arm (7).
  • Page 10 14. Wrap the High Cable (50) over a 90mm Pulley (34). Attach the Pulley and two Finger Guards (35) to the Top Frame (4) with an M10 x 46mm Bolt (53) and an M10 Nylon Locknut (68). 34 35 15. Attach the end of the High Cable (50) to the Small “U”-bracket (11) with an M8 Washer (71) and an M8 Nylon Locknut (69).
  • Page 11 18. Wrap the Press Cable (49) under a 90mm Pulley (34). Attach the Pulley and two Finger Guards (35) to the Double “U”-bracket (42) with an M10 x 46mm Bolt (53) and an M10 Nylon Locknut (68). 19. Apply grease to an M10 x 78mm Bolt (54). Attach the Pulley Arm (38) to the Upright (3) with the Bolt and an M10 Nylon Locknut (68).
  • Page 12 22. Wrap the Short Cable (47) over a 90mm Pulley (34). Attach the Pulley and two Finger Guards (35) to the Double “U”-bracket (42) with an M10 x 46mm Bolt (53) and an M10 Nylon Locknut (68). 23. Attach the end of the Short Cable (47) to the “U”- bracket (43) with an M8 Washer (71) and an M8 Nylon Locknut (69).
  • Page 13 26. Wrap the Low Cable (48) under a 90mm Pulley (34). Attach the Pulley and two Finger Guards (35) to the bracket on the Base (1) with an M10 x 46mm Bolt (53) and an M10 Nylon Locknut (68). 27. Route the Low Cable (48) over a 90mm Pulley (34).
  • Page 14 SEAT ASSEMBLY 30. Attach the Backrest (18) to the Upright (3) with two M6 x 63mm Screws (67) and two M6 Washers (73). 31. Attach the Seat (19), oriented as shown, to the Seat Frame (8) with four M6 x 16mm Screws (40).

  • Page 15: Adjustments

    ADJUSTMENTS This section explains how to adjust the weight system. Refer to the accompanying exercise guide to see the cor- rect form for each exercise. Make sure all parts are properly tightened each time the weight system is used. Replace any worn parts immediate- ly.

  • Page 16: Weight Resistance Chart

    WEIGHT RESISTANCE CHART The chart below shows the approximate weight resistance at each exercise station. “Top” refers to the 6-lb. top weight. The other numbers refer to the 12.5-lb. weight plates. Weight resistance shown for the butterfly arm sta- tion is for each butterfly arm. Note: The actual resistance at each station may vary due to differences in individual weight plates as well as friction between the cables, pulleys, and weight guides.

  • Page 17: Cable Diagram

    CABLE DIAGRAMS The cable diagrams below show the proper routing of the Short Cable (47), the Low Cable (48), the Press Cable (49), and the High Cable (50). Use the diagrams to make sure that the cables have been assembled correctly. If the cables have not been correctly routed, the weight system will not function properly and damage may occur.

  • Page 18: Troubleshooting And Maintenance

    TROUBLESHOOTING AND MAINTENANCE TIGHTENING THE CABLES Woven cable, the type of cable used on the weight system, can stretch slightly when it is first used. If there is slack in the cables before resistance is felt, the cables should be tightened. Slack can be removed by moving a 90mm Pulley (34), the Cable Trap (36), and two Finger Guards (35) to a set of holes closer to the centre of the two Pulley...
  • Page 19 NOTES...

  • Page 20: Ordering Replacement Parts

    Please provide the following information when ordering replacement parts: • the MODEL NUMBER of the product (WLEVSY1825.0) • the NAME of the product (WESLO GYM 750 weight system) • the SERIAL NUMBER of the product (see the front cover of this manual) •...

  • Page 21: Grease

    PART LIST—Model No. WLEVSY1825.0 R1005B Key No. Qty. Description Key No. Qty. Description Base “U”-bracket Stabiliser Pulley Plate Upright Pad Tube Top Frame M10 x 100mm Bolt Press Frame Short Cable Right Arm Low Cable Left Arm Press Cable Seat Frame High Cable Leg Lever 10mm x 22mm Spacer...
  • Page 22 PART IDENTIFICATION CHART—Model No. WLEVSY1825.0 M4 x 19mm Self- M6 x 63mm Screw (67) tapping Screw (76) M8 x 63mm Carriage Bolt (58) M6 x 58mm Screw (65) M6 x 16mm Screw (40) M8 x 64mm Shoulder Bolt (56) M4 Washer (77) M10 x 52mm Bolt (52) M8 x 63mm Bolt (66) M6 Washer (73)
  • Page 23 EXPLODED DRAWING A—Model No. WLEVSY1825.0 R1005B...
  • Page 24 EXPLODED DRAWING B—Model No. WLEVSY1825.0 R1005B 73 67...
