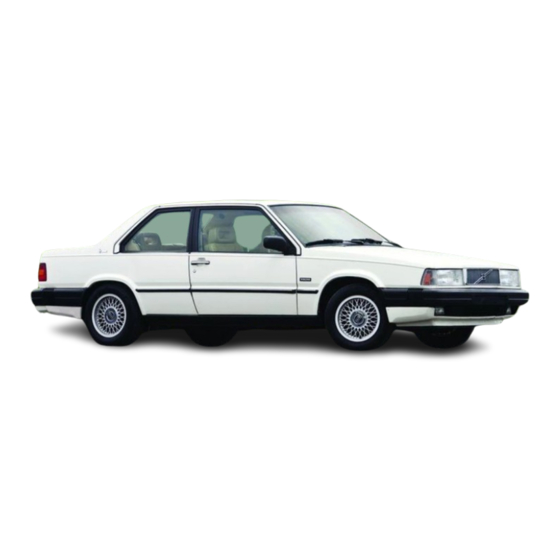

1989 Volvo 780
Contents
A comprehensive index is located at the back of this manual.
Introduction
Instruments and controls
Body and interior
Starting and driving
Wheels and tires
In case of emergency
Car care
Service and routine
maintenance
Specifications
Index
All information, illustrations and specifications contained in this manual are based on the latest product
information available at the time of publication. Volvo reserves the right to make model changes at any
time, or to change specifications or design, without notice and without incurring obligation.
pg. 2 This manual deals with the operation and care of your Volvo
Welcome to the world-wide family of Volvo owners. We trust that you will enjoy many years of safe
driving in your Volvo, an automobile designed with your safety and comfort in mind. To ensure your
satisfaction with this vehicle, we encourage you to familiarize yourself with the equipment descriptions,
operating instructions and maintenance requirements/recommendations in this manual. We also urge you
file:///K|/ownersdocs/1989/1989_780/89780_00.htm (1 of 4)12/30/2006 8:24:17 AM
1 9 8 9
VOLVO
780
