I
NTRODUCTION
Your cordless telephone is designed to give you flexibility in use and high quality performance. To get the most
from your new cordless telephone, we suggest that you take a few minutes right now to read through this
instruction manual.
IMPORTANT: Because cordless phones operate on electricity, you should have at least one phone in your
home that is not cordless, in case the power in your home goes out.
CAUTION: When using telephone equipment, there are basic safety instructions that should
always be followed. Refer to the IMPORTANT SAFETY INSTRUCTIONS provided with this
product and save them for future reference.
B
Y
B
EFORE
OU
EGIN
P
C
ARTS
HECKLIST
Make sure your package includes the items shown here.
Handset
Base
Handset
battery
M
J
R
ODULAR
ACK
EQUIREMENTS
You need an RJ11C (CA11A) type modular phone jack, which is the most common type of phone jack
and might look like the one pictured here. If you don't have a modular jack, call your local phone
company to find out how to get one installed.
D
S
S
IGITAL
ECURITY
YSTEM
Your cordless phone uses a digital security system to provide protection against false ringing, unauthorized
access, and charges to your phone line.
When you place the handset in the base, the unit verifies its security code. After a power outage or battery
replacement, you should place the handset in the base for about 20 seconds to reset the code.
I
I
MPORTANT
NFORMATION
I
S
NSTALLATION AND
The term "IC:" before the certification/registration number only signifies that Industry Canada technical
specifications were met.
CAUTION: Always disconnect phone cords from the wall outlets before battery installation or
The equipment must be installed using an acceptable method of connection. The customer should be aware that
replacement.
compliance with the above conditions may not prevent degradation of service in some situations.
INSTALLATION NOTE: Some cordless telephones operate at frequencies that may cause
Repairs to certified equipment should be made by an authorized Canadian maintenance facility designated by the
interference to nearby TVs, microwave ovens, and VCRs. To minimize or prevent such interference,
supplier. Any repairs or alterations made by the user to this equipment, or equipment malfunctions, may give the
telecommunications company cause to request the user to disconnect the equipment.
the base of the cordless telephone should not be placed near or on top of a TV, microwave oven, or
VCR. If interference continues, moving the cordless telephone farther away from the TV or VCR will
Users should ensure for their own protection that the electrical ground connections of the power utility, telephone
often reduce or eliminate the interference.
lines and internal metallic water pipe systems, if present, are connected together. This precaution may be
Certain other communications devices may also use the 2.4 GHz frequency for communication, and,
particularly important in rural areas.
if properly set, these devices may interfere with each other and/or your new telephone. If you are
CAUTION: Users should not attempt to make such connections themselves, but should contact the appropriate
concerned with interference, please refer to the owner's manual for these devices on how to properly
electric inspection authority, or electrician, as appropriate.
set channels to avoid interference. Typical devices that may use the 2.4 GHz frequency for
NOTES: This equipment may not be used on coin service provided by the telephone company.
communication include wireless audio/video senders, wireless computer networks, multi-handset
cordless telephone systems, and some long-range cordless telephone systems.
I
I
NTERFERENCE
NFORMATION
I
I
MPORTANT
NSTALLATION
This equipment generates and uses radio frequency energy which may interfere with residential radio and
television reception if not properly installed and used in accordance with instructions contained in this manual.
• Never install telephone wiring during a lightning storm.
Reasonable protection against such interference is ensured, although there is no guarantee this will not occur in
• Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations.
a given installation. If interference is suspected and verified by switching this equipment on and off, the user is
encouraged to try to correct the interference by one or more of the following measures: Reorient the radio/
• Never touch uninsulated telephone wires or terminals, unless the telephone line has been disconnected at the
television receiver's antenna, relocate the equipment with respect to the receiver, plug the equipment and
network interface.
receiver into separate circuit outlets. The user may also wish to consult a qualified radio/television technician for
• Use caution when installing or modifying telephone lines.
additional suggestions. This equipment has been fully tested and complies with all limits for Class B computing
• Temporarily disconnect any equipment connected to the phone such as faxes, other phones, or modems.
devices pursuant to part 15 FCC Rules and Regulations. This device complies with RSS-210 of Industry Canada.
Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This
I
P
NSTALLING THE
HONE
device must accept any interference, including interference that may cause undesired operation of the device.
Your cordless telephone should be placed on a level surface such as a desk or table top, or you can mount it on
H
A
C
EARING
ID
OMPATIBILITY
a wall.
This telephone system meets FCC/Industry Canada standards for Hearing Aid Compatibility.
REN NUMBER IS LOCATED ON THE CABINET BOTTOM

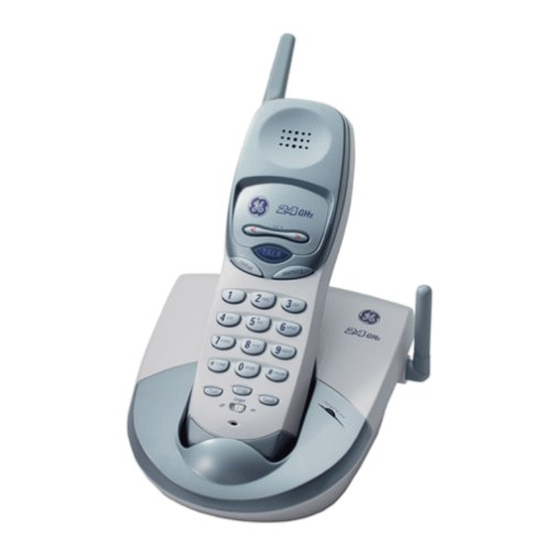

Model 27928
© 2002 ATLINKS Communications Canada, Inc.
15895030 (Rev. 1 E/F)
Trademark(s) ® Registered
02-25
Marque(s) ® déposée(s)
Printed in China
C
AC (E
) P
ONNECTING THE
LECTRICAL
OWER
Plug the power supply cord into the power jack on the bottom of the base and the other end into an electrical
outlet. The charge/in use indicator turns on to indicate the battery is charging.
Allow the phone to charge for 12 hours prior to first use. If you don't properly charge the phone, battery
performance will be compromised.
CAUTION: Use only the ATLINKS USA, Inc. 5-2527 (black) or 5-2526 ( white) power supply
that came with this unit. Using other adapters may damage the unit.
C
T
L
ONNECTING THE
ELEPHONE
INE
1. Plug the one end of the telephone line cord into the jack on the back of the base and the other end into a
modular wall phone jack.
2. Set the RINGER switch (on the handset front) to ON, and place handset in the cradle on the base.
NOTE: The phone automatically defaults to touch-tone dialing. To change to pulse (rotary)
dialing, see "Tone/Pulse Dialing." If you don't know which type of service you have, check with the
phone company.
W
M
ALL
OUNTING
NOTE: For best results, leave the phone on a flat surface during initial charging before you hang the
phone on the wall.
1. Turn the base over.
2. Attach the wall mounting pedestal by first inserting the tabs on the open edge of the pedestal into the slots on
Mounting
AC power supply
Telephone line cord
the lower portion of the bottom of the base. Then push down and snap the pedestal into place.
bracket
3. Slip the mounting holes (on the back of the base and pedestal) over the wall plate posts and slide the unit
down into place. (Wall plate not included.)
C
P
B
ORDLESS
HONE
ASICS
-/+ vol button
TALK button
redial button
memory button
RISK OF ELECTRIC SHOCK
DO NOT OPEN
THE LIGHTNING FLASH
CAUTION: TO REDUCE THE RISK OF
THE EXCLAMATION
AND ARROW HEAD
ELECTRIC SHOCK, DO NOT REMOVE
POINT WITHIN THE
WITHIN THE TRIANGLE
COVER (OR BACK). NO USER
TRIANGLE IS A
*TONE button
#PAUSE button
IS A WARNING SIGN
SERVICEABLE PARTS INSIDE. REFER
WARNING SIGN
ALERTING YOU OF
SERVICING TO QUALIFIED SERVICE
ALERTING YOU OF
"DANGEROUS
PERSONNEL.
IMPORTANT
VOLTAGE" INSIDE THE
INSTRUCTIONS
PRODUCT.
ACCOMPANYING THE
PRODUCT.
flash button
SEE MARKING ON BOTTOM / BACK OF PRODUCT
chan button
prog button
ringer switch
ETUP
M
C
AKING A
ALL
After initial set up, put handset in the base for 12 hours to charge the battery.
The only two things you need to know to make a call are:
• Press the TALK button before you dial.
• Press TALK or place the handset in the base to hang up.
I
U
I
N
SE
NDICATOR
The phone is ON when the TALK button/indicator on the handset is lit and the charge/ in use indicator on the base is lit.
R
EDIAL
Press the redial button to quickly redial the last number you called (up to 32 digits).
R
C
ECEIVING A
ALL
To answer a call, you must press the TALK button before you can talk.
I
NFORMATION
F
LASH
Use the flash button to activate custom calling services such as Call Waiting or call transfer, which are available
through your local phone company.
TIP: If you press the TALK button to activate custom calling services such as call waiting, you'll hang
up the phone. Press "flash" instead.
V
OLUME
The Vol left and right arrow buttons control the volume of the handset's earpiece.
R
S
INGER
WITCH
The handset ringer switch can be set to ON or OFF. If the switch is off, the unit will not ring.
2
R
T
INGER
ONE
To select the ringer tone:
1. Press and hold the program (prog) button.
1
2. Press 1 or 2 for Ringer Tone selection.
3. Press the program (prog) button again. You will hear a confirmation tone.
T
/P
D
ONE
ULSE
IALING
D
S
N
IALING A
TORED
UMBER
This adjustment allows you to select tone (touch-tone) or pulse (rotary) mode dialing. The phone is automatically
1. Make sure the phone is ON by pressing the TALK button.
set for touch-tone use. To set tone or pulse dialing:
2. Press the memory button.
1. Make sure the phone is OFF.
3. Press the number (0-9) for the desired memory location. The number dials automatically.
2. Press and hold the program (prog) button until the unit beeps.
3. Press * for TONE or # for PULSE.
IMPORTANT: If you make test calls to emergency numbers stored in memory, remain on the line
and briefly explain the reason for the call to the dispatcher. Also, it's a good idea to make these calls
4. Press the program (prog) button again. You will hear a confirmation tone.
in off-peak hours, such as early morning or late evening.
T
T
EMPORARY
ONE
C
B
HANGING THE
ATTERY
This feature enables pulse (rotary) service phone users to access touch-tone services offered by banks, credit
Make sure the telephone is OFF before you replace battery.
card companies, etc., by pressing the *TONE button to temporarily make the phone touch-tone compatible. To get
information about your bank account, for example, you would:
1. Remove the battery compartment door.
charge/in use
1. Press the TALK button.
indicator
2. Disconnect the cord attached to the battery pack and remove the battery pack from
the handset.
2. Call the bank's information line.
3. Insert the new battery pack and connect the cord into the jack inside the handset.
3. Press the *TONE button after your call is answered.
4. Put the battery compartment door back on.
4. Follow the voice instructions to complete your transaction.
5. Place handset in the base to charge. If you don't charge the handset battery
5. Hang up when finished. The phone returns to pulse (rotary) service.
properly (for 12 hours) when you first set up the phone and/or when you install a
new battery pack, the battery's long-term performance will be compromised.
P
H
AGING THE
ANDSET
PAGE button
CAUTION: To reduce the risk of fire or personal injury, use only the
Press the PAGE button on the base to locate a misplaced handset. When you press
the PAGE button, the handset beeps and the TALK button/indicator on the handset and the charge/in use indicator
battery listed in the instruction book.
on the base blinks. Press the TALK button when you locate the handset. The page signal is three beeps every two
B
S
P
seconds for two minutes. Press the PAGE button to stop paging.
ATTERY
AFETY
RECAUTIONS
• Do not burn, disassemble, mutilate, or puncture. Like other batteries of this type,
NOTE: You can still page the handset with the ringer off.
toxic materials could be released which can cause injury.
C
B
• To reduce the risk of fire or personal injury, use only the battery listed in the User's Guide.
HANNEL
UTTON
• Keep batteries out of the reach of children.
If you ever experience any interference or don't have clear voice quality, press the chan button on the handset to
advance to another channel.
• Remove batteries if storing over 30 days.
M
EMORY
NOTE: This product contains a nickel-cadmium rechargeable battery and must
Store up to ten 20-digit telephone numbers in memory for quick dialing.
be recycled or disposed of properly. We suggest that you check with your local
S
N
M
Environmental Agency regarding recycling or disposal.
TORING A
UMBER IN
EMORY
1. Make sure the phone is OFF.
2. Press the memory button.
3. Press any number key (0-9) to store the phone number in that memory location.
4. Press memory button.
T
5. Use the keypad to enter the number (up to 20 digits) you want to store in that memory location.
ROUBLESHOOTING
6. Press the memory button again to confirm.
In case of difficulty, please check the following Troubleshooting Guide before seeking service.
C
S
N
HANGING A
TORED
UMBER
Problem
Use the same procedure to change a stored number as you do to store a number— you're just replacing the
phone number with a different number.
S
R
N
TORING A
EDIAL
UMBER
1. Make sure the phone is OFF.
2. Press the memory button.
3. Press any number key (0-9) to store the phone number in that memory location.
4. Press the memory button
5. Press redial.
6. Press the memory button again to confirm.
S
P
M
TORING A
AUSE IN
EMORY
Use the # PAUSE button to insert a pause when a delay is needed in the dialing sequence (for example, when you
must dial a 9 to get an outside line or when you must enter codes to access your bank's information line). Each
pause counts toward the 20-digit limit.
If you need to dial 9 to get an outside line and want to store a number in memory without having to dial 9 each
time, you would:
1. Make sure the phone is OFF.
2. Press the memory button.
3. Press any number (0-9) to store the phone number in that memory location.
4. Press memory again.
5. Enter the number 9 (or any other appropriate number) to access an outside line.
6. Press # PAUSE.
7. Enter the phone number you want to store in memory.
8. Press the memory button again to confirm.
TIP: If you need a longer pause, press the # PAUSE button twice.
REN N
UMBER
On the bottom of this equipment is a label indicating, among other information, the Ringer Equivalence Number
(REN) for the equipment.
The REN is useful in determining the number of devices you may connect to your telephone line and still have all
of these devices ring when your telephone number is called. In most (but not all) areas, the sum of the RENs of all
devices connected to one line should not exceed 5. To be certain of the number of devices you may connect to
your line as determined by the REN, you should contact your local telephone company.
T
N
I
ELEPHONE
ETWORK
NFORMATION
G
UIDE
Should your equipment cause trouble on your line which may harm the telephone network, the telephone
company, where practicable, may notify you that temporary discontinuance of service may be required. Where
prior notice is not practicable and the circumstances warrant such action, the telephone company may
temporarily discontinue service immediately.
Solution
The telephone company may make changes in its communications facilities, equipment, operations or procedures
where such action is required in the operation of its business. If these changes are expected to affect the use or
performance of your telephone equipment, the telephone company will likely give you adequate notice to allow
you to maintain uninterrupted service.
Notice must be given to the telephone company upon termination of your telephone from your line.
S
ERVICE
ATLINKS Communications Canada, Inc., warrants to the purchaser or gift recipient that if any
manufacturing defect becomes apparent in this product within 1 year from the original date of
purchase, it will be replaced free of charge, including return transportation.
This warranty does not include damage to the product resulting from accidents, misuse or leaking
batteries.
Should your product not perform properly during the warranty period, either:
1. Return it to the selling dealer with proof of purchase for replacement,
OR
2. Remove the batteries (where applicable), and pack product complete with accessories in the
original carton (or equivalent).
— Mail prepaid (with proof of purchase) and insured to:
The provisions of this written warranty are in addition to and not a modification of or subtraction
from the statutory warranties and other rights and remedies contained in any applicable legislation,
and to the extent that any such provisions purport to disclaim, exclude or limit any such statutory
warranties and other rights and remedies, such provisions shall be deemed to be amended to the
extent necessary to comply therewith.
If you are unable to find a qualified servicer for out of warranty service, you may write to:
ATLINKS Communications Canada, Inc.
c/o Thomson multimedia Inc.
P.O. Box 0944
Indianapolis, Indiana, U.S.A., 46206-0944
Attach your sales receipt to this booklet for future reference. This information is required if service
is needed during the warranty period.
PURCHASE DATE
_____________________________________________________________________
NAME OF STORE
_____________________________________________________________________
DESCRIPTION
MODEL NO.
PRICE*
QUANTITY
TOTAL
black
white
AC power supply
5-2527
5-2526
$15.50
Replacement battery
5-2459
$14.95
To order, call 1-800-338-0376 (for accessories only) or complete this order form.

Summary of Contents

  • Page 1

    HONE device must accept any interference, including interference that may cause undesired operation of the device. Your cordless telephone should be placed on a level surface such as a desk or table top, or you can mount it on EARING OMPATIBILITY a wall.

  • Page 2

    Ce téléphone est conforme aux normes FCC/Industrie Canada en matière de compatibilité avec les prothèses auditives. REN (facteur d’équivalence de sonnerie) SE TROUVE À LA BASE DE L’APPAREIL Modèle 27928 15895030 (Rév. 1 E/F) © 2002 ATLINKS Communications Canada Inc.

Comments to this Manuals

Symbols: 0

Latest comments:

×

Select the desired size and copy embed code

Copy your embed code and put on your site:
