HP EliteOne 800 G1 Specification

HP EliteOne 800 G1 Specification

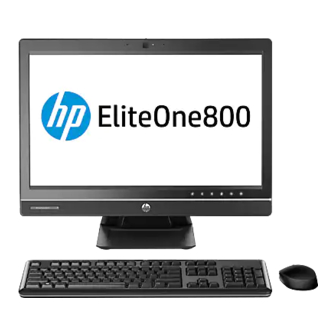

All-in-one business pc
Hide thumbs Also See for EliteOne 800 G1:

Advertisement

Table of Contents

See also: Maintenance and Service Manual
QuickSpecs
Overview
1.
Dual microphone array (only on models with Webcam)
2.
2.0 MP Webcam (optional)
3.
Webcam Activity LED
4.
23-inch IPS Full HD capable screen (with or without projected capacitive touch panel option)
5.
Increase brightness
6.
Decrease brightness
7.
Mute microphone
8.
Increase volume
9.
High performance stereo speakers
10.
Reduce volume
11.
Mute speaker
HP EliteOne 800 G1 All-in-One Business PC
DA - 14652 North America — Version 13 — November 11, 2013
HP EliteOne 800 G1 All-in-One Business PC
FRONT
Page 1

Advertisement

Table of Contents
loading

Related Manuals for HP EliteOne 800 G1

Summary of Contents for HP EliteOne 800 G1

  • Page 1 QuickSpecs HP EliteOne 800 G1 All-in-One Business PC Overview HP EliteOne 800 G1 All-in-One Business PC FRONT Dual microphone array (only on models with Webcam) 2.0 MP Webcam (optional) Webcam Activity LED 23-inch IPS Full HD capable screen (with or without projected capacitive touch panel option)
  • Page 2 QuickSpecs HP EliteOne 800 G1 All-in-One Business PC Overview HP EliteOne 800 G1 All-in-One Business PC SIDE Hard disc drive activity LED HP SD media card reader (optional) (2) USB 3.0 ports, including 1 fast charging port Microphone/line in jack...
  • Page 3 QuickSpecs HP EliteOne 800 G1 All-in-One Business PC Overview HP EliteOne 800 G1 All-in-One Business PC REAR/PORTS (BEHIND SECURITY COVER) Basic Stand* PS/2 mouse connector Access panel latches PS/2 keyboard connector I/O security cover latch (2) USB 3.0 ports Security Screw hole...
  • Page 4 TCO AiO and TCO Edge Low Halogen Arsenic Free Protected by HP Services, including warranties up to 5-5-5 (terms and conditions vary by country; certain restrictions and exclusions apply) DA - 14652 North America — Version 13 — November 11, 2013...

  • Page 5: Operating System

    QuickSpecs HP EliteOne 800 G1 All-in-One Business PC Standard Features and Configurable Components (availability may vary by country) OPERATING SYSTEM Preinstalled Windows 8 Professional (64-bit)* Windows 8 (64-bit)* Windows 7 Ultimate (32-bit)** (LAR only) Windows 7 Ultimate (64-bit)** Windows 7 Professional...
  • Page 6 QuickSpecs HP EliteOne 800 G1 All-in-One Business PC Standard Features and Configurable Components (availability may vary by country) Intel® Core™ i5-4570S Up to 3.6 GHz Max. Turbo Frequency (2.9 GHz base frequency), 6 MB cache, 4 cores, 4 threads Intel® HD Graphics 4600 Supports DDR3 memory up to 1600 MT/s data rate Supports Intel®...
  • Page 7 QuickSpecs HP EliteOne 800 G1 All-in-One Business PC Standard Features and Configurable Components (availability may vary by country) INTEL® VPRO TECHNOLOGY CAPABLE Intel® Core i5 with vPro and Core i7 with vPro technology is a selectable feature that is available on units configured with select processors, and a preinstalled Windows operating system.
  • Page 8 QuickSpecs HP EliteOne 800 G1 All-in-One Business PC Standard Features and Configurable Components (availability may vary by country) INTEL® STANDARD MANAGEABILITY Includes DASH 1.0/1.1 compliance plus: System Defense Agent Presence SOL/IDE Redirection CISCO NAC/SDN support ME Wake on LAN Host Based Configuration...

  • Page 9: Wireless Display

    Anti-glare Default color temperature Warm (6500K) NOTE: All performance specifications represent the typical specifications provided by HP's component manufacturers; actual performance may vary either higher or lower. DA - 14652 North America — Version 13 — November 11, 2013 Page 9...
  • Page 10 QuickSpecs HP EliteOne 800 G1 All-in-One Business PC Standard Features and Configurable Components (availability may vary by country) Projected Capacitive Touch panel is not anti-glare With Projected Capacitive Touch Panel Without Projected Capacitive Touch Panel Basic Stand: Tilt Angle -5° to +30°...
  • Page 11 QuickSpecs HP EliteOne 800 G1 All-in-One Business PC Standard Features and Configurable Components (availability may vary by country) Removable HP Slim Removable SATA HDD frame/carrier Media Card Reader (optional) 5-in-1 PCIe Interface Supports Secure Digital (SD, SDXC, SDHC, UHS-I, UHS-II)
  • Page 12 Up to 300 mbps data rate Bluetooth 4.0 compliant Works with a wide range of Bluetooth devices Near Field Communications (NFC) (optional) HP Module with NXP NFC Controller with Embedded Secure Element, PN65O Supports Windows 8, Proximity Events Support Windows 7, PC/SC NFC Forum Compliant AUDIO/MULTIMEDIA DTS Studio Sound™...
  • Page 13 QuickSpecs HP EliteOne 800 G1 All-in-One Business PC Standard Features and Configurable Components (availability may vary by country) KEYBOARDS AND POINTING DEVICES Keyboard HP PS/2 Keyboard 104 keys plus special functions for Mute, Volume Up, Volume Down, Sleep Separate numeric keypad Cable length 70.87 in (180 cm)
  • Page 14 PC into the enterprise, such as PXE, remote configuration, remote control, and F10 Setup support for 12 languages. Select models feature either Intel® Standard Manageability or Intel® Core vPro Processor Technology. Stability - HP BIOS supports the HP stable product roadmap by releasing only critical BIOS changes to the factory and advanced change notification.
  • Page 15 QuickSpecs HP EliteOne 800 G1 All-in-One Business PC Standard Features and Configurable Components (availability may vary by country) SECURITY USB port disable Lockable Access Panel Lockable I/O security cover Security Screw HP Keyed Cable Lock (optional) Common Criteria Certified, Infineon TPM SLB9656TT1.2- 4.32 FW...

  • Page 16: Weights And Dimensions

    Available via download Preinstalled on models with webcam Requires an Internet connection to HP web-enabled printer and HP ePrint account registration (for a list of eligible printers, supported documents and image types and other HP ePrint details, see www.hp.com/go/eprintcenter).Requires optional broadband module.
  • Page 17 QuickSpecs HP EliteOne 800 G1 All-in-One Business PC Standard Features and Configurable Components (availability may vary by country) Shipping Weight Without stand Basic stand Height adjustable/reclining stand 26.06 lbs 29.23 lbs 39.38 lbs 11.82 kg 13.26 kg 17.86 kg Shipping Weight...
  • Page 18 QuickSpecs HP EliteOne 800 G1 All-in-One Business PC Standard Features and Configurable Components (availability may vary by country) DA - 14652 North America — Version 13 — November 11, 2013 Page 18...
  • Page 19 QuickSpecs HP EliteOne 800 G1 All-in-One Business PC Standard Features and Configurable Components (availability may vary by country) HEIGHT ADJUSTABLE/RECLINING STAND DIMENSIONS DA - 14652 North America — Version 13 — November 11, 2013 Page 19...
  • Page 20 QuickSpecs HP EliteOne 800 G1 All-in-One Business PC Standard Features and Configurable Components (availability may vary by country) TEMPERATURE, HUMIDITY, ALTITUDE Temperature Operating 50° to 95° F (10° to 35° C)* Non-operating -22° to 140° F(-30° to 60° C) Relative humidity...

  • Page 21: Service And Support

    24 x 7. Three-year onsite and labor are not available in all countries. Service offers terms up to 5 years by choosing a Care Pack. To choose the right level of service for your HP product, visit HP Care Pack Central: www.hp.com/go/cpc...

  • Page 22: Technical Specifications - Graphics

    QuickSpecs HP EliteOne 800 G1 All-in-One Business PC Technical Specifications - Graphics Intel HD Graphics VGA Controller Integrated DisplayPort Multimode capable; supports HDCP, Display Port Audio (2 streams), HBR2 link rates and Multi-Stream Technology for a maximum of 3 displays (including the integrated panel)
  • Page 23 HP EliteOne 800 G1 All-in-One Business PC Technical Specifications - Graphics Supported Display Resolutions and Refresh Rates NOTE: other resolutions may be available but are not recommended as they may not have been tested and qualified by HP Resolution Refresh Rates...
  • Page 24 HP EliteOne 800 G1 All-in-One Business PC Technical Specifications - Graphics Supported Display Resolutions and Refresh Rates NOTE: other resolutions may be available but are not recommended as they may not have been tested and qualified by HP Resolution Refresh Rates...

  • Page 25: Technical Specifications - Hard Disk And Solid State Storage

    HP Drive Lock HP Serial ATA Hard Drives offer enhanced security via a new Drive Lock. When enabled, this ATA security feature set prevents software access to user data on the drive until one or two user-defined passwords are provided.
  • Page 26 QuickSpecs HP EliteOne 800 G1 All-in-One Business PC Technical Specifications – Hard Disk and Solid State Storage HP 500-GB 7.2K SATA 6.0Gb/s 2.5" Hard Disk Drive Capacity 500,107,862,016 bytes Rotational Speed 7,200 rpm Interface SATA 6 Gb/s Buffer Size 16 MB...
  • Page 27 QuickSpecs HP EliteOne 800 G1 All-in-One Business PC Technical Specifications – Hard Disk and Solid State Storage HP 128 GB Solid State Drive Unformatted Capacity Architecture Multi Level Cell (MLC) NAND Interface SATA 6 GB/sec Dimensions (W x H x D) 2.75 x 0.276 x 3.96 in (6.985 x 0.7 x 10.05 cm)
  • Page 28 Actual capacity will vary by content ** The product achieves a mean time between failure (MTBF) based on population statistics not relevant to individual units. HP 256 GB SATA 2.5" Self-Encrypting (SED) Solid State Drive Unformatted Capacity...
  • Page 29 3.945 in/100.2 mm, ±0.25mm Weight 3.35 oz/95 g (max) Operating Temperature 32° to 140° F (0° to 60° C) HP 500 GB SATA 6G 2.5" 8GB Solid State Hybrid Drive (SSHD) (Coming Soon) Formatted Capacity 500 GB Spindle Speed 5,400 rpm +/- 0.2%...
  • Page 30 QuickSpecs HP EliteOne 800 G1 All-in-One Business PC Technical Specifications – Hard Disk and Solid State Storage HP 1-TB SATA 6G 2.5" 8GB Solid State Hybrid Drive (SSHD) (Coming Soon) Formatted Capacity 1 TB Spindle Speed 5,400 rpm +/- 0.2%...

  • Page 31: Technical Specifications - Removable Storage

    QuickSpecs HP EliteOne 800 G1 All-in-One Business PC Technical Specifications - Removable Storage HP Slim SuperMulti DVD Writer Drive Height 12.7mm height Orientation Either horizontal or vertical Interface type SATA/ATAPI Disc recording capacity Up to 8.5 GB DL or 4.7 GB standard Dimensions (W x H x D) 5.0 x 0.5 x 5.0 in (128 x 13.6 x 129 mm)
  • Page 32 QuickSpecs HP EliteOne 800 G1 All-in-One Business PC Technical Specifications - Removable Storage Temperature 41° to 122° F (5° to 50° C) Environmental conditions Relative Humidity 10% to 90% (operating - non-condensing) Maximum Wet Bulb 84° F (29° C) Temperature...

  • Page 33: Memory Configurations

    System Memory Support The HP EliteOne 800 G1 All-in-One Business PC supports the 4th generation Intel® Core™ processor families. Based on a new PC micro- architecture, the processor is designed for a two-chip platform consisting of a processor and Platform Controller Hub (PCH). Unlike previous generations, the processor includes an integrated memory controller (IMC).

  • Page 34: Technical Specifications - Communications

    QuickSpecs HP EliteOne 800 G1 All-in-One Business PC Technical Specifications - Communications Intel® I217LM GbE Network Connection (integrated) Connector RJ-45 System Interface Integrated on PCA Controller Intel® Ethernet Controller I217LM Memory 24 KB FIFO packet buffer memory Two Queues (Tx & Rx)
  • Page 35 QuickSpecs HP EliteOne 800 G1 All-in-One Business PC Technical Specifications - Communications Antenna Structure 2 transmit; 2 receive (2x2) Data Rates 802.11b: 1, 2, 5.5, 11 Mbps 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11n: 66 possible data rates, ranging from 6 Mbps to 300 Mbps, depending on the combination of Bandwidth, Modulation Coding Scheme, and Guard Interval used, as defined in IEEE 802.11n...
  • Page 36 Cisco Compatible Extensions Intel PROSet for Microsoft Windows XP (required for Cisco Compatible Extensions support) HP WLAN 802.11a/b/g/n Wireless 2x2 Dual-Band Minicard with Bluetooth Combo Dimensions (L x H) 1.18 x 1.06 in (30 x 26.8 mm) Chipset Atheros AR9462...
  • Page 37 QuickSpecs HP EliteOne 800 G1 All-in-One Business PC Technical Specifications - Communications IEEE and WiFi compliant 64 / 128 bit WEP encryption for a/b/g mode only 802.1x authentication WPA, WPA2: 802.1x. WPA-PSK, WPA2-PSK, TKIP, and AES Security IEEE 802.11i Cisco Certified Extensions, all versions through V5...
  • Page 38 QuickSpecs HP EliteOne 800 G1 All-in-One Business PC Technical Specifications - Communications Supply Operating voltage 2.97 to 5.25 Volts I/O Voltage 1.8V or 3.3V Power Consumption (Supply 3.3 Mode Power Consumption, Typical Volts) Reset 10 µW Standby 150 µW Card Emulation within Polling Loop 297 µW...
  • Page 39 QuickSpecs HP EliteOne 800 G1 All-in-One Business PC Technical Specifications - Audio Realtek ALC3228 High Definition Audio Type Integrated HD Stereo Codec Realtek ALC3228 4-channel codec Ports Line-In/Microphone input ports are 47K (nominal) at the pin Line-Out intended to drive an external 10K load (nominal) and an on board shunt resistor of 20-47K...

  • Page 40: Technical Specifications - Keyboards And Pointing Devices

    QuickSpecs HP EliteOne 800 G1 All-in-One Business PC Technical Specifications – Keyboards and Pointing Devices HP USB Keyboard Keys 104, 105, 106, 107, 109 layout (depending upon country) Dimensions Physical characteristics 18.12 x 6.47 x 0.96 in (46.03 x 16.43 x 2.44 cm)
  • Page 41 QuickSpecs HP EliteOne 800 G1 All-in-One Business PC Technical Specifications – Keyboards and Pointing Devices Keyboard Installation Guide Kit contents Warranty Card Safety and Comfort Guide HP PS/2 Keyboard Keys 104, 105, 106, 107, 109 layout (depending upon country) Dimensions 18.12 x 6.47 x 0.96 in (46.03 x 16.43 x 2.44 cm)
  • Page 42 HP ProtectTools Smart Card Manager provides authentication software for the smart card. The Smart Card Reader module works with the HP ProtectTools Security Manager and enables the user to setup, use, and manage the smart card. This allows strengthened security with HP patented technology.
  • Page 43 QuickSpecs HP EliteOne 800 G1 All-in-One Business PC Technical Specifications – Keyboards and Pointing Devices Dimensions 18.2 x 6.3 x 1.3 in (46.3 x 16.1 x 3.3 cm) (H x W x D) Weight 2 lb (0.9 kg) minimum Operating voltage + 5VDC ±...
  • Page 44 QuickSpecs HP EliteOne 800 G1 All-in-One Business PC Technical Specifications – Keyboards and Pointing Devices Communication From card 9600 bps to 330,000 bps From computer 12 Mbps (USB transfer speed) Landing mechanism Contact device Friction contact Card insertions rating Up to 100,000 insertion cycles...
  • Page 45 QuickSpecs HP EliteOne 800 G1 All-in-One Business PC Technical Specifications – Keyboards and Pointing Devices Non-operating humidity 0% to 95% (non-condensing at ambient) Operating shock 40 g, six surfaces Environmental Non-operating shock 80 g, six surfaces Operating vibration 2-g peak acceleration...
  • Page 46 QuickSpecs HP EliteOne 800 G1 All-in-One Business PC Technical Specifications – Keyboards and Pointing Devices System Requirements Design Guidelines for PCs PC 99 - connector overmold colors; PC 2001 - full functionality Telecom All local telecom requirements and approvals for intended markets FCC Title 47 CFR, Par 15, Subpart C;...
  • Page 47 QuickSpecs HP EliteOne 800 G1 All-in-One Business PC Technical Specifications – Keyboards and Pointing Devices EMI-RFI Conforms to FCC rules for a Class B computing device Microsoft PC99 - 2001 Functionally compliant Resolution 800 DPI Tracking speed 10 in/s (25.4 cm/s) maximum Acceleration ±15%...
  • Page 48 QuickSpecs HP EliteOne 800 G1 All-in-One Business PC Technical Specifications – Keyboards and Pointing Devices HP USB 1000dpi Laser Mouse Dimensions 1.47 x 4.53 x 2.47 in (37.3 x 114.97 x 62.86 mm) (H x L x W) Weight 3.360 oz (102g) Cable length 70.9 in (180 cm)
  • Page 49 QuickSpecs HP EliteOne 800 G1 All-in-One Business PC Technical Specifications – Keyboards and Pointing Devices Switch actuation 61 g nominal peak force Switch life 3,000,000 operations (using Hasco modified tester) Switch type Low force micro-switches Tracking mechanism life 155 mi (250 km) at average speed of 10 in/s Cable length 6 ft (1.8 m)

  • Page 50: Technical Specifications - Environmental Data

    NOTE: Energy efficiency data listed is for an ENERGY STAR® compliant product if offered within the model family . HP computers marked with the ENERGY STAR® Logo are compliant with the applicable U.S. Environmental Protection Agency (EPA) ENERGY STAR® specifications for computers. If a model family does not offer ENERGY STAR®...

  • Page 51: Additional Information

    This product is in compliance with California Proposition 65 (State of California; Safe Drinking Water and Toxic Enforcement Act of 1986). This product is in compliance with the IEEE 1680 (EPEAT) standard at the Gold where HP registers commercial desktop products. See http://www.epeat.net...

  • Page 52: Hewlett-Packard

    HP and Recycling sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner. The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard web site at: http://www.hp.com/go/recyclers.

  • Page 53: Options And Accessories (Sold Separately)

    B4U39AA HP 8GB DDR3-1600 (PC3-12800) SODIMM B4U40AA DATA STORAGE DRIVES AND ACCESSORIES Part Number HP 500GB SATA , 6G (8GB cache) Solid State Hybrid Drive (SSHD) E1C62AA HP 128GB SATA Solid State Drive QV063AA HP Slim SATA DVD-ROM Drive VP033AA...
  • Page 54 HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. Microsoft, Windows and Windows 7 are registered trademarks or trademarks of Microsoft Corporation in the U.S.
