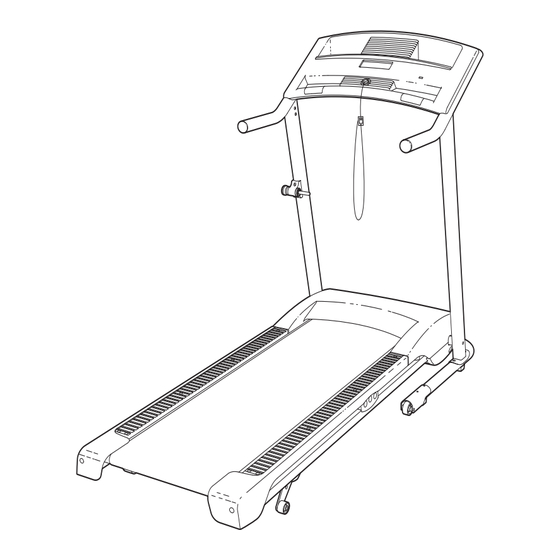

Weslo Cadence C6 Treadmill User Manual

Uk manual
Hide thumbs Also See for Cadence C6 Treadmill:
Table of Contents

Advertisement

Quick Links

Model No. WETL13806.0
Serial No.
Serial Number
Decal
QUESTIONS?
As a manufacturer, we are com-
mitted to providing complete
customer satisfaction. If you
have questions, or if there are
missing or damaged parts,
please call:
08457 089 009
or write:
ICON Health & Fitness, Ltd.
Customer Service Department
Unit 4
Revie Road Industrial Estate
Revie Road
Beeston
Leeds, LS118JG
UK
email: csuk@iconeurope.com
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
USER'S MANUAL

Advertisement

Table of Contents
loading

Related Manuals for Weslo Cadence C6 Treadmill

Summary of Contents for Weslo Cadence C6 Treadmill

  • Page 1 Model No. WETL13806.0 USER'S MANUAL Serial No. Serial Number Decal QUESTIONS? As a manufacturer, we are com- mitted to providing complete customer satisfaction. If you have questions, or if there are missing or damaged parts, please call: 08457 089 009 or write: ICON Health &...

  • Page 2: Table Of Contents

    ORDERING REPLACEMENT PARTS ..........Back Cover WESLO is a registered trademark of ICON IP, Inc.

  • Page 3: Important Precautions

    IMPORTANT PRECAUTIONS WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read the following important precautions and information before operating the treadmill. 1. It is the responsibility of the owner to ensure 12. Never move the walking belt while the power that all users of this treadmill are adequately is turned off.
  • Page 4 DANGER: other than the procedures in this manual Always unplug the power should be performed by an authorized service cord immediately after use, before cleaning representative only. the treadmill, and before performing the main- tenance and adjustment procedures de- 24. This treadmill is intended for in-home use scribed in this manual.

  • Page 5: Before You Begin

    ® CADENCE ing this manual, please see the front cover of this man- C6 treadmill. The CADENCE C6 treadmill combines ual. To help us assist you, please note the product advanced technology with innovative design to make model number and serial number before contacting us.

  • Page 6: Assembly

    Washer (29)–4 Star Washer (81)–4 ASSEMBLY 2 3/4” Bolt (47)–4 Handrail Washer (11)– Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials; do not dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking belt is coated with high-performance lubricant.
  • Page 7 2. Slide the two Wheel Housings (45) onto the Base (52). Attach each Wheel Housing with two Wheel Housing Bolts (13), two Wheel Housing Washers (32), and two Wheel Housing Nuts (43). 3. Position the Base (52) as close to the front of the treadmill as possible.
  • Page 8 4. See the left inset drawing and identify a Frame Spacer (11). Hold the Frame Spacer between the Right Upright (54) and the Frame (51). Attach the Right Upright to the Frame with a Frame Bolt (1), an Upright Washer (14), and an Upright Star Washer (9);...
  • Page 9 6. Set the Console (91) face down on a soft sur- face to avoid scratching it. Hold the Right Console Handrail (33), which has a large hole in the loca- Wire tion shown, near the Console. Bracket Next, insert the console wire into the hole in the Large side of the Right Handrail (33).
  • Page 10 8. With the help of a second person, hold the Console (91) near the Right Upright (54). Remove the wire tie from the Wire Harness (98). Connect the Wire Harness to the console wire. Make sure to connect the connectors prop- erly (see drawing 8a).
  • Page 11 11. Attach the Latch Assembly (48) to the Left Upright (53) with two Latch Screws (95); start both Latch Screws before tightening either of them. 12. Make sure that all parts are properly tightened before you use the treadmill. Keep the included hex key in a secure place.

  • Page 12: Operation And Adjustment

    OPERATION AND ADJUSTMENT THE PRE-LUBRICATED WALKING BELT Your treadmill features a walking belt coated with high-performance lubricant. IMPORTANT: Never apply sili- cone spray or other substances to the walking belt or the walking platform. Such substances will deterio- rate the walking belt and cause excessive wear. HOW TO PLUG IN THE POWER CORD This product must be earthed.
  • Page 13 CONSOLE DIAGRAM Clip Note: If there are thin sheets of plastic on the console, remove the plastic. FEATURES OF THE CONSOLE HOW TO TURN ON THE POWER The treadmill console offers a selection of features Plug in the power cord (see designed to make your workouts more effective.
  • Page 14 walked or run. Note: During a speed program, the HOW TO USE THE MANUAL MODE display will show the time remaining in the pro- gram instead of the elapsed time. Insert the key into the console. The lower right display—The lower right See HOW TO TURN ON THE POWER on page display can show the speed of the walking belt...
  • Page 15 The profiles on the console show how the speed Measure your heart rate if desired. of the walking belt will change during the pro- grams. Before using the hand- grip pulse sensor, re- Press the Start button or the Speed increase move the sheets of button to start the program.

  • Page 16: How To Fold And Move The Treadmill

    HOW TO FOLD AND MOVE THE TREADMILL HOW TO FOLD THE TREADMILL FOR STORAGE Unplug the power cord. CAUTION: You must be able to safely lift 20 kg (45 lbs.) to raise, lower, or move the treadmill. Frame 1. Hold the metal frame firmly in the location shown by the arrow at the right.
  • Page 17 HOW TO LOWER THE TREADMILL FOR USE 1. Hold the upper end of the treadmill with your right hand as shown. Using your left hand, pull the latch knob to the left and hold it. Next, lower the frame until it is past the latch pin.

  • Page 18: Maintenance And Troubleshooting

    MAINTENANCE AND TROUBLESHOOTING Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and follow the steps listed. If further assistance is needed, please see the front cover of this manual. PROBLEM: The power does not turn on SOLUTION: a.
  • Page 19 PROBLEM: The walking belt slows when walked on SOLUTION: a. If an extension cord is needed, use only a 3-conductor, 1mm (14-gauge) cord that is no longer than 1.5 m (5 ft.). b. If the walking belt is overtightened, treadmill perfor- 5–7cm mance may decrease and the walking belt may be- come damaged.

  • Page 20: Conditioning Guidelines

    CONDITIONING GUIDELINES uses easily accessible carbohydrate calories for en- WARNING: ergy. Only after the first few minutes does your body Before beginning this begin to use stored fat calories for energy. If your goal or any exercise program, consult your physi- is to burn fat, adjust the speed and incline of the tread- cian.
  • Page 21 SUGGESTED STRETCHES The correct form for several basic stretches is shown at the right. Move slowly as you stretch—never bounce. 1. Toe Touch Stretch Stand with your knees bent slightly and slowly bend forward from your hips. Allow your back and shoulders to relax as you reach down toward your toes as far as possible.

  • Page 22: Part List

    PART LIST—Model No. WETL13806.0 R1006A To locate the parts listed below, see the EXPLODED DRAWING on pages 24 to 27. Key No. Qty. Description Key No. Qty. Description Frame Bolt Hood Clip Upright Bolt Latch Assembly Wire Tie Screw/Reed Switch Screw Grommet Console Back Screw Isolator Fastener...
  • Page 23 Key No. Qty. Description Key No. Qty. Description Incline Motor Nut Front Roller Adjustment Bolt Incline Motor Bolt Front Roller Adjustment Washer Belt Guide Screw Console Screw/Latch Screw Dust Cover Screw Belly Pan Grommet Tie Screw Incline Wheel Transformer Screw/Filter Screw Wire Harness Inlet Bracket Nut Power Inlet...

  • Page 24: Exploded Drawing

    EXPLODED DRAWING A—Model No. WETL13806.0 R1006A...
  • Page 25 EXPLODED DRAWING B—Model No. WETL13806.0 R1006A...
  • Page 26 EXPLODED DRAWING C—Model No. WETL13806.0 R1006A 43 43...
  • Page 27 EXPLODED DRAWING D—Model No. WETL13806.0 R1006A...

  • Page 28: Ordering Replacement Parts

    To help us assist you, please be prepared to provide the following information: • the MODEL NUMBER of the product (WETL13806.0) • the NAME of the product (WESLO CADENCE C6 treadmill) • the SERIAL NUMBER of the product (see the front cover of this manual) •...

This manual is also suitable for:
