Fire Alarm Systems | FLM‑325‑IM Contact Module

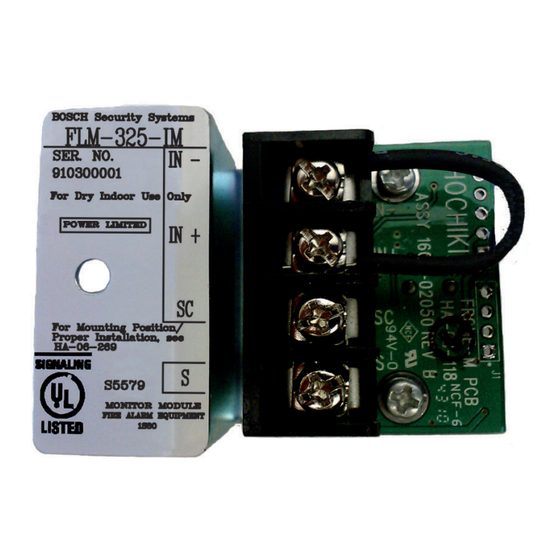

FLM‑325‑IM Contact Module
The FLM‑325‑IM Contact Module provides a variety of fire
alarm functions, such as monitoring manual pull stations,
waterflow devices, or other dry contact fire alarm
activation applications. The module allows for alarm,
trouble, and supervisory conditions. The module is
mounted inside of a single‑gang back box and is normally
out of view.
System Overview
The FLM‑325‑IM Contact Module allows compatible fire
alarm control panels (FACP) to supervise Form A or B dry
contact devices in a polling circuit. The module has an
eight‑bit microprocessor and communicates with the
control panel (both power and data) over a two-wire
polling circuit. The initiating device circuit (NFPA Style B)
connected to the module can have up to 20 normally-open
(NO) dry contact devices. Each module can monitor one
normally-closed (NC) device (NC devices must be non-
alarm applications).
▶ Digital data communications and power provided over
a two-wire circuit
▶ Advanced digital communications protocol
compatible
▶ Class B circuit for dry contact devices
▶ Module address programming (1-254) with the D5070
Analog Device Programmer
Certifications and Approvals
Region Certification
USA UL UOXX: Control Unit Accessories, System
(ANSI/UL 864)
Installation/Configuration Notes
The following products are compatible with the
FLM‑325‑IM Contact Module:
Category Product ID
Control Panels: FPA‑1000
Series
Pull Stations FMM‑325A
FMM‑325A‑D
Programmers: D5070
Product Description
Analog addressable fire panels
Analog addressable manual pull
station (single action)
Analog addressable manual pull
station (double action)
Analog device programmer
