Universal Remote Control UR4-DSR Operating Instructions

1
Operating Instructions
Introduction
For 4 in 1 The remote control is designed to
operate the Motorola DSR400 Series
Digital Receiver. You can also control
STB Remote Control
the majority of TV, VCR/DVD and AUDIO
equipment on the market as shown
below.

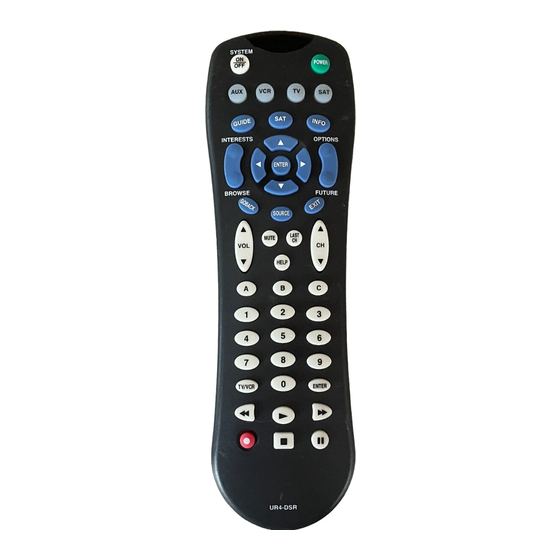

UR4-DSR
STB : Digital Receiver
TV : Televisions
VCR : VCRs and DVD
AUX : Audio Receivers, DMX & DCR,
TIVO, etc.
2
Replacing Batteries
Before you program or operate the
remote control, you must install two
new AAA alkaline batteries.
STEP1 Remove the battery compartment
cover on the back of your remote
control.
STEP2 Check battery polarity carefully,
and install the batteries as
shown in the illustration below.
STEP3 Replace the battery compartment
cover.
Universal Remote Control, Inc.
www.universalremote.com
OEE-0050B Rev 15 (08/17/11)
3
Button Functions
4
Operations
Default State :
Device Default: Motorola DSR400 Series.
Channel Default: STB channel and number keys through the STB, with the option of controlling
channel and number keys through the TV or VCR. Refer to section F for programming the
channel and number keys through your TV or VCR.
Volume Default : STB volume and mute through the TV , with the option of controlling volume
and mute through the STB or AUDIO.
Refer to section G for programming the volume and mute through your STB or AUDIO.
System On/Off button :
This button is designed to send out power commands for two, three or all four devices with one
button press. Please refer to section E for details.
5
B. Auto Search Method.
Programming the Remote Control
If the three-digit code numbers assigned to
A. Three-Digit Code Programming
your brand do not turn off your equipment or
Method.
the code tables do not list your brand, you
can use the Auto Search Method to find the
The remote control can be programmed by
pressing in a three digit code number that correct three-digit code number for your
corresponds to particular manufacturers and equipment by the following steps:
brands of Audio/Video equipment.
STEP1 Turn on the equipment you wish to
The three-digit code numbers are listed in
operate.
the code table of the instruction manual.
STEP2 Press the [DEVICE] button (TV, VCR
STEP1 Turn on the equipment you wish to
or AUX) to be programmed and the
program. (TV, VCR, DVD or AUX).
[ENTER] button simultaneously for 3
STEP2 Press the [DEVICE] button (TV, VCR
seconds. The device LED will turn on.
or AUX) to be programmed and the
*Tip : The device LED will light on for 20
[ENTER] button simultaneously for 3
seconds. The next step must be
seconds. The device LED will turn
entered while LED is on.
on indicating the unit is ready to be
programmed.
STEP3 Press the [CH ] or [CH ] button
*Tip : The device LED will stay lit for 20 one step at a time or keep it
seconds. The next step must be pressed. The remote will emit a
entered while the LED is on.
series of Power ON/OFF commands.
Release the [CH ] or [CH ] button
STEP3 Point the remote control toward the
as soon as the equipment turns off.
equipment and enter the three-digit
code number assigned to your
*Tip : You can verify that you selected the
brand from the code tables.
correct code by pressing the
[POWER] button. The equipment
*Tip : The equipment will turn off when the
should either turn on or off.
correct three-digit code number has
been entered. You can verify you have
STEP4 Press the same [DEVICE] button to
selected the correct code by pressing
store the code. The Device LED will
the [POWER] button, the equipment
blink twice to confirm that the code
should turn on or turn off.
has been stored.
*Note : If there is more than one three-digit
number listed for your brand, try one
C. To Find the Three Digit Code
code number at a time until your
Number That was Stored in the
equipment turns off.
Device.
STEP4 Store the three-digit code number
by pressing the same [DEVICE] STEP1 Press the [DEVICE] button (TV, VCR or
button once again. The device LED AUX) you wish to verify and the
will blink twice to confirm that the
[ENTER] button simultaneously for 3
code has been stored.
seconds.
*Note : Try all the functions on the remote
*Tip : The device LED will turn on for 20
control. If any of the functions do
seconds. The next step must be
not work as they should, repeat from
entered while the LED is on.
Step 2 using the next three-digit code
STEP2 Press the [INFO] button.
number from the same brand list.
The device LED will blink number of times
STEP4 Press the [CH ] button to save
indicating the number of each digit of the
the power commands you stored.
code number. Each digit is separated by a 1
The [STB] button will blink twice
second interval of the LED being turned off.
to confirm the saving.
Example : One blink, three blinks and eight
F. Programming Channel Control.
blinks with an interval of 1
second of LED being turned off,
By following the steps below, the user can
indicates the code number 138.
program the channel controls (Channel Up,
Channel Down and Last) from one device
*Note : Ten blinks is equal to the number 0.
to operate in another device mode. The
default channel control settings on the
D. Programming a second TV to AUX Mode. remote control is as follows:
STB : STB T V : STB
STEP1 Press the [AUX] button to be
VCR : VCR AUX : AUX
programmed and the [ENTER]
button simultaneously for 3 seconds.
If you wish to store the TV channel control
in TV mode, use the following steps.
*Tip : The device LED will turn on for 20
seconds. The next step must be
STEP1 Press the [TV] button and the
entered while the LED is on.
[ENTER] button simultaneously for
3 seconds.
STEP2 Press the [TV] button to pick up the
TV code table. *Tip : The device LED will light on for 20
seconds. The next step must be
STEP3 Point the remote control toward the
entered while the LED is on.
equipment and enter the three-digit
code number assigned to your TV STEP2 Press the [VOL ] button.
brand from the code tables.
STEP3 Press the [TV] button.
STEP4 Store the three-digit code number The device LED will blink twice to
confirm the programming.
by pressing the [AUX] button once
again. The device LED will blink
To return to original state:
twice to confirm that the code has
If you wish to restore the STB channel
been stored.
control in TV mode, repeat the above steps
by pressing [STB] in STEP3 .
E. Programming The System On/Off Button.
G. Programming Volume Control .
This is designed to program the System On/Off
button so that it can send out up to four power By following the steps below, the user can
on/off commands with one button press. program the volume controls (Volume Up,
Volume Down and Mute) from one device
STEP1 Press the [STB] button.
to operate in another device mode.
STEP2 Press the [SYSTEM] button and the The default volume control settings on the
[ENTER] button simultaneously for 3 remote control is as follows :
seconds. The [STB] button will turn
STB : TV
on for 20 seconds.
VCR : TV
STEP3 Press the [DEVICE] button and the
lf you wish to store the STB volume control
[POWER] button you wish to store
in STB mode, use the following steps.
in the System On/Off button and
repeat this until you stored all the STEP1 Press the [STB] button and the
power commands into the System [ENTER] button simultaneously
On/Off button. for 3 seconds.
TV : TV
AUX : AUX
