Summary of Contents for Vox Valvetronix AD120VTH

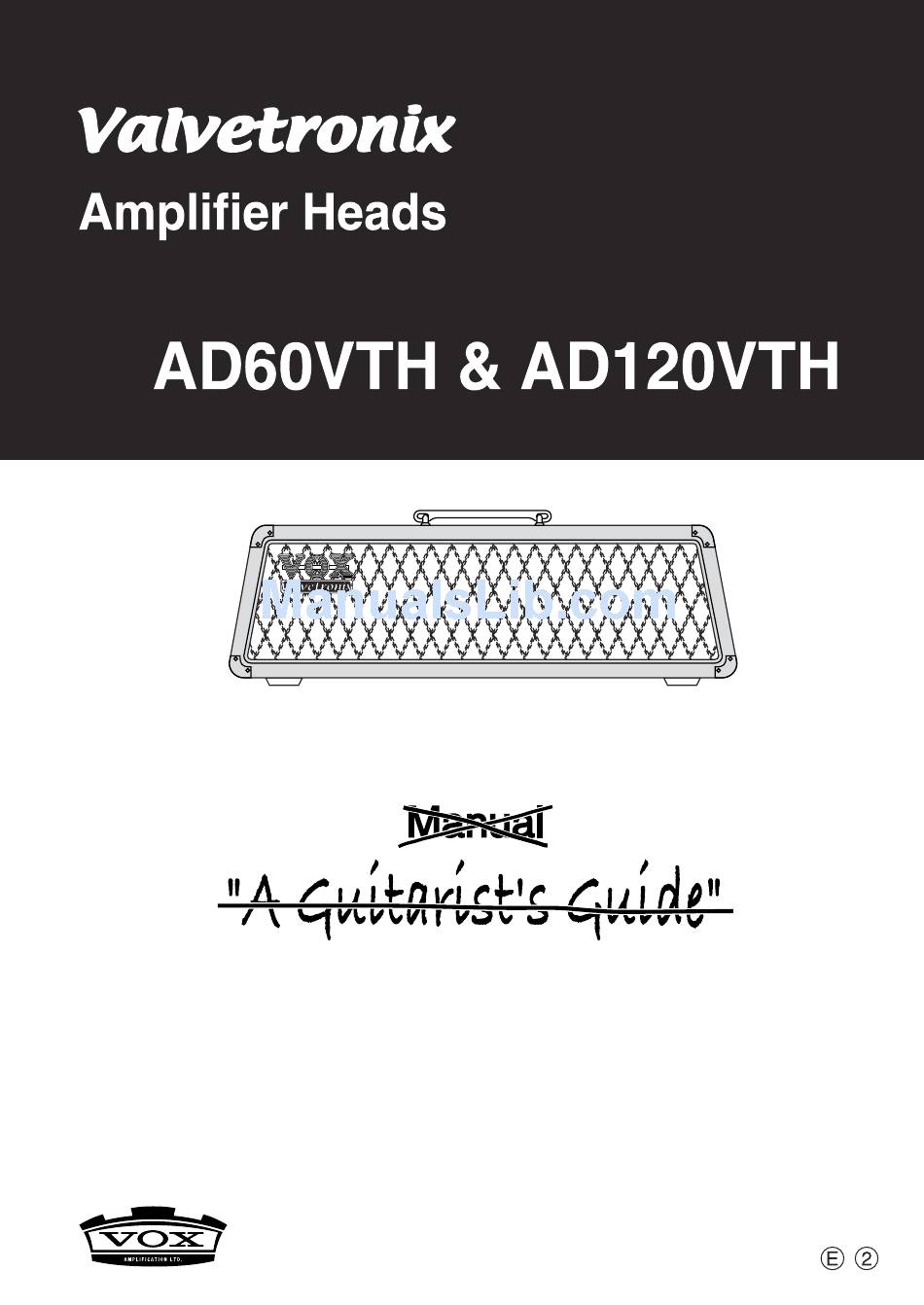

  • Page 1 Addendum...
  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS The lightning flash with arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of uninsulated • Read these instructions. “dangerous voltage” within the product’s • Keep these instructions. enclosure that may be of sufficient magnitude •...
  • Page 3 BOARD GAIN any thanks for adding a VOX Valvetronix head to your sonic arsenal. We’re sure it’ll give you countless hours of great guitar tones that will feel as good as they sound! You may have noticed that this is an addendum to the Combo Manual.
  • Page 4 AD60VTH SPEAKER CONNECTION CHART AD60VTH If you use: Set Output Impedance Select to: Use Speaker Jack: AD212/AD412 mono 16 Ohms Either one AD212 or AD412 One 16 Ohm cabinet 16 Ohms Either one One 8 Ohm cabinet 8 Ohms Either one One 4 Ohm cabinet 4 Ohms Either one...
  • Page 5 Input Input Two 8 Ohm cabinets...
  • Page 6 AD120VTH SPEAKER CONNECTION CHART AD120VTH If you use: Set Output Impedance Select to: Use Speaker Jack: **AD212/AD412 Stereo 8 Ohms One from L & R ch. AD212 or AD412 One 16 Ohm cabinet 16 Ohms One from L or R ch* One 8 Ohm cabinet 8 Ohms One from L or R ch*...
  • Page 7 Input Input Two 8 Ohm cabinets Input Input Input Input Four 8 Ohm cabinets *Because the AD120VTH is a stereo head running at 60 Watts per side, when you hook up a single cabinet to one side, you will only get 60 Watts in mono. You will not get the full effect of running this head at 120 Watts in stereo.
  • Page 8 ERDY MPEDANCE NFORMATION HEAD he following is some information that you’ll find useful for hooking up your Valvetronix AD60VTH or AD120VTH head. When you’re done with this, you’ll be a smarter and better person! Plus you’ll know the correct way for hooking up speaker cabinets in series or parallel.
  • Page 9: Specifications

    Specifications Number of amp types: 16 Number of effects: Drive types: 10 Modulation types: 5 Delay types: 3 Reverb types: 3 Noise reduction: 1 Number of programs: 32 (8 bank x 4 channel) Number of inputs: AD60VTH Top panel: 2 (High & Low) Rear panel: 1 x Loop return 1 x Foot controller jack AD120VTH...
  • Page 10 Signal processing A/D Conversion: 20 bit D/A Conversion: 20 bit Sampling frequency: 48 kHz Power supply requirements: AC local voltage Power consumption AD60VTH: 90 W AD120VTH: 175 W Dimension (W x D x H) (including protrusions) AD60VTH: 690 x 272 x 250 (mm) / 27.17” x 10.71” x 9.84” AD120VTH: 690 x 272 x 250 (mm) / 27.17”...
