Troy-Bilt Squall 210 Parts Manual

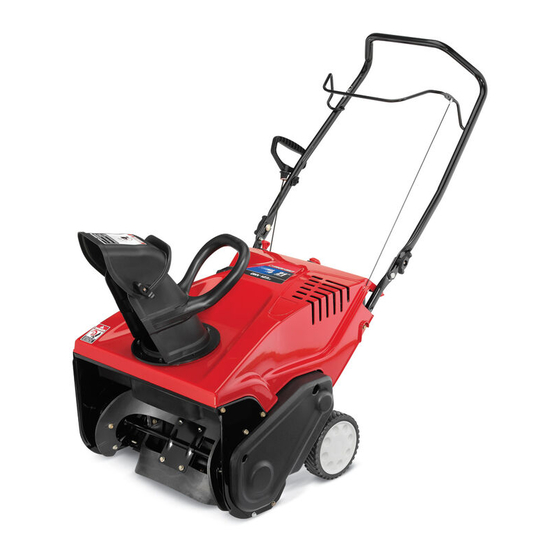

Single-stage snow thrower
Hide thumbs
Also See for Squall 210:
- Operator's manual (40 pages) ,
- Operator's manual (40 pages) ,
- Operator's manual (32 pages)
Related Manuals for Troy-Bilt Squall 210
Summary of Contents for Troy-Bilt Squall 210
- Page 1 Model Squall 2100 shown Single-Stage Snow Thrower Squall 210 & Squall 2100 TROY-BILT LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019 Printed In USA Form No. 769-06259 (July 21, 2010)
- Page 2 Dark Green (Bolens, Yard-Man) 0650 Metallic Red (White Outdoor) 0662 Oyster Gray (MTD Gold) 0629 Silver Flake (MTD Platinum) 0638 Red (Yard Machines, Huskee, Troy-Bilt, MTD) 04038 Day Orange (Daedong) 0691 Black Jack (MTD Gold, MasterCut) 04033 Flint Mica (Troy-Bilt XP)
- Page 3 This page left intentionally blank.
-
Page 4: Shroud, Chute, & Handle Diagram
Shroud, Chute, & Handle... - Page 5 Shroud, Chute, & Handle Ref. Part Number Description 731-06551 Shroud 684-04236A† Shroud 710-04669 Hex Washer Screw, 10-16 x .625 710-1205 Eye Bolt, 1⁄4-20 720-0279 Knob Handle 710-0895 Hex Washer Screw, 1⁄4-15 x .750 712-04063 Flange Lock Nut, 5⁄16-18 710-1090 Hex Screw, 5⁄16-18 x 1.25 931-04353 Lower Chute Ring 932-04111...
-
Page 6: Drive System & Auger Assembly
Drive System & Auger Assembly... - Page 7 Drive System & Auger Assembly Ref. Ref. Part Number Description Part Number Description 790-00238A Idler Bracket w/ Brake 734-04033 Wheel, 8 x 2 (Gray) 712-04064 Flange Lock Nut, 1⁄4-20 734-04063A† Wheel, 7 x 1.5 (Gray) 790-00249 Bearing Cup 936-0326 Flat Washer, .510 x 1.000 x .125 741-04188A Ball Bearing, 1.25 x 37 x 12.6301 710-0599...
-
