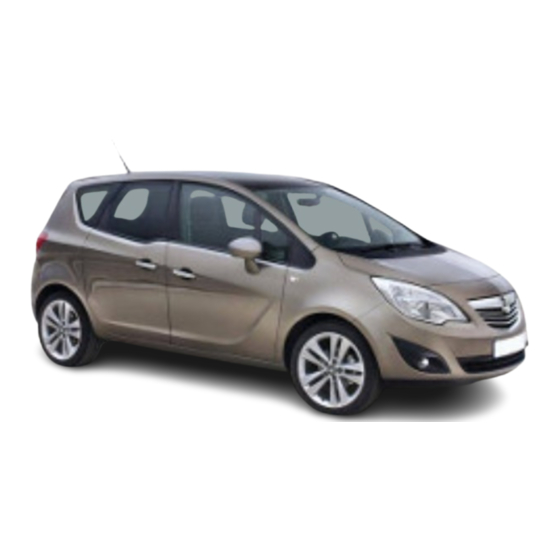

Vauxhall Meriva Quick Reference Manual

Vehicle features
Automatic transmission: Manual mode: Manual transmission:
P = park position Move selector lever out of Reverse gear:
R = reverse gear position D towards the left to With the vehicle stationary, wait
N = neutral engage manual mode. 3 seconds after depressing the
D = drive position clutch pedal, then press release
Move lever forwards or backwards
button on selector lever and
The selector lever can only be to change gear:
engage gear.
moved out of P when the ignition is
< = Shift to a higher gear
on and the foot brake is depressed. If the gear does not engage, set the
] = Shift to a lower gear
lever to neutral, release the clutch
When the foot brake is not
If a higher gear is selected when
pedal and depress again; then
depressed, the control indicator j
vehicle speed is too low, or a lower
repeat gear selection.
illuminates in the selector lever trim.
gear when vehicle speed is too
Do not grind the clutch
To engage P or R, press the release high, the shift is not executed.
unnecessarily.
button on the selector lever.
In manual mode, no automatic
When operating, depress the clutch
When position N is selected, shifting to a higher gear takes
pedal completely. Do not use the
depress foot brake or apply place at high engine revolutions.
pedal as a foot rest.
parking brake before starting.
Starting the engine: Stop-Start system: Load compartment:
Turn key to position 1 When conditions allow, the system Unlock the vehicle by pressing
switches off the engine to save fuel button c on remote control once or
Move steering wheel slightly to
release steering wheel lock and reduce emission levels if the twice (depending on setting).
Manual transmission in neutral vehicle is at a low speed or at a
To open the tailgate, push the
with clutch pedal depressed standstill, e.g. at traffic lights or in a
touchpad switch underneath the
traffic jam. It starts the engine as
Automatic transmission in P or N
tailgate moulding.
with foot brake depressed soon as the clutch pedal is
Use one of the interior handles on
Do not accelerate depressed.
the underside of the tailgate to
Diesel engines:
To activate an Autostop:
close.
Turn key to position 2 for
Depress clutch pedal
Do not push the touchpad switch
preheating and wait for control
Shift selector lever to neutral
indicator ! to extinguish in
underneath the tailgate moulding
Release the clutch pedal
instrument cluster
when closing or the tailgate will
Turn key to position 3 and The needle points to AUTO STOP in unlock again.
release when engine is running
the tachometer.
Before restarting or to switch off
To restart engine, depress clutch
engine, turn key back to position 0.
pedal again.
Vehicle features
Electrical parking brake: Opening the bonnet: Secure the bonnet support.
Pull switch J: electrical parking Pull the release lever located below
If the bonnet is opened during an
brake is applied automatically. the instrument panel on the driver's
Autostop, the engine will be
For maximum force, e.g. parking side and return it to its original
restarted automatically for safety
on inclines, pull switch J twice. position.
reasons.
To release, switch on ignition. Keep Press the safety catch below the
Closing the bonnet:
foot brake depressed then push bonnet and open the bonnet.
Before closing, press the bonnet
switch J.
support into its holder.
Drive away function:
Lower the bonnet and allow it to
Depressing clutch pedal or
drop into the catch. Check that the
engaging D (automatic
bonnet is engaged.
transmission) and then depressing
the accelerator pedal releases the
electrical parking brake
automatically.
Engine oil:
Check the engine oil level manually
on a regular basis to prevent
damage to the engine.
Ensure that the correct
specification of oil is used.
Check with vehicle on a level
surface. Engine must be at
operating temperature and
switched off for at least 5 minutes.
Pull out dipstick, wipe it clean,
insert to the stop on the handle,
Refuelling: The fuel filler cap can be retained in
pull out and read engine oil level.
Before refuelling, switch off engine the bracket on the fuel filler flap.
and any external heaters with
Insert dipstick to stop on handle
For refuelling, fully insert the pump
combustion chambers (identified
and make half a turn.
nozzle and switch it on.
by sticker on fuel filler flap).
Important:
To close, replace fuel filler cap and
Switch off mobile phones.
close fuel filler flap. After automatic It is the owner's responsibility to
Fuel filler flap is located at right cut-off, it can be topped up with maintain the correct level of an
appropriate quality oil in the
rear side of vehicle. maximum two doses of fuel.
engine.
The fuel filler flap can only be Wipe off any overflowing fuel.
Do not allow the engine oil level to
opened if the vehicle is unlocked.
Fuel specifications:
drop below the minimum level!
Pull fuel filler flap at the recess and Petrol engines - Only use unleaded
open. fuel that complies with DIN EN 228
or E DIN 51626-1.
Unscrew the fuel filler cap
anticlockwise and remove. Diesel engines - Only use diesel fuel
that complies with DIN EN 590.
Capacities:
Fuel tank capacity
(All petrol/diesel engines) - 54 litres.
Vehicle features
Tyre pressure:
Check tyre pressures, including the spare, every 14 days and prior to any long journey; tyres should be checked
when cold. This also applies to vehicles with tyre deflation detection system.
The tyre pressure data refers to cold tyres. It applies to summer and winter tyres.
Always inflate the spare tyre to the value specified for full load.
The ECO tyre pressure serves to achieve the smallest amount of fuel consumption possible.
Incorrect tyre pressures impairs safety, vehicle handling, comfort and fuel economy and increases tyre wear.
Tyre pressure (psi) Tyre pressure (psi) Tyre pressure (psi)
Comfort setting for load of ECO setting for load of For full load
upto 3 people upto 3 people
Engine Tyres Front Rear Engine Tyres Front Rear Engine Tyres
A14XER 195/65 R15 33 30 A14XER 195/65 R15 41 38 A14XER 195/65 R15
205/55 R16 33 30 205/55 R16 41 38 205/55 R16
225/45 R17 33 30 225/45 R17 41 38 225/45 R17
225/40 R18 1) 33 30 225/40 R18 - 1) - 1) 225/40 R18
A14NEL 195/65 R15 33 30 A14NEL 195/65 R15 41 38 A14NEL 195/65 R15
205/55 R16 33 30 205/55 R16 41 38 205/55 R16
225/45 R17 33 30 225/45 R17 41 38 225/45 R17
1) 1) 1)
225/40 R18 36 33 225/40 R18 - - 225/40 R18
B14NEL 195/65 R15 33 30 B14NEL 195/65 R15 41 38 B14NEL 195/65 R15
205/55 R16 33 30 205/55 R16 41 38 205/55 R16
225/45 R17 33 30 225/45 R17 41 38 225/45 R17
1) 1) 1)
225/40 R18 33 30 225/40 R18 - - 225/40 R18
A14NET, 205/55 R16 33 30 A14NET, 205/55 R16 41 38 A14NET, 205/55 R16
B14NET 225/45 R17 33 30 B14NET 225/45 R17 41 38 B14NET 225/45 R17
225/40 R18 1) 36 33 225/40 R18 - 1) - 1) 225/40 R18
A13DTC 195/65 R15 33 30 A13DTC 195/65 R15 41 38 A13DTC 195/65 R15
205/55 R16 33 30 205/55 R16 41 38 205/55 R16
225/45 R17 33 30 225/45 R17 41 38 225/45 R17
1) 1) 1)
225/40 R18 33 30 225/40 R18 - - 225/40 R18
A13DTE 195/65 R15 33 30 A13DTE 195/65 R15 41 38 A13DTE 195/65 R15
205/55 R16 33 30 205/55 R16 41 38 205/55 R16
225/45 R17 33 30 225/45 R17 41 38 225/45 R17
1) 1) 1)
225/40 R18 33 30 225/40 R18 - - 225/40 R18
2) 3) 2) 3)
A17DT, 195/65 R15 36 33 A17DT, 195/65 R15 43 41 A17DT, 195/65 R15
A17DTC, 205/55 R16 36 33 A17DTC, 205/55 R16 43 41 A17DTC, 205/55 R16
A17DTS, 225/45 R17 36 33 A17DTS, 225/45 R17 43 41 A17DTS, 225/45 R17
1) 1) 1)
A17DTI 225/40 R18 39 36 A17DTI 225/40 R18 - - A17DTI 225/40 R18
1) 1)
All Temporary spare 61 61 All Temporary spare - - All Temporary spare 61
1)
Do not use ECO tyre pressure
1) 1)
With reduced steering angle. setting for this tyre. With reduced steering angle.
2) 2) 2)
Only permitted in combination Only permitted in combination Only permitted in combination
with weight reduction package. with weight reduction package. with weight reduction package.
3) Only permitted with A17DT, 3) Only permitted with A17DT, 3) Only permitted with A17DT,
A17DTC and A17DTI. A17DTC and A17DTI. A17DTC and A17DTI.
*KTA-2692-6*
Meriva
Quick Reference Guide
Refer to Owner's Manual for detailed information. Depending on the model variant, special equipment
Illustrations may depict left-hand drive vehicles. and accessories, the scope of equipment on your
Operation is similar for right-hand drive vehicles. vehicle may differ from the descriptions in this guide.
Front Rear
36 46
36 46
36 46
1) 36 46
36 46
36 46
36 46
1)
39 46
36 46
36 46
36 46
1)
36 46
36 46
1. Power windows 10. Centre air vents
36 46
2. Exterior mirrors 11. Central locking, hazards,
1) 39 46
3. Cruise control LED for airbag deactivation
36 46
4. Side air vents 12. Info-Display
36 46 5. Turn signals, headlight flash, 13. Sensor for Electronic Climate
36 46
low beam and high beam, Control system
1)
36 46
exit lighting, parking lights, 14. Glovebox, fusebox
Driver Information Centre 15. Traction Control, parking assist,
36 46
6. Instruments Electronic Stability Control,
36 46
7. Steering wheel controls tyre deflation detection,
36 46
1) 8. Driver Information Centre Eco button, fuel selector
36 46
9. Wipers and washers 16. Climate control system
2) 3)
39 46
39 46
39 46
1)
41 46
61
Unlocking the vehicle: Locking the vehicle:
Press button c on remote control Press button e on remote control.
once or twice (depending on
If the driver's door is not closed
setting) to unlock the doors, load
properly, the central locking system
compartment and fuel filler flap.
will not work.
TS 1692-B-13 / KTA 2692-6
17. Selector lever
18. Electrical parking brake
19. Ignition switch with
steering wheel lock
20. Horn, driver airbag
21. Bonnet release lever
22. Storage compartment
23. Steering wheel adjustment
24. Light switch, fog lights,
headlight range adjustment,
instrument panel illumination
The vehicle can be configured to
unlock only the driver's door when
pressing button c once on the
remote control. Pressing button c
twice will unlock the entire vehicle.
Central locking button:
To lock or unlock doors from inside
the vehicle, press central locking
button c e in the centre console
with the doors closed. The LED in
the button illuminates when the
doors are locked.
The LED in the button illuminates
for approx. 2 minutes after locking
with the remote control.
Electronic immobiliser:
Activated automatically when key
is removed from ignition switch.
January 2013
