Frigidaire PL36WC41EC General Installation Manuallines

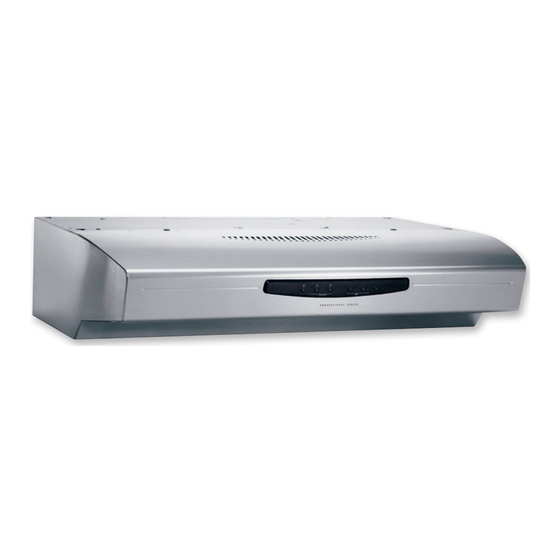

Under-Cabinet Hood Drop-In Cooktop
PL36WC41E C FPEC3085K S
Signature Features
400 CFM External Exhaust
3-Speed fan with Auto-Start Heat Sensor
effectively and quietly removes smoke,
vapors and smells from the kitchen.
Dishwasher-Safe Filters
Filters remove even the most persistent
cooking odors and clean up easily by
cycling through your dishwasher.
Dual Halogen Lights
Provides ample illumination of the
cooking surface.
Convertible Exhaust
Duct Options
1
Ventilation is convertible to be either
ducted outside, or recirculated inside
requiring no ducting.
30" Electric 36" Wall Mount
Features
Nominal Width 36"
Installation Type Wall Mount
Style Under-Cabinet
Electronic
Controls
Push Button
Auto-Start Heat Sensor Yes
Vertical or
Air Discharge
Horizontal
Air Delivery (CFM) 400
Blower Type Centrifugal
Fan Speeds 3
Cooktop Light(s) 2 Halogen
Dishwasher-Safe Filter(s) Yes
Exhaust Duct Convertible
7" Round or
Duct Required
3-1/4" x 10"
Optional Accessories
Duct-Free Kit (Single-Pack) PN # 5304455850
Duct-Free Kit (8-Pack) PN # DFKIT368PK
Damper Kit (6-Pack) PN # DAMPKIT6PK
7" Round Damper Kit
PN # 5304455851
(Single-Pack)
Specifications
Product Dimensions –
Height 7-1/4
Width 36"
Depth 20"
Voltage Rating 120V / 60Hz / 15A
Connected Load
TBD
(kW Rating) @ 120 Volts
3
Amps @ 120 Volts 3.0
Shipping Weight (Approx.) 32 Lbs.
Sones Rating 4.5
Recirculated option requires use of optional Duct-Free Kit.
1
Ventilation system is preset to recirculate air inside with no
2
ducting. Converting to exterior exhaust is optional.
For use on adequately wired 120V, dedicated circuit having
3
2-wire service with a separate ground wire. Appliance must
be grounded for safe operation.
NOTE: Always consult local and national electric codes. Check
local building codes for installation requirements, as they
may vary per locale. Refer to Product Installation Guide for
detailed installation instructions on the web at frigidaire.com.
Specifications subject to change.
Available in:
Stainless
(C)
frigidaire.com
