Binatone PB10 User Manual

PB10
Corded Telephone

Unpacking your phone

In the box you will find:
Base Unit
Handset
Coiled Handset cord
Telephone line cord
for Base unit
User manual
Keep the packing
materials in a safe
place in case you later
need to transport
the unit.
Keep your sales (till)
receipt, which is your
guarantee.
Or Visit Our Website:
WWW.binatonetelecom .com

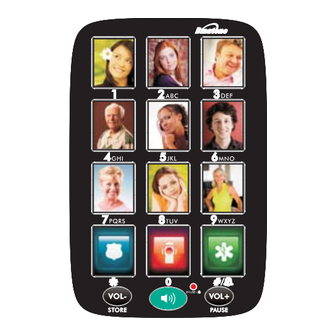

1. Where to find it
2
3 4
1. Number / photo memory button
2. VOL-(volume-)/STORE button
3. Speakerphone( ) button
4. IN USE/RINGER( )-in Use /ringer light
- This is on when the phone is on a call.
- This flashes when the phone is ringing
for an incoming call.
5. VOL+(volume+)/PAUSE button
6. Ringer ON/OFF( )button
3. Desk/W
2. Installation
2. Installation
1. Locating the Base unit
The Base unit should be placed on a level surface, in a position where:
the telephone line cable will reach your telephone line socket or
extension socket.
it is not close to a sink, bath or shower, or anywhere else where
it might get wet.
it is not close to other electrical equipment - fridges, washing
machines, microwave ovens, TVs, fluorescent lights, etc.
2.
Always use the
telephone line
cord supplied
with your
PB10 phone.
To Modular
Wall Jack
Other telephone
line cords may
not work.
4. Plug one end of the telephone line cord into the socket in the back
of the base unit, and plug the other end into a modular wall jack.
5. Lift the Handset and check for Dial tone in the earpiece.
1
If you have a Broadband line
If you connect your telephone to
a line with a broadband
connection, you will need to
insert a micro-filter between the
telephone and the telephone line,
otherwise you may get
interference between the telephone and the broadband,
which could cause problems.
6 In a home with broadband, every telephone must have a micro-filter connected,
not just the one at the telephone point that your modem is connected to.
If you need more broadband micro-filters, contact your broadband supplier.
5
3. Wall mount installation
2. Installation
Wall mount
TELEPHONE
BE CAREFUL to check that there are no wires or pipes hidden in the wall.
Fix two screws (7mm head screws required, not supplied)
at the marked locations,
between the wall and the screw head.
Hang the base unit on the screws using the wall mount slots.
You may need to remove the telephone from the wall and tighten the screws so
that the cradle is securely fixed and does not wobble. Place the Handset on the
cradle with the parking hook on the cradle arranged to fit in the parking recess
under the earpiece on the Handset.
4. Telephone Operation
Making a 1
call
2
3
To answer a
call
To adjust the
speakerphone
volume
To end a call
points
mark two
To place the PB10 phone on a wall,
on the wall that are mm apart to lay the fixing
93
centers as shown below .
leaving
approximately 7mm
Press the SPEAKERPHONE button,
Listen for a dial tone.
Dial the telephone number you wish to call.
To end the call,press the SPEAKERPHONE
button.
When the phone rings;
Press the SPEAKERPHONE button to
answer call.
During a call;
Adjust the volume of the speakerphone to the
VOL-
high or low volume level using the
SPEAKERPHONE volume button located at the
VOL+
left and right side of the speakerphone button.
Press the SPEAKERPHONE button on the
Base unit.
The IN USE light indicator will
turn OFF.
