Audio Technica U891RCx Installation And Operation Manual

U 891 RCx
Cardioid Condenser Boundary Microphone with Local or Remote Switching
Features
• Activation switch can be set to any of three operating modes:
"press-on/press-off," "press-to-talk" and "press-to-mute"
• External contact closure capability permits control of remote
devices from microphone switch
• External LED control allows for accurate depiction of the live
status of the microphone
• PivotPoint rotating output connector allows cable to exit from
®
either the rear or the bottom of the microphone
• UniGuard RFI-shielding technology offers outstanding rejection
®
of radio frequency interference (RFI)
• UniSteep filter provides a steep low-frequency attenuation to
®
improve sound pickup without affecting voice quality
• Available interchangeable elements permit angle of acceptance
from 100° to 360°
• Heavy die-cast case and non-slip silicone foam bottom pads
minimize coupling of surface vibration to the microphone
Description
The U891RCx is a wide-range condenser microphone with a cardioid
polar pattern. It is designed for surface-mount applications such as high-
quality sound reinforcement, conferencing, distance learning and other
demanding sound pickup applications.
The microphone features an activation switch, a programmable external
contact closure and an LED indicator. The activation switch can be set to
any of three operating modes: "press-on/press-off, " "press-to-talk" and
"press-to-mute. " The microphone's external contact closure capability
permits control of remote devices. The contact closure can also be
configured to operate independently of the microphone element for
applications that require a constant signal from the microphone element.
A switch on the bottom of the microphone allows selection of local or
remote operation. (In remote operation, the LED and activation switch
operate independently of the microphone.) A third position on this switch
enables the LED to be controlled from an external source.
The microphone requires 11V to 52V phantom power for operation.
The microphone is equipped with UniGuard
which offers outstanding rejection of radio frequency interference (RFI).
The microphone's cardioid polar pattern provides a 120° angle of
acceptance (cardioid in hemisphere above mounting surface). Additional
interchangeable elements with omnidirectional (360°) and hypercardioid
(100°) pickup patterns are available.
The microphone includes a 7 .6 m (25') output cable terminating in a
special TA5F-type connector at the microphone end. The equipment
end is stripped and tinned for connection to an electronic device. The
microphone is equipped with Audio-Technica's unique PivotPoint
output connector.
RFI-shielding technology,
®
rotating
®
A switch permits choice of flat response or low-frequency roll-off (via
integral 80 Hz high-pass UniSteep
ambient noise.
The microphone's heavy die-cast case and non-slip silicone foam
bottom pads minimize coupling of surface vibration to the microphone.
The microphone includes a soft protective pouch and features a low-
reflectance black finish.
Installation and Operation
The U891RCx requires 11V to 52V phantom power for operation.
The electronics in the microphone take up to 30 seconds to stabilize after
power is applied; during this start-up period, some sonic disturbances may
be heard upon switching if the system is "live. "

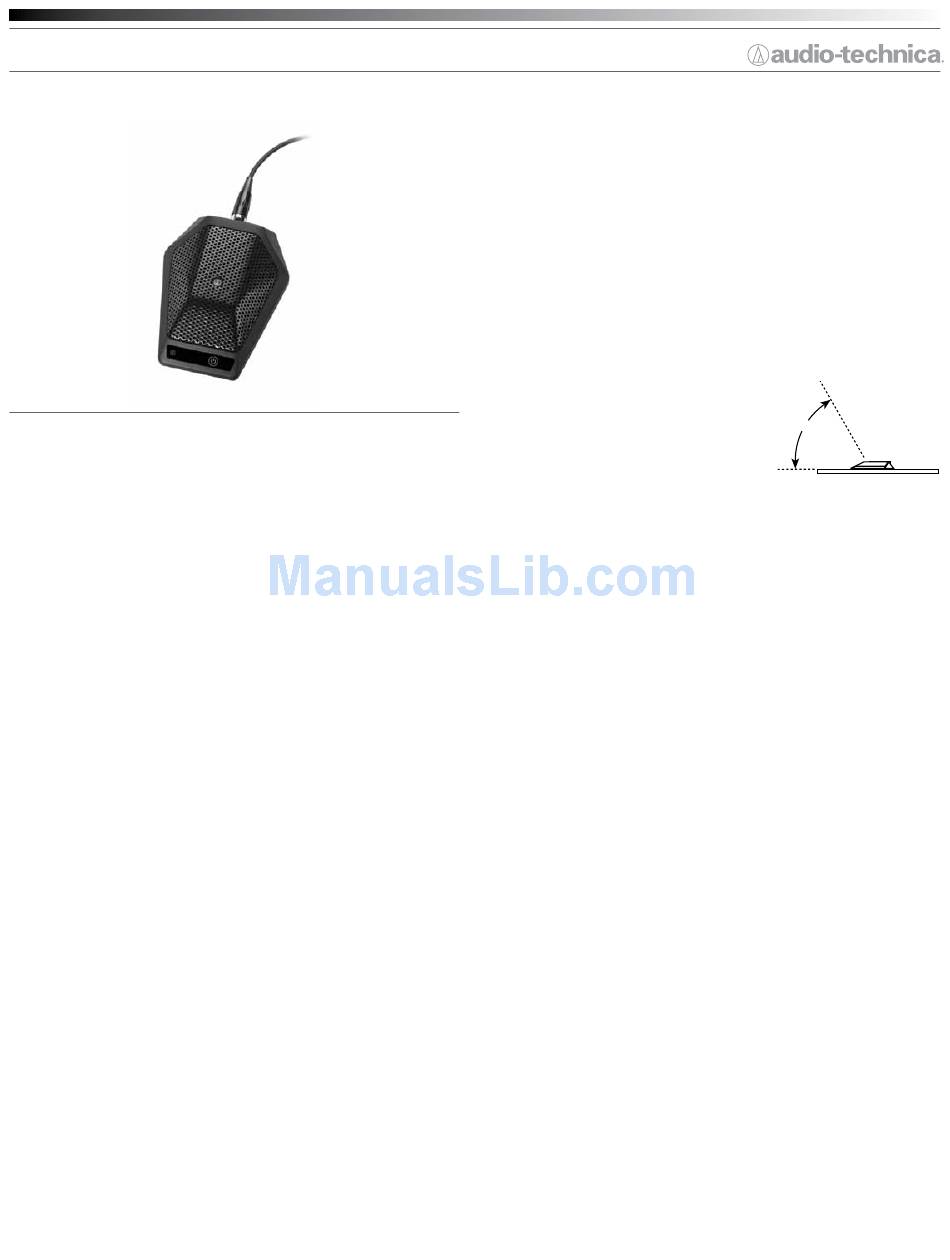

The microphone should be placed on a flat,
unobstructed mounting surface, with the front
of the microphone facing the sound source.
The sound source should not be below,
or higher than 60° above, the plane of the
mounting surface.
The microphone features an activation switch, indicator LED and external
contact closure ability for controlling remote devices. The microphone
offers three choices of switching modes. The SW. FUNCTION switch
located on the bottom of the microphone selects the desired mode.
TOUCH ON/OFF: Press the on/off switch once to turn the microphone
on; press again to turn off. MOM. ON (momentary on): Microphone
is on only while the switch is being pressed ("press to talk"). MOM.
OFF (momentary off): Microphone is off only while the switch is being
pressed ("press to mute"). The indicator LED and external contact closure
follow the operation of the activation switch when in the local mode.
For applications that require the microphone to remain active or always
"on" , regardless of the activation switch setting, a "Local/Remote/ LED
Remote" control function is provided.
• When the CONTROL switch (located on the bottom of the microphone)
is in the "Local" position, the activation switch controls the
microphone's audio output, LED status and contact closure internally.
• When the CONTROL switch is in the "Remote" position, the
microphone's audio output remains active or "on" all the time. The
activation switch controls only the LED and contact closure.
• When the CONTROL switch is in the "LED remote" position, it allows
remote control of the LED, for accurate depiction of the microphone's
live status. The LED will remain "on" when driven logic high or open,
and "off" when driven logic low or connected to ground. The
microphone's audio output remains active or "on" all the time, and the
contact closure follows the configuration of the activation switch.
*Refer to the table for switch/LED/closure states.
Output is low impedance balanced. The signal appears across the red and
yellow wires; audio ground is the shield connection. Output is phased so
that positive acoustic pressure produces positive voltage on the yellow
wire. The small-diameter black and blue wires are the contact closure. The
white wire is the external LED control.
An integral 80 Hz high-pass UniSteep
a flat frequency response to a low-end roll-off. The roll-off position reduces
the pickup of low-frequency ambient noise (such as traffic, air-handling
systems, etc.), room reverberation and mechanically coupled vibrations. To
engage the UniSteep filter, slide the switch toward the "bent" line.
®
The microphone's PivotPoint
®
to exit from either the rear or the bottom of the microphone without the
need for tools or disassembly.
Avoid leaving the microphone in the open sun or in areas where
temperatures exceed 110° F (43° C) for extended periods. Extremely high
humidity should also be avoided.
unipoint
filter) to help control undesired
®
60°
IDEAL
WORKING
ANGLE
filter provides easy switching from
®
rotating output connector allows the cable
® microphones
