TP-Link TL-PA511 User Manual page 17

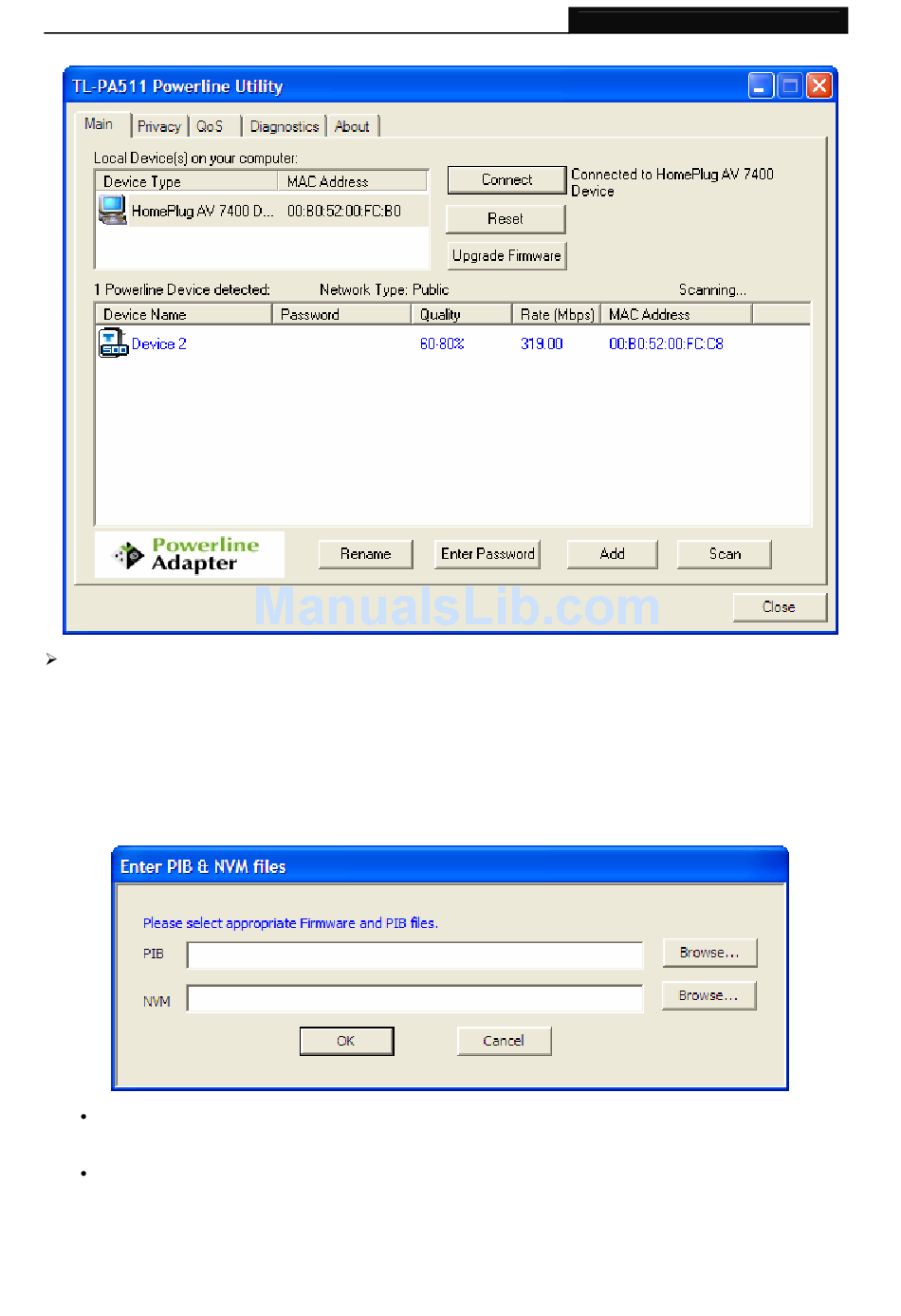

Local Device(s) on your computer: This shows all local Powerline Ethernet Adapter found
connected to the computer's LAN card. In most cases, only one device will display in this panel. Click
and select the local device shown on the screen then click "Connect" tab to manage the Powerline
Ethernet Adapter. The status message shown above the "Connect" button indicates that your PC is
connected to the same device. Once the chosen Powerline Ethernet Adapter is properly connected,
this Management Utility will automatically scan the power line periodically for any other existing
powerline devices. You can upgrade the version of firmware for the device by clicking the Upgrade
Firmware button which is shown as below.
PIB: Parameter Information Block. It contains configuration values that establish device network
identity, general capabilities and operational modes.
NVM: None-volatile memory. It is used for upgrading the firmware.
If you want to upgrade the version of firmware for the device, please select appropriate Firmware
and PIB files together. New firmware versions and PIB files are posted at http://www.tp-link.com and
can be downloaded for free.
TL-PA511 AV500 Mini Powerline Adapter
12
