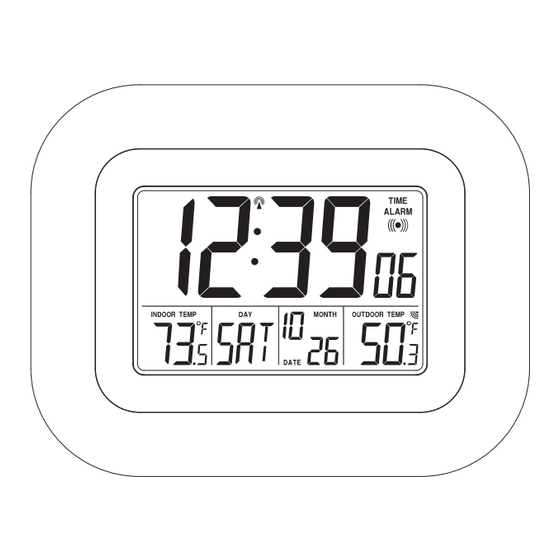

La Crosse Technology WS-8119U Quick Setup Manual

Model WS-8119U
Atomic Digital Wall Clock
With Time with Seconds, Month, Date, Day, & IN/OUT
Temperature
QUICK SETUP GUIDE
Table of Contents
Table of Contents ............................................................................................ 1
Congratulations ............................................................................................... 2
Features: ......................................................................................................... 2
Setup Information: ........................................................................................... 2
The Outdoor Temperature Sensor .................................................................. 2
Positioning the Temperature Sensor: ............................................... 3
To wall mount the Temperature Sensor: ........................................... 3
WWVB (Atomic Time) Radio signal: ............................................................... 3
Setup of Time and Display Options: ................................................................ 3
1. Set the Time Zone: ....................................................................... 4
2. Set Daylight Saving Time ON/OFF: .............................................. 4
3. Set Language: .............................................................................. 4
5. Set Time Manually - Minute: ......................................................... 4
6. Set Date Manually - Year: ............................................................. 4
7. Set Date Manually - Month: .......................................................... 4
8. Set Date Manually - Date: ............................................................. 4
9. Set Date Manually - Day of Week: ................................................ 4
10. Set 12 or 24 Hour Time Mode:.................................................... 4
11. Set Temperature Mode - °F or °C: .............................................. 4
Daylight Saving Time ...................................................................................... 4
Setting the Daily Alarms: ................................................................................. 4
About the Daily Alarms: ........................................................................... 5
Automatic Snooze function: ............................................................................ 5
Online Resources ............................................ Error! Bookmark not defined.
Care and Maintenance ..................................... Error! Bookmark not defined.
Battery Replacement ...................................................................................... 5
The Low Battery Icons: ..................................................................... 5
Specifications .................................................................................................. 5
Power Requirements ...................................................................................... 6
FCC Statement ............................................................................................... 6
Warranty Information ...................................................................................... 6
Page 1 of 6
Congratulations
You have purchased an atomic digital Atomic Clock from La Crosse
Technology®, providing the world's most accurate time at a glance, plus
wireless outdoor temperature.
INSTANT TRANSMISSION is the state-of-
This product offers:
the-art new wireless transmission
technology, exclusively designed and
developed by LA CROSSE TECHNOLOGY.
INSTANT TRANSMISSION offers you an
immediate update (every 8 seconds!) of all
your outdoor data measured from the
transmitters: follow your climatic variations
in real-time!
Features:
x WWVB Radio Controlled Clock (Atomic Clock)
x Time in 12/24 hour format
x Manual time setting option
x Time Zone setting: +/- 12 Hours from GMT
x Daylight Saving Time(DST) On/Off
x Continuous calendar up to year 2054
x Date and weekday displayed and set automatically with the time
x Temperature display in °F or °C
x Snooze function (10 minutes)
x Indoor thermometer
x Wireless Outdoor Temperature Sensor
x Low battery icons for display and sensor
Setup Information:
The Temperature Sensor uses 2 x AAA, IEC LR3 1.5V battery. To install and
replace the batteries, please follow the steps that follow:
x
Position the Atomic Clock and the Outdoor Sensor
five to six feet apart with nothing between them.
x
Insert batteries into the Wireless Outdoor
Temperature Sensor first - it is important that you do
not insert the batteries into the Atomic Clock yet.
x
You must insert the batteries into the Atomic Clock
within 3 minutes of inserting the batteries into the
Sensor.
x
Slide out the battery compartment lid at the bottom of
the Outdoor Sensor.
x
Insert the batteries into the Outdoor Sensor first, observing the
correct polarity (see markings inside battery compartment). Replace
the battery holder on the unit.
x
Immediately after and within 3 minutes, insert the batteries into the
Atomic Clock, observing the correct polarity (see markings inside
battery compartment). Replace the battery cover. The Atomic Clock
uses 2 x AA batteries ( IEC LR6, 1.5V ).
x
The outdoor temperature and the signal reception icon
displayed on the Atomic Clock. If this does not happen after 3
minutes, the batteries will need to be removed from both units and re-
inserted, following the instructions above.
Note: In the event of changing batteries in any of the units, all units need to
be reset by following the setting up procedures. This is because a random
security code is assigned by the Sensor at start-up and this code must be
received and stored by the Atomic Clock in the first 3 minutes of power being
supplied to it
Note: If the signal reception is not successful on the first frequency
(915MHz) for 22 seconds, the frequency is changed to 920MHz and the
learning is tried another 22 seconds. If still not successful the reception is
tried for 22 seconds on 910MHz. This will also be done for re-
synchronization.
The Outdoor Temperature Sensor
x
Remote transmission of outdoor temperature to Temperature Station
by 915 MHz
x
Shower proof casing
Page 2 of 6
should be
