- Page 1 ASTRA 777 WITH SEPERATE LOCK/UNLOCK BUTTONS VEHICLE SECURITY SYSTEM PRODUCT MANUAL...
- Page 2 Limited Lifetime Warranty This vehicle security system is warranted to the original purchaser, to be free from defects in material and workmanship. The manufacturer will repair or replace at its option, and free of charge for the first twelve (12) months, any part that proves defective in material or workmanship under normal installation, use, and service, provided the product is returned to the manufacturer freight prepaid.
-
Page 3: Table Of Contents
Table of Contents About Your System ............Page 1 2-way LCD Remote Transmitters . -
Page 5: About Your System
These items will be identified in the following sections. Please discuss these features and any questions you may have regarding the installation of this product with Your Authorized Dealer. Astra 777 - Page 1... -

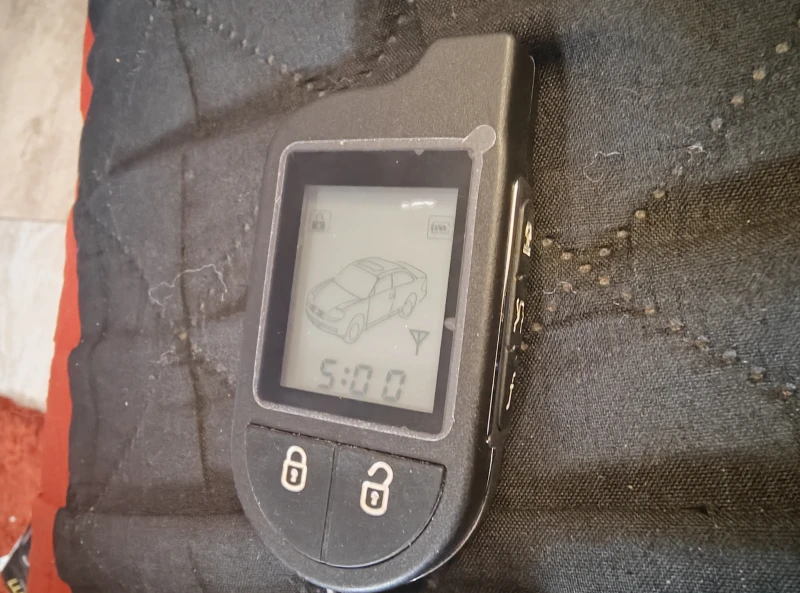

Page 6: Way Lcd Remote Transmitters
Valet Mode. Button 5 then Button 2: Silently Disarms and Unlocks* the system, also unlocks the doors when the system is in Valet Mode. * If the Optional Keyless Entry Feature is installed. Page 2 - Astra 777... -
Page 7: Adding/Replacing 2-Way Lcd Transmitters
· The alarm clock bell and three bars will be shown indicating alarm clock set mode is entered. 2. Press Button 1 to disable the alarm clock. · The remote will beep 3 times to indicate the alarm clock has been disabled. Astra 777 - Page 3... -
Page 8: Lcd Backlight
· The transmitter will beep five times. 2. Release Button 5. · The transmitter will beep once and the system will begin the passive arm mode · The LCD panel will display “off” and vibrate twice if disabled. Page 4 - Astra 777... -
Page 9: Lcd Icon Description
Alarm clock Valet Mode Panic Indicates the Indicates the system Indicates the panic progammable timer has been placed in mode has been has been set. valet mode. triggered. Astra 777 - Page 5... -
Page 10: Remote Transmitters
Button 5 Button 3 Button 4 The Astra 777 is supplied with one 5-button Remote Transmitter used to control system operations. Button 1 Arms and Locks* the system and when held for 5 seconds, activates the system’s Panic feature. Button 1 also locks the doors when the system is in Valet Mode. -
Page 11: Adding/Replacing Transmitters
6. Turn off the ignition key. Two Car Operation If two vehicles are equipped with Astra 777 systems, for convenience both can be operated using the same remote transmitter. If all four transmitters are to be used with both cars, program transmitters A and B into the first vehicle in the manner described above. -
Page 12: System Operation
* During Disarming, if the system was triggered while away from the vehicle, the siren will chirp 3 times, the parking lights will flash 3 times, and the LED will flash to indicate triggered zone. See Tamper Alert for zone listing. ** If the optional Dome Light Activation Feature is installed. Page 8 - Astra 777... -
Page 13: Tamper Alert
· The siren will chirp. · The parking lights will flash. · The doors will lock.* · The status LED will begin flashing. 4. The system is now armed. * If the Passive Locking feature is selected. Astra 777 - Page 9... -
Page 14: Panic Mode
· The siren will chirp each time the valet switch is pressed. 4. Within 5 seconds, press Button 3 on the transmitter. · The siren will chirp 3 times. 5. Press the valet switch the number of time equal to the desired code (from 1-15). Page 10 - Astra 777... -
Page 15: Automatic Rearming
DRIVER CALLING/PAGE FEATURE The Astra 777 is equipped with a Driver Calling or Paging feature that allows the system to send a page to the LCD transmitter in the event the transmitter has been misplaced or lost (within 1500 feet) To activate the Driver Calling/Page feature: 1.Locate the Valet/Emergency Override button in your vehicle (Ask your installation shop) -
Page 16: Extended Features
Auxiliary Function Outputs The Astra 777 system is equipped with 2 Auxiliary Outputs allowing the convenience features of the system to be further expanded. These outputs can be used to add a number of optional features such as: power trunk release, remote engine start, power window activation, power sunroof control, and more. -
Page 17: System Installation
3. Verify with the owner, the mounting locations for all visible components, including the LED and Override switch. 4. Verify with the owner, the optional features of the Astra 777 and the functions that must be programmed during installation. 5. Inspect and perform a function test of all vehicle systems before and after the installation. -
Page 18: Mounting The Control Unit
During proper operation, the shock sensor will detect impacts to the vehicle only and will not usually be triggered by slow rocking movements of the vehicle like those caused by wind. Page 14 - Astra 777... -
Page 19: System Wiring
+12V when the door is open. This type of door circuit is usually found on Ford vehicles. Pin 14 GREEN WIRE: Negative door trigger Input (-). Connect to the door switch circuit wire that shows ground when the door is open. Astra 777 - Page 15... -
Page 20: Plug-In Connectors
Parking Light Output. Selects the polarity (+/-) for the output of the on-board Parking Light relay. Left Pin + Center Pin = positive Right Pin + Center Pin = negative default setting shown Page 16 - Astra 777... -
Page 21: System Programming
The Ignition Door Locking feature may be programmed to unlock all doors or the driver’s door only. If driver’s door only is selected, the optional Passenger Unlock feature must be connected. ( See Two Stage Door Lock Diagrams ) Astra 777 - Page 17... - Page 22 19. Extended Parking Lights. When selected, the parking lights will remain ON for 30 seconds after disarming the system. 20. Warn-Away Pager Report. When Enabled, Warn-Away report will be sent to the pager. If Disabled no Warn-Away report will be sent to the pager. Page 18 - Astra 777...
-
Page 23: Branch Table
16. Aux 1 Mode Pulsed Timed Latched 17. Aux 2 Mode Pulsed Timed Latched 18. Ignition Armed Mode Disabled Enabled 19. Extended Parking Lights 20. Warn-Away Pager Report Enabled Disabled 21. Smart Siren Mode Disabled Enabled Astra 777 - Page 19... -
Page 24: Door Lock Diagrams
Door Lock Diagrams Follow the diagrams below for connecting basic door lock systems. For Two Stage door lock systems (separately unlocks driver and passenger doors) see following pages. Negative Trigger Positive Trigger Reverse Polarity Vacuum Adding Actuators Page 20 - Astra 777... -
Page 25: Two Stage Door Lock Diagrams
Two Stage Door Lock Diagrams The Astra 777 is equipped with a dedicated Passenger Unlock output allowing Two Stage Door Lock operation. When connected as shown below, disarming the system will unlock only the driver’s door. Pressing the disarm button again will unlock all doors. - Page 26 Two Stage Door Lock Diagrams cont’d Two Stage Reverse Polarity Two Stage Adding Actuators Page 22 - Astra 777...
-
Page 27: Technical Information
Operation is subject to the following two conditions: 1) This device may not cause harmful interference. 2) This device must accept any interference received, including interference that may cause undesired operation Call/Emergengy Override/Valet Switch LED Light Astra 777 - Page 23... -
Page 28: Wiring Diagram
Wiring Diagram ScyTek Electronics 11627 Cantara Street North Hollywood, CA 91605 www.scytek.net © ScyTek Electronics 2006 Astra 777 8-10-06...
