Installing additional Sampling RAM (EXB-M256)

Pa2X comes equipped with 128MB of Sampling RAM already
installed. You can replace the internal RAM with an (optional)
board of 256MB of RAM, for increased sampling space. Korg is
not responsible for any damage or injury caused by incorrect
installation of this card by unauthorized personnel.

Precautions

• Installation of the card is done at the user's own risk. Korg will
assume no responsibility for any damage or injury resulting
from its improper installation or use.
• Be sure to disconnect the instrument from the AC plug, before
opening it.
• To prevent your body's static electricity from damaging the
board's components, touch an unpainted metallic component
before proceeding with the installation.

Installation

For installation, you will need a cross-point screwdriver (not sup-
plied).

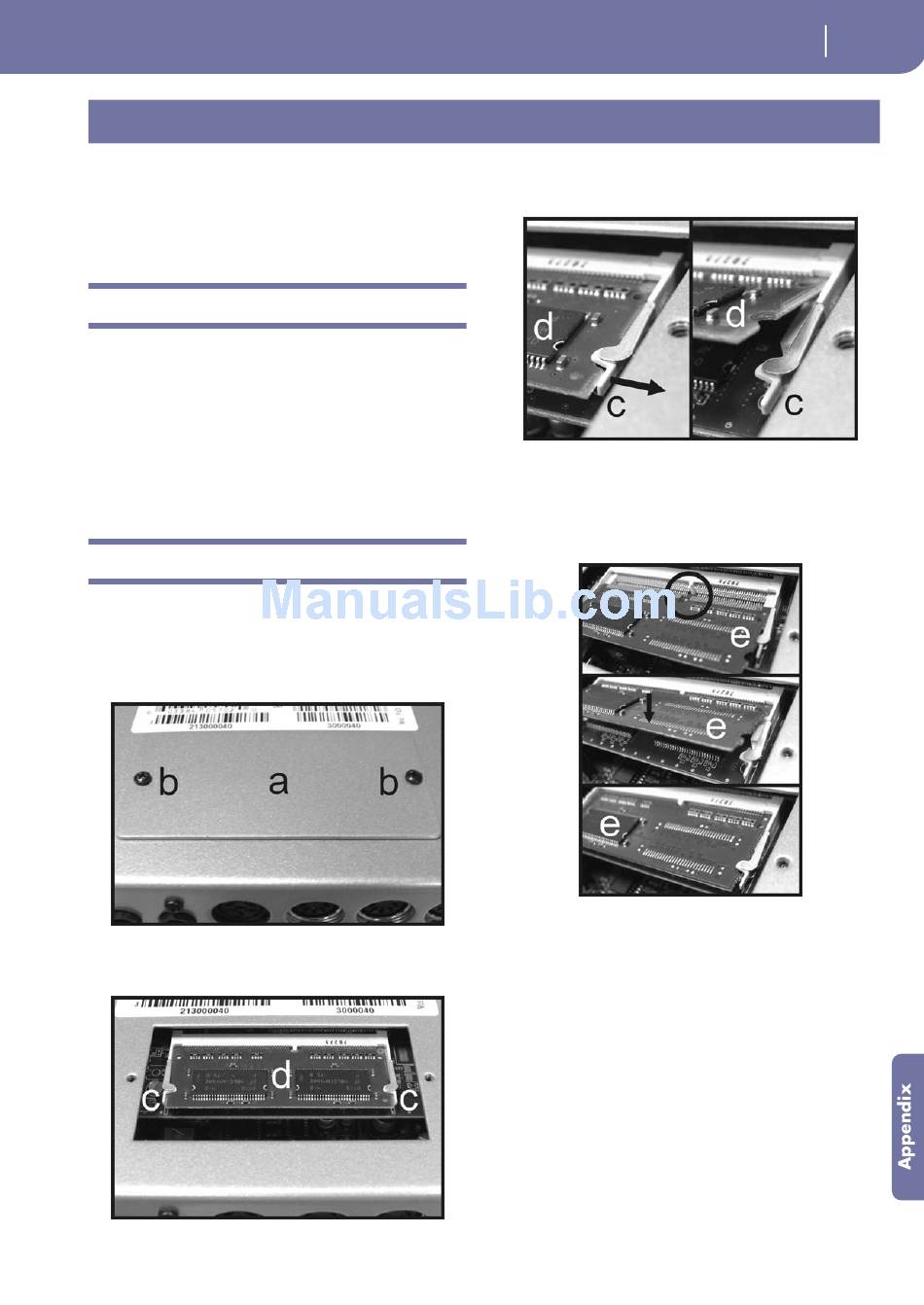

1. From the bottom of the instrument, remove the two fixing
screws (b), and keep them apart. Open the cover (a) to gain
access to the inside of the RAM slot.
2. Locate the original RAM module (d), and remove it by
lightly pushing out on the two securing clamps (c) (one on
each end).
Installing additional Sampling RAM (EXB-M256)
3. Lightly push out on the two securing clamps (c), one after
the other. After the last one is pushed out, the RAM module
(d) will be released, and will automatically jump out.
4. Insert the new RAM module (e) into the free slot, as shown
in the diagram. Line up the connector side of the module
with the slot base, using the dent between the connectors as
a guide. Then rotate the module down, and delicately push
until the two securing clamps jump back to the locked
position, and the RAM module is firmly seated in place.
5. Be sure the module is correctly inserted. If not, extract it
and repeat the operation.
6. Close and secure the compartment cover by using the two
previously removed screws (b) (see step 1).
