Toshiba 55L7200U User Manual

Integrated high definition led television
Hide thumbs Also See for 55L7200U:
Table of Contents

Advertisement

Quick Links

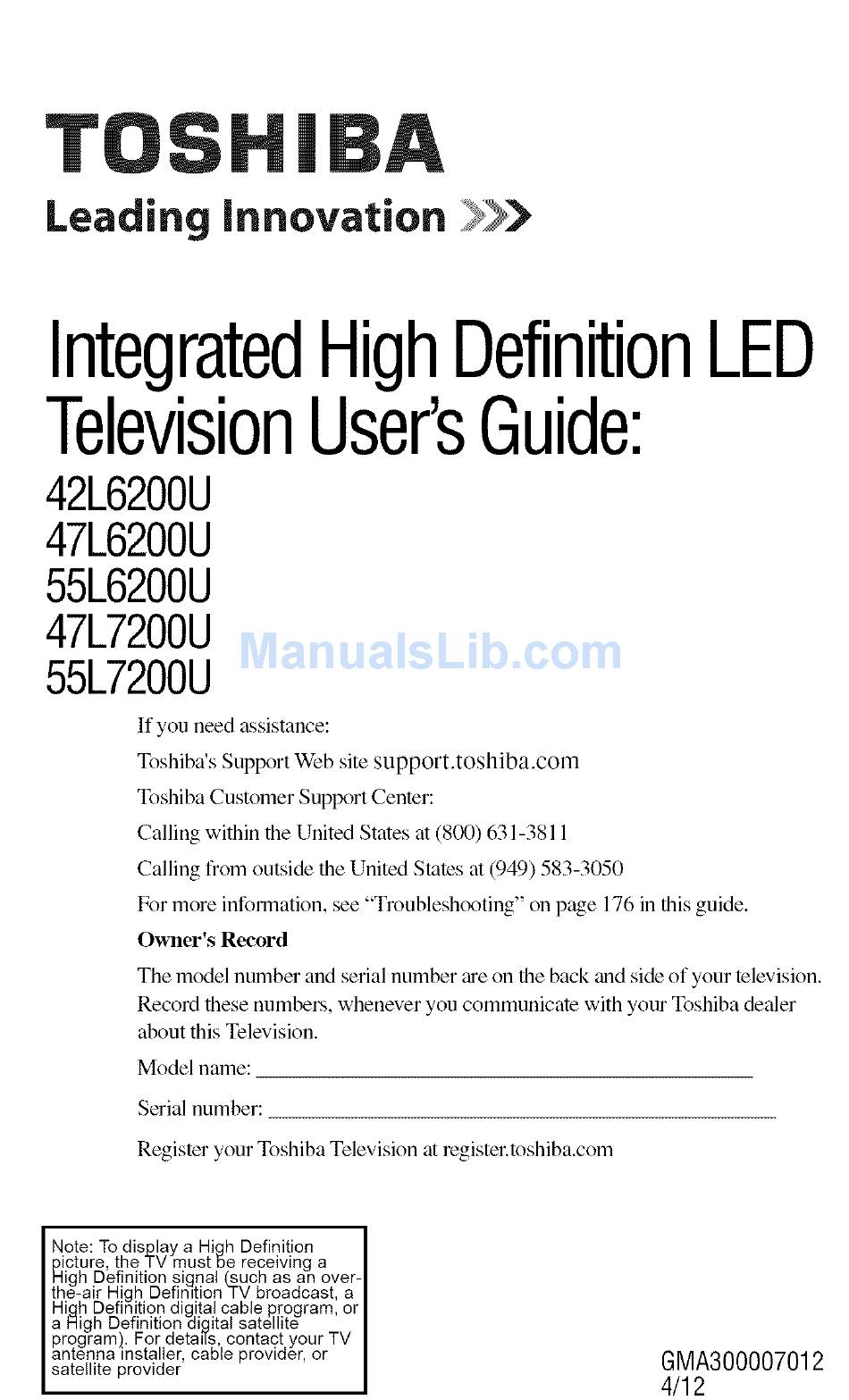

Leading innovation
_;>>
Integrated HighDefinition L ED
Television User's G uide:
42L6200U
47L6200U
55L6200U
47L7200U
55L7200U
It you need assistance:
Toshiba's Support Web site support.toshiba.corn
Toshiba Customer
Support Center:
Calling within the United States at (800) 631-3811
Calling from outside the United States at (949) 583-3050
For more information,
see "Troubleshooting"
on page 176 in this guide.
Owner's Record
The model number and serial number are on the back and side of your television.
Record these numbers, whenever you communicate
with your Toshiba dealer
about this Television.
Model name:
Serial number:
Register your Toshiba Television
at register.toshiba.corn
I Note: To display a High Definition
I
picture, the TV must Be receiving a
I
High Definition signal (such as an over-I
the-air High DefimtionTV broadcast, a I
High Definition digital cable program, or I
a Righ Definition _igital satellite
I
program). For details contact your TV I
antenna installer cable provider or
I
sate te provder
I
I
GMA300007012
4/12

Advertisement

Table of Contents
loading

Related Manuals for Toshiba 55L7200U

Summary of Contents for Toshiba 55L7200U

  • Page 1 42L6200U 47L6200U 55L6200U 47L7200U 55L7200U It you need assistance: Toshiba's Support Web site support.toshiba.corn Toshiba Customer Support Center: Calling within the United States at (800) 631-3811 Calling from outside the United States at (949) 583-3050 For more information, see "Troubleshooting"...

  • Page 2: Picture Andsound Controls

    Chapter7 Picture andSound Controls Selectingthepicturesize You can view many program formats in several picture sizes-- Native, 4:3, Full, TheaterWide 1, TheaterWide 2, TheaterWide 3, Normal, and Dot by Dot. Thepicturesizeillustrations areexamples only.Theformatof the NOTE image(in anyofthepicturesizes)depends on theformatof the signalyouarecurrentlywatching. S elect t hepicturesizethat displaysthecurrentprogramin thewaythat looksbestto you.
  • Page 3 1 1 0 PictureandSoundControls Selecting the picture size o:.Usingthesefunctions to change thepicturesize(i.e.,changing NOTE theheight/width ratio)for anypurpose otherthanyourprivate viewingmaybe prohibitedunder theCopyrightLawsofthe UnitedStates andothercountries, a nd maysubjectyouto civil andcriminalliability. o:o There will be restrictions on thePictureSizesettings for2D to 3Dmode,3Dmode,and2Dmode. Somepicturesizesmaynot beavailable depending onthe formatof thesignalbeingreceived.
  • Page 4 PictureandSoundControls 1 1 1 Selecting the picture size (Sample Illustratio,_) Picture size - 4:3 Some program formats will display with sidebars and/or bars at tile top and bottom. Full This setting is for viewing in the 16:9 (480i, 480p) source programs only.
  • Page 5 1 1 2 PictureandSoundControls Selecting the picture size TheaterWide 1 This setting is for viewing in 4:3 format programs. (Sample Illustration) Picture size - TheaterWide The center of the picture remains close to its original proportions, but the left and right edges are stretched horizontally to fill the screen.

  • Page 6: Dot By Dot

    PictureandSoundControls 1 1 3 Scrolling the picture Normal This setting is for viewing SVGA, XGA, WXGA, and SXGA sources. i_ i_¸ / ..'_ (Sample Illustration) Picture size - Normal This size is a non-stretched display. Some input signal formats will display with sidebars and/or bars at the top and bottom.

  • Page 7: Using The Auto Aspect Feature

    1 1 4 PictureandSoundControls Using the Auto Aspectjeature Press the (A/Y arrow) buttons to select Picture Position, and then press the OK button. Press the (A/Y arrow) buttons to select Vertical Position. Press the (4/_ arrow) buttons to make the appropriate adjustments.

  • Page 8: Adjusting The Picture Quality

    PictureandSound Controls 1 1 5 A4jusling #Tepiclure Adjusting thepicture Selecting t hepicturemode You can select your desired picture settings from the modes described below. Mode. Description." AutoView _ Automatically adjusts picture settings b ased onambient l ight conditions andinputsignal c ontent Dynamic Brightanddynamic picture Standard...
  • Page 9 1 1 6 PictureandSoundControls Adjusting the pictwv Selection Pressing( 4) Pressing(_ ) Contrast Lower Higher Brightness Darker Lighter Color Paler Deeper Tint Reddish Greenish Sharpness Softer Sharper * Backlight: Adjusts the brightness of the entire screen. When in video mode and no signal is input, this selection is set to 0.

  • Page 10: Using The Advanced Picture Settings Features

    PictureandSound Controls 1 1 7 Using the advanced picture settings jeatures Using theadvanced p icturesettings f eatures NOTE SomeoftheAdvanced PictureSettings features will not beavailable for adjustment whenthePictureModeis settoAutoView. Edge Enhancer The Edge Enhancer feature lets you adjust the levels for your desired picture settings and achieve a sharper picture.
  • Page 11 1 1 8 PictureandSoundControls Using the advanced picture settings jeatures NOTE WhenthePictureModeis settoAutoView, thelevelrangeis from-5 to +5, DynaLight _'_ The DynaLight _ feature automatically strengthens the black coloring of dark areas in the video according to the level of darkness. Press the MENU button.
  • Page 12 PictureandSound Controls 1 1 9 Using the advanced picture settings jeatures CinemaMlode This feature provides smoother motion and a crisper image. Press tile MENU button. Select SETTINGS, PICTURE, Advanced Picture Settings, and then press tile OK button. Press tile (A/Y arrow) buttons to select Cinema Mode. Press tile (411_ arrow) buttons to select On or Off.

  • Page 13: Autobrightness Sensor

    Picture and SoundControls Using the advanced picture settings jeatures NOTE The differences may not always be noticeable. For the best results, use lower settings, as picture quality may be greatly reduced if the setting is too high. picture Ifthe mode is set to Gameor this feature is not available.
  • Page 14 Picture andSound Controls Using the advanced picture settings jeatures Press the (A/Y arrow) buttons to adjust the level. The adjustment range is from 0 to 100. (Sample Illustration) Backlight acljustnwi_t window Press the OK button to fix the adjustment. o*,o To cancel the adjustment when selecting a point, select Cancel on the screen.

  • Page 15: Color Temperature

    PictureandSound Controls Setting the expert picture settings Press tile (A/Y arrow) buttons to select a color. Press tile (_ arrow) button. Press tile (,_/_ arrow) buttons to select Hue, Saturation, Brightness. Press tile (A/Y arrow) buttons to adjust tile setting. Repeat Steps 3 through 5 to adjust other colors.
  • Page 16 Picture andSound Controls Setting the expert picture settings Press the (4/_ arrow) buttons to select On. Adjust picture settings. NOTE WhentheTVis in 3Dmode,this feature is notavailable. RGBFilter This feature individually enables or disables tile red, green, and blue components of the picture to allow for more accurate adjustment of each color.

  • Page 17: Locking The Picturesettings

    Picture and SoundControls Locking the picture settings Setting Type You can adjust tile white balance setting. Press the MENU button. Select SETTINGS, PICTURE, Expert Picture Settings, and then press the OK button. Press the (A/Y arrow) buttons to select White Balance, then press the OK button.

  • Page 18: Adjusting The Audio

    Picture andSound Controls Adjusting the audio Adjusting theaudio Mutingthe sound Press the MUTE button to partially reduce (1/2 Mute) or turn off (Mute) the sound. Each time you press the MUTE button, the mute mode changes in the following order: 1/2 Mute, Mute, Volume, 1/2 Mute, etc.

  • Page 19: Adjusting The Range

    PictureandSound Controls Adjusting the audio Adjusting the range You can adjust bass and treble. Press the MENU button. Select SETTINGS, SOUND, and then Bass or Treble. Press the (4i/_ arrow) buttons to adjust the range, and then press the EXIT button. Selectingthe opticalaudiooutput format You can select the optical audio output format when you connect Dolby _'>...

  • Page 20: Audyssey Premiumtelevision

    Picture andSound Controls A_'usfing the audio Audyssey PremiumTelevision These televisions use a suite of technologies for better sound including: €* Audyssey EQ®--provides clear, accurate and natural sound right out of the box. This technology ensures you enjoy your audio experience as much as your video. +*,o Audyssey ABX'_'--technology uses sophisticated driver analysis and low frequency monitoring to extend the range and...

  • Page 21: Using The Surround Sound Feature

    PictureandSound Controls Using the surround sound jeature .:.If Dynamic Range Controlis setto On,this feature is NOTE automatically s etto Off. •:o Thisfeature doesnotaffecttheaudiosignaloutputfromthe DIGITAL A UDIOOUT terminal. Audyssey ABX Audyssey ABX technology uses sophisticated driver analysis and low frequency monitoring to extend the range and bass of small speakers.

  • Page 22: Advanced Features

    "Setting up the Network" on page 131. If you use Internet services, see the following note before use. Third party Internet services are not provided by Toshiba, may change or be discontinued at any time, and may be subject to third party restrictions.

  • Page 23: Using Thetvin Awireless Lanenvironment

    Because Wireless LAN products operate within the guidelines found in radio frequency safety standards and recommendations, Toshiba believes Wireless LAN is safe for use by consumers. These standards and recommendations reflect the consensus of the scientific community...

  • Page 24: Setting Up The Network

    Advanced f eatures Setting up the Network SettinguptheNetwork You can select tile Network Type. Press the MENU button. Select NETWORK > Network Setup, and then press the OK button. Press the (A/Y arrow) buttons to highlight Network Type. Press the (4/_ arrow) buttons to select Wired or Wireless.
  • Page 25 Advanced f eatures Setting up the Network Press tile (4/_ arrow) buttons to select PBC. Press tile (y arrow) button to select Start Scan, and then press tile OK button. Following tile on-screen instructions, push tile appropriate button on your AR When a screen reporting that "tile setup has succeeded"...

  • Page 26: Assisted S Etup

    Advanced f eatures Setting up the Network Assisted S etup Press tile MENU button. Select NETWORK > Network Setup, and then press tile OK button. Press tile (A/V arrow) buttons to select Wireless Setup, and then press tile OK button. Press tile (A/Y arrow) buttons to select Assisted Setup, and then press tile OK button.
  • Page 27 1 34 Advanced f eatures Setting up the Network Press tile (A/V arrow) buttons to select Network Name, and then press tile OK button. Tile Software Keyboard window appears. Input tile Network Name using tile Software Keyboard. For more information, see "Using the software keyboard" on page 139.

  • Page 28: Wireless Information

    Advanced f eatures Setting up the Network Settingsarenotsaved if the BACK buttonis pressed beforeDoneis NOTE selected. Wireless Information The settings configured in Wireless Setup can be confirmed. Press the QUICK button. Select Wireless Information, then press the OK button. Press the RED button to check the availability of surrounding APs.

  • Page 29: Advanced Network Setup

    Advanced f eatures Setting up the Network Item. Description." DNS's address NOTE Even if anAPfor IEEE 802,11nis usedwhenEncryption is setto WEPor TKIEtheSpeed valuemight below.Werecommend t hatthe Encryption settingarechanged toAES(Undermanual s etup). Advanced N etwork Setup .:.WhentheDHOP functionofthe routerconnected to this TVis NOTE On,youcansetAutoSetupto Onor Off.(Usuallyset it to On.) •"..

  • Page 30: Dns Setup

    Advanced f eatures Setting up the Network Press tile (A/Y arrow) buttons to select Advanced Network Setup, and then press tile OK button. Press tile (A/V arrow) buttons to select IP Address Setup, and then press tile OK button. Select Auto Setup. Press tile (4/_ arrow) buttons to select Off.

  • Page 31: Mac Address

    Advanced f eatures Setting up the Network Press tile (A/Y arrow) buttons to select Advanced Network Setup, and then press tile OK button. Press tile (A/Y arrow) buttons to select DNS Setup, and then press tile OK button. Select Auto Setup. Press tile (4/_ arrow) buttons to select OtheritemsaregrayedoutwhenAutoSetupis setto On.

  • Page 32: Using The Software Keyboard

    Advanced f eatures Using the software kz_,board Press the (A/Y arrow) buttons to select MAC Address, and then press the OK button. Network Connection Test This function checks Internet connectivity. Press the MENU button. Select NETWORK > Network Setup, and then press the OK button. Press the (_y arrow) buttons to select Network Connection Test, and then press the OK button.

  • Page 33: Performing A Software Upgrade

    BACK Closes theSoftware K eyboard w indow without s aving changes Performing a Software Upgrade TOSHIBA may offer upgrades for tile TV's software in tile future. Tile TV's software is upgraded via tile Network. NOTE An Internet c onnection is required.

  • Page 34: Viewing Thesoftwarelicenses

    Advanced f eatures Viewing the S(_iware Licenses o**o Youwill notbeableto usetheTVsetwhileperforming the NOTE upgrade. ¢ Do not turn off the TV during the upgrade. ¢ By upgrading, the factory default values may be changed. Press the MENU button. Select GET HELP. Software Upgrade, and then press the OK button.
  • Page 35 The ePORTAL is the "home page" that allows you to control the various elements of your Smart TV system. This includes traditional features such as Apps, Internet (web browser), and MediaShare (Media Player), as well as other unique Toshiba features such as SearchAll, MediaGuide, Events, and Messages. ePORTAL SearchAII The SearchAll function scours the Internet and your connected devices for content.

  • Page 36: Performinga Search

    Advanced f eatures Using the SmartTVjeatures o*.o MediaShare (Media Player): Connected Media Servers and USB devices o*.o The Internet Performinga Search You can perform a search using the SEARCH button on the remote control or the SearchAll bar on the ePORTAL page. From the remote control, press the SEARCH button while watching television programs.

  • Page 37: Eportal Apps

    Advanced f eatures Using the SmartTVjeatures ePORTAL Apps Tile ePORTAL Apps can be used to display bonus content through content service providers such as: o:o Nefflix ® VUDU Apps VUDU Movies YouTu be ® olo CinemaNow ® olo MediaGuide o*,o eMANUAL Certainservices maynotbe available in yourarea, NOTE SelectanAppfromtheePORTAL...
  • Page 38 Advanced f eatures Using the SmartTVjeatures NOTE +**o Theresolution of videocontentstreamed f rom Netflix ®varies depending onthecommunication s peedandbit-rate ¢ Future upgrades canchange thescreens andmessages displayed in theNetflix ®feature ¢ Netflix ®is supported in theUS andCanada, a ndmaynotbe availablein othercountriesor regions •...
  • Page 39 Advanced f eatures Using the SmartTVjeatures Press the MENU button. Select NETWORK > Smart Apps Setup > VUDU Deactivation, and then press the OK button. Press the (4/_ arrow) buttons to select Yes, and then press the OK button. NOTE IftheVUDU iconsarenotshownin theePORTAL, you mayneed to update theTVfirmware.
  • Page 40 Advanced f eatures Using the SmartTV features NOTE ','.. YouTube contenthasbeenindependently m anaged by YouTube LLC. •:. Notall YouTube content t hat canbeaccessed bycomputer maybeviewed with thisTV. •:. This TVmaynotbeableto do someoperations t hat computer cando. •:. Depending on network environment and theusesituation, contentmaybe difficultto view.

  • Page 41: Using The Web Browser

    Advanced f eatures Using the SmartTVjeatures search for and browse your favorite sites, and find all the content you want, with simple, intuitive navigation. The web browser on this device: does not support platform-dependent technologies such as ActiveX. only supports preinstalled plug-ins. may not support media formats other than the following: JPEG / PNG / GIF.
  • Page 42 Advanced f eatures Using the SmartTVjeatures You can now browse websites on your TV using tile (A/Y/4/_ arrow) buttons on tile remote control or by using tile Wireless QWERTY keyboard. NOTE SelectMouseEmulation bypressing theGREENbuttonon the remote controlto navigate witha genericUSBwirelessmouse (wirelessmouseisnot included).
  • Page 43 Advanced f eatures Using the SmartTVjeatures Adding Favorites W ebsites Connect to the network. Press the ePORTAL button on the remote control to access the ePORTAL page. NOTE Pressing theINTERNET buttononthe remote controlwill also launchthewebbrowser. Press the Navigation buttons to scroll to the Internet icon and press OK.
  • Page 44 Advanced f eatures Using the SmartTVjeatures olo If using the on-screen keyboard, press the BLUE button to view the page. olo If using the USB/QWERTY keyboard, press the ENTER button to view the page. ePORTAL M essages You can create personal messages on your TV using the Messages feature.

  • Page 45: Eportal Favorite Sites

    1 52 Advanced f eatures Using the SmartTVjeatures Editanevent Select the Event in the Event list. Press OK. The Edit Event window is displayed. You can change the date, event information, and repeat options. ePORTAL Favorite Sites You can access your favorite ("bookmarked") Internet sites from the ePORTAL.

  • Page 46: Eportal Preferences

    Advanced f eatures Using the SmartTVjeatures ePORTAL Preferences Use ePORTAL Preferences to customize the look and feel of the ePORTAL. From Preferences, you can: o**oAdjust the background by selecting different colors o**oEdit favorite Apps by moving and selecting which favorites to show or hide o**oAdjust your Event Notification flag setting To access the Preferences window, select the gear icon in the top...
  • Page 47 1 54 Advanced f eatures Using the SmartTVjeatures NOTE If youseean errormessage saying thattheMediaGuide w asnotable to connect t o thenetwork, y oushouldcheckyournetwork connections before trying again. The step-by-step installation wizard will appear again after performing any of the following tasks: o:.
  • Page 48 Advanced f eatures Using the SmartTV features o',o Third partyInternet s ervices arenotprovidedbyToshiba, m ay NOTE change or be discontinued atanytimeandmaybesubjectto Internet s erviceproviderrestrictions. T oshiba makes no warranties, r epresentations, or assurances a boutthecontent, availabilityorfunctionality ofthird-partycontent o r services. U se ofthird partyInternet s ervices mayrequire thecreation of a separate a ccount t hrougha computer w ith Internet access and/or payment of one-time and/orrecurring charges and membership.
  • Page 49 Advanced f eatures Using the SmartTVjeatures History, Episodes - For TV series only, Overview, Summary, Review, Cast & Crew, and others. Celebrity detail menus contain different items such as History, Overview, Biography, and Credits. Theactualmenusdisplayed on thedetailscreen varydepending on NOTE theservicethatyouhaveconfigured for theMediaGuide a ndwhat typesof information abouttheselected itemareavailable to be displayed.
  • Page 50 Advanced f eatures Using the SmartTVjeatures Select Yes and press the OK button. The TV will turn off automatically. You can also reset the MediaGuide from the MediaGuide from the setting menu. NOTE IftheMediaGuide c annotlaunchor is notfunctioningcorrectly, r eset theMediaGuide u singtheinstructions above.

  • Page 51: Manual Start

    Advanced f eatures Using the SmartTVjeatures Basicoperation Using IVlediaShare (MediaPlayer)witha USB device When Auto Start is enabled, you will be asked if you want to start the MediaShare (Media Player) when a USB device is inserted. Auto Start is disabled (or if you want to connect to a media server on the network), you must manually...
  • Page 52 Advanced f eatures Using the SmartTVjeatures Toselecta file in thelistofcontents Press tile (A/Y/@/_ arrow) buttons to select a file or folder. Press tile OK button to move to tile next layer, or press tile BACK button to return to tile previous layer. ToclosetheIVlediaShare (MediaPlayer) o**oPress tile EXIT button.

  • Page 53: Viewing Movie Files

    1 60 Advanced f eatures Using the SmartTVjeatures Viewing movie files BasicPlayback Select a file, see "To select a tile in tile list of contents" on page 159. Press tile OK button or PLAY button to begin playback. NOTE Depending o n thefile size,it maytakesometimeto startplayback. Press the STOP button to stop playback.
  • Page 54 Advanced f eatures Using the SmartTVjeatures Tosettherepeatmode Press tile QUICK button. Tile current repeat setting appears. Press tile (41_ arrow) buttons to select Off, All, or 1. Press tile BACK button. Tile setting is effective until tile TV is turned off. Mode.

  • Page 55: Playing Music Files

    1 62 Advanced f eatures Using the SmartTVjeatures NOTE It may not be possible to usecertain playbackor display some files. In some casescertain files and servers may not support playbackfeatures,such as pause. Playingmusic files Basic Playback: Select a file, see "To select a file in the list of contents" page 159.
  • Page 56 Advanced f eatures Using the SmartTVjeatures Press the QUICK button. The current repeat setting appears. Press the (4/_ arrow) buttons to select Off, All, or 1. Press the BACK button. The setting is effective until the TV is turned off. Mode.
  • Page 57 1 64 Advanced f eatures Using the SmartTVjeatures NOTE It may not be possible to usecertain playbackor display some files. In some casescertain files and servers may not support playbackfeatures,such as fast-forward. Viewing phototiles MultiViewmode This view mode allows you to search for photos in a grid format. These pictures are displayed using thumbnail data in each image file.

  • Page 58: Slide Show Mode

    Advanced f eatures Using the SmartTVjeatures NOTE Single view mode is changedto Multi View mode when the BACK pressed. button is Slideshowmode This view allows you to watch a slideshow of the photos. In this mode, only files located in the selected directory appear. To switch to Slideshow mode, press the OK button while in Single View mode.
  • Page 59 1 66 Advanced f eatures Search NOTE The information may not correctly display depending on the content complete. or media server.Certain processes may take some time to Filespecifications: USB use: •}o Data compatibility: JPEG Exif ver 2.2 •}o File format: JPEG •}o Maximum viewable...

  • Page 60: Network Device Setup

    Advanced f eatures Network Device Setup NOTE The search retrievalstops when content is being played. Network Device Setup In order to set the access the External Control Setup, Media Renderer Setup, or Device Name Setup, you must use the Network Setup Device menu.

  • Page 61: Settingupthemediarenderer F Eature

    1 68 Advanced f eatures Network Device Setup NOTE Only the 0-9, dash (-), and capital A-Z charactersmay be used for password. the user name and SettinguptheMediaRenderer f eature The TV can be configured as a Media Renderer. When operating as a Media Renderer, the TV displays content provided by a Media Server.

  • Page 62: Device Namesetup

    Advanced f eatures Network Device Setup Press the (A/Y arrow) buttons to adjust to the desired volume. Press the OK button. If you want to wake up the TV by using the Media Controller, press the (4/_ arrow) buttons to select Yes. Press the OK button.

  • Page 63: Maximum Volume Setup

    1 70 Advanced f eatures Network Device Setup Press the OK button. The box is selected. To clear the selection, press the OK button. Press the right arrow button to select Done. Press the OK button. 4. Youcanselectup to 8 MediaControllers. NOTE ¢...

  • Page 64: Usingapps Ona Tabletor Smartphone

    Toshiba Send & Play App olo Toshiba MediaGuide App These apps are available for compatible Toshiba equipment using compatible tablets and smartphones powered by Android "rM or IOS. You can download these apps through the Google Play rM or the iTunes Store.

  • Page 65: Appscontrol P Rofile

    1 72 Apps Collaboration Apps (_mtl_# Pl_le o:oThirdpartyInternet s ervices arenotprovidedbyToshiba, may NOTE change or be discontinued atanytime,andmaybesubjectto Internet s erviceproviderrestrictions. T oshiba makes no warranties, representations, or assurances a boutthecontent, availability, o r functionality ofthird-partycontentor services. Useof third-partyInternet s ervices mayrequire thecreation of a separate a ccount t hrougha computer w ithInternet a ccess and/or payment of one-time and/orrecurring charges and membership.

  • Page 66: Initial Setup

    Toshiba equipment must be connected to the wireless LAN in your home. After downloading the Toshiba A/V Remote App, follow these steps: Read the disclaimer and select the Agree option. The Toshiba equipment's name will appear...

  • Page 67: Toshiba S End& Playapp

    IF'. IR Blaster, or the HDMI CEC functions. Toshiba S end& PlayApp The Toshiba Send & Play App allows you to share a URL from your tablet or your smartphone to your Smart TV. NOTE o:. Some web pages or URLs may not launch, dependingon the TV status.

  • Page 68: Search Screen

    AppsCollaboration Toshiba MediaGuide TV listings The TV listings are displayed in a grid format, which is easily controlled by swiping up, down, left, and right with your finger. IVIovies/TV portalscreen You can select from the Movie or the TV program...

  • Page 69: General Troubleshooting

    ChapterlO Troubleshooting Generaltroubleshooting Before calling a service technician, review this chapter or visit the Toshiba technical support Web site at support.toshiba.com possible causes/solutions for the problem you are experiencing. Before you begin to troubleshoot any problem, first unplug the TV...

  • Page 70: Picture Problems

    Troubleshooting Picture problems Other problems. If your TV's problem is not addressed in this Troubleshooting chapter or the recommended solution has not worked, use the Reset Factory Defaults procedure, see "Resetting to Factory Defaults" on page 107. TV will not turn on. Ensure the power cord is plugged in properly, and then press the...
  • Page 71 Troubleshooting Picture problems If Edge Enhancer does not achieve a sharper picture, change the Sharpness value to increase the sharpness level, see "Edge Enhancer" on page 117. Input Selection problems. Video If the Input Selection window does not appear when you press the INPUT button on the remote control or the TV control panel, press the INPUT...

  • Page 72: Remote Control Problems

    Troubleshooting Sound problems o**. The settings of Side Shared Audio and Rear Shared Audio may be not correct. Check the connections, see "Connecting a digital audio system" on page 34. o**oTurn off and unplug the TV from the AC wall outlet for a few seconds and plug it back in.

  • Page 73: Closedcaption Problems

    "Using parental controls" on page 91. HDIVII ®CEC Control o peration HDMI _ CEC Control feature is available for Toshiba HDMI _9CEC compatible devices. HDMI ®cables. Ensure that HDMI _9cables with the (H_:iI_|') Logo are used. The HDMI ® CEC...

  • Page 74: Hdmi ® Problems

    Troubleshooting HDMI® problems If several devices are connected, the HDMI °_CEC Control feature may not operate properly. Read the instruction manual of the connected HDMI °_CEC device. HDMI ® problems HDMI ® cables. Ensure that HDMF _cables with the (IM_ml') Logo are used, see "Connecting an HDMI®...
  • Page 75 Troubleshooting Network problems Network Setup fails (Manual). Ensure that the TV IP address is not the same as any other device on the network. Example: IP address 192.168.0.100 and IP address 192.168.0.101 are different addresses on the same network. Make sure the TV IP address is on the same subnet as the networked computer.

  • Page 76: Wireless Network P Roblems

    Troubleshooting Wireless network prohlems Too many devices are connected. You cannot connect more than 32 sharing devices at one time. Tile media server is not turned On. Tile "server" is not a media server device. Check tile firewall and streaming settings on tile media server. Wireless network p roblems Check that tile router/AP (Access...

  • Page 77: Light Indicator

    Troubleshooting Light lndicator Confirm that the contents of either the media server or the USB storage device are in formats that are supported by this TV, see "MediaShare (Media Player) specifications" on page 157. Depending on the media server, access may be limited by the MAC address.

  • Page 78: If Theproblempersists Aftertryingthesolutions

    TV. If theproblempersists aftertryingthesolutions In the U.S., visit TAIS Consumer Solutions on the web at support.toshiba.com or call 800-631-3811. In Canada, locate the nearest Toshiba authorized service depot. Visit www.toshiba.ca; click "Home Entertainment," and then click "Support."...

  • Page 79: Specifications

    AppendixA Specifications o:o This modelcomplies with thespecifications l istedbelow. NOTE •:o Designs andspecifications a resubjectto change withoutnotice. •:o This modelmaynotbecompatible withfeatures and/or specifications t hat maybe added in thefuture. Television s ystem NTSC standard ATSC standard 8VSB Digital Cable 64 QAM, 256 QAM; in-the-clear, unencrypted Channel c overage 2 through 13 14 through 69...

  • Page 80: Power Source

    1.0 A (maximum current) 55L6200U 0.3 W in Standby mode 1.2 A (maximum current) 47L7200U 0.3 W in Standby mode 1.4 A (maximum current) 55L7200U 0.3 W in Standby mode Audiopower 42L6200U 10 W + 10 W 47L6200U 10 W + 10 W...

  • Page 81: Video/Audio Terminals

    1 88 Specifications Video/audio terminals Video/audioinput [ 1 V (p-p), 75 ohm, negative sync. ColorStream ®(component video)HDinput Y: 1V (p-p), 75 ohm PR: 0.7V (p-p), 75 ohm Video PB: 0.7V (p-p), 75 ohm Suggested formats: 1080i, 720p, 480p, 480i Audio 200 mV (rms) 22 k ohm or greater HDMI ®...

  • Page 82: Dimensions Withtablestand

    11.3" (287 Width 41.9" (1064 mm) 47L7200U Height 27.4" (696 mm) Depth 9.3" (235 mm) Width 48.6" ( 1234 ram) 55L7200U Height 31.3" (795mm) Depth 11.3" (288 mm) Mass(weight) 42LO200U 30.9 lbs (14.0 kg) 47L6200U 37.5 lbs (17.0 kg) 55L6200U 51.8 lbs (23.5 kg)

  • Page 83: Supplied Accessories

    1 90 Specifications SuppFtedcu:cessories Suppliedaccessories o*,o Remote control with two size "AA" batteries o*,o L7200U model number: CT-90395 o*,o L6200U model number: CT-90408 o*,o Resource Guide o**oPedestal and hardware o**oWarranty o**oWireless QWERTY keyboard (2x AAA batteries) o**oAvailable with some models. Not available in Mexico. o**oIR blaster cable o**oAV adapter cables o**oComponent adapter cable...
  • Page 84 Specifications Accept_#_le signaljbm_atsfi_r PC IN,,HDMI®, c_t 3D Acceptable signal f ormats forPCIN, HDIVII ®, and3D PC IN signalformats .:. ThePCIN onthis TVonlyaccepts signalformats whichare NOTE compliant w ith VESA-DMT as in thetablebelow. S incesome PCsinputsignals aredifferent f romtheresolution andfrequency described in thetablebelow, t hefollowingproblems mayoccur: incorrectdisplay, f alseformatdetection, p icture positionfailure, blur,or judder.Inthesecases, s etthemonitoroutputformaton yourcomputer t o conformto anyofthesignalsin thetable...

  • Page 85: Hdmi®Signalformats

    Specifications Acceptcd_le si_djbm_ttsjbr PC IN,, H DMI®, c_t 3D Fornmt Resolution V Frequency 14.Frequency Pixel Clock VESA Frequency Standard (DMT) WXGA 1280x768 59.995Hz 47.396kHz 68.250MHz 59.870Hz 47.776kHz 79.500 MHz 74.893 Hz 60.289kHz 102.250 MHz 1360x 768 60.015Hz 47.712kHz 85.500MHz SXGA 1280x102460.020Hz 63.981kHz 108.000MHz 75.025 Hz...
  • Page 86 Specifications Acceptcd_le si_djom_ttsjor PC IN, HDMI®, c_t 3D Format Resolution V Frequency H. Frequency Pixel Clock VESA Frequency Standard (DMT) 1024 x 768 60.004Hz 48.363 kHz 65.000 MHz 70.069 Hz 56.476 kHz 75.000 MHz 75.029 Hz 60.023 kHz 78.750 MHz WXGA 1280 x 768 59.995Hz 47.396 kHz 68.250 MHz...

  • Page 87: Operatingthetvwithcombination Buttons

    1 94 Specifications Operating the TV withcombination I)uttons Resolution Aspect V. Frequemy H. Frequency Pixel Clock 3D Structure ratio Fre quetu'v 1920 x1080p 16:9 23.976/24 Hz 54/53.94 kHz 148.352/148.500 MHz Frame Packing Side bySide (half) 26.973 kHz 74.176/74.250 Top and Bottom 29.97/30 Hz 67.5/67.43 148.352/148.500...
  • Page 88 Specifications Opera#rigthe:lV witi7cc_#_i_n I_u_' Button Color Combination Button Beh(wior/Mode Native (picture size) 4:3(picture size) TheaterWide 1 (picture size) TheaterWide 2 (picture size) GREEN TheaterWide 3 (picture size) Full(picture size) Normal (picture size) DotbyDot(picture size) MUTE 1/2Mute On AutoView (picture mode) Dynamic ( picture mode) Standard ( picture mode) Movie (picture mode)
  • Page 89 Index Numerics 4/3 stretch using 114 2D from Quick menu 79 3D from Quick menu 78 advanced picture settings 3D lock 83 Auto Brightness Sensor 120 3D timer lock 83 Backlight Adjustment Pro 120 adjusting 2D to 3D depth 84 Base Color Adjustment 121 autostartmode 81 Color temperature 122...
  • Page 90 ,.,.,. Dolby® Digital Dynamic Range setting the audio 103 Control 126 to the TV's HDMI® 41 muting sound 125 using with the TV 102 optical audio output format 126 connecting Auto Aspect a computer 39 using 114 audio system 34 cable TV 30 auto input features 70...
  • Page 91 198 '""°" using 129 delete event 151 editing favorite apps 152 events 15 l icon MediaShare 157 safety 20 modify favorites 152 initial settings preferences 153 change 64 search 143 individual settings 65 select apps 144 navigate the menu 64 view favorites 152 quick setup 64 ePortal 142...
  • Page 92 Network Device Setup 167 unlocking programs 95 no signal power down set 106 quick setup ANT/CABLE IN 66 overview local time 65 installation 22 location 65 setup 22 menu language 65 use 22 rating system 93 parental controls downloading additional 92 blocking programs/movies by rating (V-Chip) 9 l using 91...
  • Page 93 96 show 106 timer sleep timer 105 turn on TV 104 Video access via ePORTAL 157 Toshiba A/V Remote App Initial setup 173 video input Toshiba MediaGuide app locking 96 movie/TV portal 175 selecting 86 search 175...
