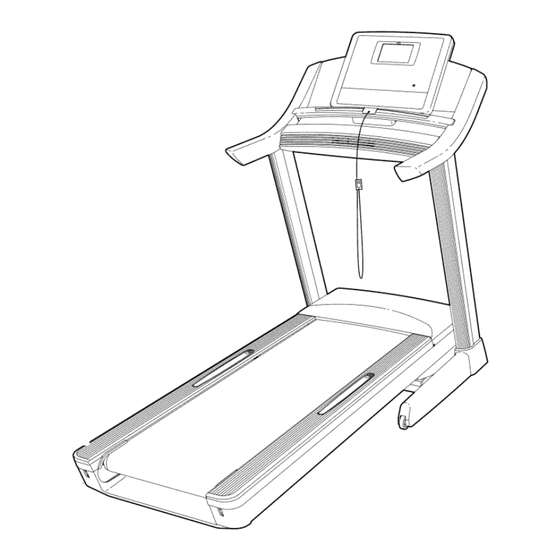

NordicTrack C1750PRO 24924.0 User Manual

Icon ip
Hide thumbs Also See for C1750PRO 24924.0:

Advertisement

Quick Links

www.nordictrack.com
Model No. 24924.0
Serial No.
Write the serial number in the space
above for reference.
Serial Number
Decal
QUESTIONS?
if you have questions, or if parts
are damaged or missing, DO NOT
CONTACT THE STORE; please
contact Customer
Care.
iMPORTANT: Please register this
product (see the limited warranty
on the back cover of this manual)
before contacting Customer
Care.
CALL TOLL-FREE:
1-800-TO-BE-FIT
(1=800=862-3348)
Mon.=Fri. 6 a.m.=6 p.m. MT
Sat. 8 a.m.-4 p.m. MT
ON THE WEB:
www.nordictrackservice.com
D
175Of / dD
;ER'S
A UAL

Advertisement

loading

Summary of Contents for NordicTrack C1750PRO 24924.0

  • Page 1 175Of / dD www.nordictrack.com Model No. 24924.0 ;ER'S A UAL Serial No. Write the serial number in the space above for reference. Serial Number Decal QUESTIONS? if you have questions, or if parts are damaged or missing, DO NOT CONTACT THE STORE; please contact Customer Care.
  • Page 2 KEEP HANDS ANDFEET AWAY FROM THISAREAWHILE THE -Never [ry to adjust TREADMILL I S INOPERATION. or ix _he belt whle Jt s movi_,g. at hlelic shoes wh_le •Always wear operat ng treadmill, NORDICTRACK is a registered trademark of ICON IP, Inc.
  • Page 3 14. To purchase a surge suppressor, see your local NORDICTRACK dealer, call the telephone The treadmill is intended for home use only. number on the front cover of this manual, or...
  • Page 4 20. The heart rate monitor is not a medical 24. Do not change the incline of the treadmill device. Various factors, including the user's placing objects under the treadmill. movement, may affect the accuracy of heart rate readings. The heart rate monitor 25.
  • Page 5 Thank you for selecting the revolutionary reading this manual, please see the front cover of this NORDICTRACK <''C 1750 PRO treadmill. The C 1750 manual. To help us assist you, please note the product PRO treadmill offers an impressive selection of fea- model number and serial number before contacting us.
  • Page 6 PART iDENTiFiCATiON CHART Use the drawings below to identify small parts used for assembly. The number in parentheses below each draw- ing is the key number of the part, from the PART LIST near the end of this manual. The number following the key number is the quantity used for assembly.
  • Page 7 ://productvideo.co/ assembly/sears/ nordictrack or use your Left parts are marked "L" or "Left" and right parts mobile phone or smart- are marked "R" or "Right."...
  • Page 8 Remove the tie securing the Upright Wire (84) to the right Upright (79). With the help of a second person, hold the con- sole assembly (A) near the Upright (79). Attach the console assembly (A) with four 5/16" x 1" Screws (2) and four 5/16" Star Washers (3). See the inset drawing.
  • Page 9 Identify the right handrail assembly (C). Attach the right handrail assembly (C) with two 5/16"x 1 1/2" Screws (4). Start both Screws, and then tighten them. Attach the left handrail assembly (not shown) in the same way. © = IIIIIIIIIIIIIIIIIIIIIIII= Tighten a #8 x 1/2"...
  • Page 10 Raise the Frame (55) to the position shown. Have a second person hold the Frame until step 8 is completed. Orient the Storage Latch (58) so that the large barrel and the latch knob are in the positions shown. Attach the lower end of the Storage Latch (58) to the Upright (79) with a 3/8"...
  • Page 11 THE CHEST HEART RATE MONITOR HOW TO PUT ON THE HEART RATE MONITOR Do not expose the heart rate monitor to direct sun- light for extended periods of time; do not expose it The heart rate to temperatures above 122 ° F (50 ° C) or below 14° monitor consists of F (-10 °...
  • Page 12 OPERATION AND ADJUSTMENT HOW TO CONNECT THE POWER CORD nominal 120=volt circuit capable of carrying 15 or more amps. To avoid overloading the circuit, do Use a Surge Suppressor not plug other electrical devices, except for low= power devices such as cell phone chargers, into Your treadmill, like other electronic equipment, can be the surge suppressor or into an outlet on the same...
  • Page 13 CONSOLE DIAGRAM i;IT i,"" £NA_L_D TRAIN COMPET_ T_ACK A GOAL VIDEO LO$_ ... ,,o,_ i ST_p INCLINE / D_CLIN_ FEATURES OF THE CONSOLE As you exercise, the console will display instant exer- cise feedback. You can also measure your heart rate The treadmill console offers an impressive array of using the handgrip heart rate monitor or the chest heart rate monitor.
  • Page 14 HOW TO TURN ON THE POWER HOW TO USE THE TOUCH SCREEN The console features a tablet with a full-color touch iMPORTANT: if the treadmill has been exposed to cold temperatures, allow it to warm to room tem- screen. The following information will help you become perature before you turn on the power.
  • Page 15 HOW TO SET UP THE CONSOLE The browser will open to the iFit.com registration page. Select either the basic or the limitless plan. Note: For more information, read the details under Before using the treadmill for the first time, set up the console.
  • Page 16 HOW TO USE THE MANUAL MODE Each time you press one of the buttons, the incline will gradually change until it reaches the selected insert the key into the console. incline setting. See HOW TO TURN ON THE POWER on page Note: The first time you adjust the incline, you must 16.
  • Page 17 Turn on the fan if desired. If desired, adjust the Increase volume by pressing the volume increase and The fan features multiple speed settings and an decrease buttons on auto mode. When the auto mode is selected, the console. the speed of the fan will automatically increase and decrease as the speed of the walking belt Decrease increases and decreases.
  • Page 18 HOW TO USE AN ONBOARD WORKOUT if the speed and/or incline settings are too high or too low at any time during the workout, you can insert the key into the console. override the settings by pressing the Speed or incline buttons.
  • Page 19 HOW TO USE A SET-A-GOAL WORKOUT The workout will function in the same way as the manual mode (see pages 16 and 17). insert the key into the console. The workout will continue until you reach the goal See HOW TO TURN ON THE POWER on page 16. that you set.
  • Page 20 HOW TO USE AN IFIT WORKOUT Before some workouts will download, you must add them to your schedule on iFit.com. Note: To use an iFit workout, you must have access For more information about the iFit workouts, to a wireless network (see HOW TO USE THE WIRELESS NETWORK MODE on page 23).
  • Page 21 HOW TO USE THE EQUIPMENT SETTINGS MODE Turn on or turn off the display demo mode. Select the settings main menu. The console features a display demo mode, designed to be used if the treadmill is displayed in a store. While the demo mode is turned on, the Insert the key into the console (see HOW console will function normally when you plug in...
  • Page 22 Note: If a passcode is enabled, the console will To avoid damaging the treadmill, do not turn off regularly ask for you to enter the passcode. The the power or remove the key while the firmware console will remain locked until the correct pass- is being updated.
  • Page 23 HOW TO USE THE WIRELESS NETWORK MODE An information box will ask if you want to connect to the wireless network. Touch the Connect button The console features a wireless network mode that to connect to the network or touch the Cancel but- ton to return to the list of networks.
  • Page 24 HOW TO USE THE STEREO SOUND SYSTEM Note: While you are using the browser, the speed, incline, fan, and volume buttons will still function, but the workout buttons will not function. To play music or audio books through the console's speakers, you must connect your MP3 player, CD player, or other personal audio player to the console.
  • Page 25 HOW TO FOLD AND MOVE THE TREADMILL HOW TO FOLD THE TREADMILL HOW TO MOVE THE TREADMILL To avoid damaging the treadmill, adjust the incline Before moving the treadmill, fold it as described at the left. CAUTION: Make sure that the latch knob is to zero percent before you fold the treadmill.
  • Page 26 TROUBLESHOOTING Most treadmill problems can be solved by following If the treadmill still will not run, please see the front cover of this manual. the simple steps below. Find the symptom that applies, and follow the steps listed, if further assis= tance is needed, see the front cover of this manual.
  • Page 27 SYMPTOM: The walking belt slows when walked on SYMPTOM: The walking belt is off=center or slips when walked on Use only a surge suppressor that meets all of the specifications described on page 12. If the walking belt is off=center, first remove the key and UNPLUG THE POWER CORD.
  • Page 28 EXERCISE GUiDELiNES Burning Fat--To burn fat effectively, you must exer- cise at a low intensity level for a sustained period of time. During the first few minutes of exercise, your body uses carbohydrate calories for energy. Only after the first few minutes of exercise does your body begin to use stored fat calories for energy.
  • Page 29 SUGGESTED STRETCHES The correct form for several basic stretches is shown at the right. Move slowly as you stretch--never bounce. 1. Toe Touch Stretch Stand with your knees bent slightly and slowly bend forward from your hips. Allow your back and shoulders to relax as you reach down toward your toes as far as possible.
  • Page 30 PART LIST Model No. 24924.0 R0812A Key No. Qty. Description Key No. Qty. Description 5/16" x 3/4" Screw Magnet 5/16"x 1" Screw Reed Switch Clip 5/16" Star Washer Reed Switch 5/16" x 1 1/2" Screw Cable Tie #8 x 3/4" Screw Frame 3/8"...
  • Page 31 Key No. Qty. Description Key No. Qty. Description Ground Wire Fan Housing Wire Tie Chest Strap Console Back Sensor User's Manual Note: Specifications are subject to change without notice. For information about ordering replacement parts, see the back cover of this manual. *These parts are not illustrated.
  • Page 32 "U...
  • Page 33 EXPLODED DRAWING B Model No. 24924.0 R0812A 66 --t_.
  • Page 34 EXPLODED DRAWING C Model No. 24924.0 R0812A -¢ _,' 83...
  • Page 35 EXPLODED DRAWING D Model No. 24924.0 R0812A ",_- 31 © 5-4' © ,"_5 10--d...
  • Page 36 ORDERING REPLACEMENT PARTS To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to pro- vide the following information when contacting us: • the model number and serial number of the product (see the front cover of this manual) •...

This manual is also suitable for:
