Service Manual
Auto Washer

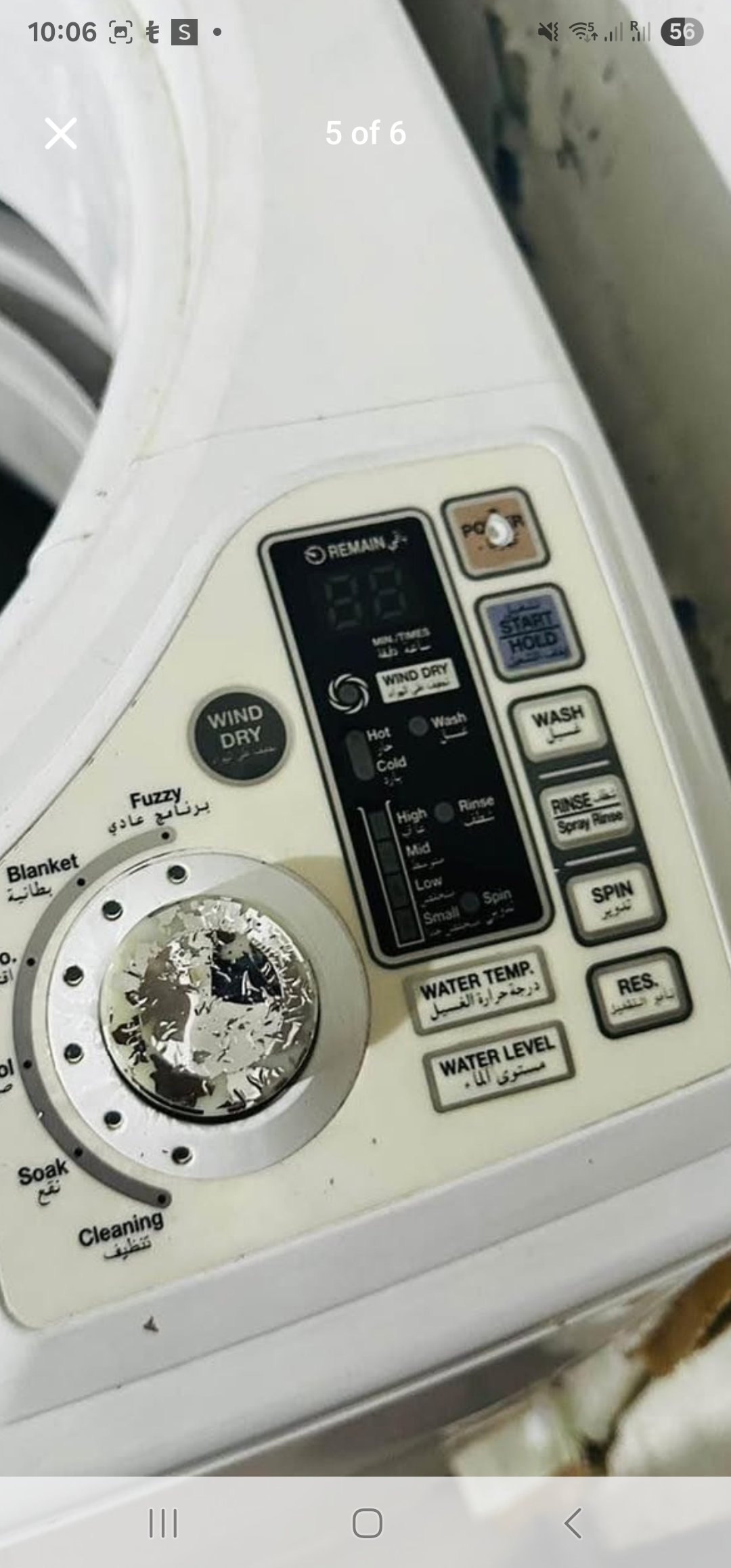

Model: DWF-200HBTC
DWF-240HBTC
Caution
: In this Manual, some parts can be changed for improving,
their performance without notice in the parts list. So, if you
need the latest parts information, please refer to PPL(Parts
Price List) in Service Information Center
DAEWOO ELECTRONICS CORP.
Jun. 2006
Advertisement
Table of Contents
Related Manuals for Daewoo DWF-200HBTC
Summary of Contents for Daewoo DWF-200HBTC
-
Page 1: Service Manual
S/M No. : WF200HB001 Service Manual Auto Washer Model: DWF-200HBTC DWF-240HBTC Caution : In this Manual, some parts can be changed for improving, their performance without notice in the parts list. So, if you need the latest parts information, please refer to PPL(Parts Price List) in Service Information Center DAEWOO ELECTRONICS CORP. -
