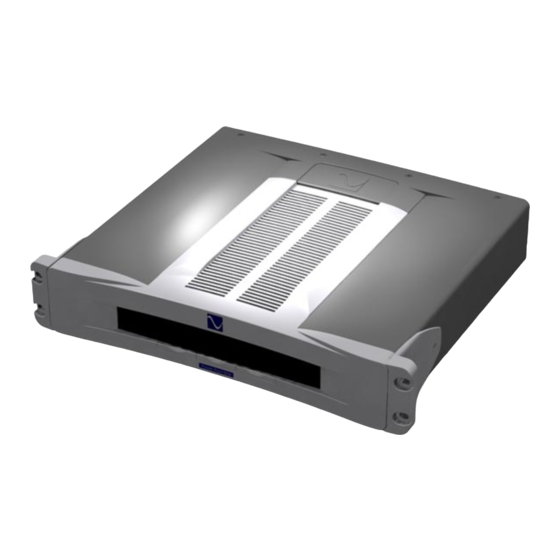

- Page 1 SERVICE MANUAL Power Plant Premier APPLICABLE PRODUCTS Serial numbers PPP-7J and earlier Document # 11-037-01-1-DSM-A Released 01/08 4826 Sterling Drive, Boulder, CO 80301 PH: 720.406.8946 FX: 720.406.8967...
- Page 2 BASIC DISASSEMBLY PROCEDURE 1) Place the unit upside down on a well protected working surface. 2) Tape the side panels so they are not damaged during disassembly and reassembly. Make sure the tape is stopped before the back panel 3) Remove the 4 corner screws from the back panel 4826 Sterling Drive, Boulder, CO 80301 PH: 720.406.8946 FX: 720.406.8967...
- Page 3 4) Remove 10 screws from the bottom as shown 4826 Sterling Drive, Boulder, CO 80301 PH: 720.406.8946 FX: 720.406.8967...
- Page 4 Hold the top and bottom together, and turn the unit over. 6) Slide the top cover forward about 1 inch, then tilt forward. 4826 Sterling Drive, Boulder, CO 80301 PH: 720.406.8946 FX: 720.406.8967...
-
Page 5: Troubleshooting
TROUBLESHOOTING Power Issues 1. Nothing happens when power is applied to the Premier. a. Check / Replace F1 and F2 on the Power Inlet Assembly. • Slow Blow 5A 10MM TDA fuses. b. Replace the Power Cartridge. 2. The circuit breaker in the wall trips when power is applied to the premier. a. - Page 6 Remote Control Issues 1. Remote not Functioning a. Replace the batteries in the Remote Control. b. Replace the Remote Control. c. Replace the Display PCA. Fan Issues 1. Fans won’t turn. a. Verify the fans are correctly plugged into the small fan interconnect PCA. b.
-
Page 7: Heat Sink Removal
HEAT SINK REMOVAL To remove the Heat-Sink assemblies, remove 4 screws per side. 4826 Sterling Drive, Boulder, CO 80301 PH: 720.406.8946 FX: 720.406.8967... - Page 8 POWER TRANSISTOR REPLACEMENT To replace the Darlington transistors, remove 4 mounting screws on each heat-sink. The TO3 Insulator Sil-Pads should always be replaced when a transistor is reinstalled for any reason. After replacement the Darlington transistor mounting screws must be torqued to 8 inch pounds. If a transistor has failed, be certain to test the emitter resistors R11-R14.
- Page 9 REGULATOR PCB REMOVAL To replace the Main PCA remove the four corner screws being careful to not lose the stand-off spacers. The thermal sensor R10 is mounted on the bottom side of the PCA so it can protrude into the heat-sink.This thermal sensor is sometimes glued into the insulating spacer (Better seen in next picture).
- Page 10 POWER CARTRIDGE REPLACEMENT Remove the machine screws from above and below the power cartridge using a 5/16 inch hex driver. Pry the power cartridge from the in-let assembly using a flat-head screwdriver. The power button on the power cartridge will catch on the rear bezel after about ½ inch of movement. 4826 Sterling Drive, Boulder, CO 80301 PH: 720.406.8946 FX: 720.406.8967...
- Page 11 Depress the button on the power cartridge to allow it to be removed. 4826 Sterling Drive, Boulder, CO 80301 PH: 720.406.8946 FX: 720.406.8967...
- Page 12 When replacing the power cartridge, support the in-let assembly to avoid damage to the mounts. 4826 Sterling Drive, Boulder, CO 80301 PH: 720.406.8946 FX: 720.406.8967...
- Page 13 FAN DRIVER REPLACEMENT First check to make sure that all connections to the Main PCA are good. Next check to make sure that the fan driver transistor Q6 is a BC337G and that it is installed up-side-down compared to the silk screen on the Main PCA. Use an Ohm Meter to measure for shorts between the Q6 transistor legs.
-
Page 14: Display Calibration
DISPLAY CALIBRATION 1. With the unit in standby, press the Mode Down, Mode Up and Power Button (Logo) simultaneously. 2. The 3-digit display should light up. The logo and buttons should not be backlit. This tells you that you are in calibration mode. 3. -
Page 15: Common Parts List
COMMON PARTS LIST Part Description Manufacturer Part Number Slow Blow 5A 5X20mm Fuses PS Audio MS-PREM-FUSEKIT-P1 (PS Kit includes 2 fuses) Littlefuse 0218005.HXP Power Cartridge PS Audio PC-CART-US Regulator / Heat Sink Assembly Pair PS Audio MS-PREM-REGULATOR-P1 Regulator PCA PS Audio... -
Page 16: Additional Resources
ADDITIONAL RESOURCES Schematics, drawings, manuals, and other product documentation are available online to PS Audio distributors. The URL is: http://download.psaudio.com Contact your sales representative to register. 4826 Sterling Drive, Boulder, CO 80301 PH: 720.406.8946 FX: 720.406.8967...
