2

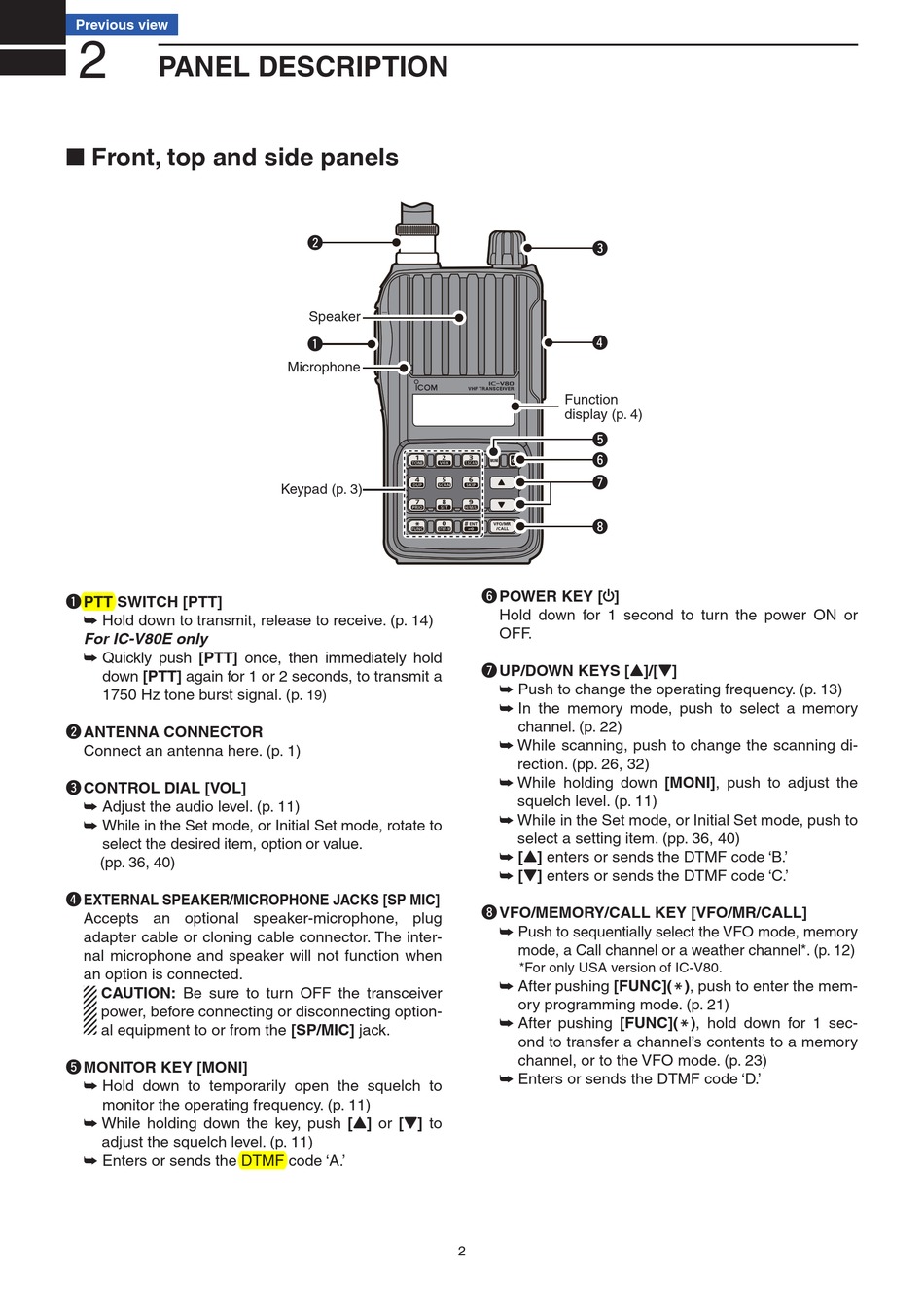

PANEL DESCRIPTION

■ Front, top and side panels

q PTT SWITCH [PTT]
➥ Hold down to transmit, release to receive. (p. 14)
For IC-V80E only
➥ Quickly push [PTT] once, then immediately hold
down [PTT] again for 1 or 2 seconds, to transmit a
1750 Hz tone burst signal. (p.
w ANTENNA CONNECTOR
Connect an antenna here. (p. 1)
e CONTROL DIAL [VOL]
➥ Adjust the audio level. (p. 11)
➥ While in the Set mode, or Initial Set mode, rotate to
select the desired item, option or value.
(pp. 36, 40)
r EXTERNAL SPEAKER/MICROPHONE JACKS [SP MIC]
Accepts an optional speaker-microphone, plug
adapter cable or cloning cable connector. The inter-
nal microphone and speaker will not function when
an option is connected.
CAUTION: Be sure to turn OFF the transceiver
power, before connecting or disconnecting option-
al equipment to or from the [SP/MIC] jack.
t MONITOR KEY [MONI]
➥ Hold down to temporarily open the squelch to
monitor the operating frequency. (p. 11)
➥ While holding down the key, push [Y] or [Z] to
adjust the squelch level. (p. 11)
➥ Enters or sends the DTMF code 'A.'
w
Speaker
q
Microphone
Keypad (p. 3)
19)
e
r
Function
display (p. 4)
t
y
u
i
y POWER KEY [ ]
Hold down for 1 second to turn the power ON or
OFF.
u UP/DOWN KEYS [Y]/[Z]
➥ Push to change the operating frequency. (p. 13)
➥ In the memory mode, push to select a memory
channel. (p. 22)
➥ While scanning, push to change the scanning di-
rection. (pp. 26, 32)
➥ While holding down [MONI], push to adjust the
squelch level. (p. 11)
➥ While in the Set mode, or Initial Set mode, push to
select a setting item. (pp. 36, 40)
➥ [Y] enters or sends the DTMF code 'B.'
➥ [Z] enters or sends the DTMF code 'C.'
i VFO/MEMORY/CALL KEY [VFO/MR/CALL]
➥ Push to sequentially select the VFO mode, memory
mode, a Call channel or a weather channel*. (p. 12)
*For only USA version of IC-V80.
➥ After pushing [FUNC](M), push to enter the mem-
ory programming mode. (p. 21)
➥ After pushing [FUNC](M), hold down for 1 sec-
ond to transfer a channel's contents to a memory
channel, or to the VFO mode. (p. 23)
➥ Enters or sends the DTMF code 'D.'
2
