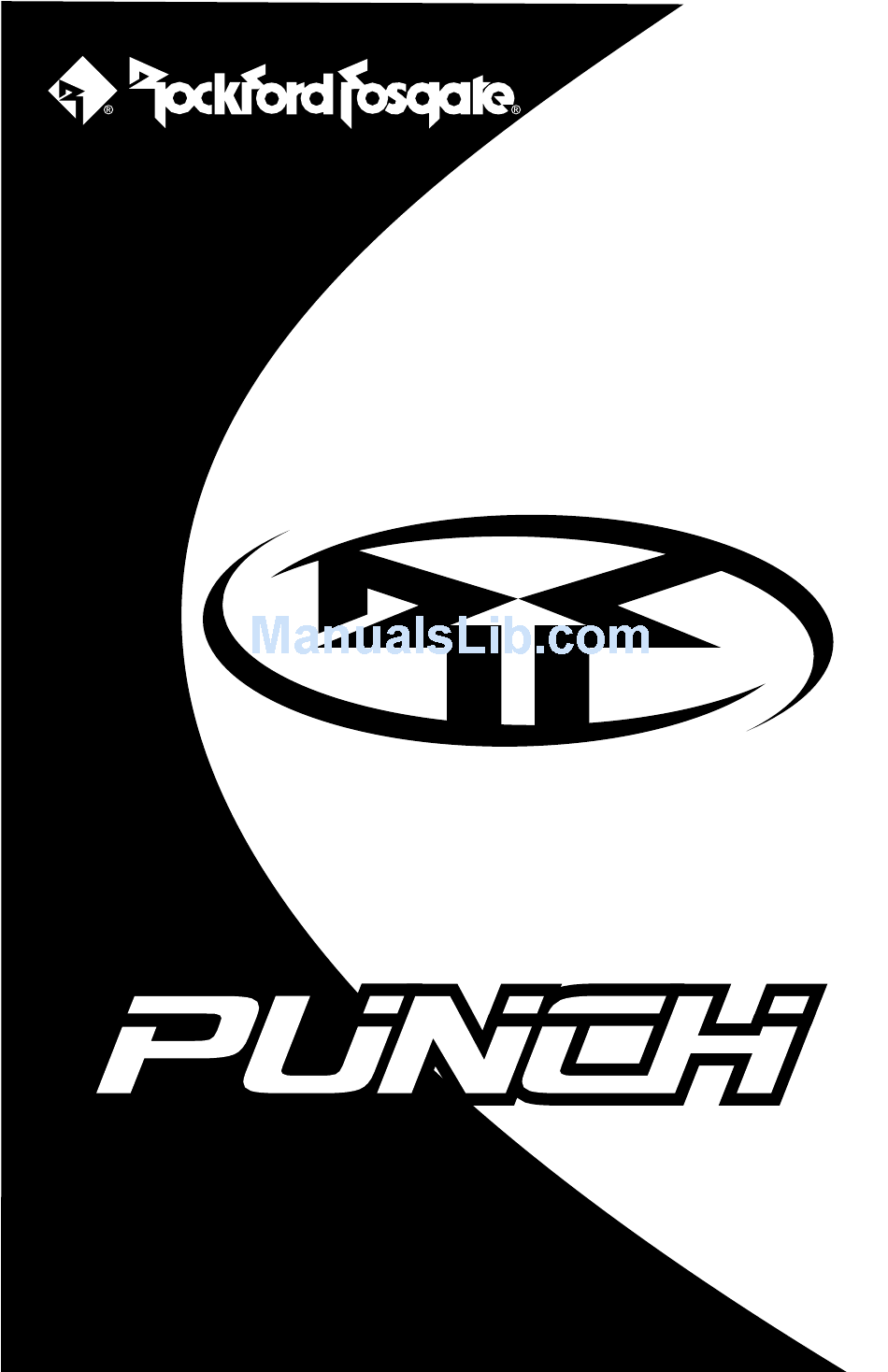

- Page 1 Punch200 trans•ana 4-channel Punch400 trans•ana Installation 4-channel Punch600 & Operation trans•ana 4-channel Punch800 trans•ana 4-channel Punch600 trans•ana 5-channel...
- Page 2 If, after reading your manual, you still have questions regarding this product, we recommend that you see your Rockford Fosgate dealer. If you need further assis- tance, you can call us direct at 1-800-669-9899. Be sure to have your serial num- ber, model number and date of purchase available when you call.
- Page 3 Dear Customer, Congratulations on your purchase of the world's finest brand of car audio amplifiers. At Rockford Fosgate we are fanatics about musical reproduction at its best, and we are pleased you chose our product. Through years of engineering expertise, hand craftsmanship and critical testing procedures, we have created a wide range of prod- ucts that reproduce music with all the clarity and richness you deserve.
-
Page 4: Specifications
Specifications PUNCH 200 PUNCH 400 PUNCH 600 PUNCH 800 PUNCH 600 4-channel 4-channel 4-channel 4-channel 5-channel DynamicPowerRating (IHF-202 Standard) - Measured at 14.4 Volts Front/Rear + Subwoofer Bridged into a 4 Load 165 Watts x 2 220 Watts x 2 317 Watts x 2 525 Watts x 2 240 Watts x 2+... - Page 5 Dimensions PUNCH 200 PUNCH 400 PUNCH 600 PUNCH 800 PUNCH 600 4-channel 4-channel 4-channel 4-channel 5-channel 2.4” H 2.4” H 2.4” H 2.4” 2.4” H (6.09cm) (6.09cm) (6.09cm) (6.09cm) (6.09cm) 9.9” W 9.9” W 9.9” W 9.9” W 9.9” W (25.15cm) (25.15cm) (25.15cm)
-
Page 6: Table Of Contents
Table of Contents Specifications ....................ii Introduction ....................1 Amplifier Accessory Pack................1 Feature Chart ....................2 Design Features ..................4 Installation Considerations ................7 Mounting Location..................8 Battery and Charging ................9 Wiring the System ..................9 Using Passive Crossovers ................11 Table of Component Values ..............12 Installation ....................13 System Diagrams ..................25 Troubleshooting ..................29 Dynamic Power Measurements ..............31... -
Page 7: Introduction
Introduction Rockford engineers designed the Punch multi-channel amplifiers to with- stand the rugged automotive environment while delivering superior sound quality in a flexible, reliable, and efficient package. TRANS•ana is a low voltage circuit in the preamp stage of all Punch multi-channel amplifiers that lets the music sound crystal clear and very real, even when played at high volume levels. -
Page 8: Feature Chart
Punch Multi-Channel Amplifier Feature Chart PUNCH AMPLIFIER MODEL F/R + SUB # of CHANNELS RMS Power Stereo (4 ) 25x4 50x4 75x4 100x4 50x4 + 100x1 RMS Power Stereo (2 ) 50x4 100x4 150x4 200x4 100x4 + 200x1 RMS Power Bridged (4 ) 100x2 200x2 300x2... - Page 9 PUNCH AMPLIFIER MODEL Adjustable Punch Bass – – – – – (0dB/+6dB/+12dB @ 45Hz) Variable Punch Bass – – (0dB ~+18dB @ 45Hz) Adjustable Xover (80Hz) – – – – – HP/FULL/LP 4 HP/FULL/LP 4 HP/FULL/LP 4 HP/FULL/LP 4 HP/FULL/LP 4 Variable Xover (50Hz ~ 210Hz) Crossover Slope (Butterworth) 12dB...
-
Page 10: Design Features
Design Features Punch 200, 4-channel Punch 400, 4-channel 4 – 2 HP–Full–LP HP-Full-LP Input Front Front 80Hz Rear 80Hz Rear Gain Gain Crossover Crossover Front Rear High High Level Level L– L– R– R– Input Input Front Pass-Thru Rear RR– LF–... - Page 11 Design Features Punch 800, 4-channel Input Front Front Rear Rear Front Rear Crossover Gain Gain Crossover Punch Punch Front High Rear Frequency Frequency Level Input Bass Bass High 210 Hz 210 Hz Level Input Crossover Crossover L– R– R– L– HP-Full-LP HP-Full-LP Front...
- Page 12 1. Cast Aluminum Heatsink – The cast aluminum heatsink of the Punch amplifier dissipates heat generated by the amplifier's circuitry. The inherent advantage of casting provides a 30% improvement of cooling over conventional extrusion heatsink designs. 2. Speaker/Power Terminals – The heavy duty, gold-plated terminal block connectors (+ and –) will accept wire sizes from 8 AWG to 18 AWG and are immune to corrosion that can cause signal degradation.
-
Page 13: Installation Considerations
Installation Considerations The following is a list of tools you will need for installing the Punch amplifier: Voltmeter Wire strippers Electric hand drill w/assorted bits Battery post wrench 17' (5 m) Red Power Wire Wire cutters 12' (4 m) Remote Turn-On Wire Assorted connectors 1.5' (45 cm) Black Grounding Wire Wire crimpers... -
Page 14: Mounting Location
Engine Compartment Mounting Rockford Fosgate amplifiers should never be mounted in the engine com- partment. Not only will this void your warranty but could create an embar- rassing situation caused by the ridicule from your friends. -
Page 15: Battery And Charging
Rockford amplifier without problems, although battery and alternator life can be reduced slightly. To maximize the performance of your Rockford Fosgate amplifier, we suggest the use of a heavy duty battery and an energy storage capacitor. - Page 16 4. Prepare a length of cable to be used for the ground connection. Strip 5/8" of insulation from the end of the cable as described above and connect to the appropriate terminal of the amplifier. Prepare the chas- sis ground by scraping any paint from the metal surface and thorough- ly clean the area of all dirt and grease.
-
Page 17: Using Passive Crossovers
Using Passive Crossovers A passive crossover is a circuit that uses capacitors and/or coils and is placed on speaker leads between the amplifier and speaker. The crossover delegates a specific range of frequencies to the speaker for optimum driver performance. A crossover network can perform one of three functions: High-Pass (capacitors), Low-Pass (inductors or coils) and Bandpass (combi- nation of capacitor and coil). -
Page 18: Table Of Component Values
68 H 4.7 F .15mH 2.2 F 12000 25 H 6.6 F 51 H 3.3 F 100 H 1.6 F L = Low-Pass (Inductor) C = High-Pass (Capacitor) For more information, see your Authorized Rockford Fosgate Dealer. – 12 –... -
Page 19: Installation
Installation The Punch Multi-Channel amplifier inputs can be used with radios that have either RCA (low-level) preamp outputs or Speaker (high-level) outputs. Using RCA Inputs - or- High Level Inputs Punch 200, 4-channel Punch 400, 4-channel Front Rear Punch 600, 4-channel L+ L–... - Page 20 Crossover Operation Punch 600, 4-channel Punch 800, 4-channel Rear Front Punch 600, 5-channel channel channel Input Front Front Rear Rear Front Rear Crossover Gain Gain Crossover Punch Punch Front High Rear Frequency Frequency Level Input Bass Bass High 210 Hz 210 Hz Level Input...
- Page 21 Punch Bass Operation Front Rear channel channel Front Rear Input Punch Crossover Crossover Punch Bass Frequency Frequency Bass Gain Gain Front High Rear High 210 Hz 210 Hz Level Inputs Level Inputs HP-FULL-LP HP-FULL-LP Crossover Crossover R– L– R– L– Front Pass-Thru Rear...
-
Page 22: Power Connections
Power Connections Punch 200, 4-channel Punch 400, 4-channel Punch 600, 4-channel LR– RR– LF– RF– Connect to remote Connect to chassis turn-on lead of ground of vehicle* source unit Less than 18" Connect to B+ of battery *Keep grounds as short as possible with appropriate fuse Power Connections Punch 800, 4-channel... - Page 23 Power Connections Punch 600, 5-channel Sub- Sub- Sub+ Sub+ Connect to remote Connect to chassis turn-on lead of ground of vehicle* source unit Optional Energy Storage Capacitor Less than 18" Connect to B+ of battery *Keep grounds as short as possible with appropriate fuse –...
- Page 24 2-Channel Mode Punch 200, 4-channel Punch 400, 4-channel Punch 600, 4-channel Punch 800, 4-channel 2-channel INPUT Input Input Front Front Rear Rear Front Rear Crossover Gain Gain Crossover Front High Punch Rear Punch Frequency Frequency Level Input Bass High Bass 210 Hz 210 Hz Level...
- Page 25 2-Channel Mode Punch 600, 5-channel 2-channel 6-4-2 INPUT Input Sub LP Rear Rear Front Front Crossover Punch Crossover Punch Crossover Punch Rear Front High Level Frequency Bass Frequency Bass Frequency Bass Gain Gain Gain Input 210 Hz 210 Hz HP-Full-LP HP-Full-LP 6/4/2 Rear...
- Page 26 3-Channel Mode Punch 200, 4-channel Punch 400, 4-channel 4-channel Punch 600, 4-channel INPUT Punch 800, 4-channel 2-channel INPUT -or- Input Input Input Front Front Rear Rear Front Rear Crossover Gain Gain Crossover Front High Punch Punch Rear Frequency Frequency Level Input Bass Bass High...
-
Page 27: Channel Mode
3-Channel Mode Punch 600, 5-channel 2-channel INPUT 6-4-2 Input Sub LP Rear Rear Front Front Crossover Punch Crossover Punch Crossover Punch Rear Front High Level Frequency Bass Frequency Bass Frequency Bass Gain Gain Gain Input 210 Hz 210 Hz HP-Full-LP HP-Full-LP 6/4/2 Rear... - Page 28 4-Channel Mode Punch 200, 4-channel Punch 400, 4-channel Punch 600, 4-channel Punch 800, 4-channel 4-channel INPUT Input Input Front Front Rear Rear Front Rear Crossover Gain Gain Crossover Punch Punch Front High Rear Frequency Frequency Level Input Bass Bass High 210 Hz 210 Hz Level...
- Page 29 4-Channel Mode Punch 600, 5-channel 4-channel INPUT 6-4-2 Input Sub LP Rear Rear Front Front Crossover Punch Crossover Punch Crossover Punch Rear Front High Level Frequency Bass Frequency Bass Frequency Bass Gain Gain Gain Input 210 Hz 210 Hz HP-Full-LP HP-Full-LP 6/4/2 Rear...
- Page 30 5-Channel Mode Punch 600, 5-channel *See NOTE 6-channel 6-4-2 INPUT Input Sub LP Rear Rear Front Front Crossover Punch Crossover Punch Crossover Punch Rear Front High Level Frequency Bass Frequency Bass Frequency Bass Gain Gain Gain Input 210 Hz 210 Hz HP-Full-LP HP-Full-LP 6/4/2...
-
Page 31: System Diagrams
System Diagrams 200 Watt 3-Way System Rear Front Punch 400 4-Channel Amplifier Fanatic Punch Woofers Component System fnx-1414 fnx-1414 – – – – – – – – 80Hz - 20kHz 12dB/octave HP 20Hz - 80Hz 12dB/octave LP – 25 –... - Page 32 325 Watt 4-Way System Rear Pass-Thru Front Punch 400 4-Channel Amplifier Punch Midbass Fanatic Component System – – fnx-1414 fnx-1414 – – – – – 80Hz - 275Hz 12dB/octave LP 12dB/octave HP – 275Hz - 20kHz 12dB/octave HP Punch Woofers Punch 250 –...
- Page 33 Front Rear Pass-Thru Punch 400 Punch 400 4-Channel 4-Channel Amplifier Amplifier Punch Midbass Punch Fanatic Fanatic Midbass Component Component – – – – System System fnx-1414 fnx-1414 fnx-1414 fnx-414 – – – – – – – – – – 80Hz - 275Hz 80Hz - 275Hz 12dB/octave LP 12dB/octave LP...
- Page 34 Front Rear Pass-Thru Pass-Thru Punch 400 Punch 400 4-Channel 4-Channel Amplifier Amplifier Fanatic Fanatic Punch Punch Component Component – – – – Midbass Midbass System System fnx-1414 fnx-1414 fnx-1414 fnx-1414 – – – – – – – – – – 80Hz - 275Hz 12dB/octave LP 12dB/octave HP...
-
Page 35: Troubleshooting
TROUBLE S Troubleshooting If you are having problems after installation follow the Troubleshooting procedures below. Procedure 1: Check Amplifier for proper connections. Verify that POWER light is on. If POWER light is on skip to Step 2, if not continue. 1. - Page 36 TROUBLE S Procedure 4: Check Amplifier if you experience excess Engine Noise. 1. Route all signal carrying wires (RCA, Speaker cables) away from power and ground wires. 2. Bypass any and all electrical components between the stereo and the amplifier(s). Connect stereo directly to input of amplifier. If noise goes away the unit being bypassed is the cause of the noise.
-
Page 37: Dynamic Power Measurements
Dynamic Power Measurements About the Dynamic Power Measurements The Audio Graph PowerCube is a test instrument used to measure the out- put of an amplifier in accordance with IHF-202 industry standards. The IHF-202 standard is a dynamic power measurement and was developed as a means of measuring power in a manner that best represents the Real World operation of an amplifier. - Page 38 Information Cubed The data acquired in the testing procedure is then graphed in the form of a 3-dimensional cube, hence the name PowerCube. The Phase Angle is expressed on the horizontal axis, the Output Voltage is presented on the vertical axis and the Impedance is displayed on the Z axis. Output Power, in watts, is listed on the left hand side for each impedance at each phase angle.
-
Page 39: Limited Warranty Information
• What is Covered This warranty applies only to Rockford Fosgate products sold to consumers by Authorized Rockford Fosgate Dealers in the United States of America or its pos- sessions. Product purchased by consumers from an Authorized Rockford Fosgate Dealer in another country are covered only by that country’s Distributor and not by Rockford Corporation. -
Page 40: International Information
International Information SPAÑOL LEA DETENIDAMENTE LAS SIGUIENTES INSTRUCCIONES DE INSTALA- CION DEL PRODUCTO. EVITARA POSIBLES DAÑOS A VD., AL VEHICU- LO O AL PRODUCTO. NTRODUCCION Los ingenieros de Rockford han diseñado los amplificadores Punch para ofrecer en el dificil entorno de un automóvil una calidad de sonido superi- or en un producto flexible, fiable y eficiente. - Page 41 SPAÑOL Terminal GND Prepare un trozo de cable para usarlo como toma de masa. Prepare un punto de masa en el chasis rascando y eliminando la pintura de la super- ficie de metal y limpielo de toda suciedad asegure el cable al chasis con un tornillo.
- Page 42 SPAÑOL Funcionamiento Estereo Punch 600, 5-canales Entradas 6-4-2 6-Canales Entradas Rear Rear Front Front Sub LP Crossover Punch Crossover Punch Crossover Punch Rear Front High Level Frequency Bass Frequency Bass Frequency Bass Gain Gain Gain Input 210 Hz 210 Hz HP-Full-LP HP-Full-LP 6/4/2...
- Page 43 Ne pas les suivre pourrait causer des blessures ou endommager le véhicule. NTRODUCTION Les ingénieurs de Rockford Fosgate ont conçu l'amplificateur Punch pour supporter l'environnement rude de l'automobile en délivrant une qualité de son supérieure dans un ensemble efficace, fiable et flexible. Trans•ana est un circuit de bas voltage dans l'étage de préamplification de tous les...
- Page 44 RANÇAIS Terminal GND Préparez une longueur de câble pour la connexion à la masse. Préparez le châssis en grattant la peinture de la surface métallique et nettoyez la saleté et l'huile. Attachez le câble au châssis avec une vis. Terminal REM Connectez le fil REM à...
- Page 45 RANÇAIS Opération stéréo Punch 600, 5-canaux Entrées 6-4-2 6-Canaux Entrées Sub LP Rear Rear Front Front Crossover Punch Crossover Punch Crossover Punch Rear Front High Level Frequency Bass Frequency Bass Frequency Bass Gain Gain Gain Input 210 Hz 210 Hz HP-Full-LP HP-Full-LP 6/4/2...
- Page 46 EUTSCH BITTE LESEN SIE DIESE GEBRAUCHSANLEITUNG ZUERST SORGFÄLTIG DURCH. DAS KANN SIE VOR DEM FALSCHEN EINSATZ, AUSFALLEN ODER SOGAR BESCHÄDIGUNG DES PRODUKTES ODER IHRES FAHRZEUGES SCHÜTZEN. INLEITUNG Rockford Ingenieure haben die Punch Verstärker entwickelt. Mit höch- stem Technologie-Standart, hervorragender Klangqualität, einfacher Handhabung und bester Servicefreundlichkeit Trans•ana ist eine Nieder- Volt Schaltung im Vorverstärkerteil aller Pünch Verstärker die für kristallk- laren Klang auch bei sehr hohen Lautstärken sorgt.
- Page 47 EUTSCH GND Anschlu Preparieren Sie Ihr Kabel für die Negativ Leitung (Erdung). Preparieren Sie die Anschlubstelle des Erdungskabels, indem Sie das Metall gründlich reinigen und vom Lack befreien. Befestigen Sie nun die Erdung an dieser Stelle mit einer Schraube. REM Anschlu Verbinden Sie das Ein-und Ausschaltungskontroll-Kabel mit Ihrem Radio (12 Volt positiv).
- Page 48 EUTSCH Stereo Operation Punch 600, 5-Kanales Eingänge 6-4-2 6-Kanales Eingänge Sub LP Rear Rear Front Front Crossover Punch Crossover Punch Crossover Punch Rear Front High Level Frequency Bass Frequency Bass Frequency Bass Gain Gain Gain Input 210 Hz 210 Hz HP-Full-LP HP-Full-LP 6/4/2...
- Page 49 TALIANO ATTENZIONE: SI PREGA DI LEGGERE LE SEGUENTI ISTRUZIONI PER L'INSTALLAZIONE DI QUESTO PRODOTTO. IL NON SEGUIRLE POTREBBE RISULTARE SERIAMENTE DANNOSO PER LA PERSONA O PER IL VEICOLO. NTRODUZIONE Gli ingenieri Rockford hanno progettato la serie di amplificatori Punch per resistere all'ostico ambiente automobilistico mentre suonano con una musi- calitá...
- Page 50 TALIANO Terminale B+ (cavo positivo) Il cavo positivo deve essere protetto da un fusibile a non piú di 45 cm dalla batteria. Terminare il cavo e installare il fusibile nel vano motore. Tutte le connessioni devono essere a prova d'acqua. Terminale GND (cavo negativo) Decidere la lunghezza del cavo e terminarlo.
- Page 51 TALIANO Stereo Operation Punch 600, 5-canale Ingressi 6-4-2 6-Canale Ingressi Sub LP Rear Rear Front Front Crossover Punch Crossover Punch Crossover Punch Rear Front High Level Frequency Bass Frequency Bass Frequency Bass Gain Gain Gain Input 210 Hz 210 Hz HP-Full-LP HP-Full-LP 6/4/2...
- Page 52 MADE IN THE USA This product is designed, developed and assembled in the USA by a dedicated group of American workers. The majority of the components used in the construction of this product are produced by American companies. However, due to the glob- al nature of their manufacturing facilities and the loudspeaker parts industry in general, some parts may be manufactured in other countries.
