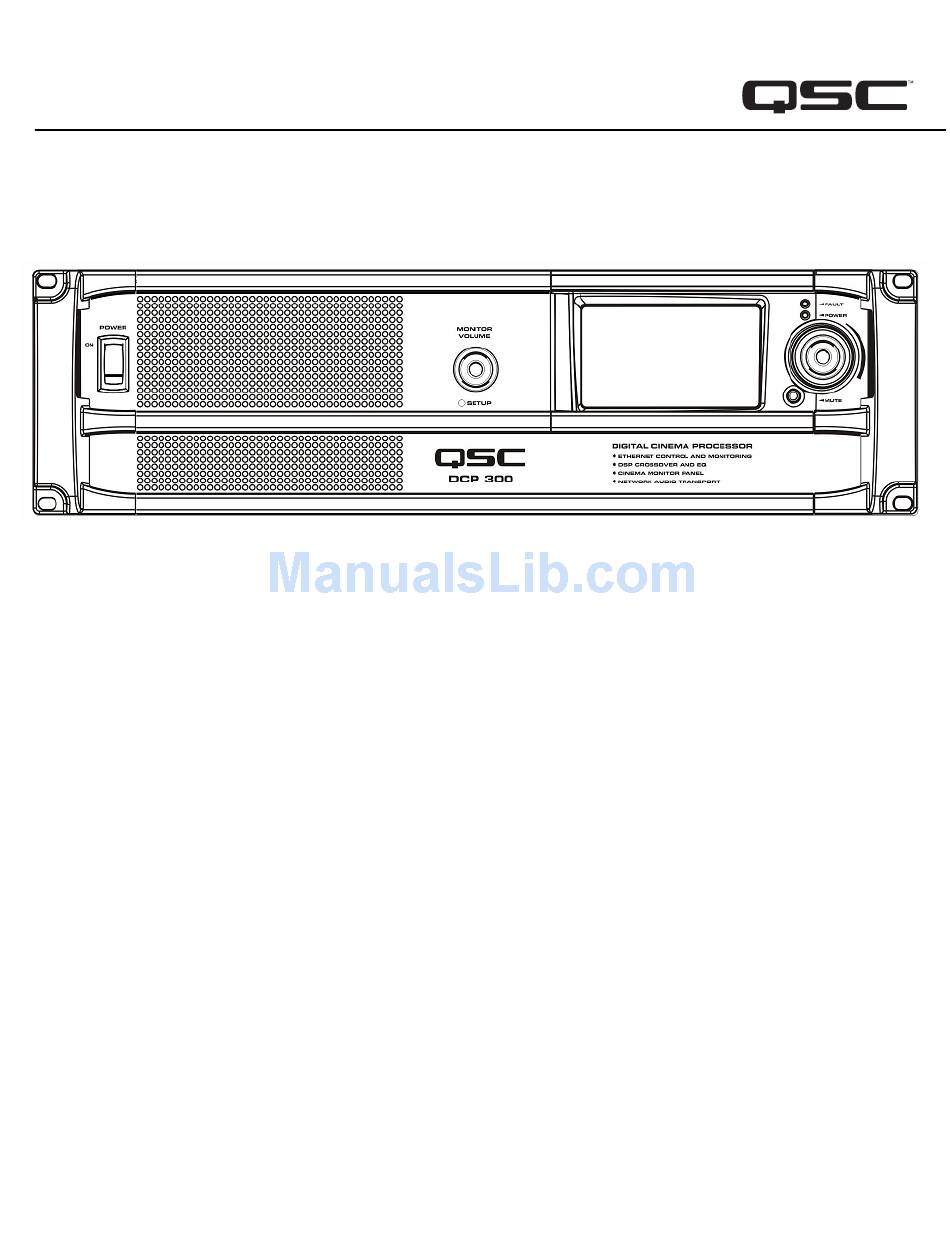

- Page 1 Digital Cinema Hardware User Manual DCP 300 – Digital Cinema Processor TD-000285-00 rev. 005...
- Page 2 IMPORTANT SAFETY PRECAUTIONS & EXPLANATION OF SYMBOLS The lighting flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous” voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to humans. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in this manual.
-
Page 3: Fcc Interference Statement
While QSC strives to provide the highest quality technical solutions for networked audio products, in no event will QSC or its suppliers be held liable for any damage, consequential, incidental or otherwise, including any claims for lost profits and/or savings resulting from any attempted integration of the DCP 300 product(s) with an existing network or network system. -
Page 4: Rohs Statement
TRADEMARK AND COPYRIGHT NOTICES © 2009, QSC Audio Products, LLC. This Hardware User Manual and the content therein is protected by copyright law. No part of this Hardware User Manual may be reproduced, printed, edited, or re-transmitted, or stored in a document retrieval system for the... -
Page 5: Digital Signal Processing
The DCP 300 builds on the legacy of QSC's DCM and Basis products to provide all signal processing and monitoring • Easily integrates with existing film processors for dual functions for Digital Cinema in a single integrated system. - Page 6 In Ethernet monitoring system. The QSControl.net suite of addition, QSC’s PoE enabled NAC 100 Ethernet remote control applications allows for the creation of custom control panel provides remote operation and status throughout a screens via “drag and drop”...
- Page 7 RS232 IEC inlet – AC mains power connector with cord lock Dataport interface for QSC amplifiers – fourteen connectors (up to 28 channel outputs) Hearing impaired and visually impaired special mix outputs TTL logic outputs – for use as automation triggers, alerts, system status flags etc.
- Page 8 DCP Manager offers all the setup USB connection to DCP 300 The image above illustrates a Windows laptop connecting directly to the DCP 300 via the product rear panel USB interface. The Windows machine is running QSC’s DCP Manager Application.
- Page 9 Local Ethernet connection to DCP 300 The image above illustrates a Windows laptop connecting directly to the DCP 300 via the product rear panel QSControl interface. The Windows machine is running QSC’s QSControl.net suite of applications (Venue Manager, QSCreator, Notify, 3rd Party API etc.).
- Page 10 CD-ROM/DVD drive. Click the “Install DCP Manager Software” button Follow the on-screen prompts/instructions * Contact QSC’s Technical Services Group for instructions on downloading the latest compatible version of QSControl.net software for managing your DCP 300 over an Ethernet LAN.
-
Page 11: Ac Power Cord
Services Group. Dataports The QSC Dataport connectors on the DCP 300 rear panel are intended to interface to QSC amplifiers equipped with mating v1 Dataport connectors. These are the “all- capable” Dataports compliant with QSC’s version 1 Dataport specification. V1 Dataports are included on all DCA and PL3 series amplifiers. - Page 12 Connections: Automation Inputs, Logic Outputs, Monitor Output The automation inputs, logic outputs and monitor output all use a 2-terminal Euro style (a.k.a. Phoenix) receptacle. The Automation Inputs can be connected to relay contacts, a switch or a 10K potentiometer. Logic Outputs are CMOS compatible. And the Monitor Output is a single-ended balanced impedance source.
- Page 13 Connections: Main Analog Input Connector Pinout: 25-pin male Sub-D to 25-pin male Sub-D Pin # Description Pin # Description Chassis ground Left – Left + Chassis ground Left Center – Left Center + Chassis ground Center – Center + Chassis ground Right Center –...
-
Page 14: Specifications
Digital shelf filter with up to ±10 dB of RCA (L/R) inputs: RCA (x2) - left and right line level cut/boost programmable knee Dataport outputs: HD-15 (x14) - QSC amplifier interface Subsonic (high pass) filter: Digital highpass filter programmable as Automation inputs: 2-pin Euro-style (x6) – 8-bit resolution .707 (flat) or 2 dB (B6 boost). - Page 15 DCP 300 Specifications Amplifier A.C. Control: All amps power on with DCP 300 QSControl Network: activation and can be placed into standby Protocol: Standard TCP/IP implementation via user interface. over Ethernet or Fast Ethernet. Data rate: 10/100 Mbps Front Panel Monitor Speaker: Connection requirements: Cat-5 UTP cable or better (100m Speaker:...
- Page 16 QSC Audio Products, LLC. • 1675 MacArthur Boulevard • Costa Mesa, California 92626 USA • PH: (714) 754-6175 • FAX: (714) 754-6174 © Copyright 2009 QSC Audio Products, LLC. All rights reserved...
