Element ELCFW324 Instruction Manual

32 hd.
ELCFW324

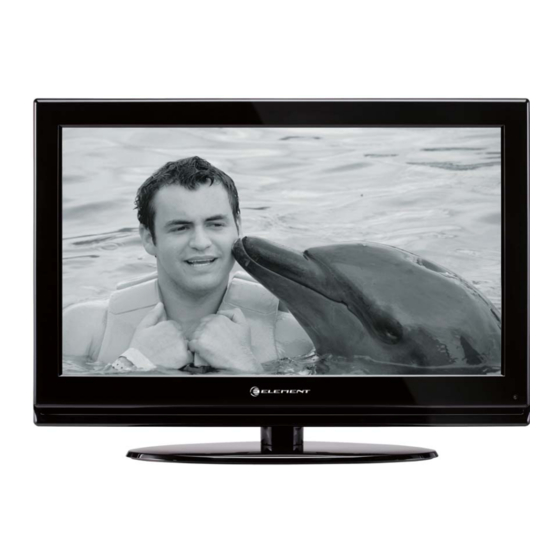

32 HD Digital LCD TV
Instruction Manual
Read all of the instructions before using this TV and keep the
manual in a safe place for future reference.

   Summary of Contents for Element ELCFW324

  • Page 1

    ELCFW324 32 HD Digital LCD TV Instruction Manual Read all of the instructions before using this TV and keep the manual in a safe place for future reference.

  • Page 2

    Important Safety Instructions Read these instructions – All the safety and operating instructions should be read before this product is operated. Keep these instructions – The safety and operating instructions should be retained for future reference. Heed all warnings – All warnings on the appliance and in the operating instructions should be adhered to. Follow all instructions –...

  • Page 3: Table Of Contents

    Contents Caution..............3 Safety Information .

  • Page 4: Caution

    Caution The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage”...

  • Page 5: Safety Information

    Safety Information To ensure reliable and safe operation of this equipment, please read carefully all the instructions in this user guide, especially the safety information below. Electrical safety The TV set should only be connected to a main power supply with voltage that matches the label at the rear of the product.

  • Page 6: What's Included

    What’s Included Unit and Accessories TV Set Remote control with batteries ELCFW324 User’s Manual Quick Start Guide Warranty card...

  • Page 8

    1. AC power input terminal 2. USB port 3. HDMI 1/HDMI2/HDMI3 input. 4. VGA input. PC audio input. Component input terminal. S-VIDEO input. Coaxial audio signal out plug. AV1/AV2 input. 10. Antenna input (75 Ohm VHF/UHF). 5 20...

  • Page 9: Connecting To External Devices

    Connecting to External Devices Connecting external devices to your LCD TV Right...

  • Page 10: Remote Control Key Functions

    Remote Control Key Functions Power button Mute button Numeric buttons Channel setup button Return channel button Picture mode button SLEEP button Sound mode button MTS button Signal source selection button Information button Channel selection button Volume adjust button CH.LIST button AUTO button FREEZE button ASPECT button...

  • Page 11

    Remote Control Key Functions REPEAT...

  • Page 12: Operating Your Television, Select Your Onscreen Language Preference

    Operating Your Television Basic Operations Turning Your TV On and Off TURN ON LCD TV 1. Connect to power with the main power cable, at this time the TV will enter STANDBY mode and the LED will be red. 2. From the STANDBY mode, use the POWER button either on the main unit or on the remote to turn your television on.

  • Page 13: Navigating The Onscreen Display, Choosing A Tv Channel

    AUTO Operating Your Television Navigating the Onscreen Display Press the MENU button to display the main menu. buttons to navigate and select the available menus. Picture Picture Picture Mode Standard Contrast Sound Mode Standard Brightness Bass Audio Audio Color Treble Time Tint Time...

  • Page 14: Selecting Input Source, Picture Menu Options

    Operating Your Television Selecting Input Source SOURCE You can display the input screen menu by pressing on the INPUT SOURCE SOURCE remote control or at the side of the panel, press button to select, press “ ” to confirm. S-Video Component1 Component2 HDMI1...

  • Page 15: Audio Menu Options, Time Menu Options

    Operating Your Television Audio Menu Options MENU MENU Press at the side of the panel or on the remote control and then use to move the menu, press to enter (see picture below). AUDIO Sound Mode Press and then use to select User, Standard, Music and Movie.

  • Page 16: Setup Menu Options

    Operating Your Television Setup Menu Options MENU MENU Press the at the side of the panel or on the remote control and then use to move the menu, press to enter (see picture below). SETUP Picture Menu Language English Transparency Menu Language Audio Zoom Mode...

  • Page 17: Lock Menu Options, Lock Menu Options

    Operating Your Television Lock Menu Options MENU MENU Press the at the side of the panel or on the remote control and then use to move the menu, press to enter (see picture below). LOCK Use the DOWN button to highlight the “Enter Password”item, use the numeric keys to input 4-digital password, then the screen will display the junior menu.

  • Page 18

    Program is inappropriate for preteens, with a greater degree of offensive material suggested than a PG Cautioned rated program Restricted viewing Not for children under 17, Strong element of sex and/or violence NC-17 No Children Under age 17 Not for children under 17 under any circumstances. Strong sexual content...

  • Page 19: Channel Menu Options, Channel Menu Options

    Operating Your Television Channel Menu Options MENU CHANNEL Press the at the side of the panel or remote control and then use to move the menu. Press or OK to enter (see picture below). Air/Cable Allows you to select antenna between Air and Cable. Picture Air/Cable Cable...

  • Page 20

    Operating Your Television Show / Hide Allows you to show or hide the channels. Use UP or DOWN button to highlight the “Show / Hide” item, then press RIGHT button to enter into the following menu. Picture Channel Name Favorite Channel 50-1 KOCE-HD...

  • Page 21: Usb Multimedia Operation

    USB Multimedia Operation Multimedia Operation: Music selected with buttons. C:\MP3\ Photo Music Title: U01-1.mp3 Artist: U01-2.mp3 Album: U01-3.mp3 rewind Year: U02-1.mp3 Bit Rate: 0kbps Stop 00:00 00:00 001/005 Play File :0 Total size:3.8 GB Select Move Repeat Unused size:3.7 GB Multimedia Operation: Photo JPEG C:\PICTURE\...

  • Page 22: Troubleshooting

    Troubleshooting If your television does not operate normally or does not turn on, please check the following troubleshooting questions. Remember to also check the other connected electronic devices, such as DVDs or Blu-ray players to pinpoint any problem. If the television still fails to operate normally, please contact technical support (refer to Warranty page).

  • Page 23

    Troubleshooting Before contacting the service technician, perform the following simple checks. If any problem still persists, unplug the LCD TV and call for assistance. PROBLEM POSSIBLE SOLUTION No sound and picture - Check that the main plug has been connected to a wall outlet - Check that you have pressed the POWER button on the front of the TV set...

  • Page 24

    Troubleshooting NOTE : When there is a problem in VGA mode (only when VGA mode is applied) PROBLEM POSSIBLE SOLUTION The signal is out of range - Adjust resolution, horizontal frequency, or vertical frequency - Check whether the signal cable is connected or loose - Check the input source Vertical bar or stripe on background, horizontal noise and Set the auto configure or adjust clock, phase or H/V...

  • Page 25

    The FCC Wants You To Know This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 26

    This product contains electrical or electronic materials. The presence of these materials may, if not disposed of properly, have potential adverse effects on the environment and human health. Presence of this label on the product means it should not be disposed of as unsorted waste and must be collected separately. As a consumer, you are responsible for ensuring that this product is disposed of properly.
