Samsung DV203 User Manual

Gas and electric dryer
Hide thumbs Also See for DV203:
Table of Contents

Advertisement

Quick Links

See also: Troubleshooting Manual
the possibilities
ThanKyou for purchasing a Samsung product.
TO receive a more complete service.
please register your product at
www. samsu ng.com/g Iobal/reg ister

Advertisement

Table of Contents
loading

Related Manuals for Samsung DV203

Summary of Contents for Samsung DV203

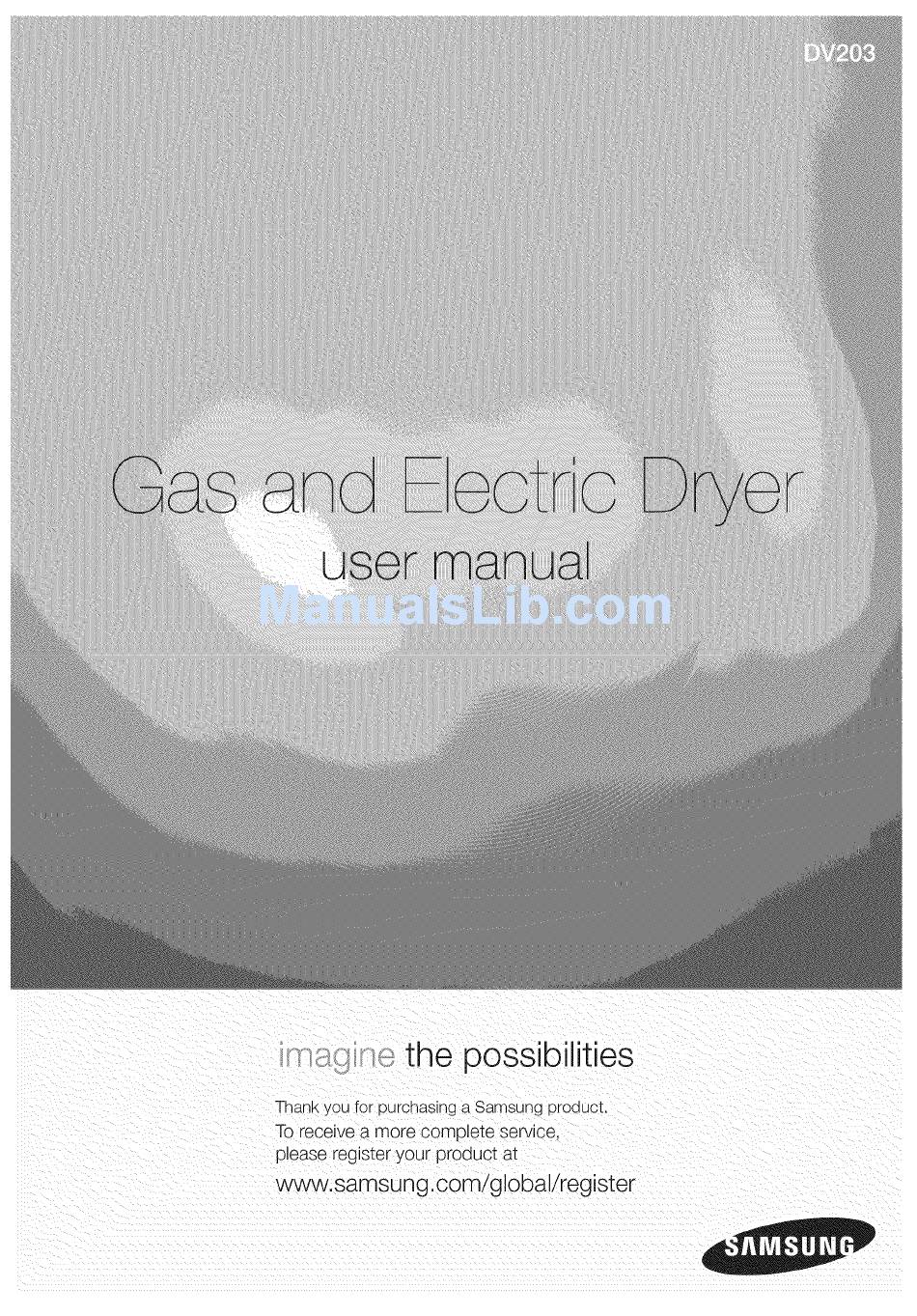

  • Page 1 ThanKyou for purchasing a Samsung product. TO receive a more complete service. please register your product at www. samsu ng.com/g Iobal/reg ister...
  • Page 2 44 minutes! Giving you time for more important things in life. 4. Energy Saving Samsung dryers are super energy efficient, using only 3.01 kWh per pound of laundry. Also, both the large capacity and Fuzzy Logic Control save energy by automatically drying your clothes the most efficient way.
  • Page 3 Congratulations on your new Samsung Dryer. This manual contains valuable information on the installation, use, and care of your appliance. Please take the time to read this manual to take full advantage of your dryer's many benefits and features. WHAT YOU NEED TO KNOW ABOUT SAFETY INSTRUCTIONS Warnings and Important Safety Instructions in this manual do not cover all possible conditions and situations that may occur.
  • Page 4 Do not sit on top of the dryer. Because of continuing product improvements, Samsung reserves the right to change specifications without notice. For complete details, see the Installation Instructions packed with your product before selecting cabinetry, making cutouts, or beginning installation.
  • Page 5 Gas leaks may occur in your system, resulting in a dangerous situation. WARNING Gas leaks may not be detected by smell alone. Gas suppliers recommend you purchase and install a UL-approved gas detector. Install and use in accordance with the manufacturer's instructions. Do not place items in your dryer that have been spotted or soaked with vegetable oil or cooking oil.

  • Page 6: Table Of Contents

    content INSTALLING YOUR DRYER Tools needed for installation See Exhaust Requirements Ducting requirements Important to installer location considerations Alcove or closet installation Mobile home installation Exhausting Gas requirements Electrical requirements Grounding Electrical connections Replacement parts and accessories Installation Final installation checklist Dryer Exhaust Tips Door Reversal Overview of the control panel...

  • Page 7: Tools Needed For Installation

    n ta ncj yo Ar trTer TOOLS NEEDED FOR INSTALLATION Hire a professional to install this dryer properly. If there is a service call performed as a result of poor setup, adjustment, and connection, it is considered the responsibility of the installer. If you install the dryer you are responsible.

  • Page 8: Ducting Requirements

    DUCTING REQUIREMENTS • Use a 4-inch (10.2 cm) diameter rigid aluminum or rigid galvanized steel duct. • Do not use a smaller duct. • Ducts larger than 4 inches (10.2 cm) in diameter can result in increased lint accumulation. Lint accumulation should be cleaned regularly. •...

  • Page 9: Important To Installer

    If the new Dryer is installed into an existing exhaust system you must make sure: The exhaust system meets all local, state, and national codes. • That a flexible plastic duct is not used. To Inspect and clean all lint buildup from inside the existing duct. The duct is not kinked or crushed.

  • Page 10: Mobile Home Installation

    (183 cm 2) Call 1-800-SAMSUNG for information on purchasing the Floor Anchoring Kit as an accessory. All mobile home installations must be exhausted to the outside with the exhaust duct termination securely fastened to the mobile home structure, using materials that will not support combustion.

  • Page 11: Gas Requirements

    GAS REQUIREMENTS Use only natural or LP (liquid propane) gases. THE INSTALLATION MUST CONFORM WITH LOCAL CODES, OR IN THE ABSENCE OF LOCAL CODES, WITH THE NATIONAL FUEL GAS CODE ANSI/Z223.1, LATEST REVISION (FOR THE UNITED STATES), OR WITH THE CAN/CGA-B149 INSTALLATION CODES (FOR CANADA).

  • Page 12: Electrical Requirements

    ELECTRICAL REQUIREMENTS Wiring diagram is located on a plate below the control panel. Improper connection of the equipment grounding conductor can result in a risk of electric shock. Check with a qualified electrician or serviceman if you are in doubt as to whether your Dryer is WARNING properly grounded.

  • Page 13: Electrical Connections

    Canada to 208 volts. REPLACEMENT PARTS AND ACCESSORIES If your Dryer requires replacement parts or accessories, contact the dealer from whom you purchased your Dryer or the SAMSUNG customer care center at 1-800-SAMSUNG (726-7864). Hnstaling your dryer 13...

  • Page 14: Installation

    i NSTALLATION For proper installation, it is highly recommended to hire a professional. To install: 1. Move your Dryer to an appropriate location for installation. Consider installing the Dryer and Washer side-by-side, to allow access to gas, electrical, and exhaust connections. Lay two of the carton cushion-tops on the floor.

  • Page 15: Final Installation Checklist

    3-WIRE system connections Loosen or remove the center terminal block screw. Connect the neutral wire (white or center wire) of the power cord to the center, silver-colored terminal screw of the terminal block. Tighten screw. 3. Connect the other wires to outer terminal block screws. Tighten screws. 4.

  • Page 16: Dryer Exhaust Tips

    DRYER EXHAUST TIPS Plastic or non-metal flexible duct presents a potential fire hazard. WARNING 1. Let your Dryer exhaust the air easily. 2. Use a 4" diameter rigid metal duct. Tape all joints, including at the dryer. Never use lint-trapping screws. 3.

  • Page 17: Door Reversal

    DOOR REVERSAL Reassemble the black 1, Unplug the power cord. screw in the other hole. 2. Remove two door hinge screws. 3. Lift the door and remove from the dryer. 4. Remove a screw on the Reassemble the screw Frame Front (Step 4) on the Frame Front Remove two screws on...

  • Page 18: Operating Instructions, Tips

    OVERVIEW OF THE CONTROL PANEL M r, Ja_ _ y Power O 6Omin. AirF_uff Start / Pause O 50rain. O 40min, O Lou@l 0 More Dry Medium ..0 Normal Dry 30min, Softer 20mln. O Less Dry O Extra Low Dry Level Temp, rime...
  • Page 19 When the cycle is complete, a chime will sound. When the Wrinkle Prevent option is selected, the chime will sound intermittently. Adjust the volume of the chime or turn it off by pressing the Signal button. Press the button repeatedly to scroll through the choices. Wrinkle Prevent provides approximately 90 minutes of intermittent tumbling in unheated air at the end of the cycle to reduce wrinkling.

  • Page 20: Child Lock

    CHILD LOCK A function to prevent children from playing with your dryer. Setting/Releasing If you want to set or release the Child Lock, press both the Time and Signal buttons simultaneously for 3 seconds. How to Set: 1, It can be set while your dryer is running. 2, Once you set the Child Lock function, no button, except for the Power button, can be controlled until you release the Child Lock function.

  • Page 21: Rack Dry

    RACK DRY Installing the drying rack 1. Open the Dryer door. 2. Position the drying rack in the tumbler, placing the rear legs in the two recessed areas of the dryer's back wall. 3. Place the front lip of the drying rack on top of the lint filter. 4.

  • Page 22: Clean The Lint Filter

    CLEAN THE LINT FILTER After each load. • To shorten drying time. To operate more energy efficiently. not operate your Dryer without the lint filter in place. LOAD THE DRYER PROPERLY Place only one washload in your Dryer at a time. Mixed loads of heavy and lightweight fabrics will dry differently, which may result in lightweight fabrics being dry while heavy fabrics remaining damp at the end of a drying cycle.

  • Page 23: Care And Cleaning

    CONTROL PANEL Clean with a soft, damp cloth. Do not use abrasive substances. Do not spray cleaners directly on the panel. The control panel finish may be damaged by some laundry pre-treatment soil and stain remover products. Apply such products away from your Dryer and wipe up any spills or overspray immediately. TUMBLER Remove any stains such as crayon, ink, or fabric dye (from new items such as towels or jeans) with an all- purpose cleaner.

  • Page 24: Special Laundry Tips

    Please follow the care label or manufacturer's instructions for drying special items, if care label instructions are not available, use the following information a guide, Bedspreads & Comforters • Follow the care label instructions or dry on the Normal cycle and High temperature.

  • Page 25: Check These Points If Your Dryer

    CHECK THESE POINTS iF YOUR DRYER... PROBLEM doesn't run. • Be sure the door is latched shut. Be sure the power cord is plugged into a live electrical outlet. Check the home's circuit breaker and fuses. Press the Start/Pause button again if the door is opened during the cycle.

  • Page 26: Information Codes

    Door open error. When the door is Be sure the door is latched shut. If problem continues, call for service. See below. open, the dryer will not operate. For any codes not listed above, call 1-800-726-7864 (1-800-SAMSUNG) 26 Troub eshooting...

  • Page 27: Fabric Care Chart

    FABRIC CARE CHART The following symbols provide garment care direction. The Clothing care labels include symbols for washing, bleaching, drying and ironing, or dry cleaning when necessary. The use of symbols ensures consistency among garment manufacturers of domestic and imported items. Follow care label directions to maximize garment life and reduce laundering problems.

  • Page 28: Protecting The Environment

    PROTECTING THE ENVIRONMENT This appliance is manufactured from recyclable materials. If you decide to dispose of this appliance, please observe local waste disposal regulations. Cut off the power cord so that the appliance cannot be connected to a power source. Remove the door so that animals and small children cannot get trapped inside the appliance.

  • Page 29: Cycle Chart

    CYCLE CHART High 44 min 39 min 5 min 90 min Normal Normal dry (Medium) High (No 60 min 55 min 5 min 90 min Normal dry change) Sensor Dry Medium Low Perm Press 34 min 24 min 10 min 90 min Normal dry (No change)
  • Page 30 Warranty service can only be performed by a SAMSUNG authorized service center. The original dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or SAMSUNG's authorized service center. SAMSUNG will provide in-home service during the warranty period at no charge, subject to availability within the contiguous United States.
  • Page 31 SAVINGS OR OTHER BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE, OR INABILITY TO USE THIS PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
  • Page 32 QUESTIONS OR COMMENTS? iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_ 1-800-SAMSUNG IN THE USA www.samsung.com Samsung ElectronicsAmerica, Inc. (726-7864) Code No. DC68-02475A_EN...
