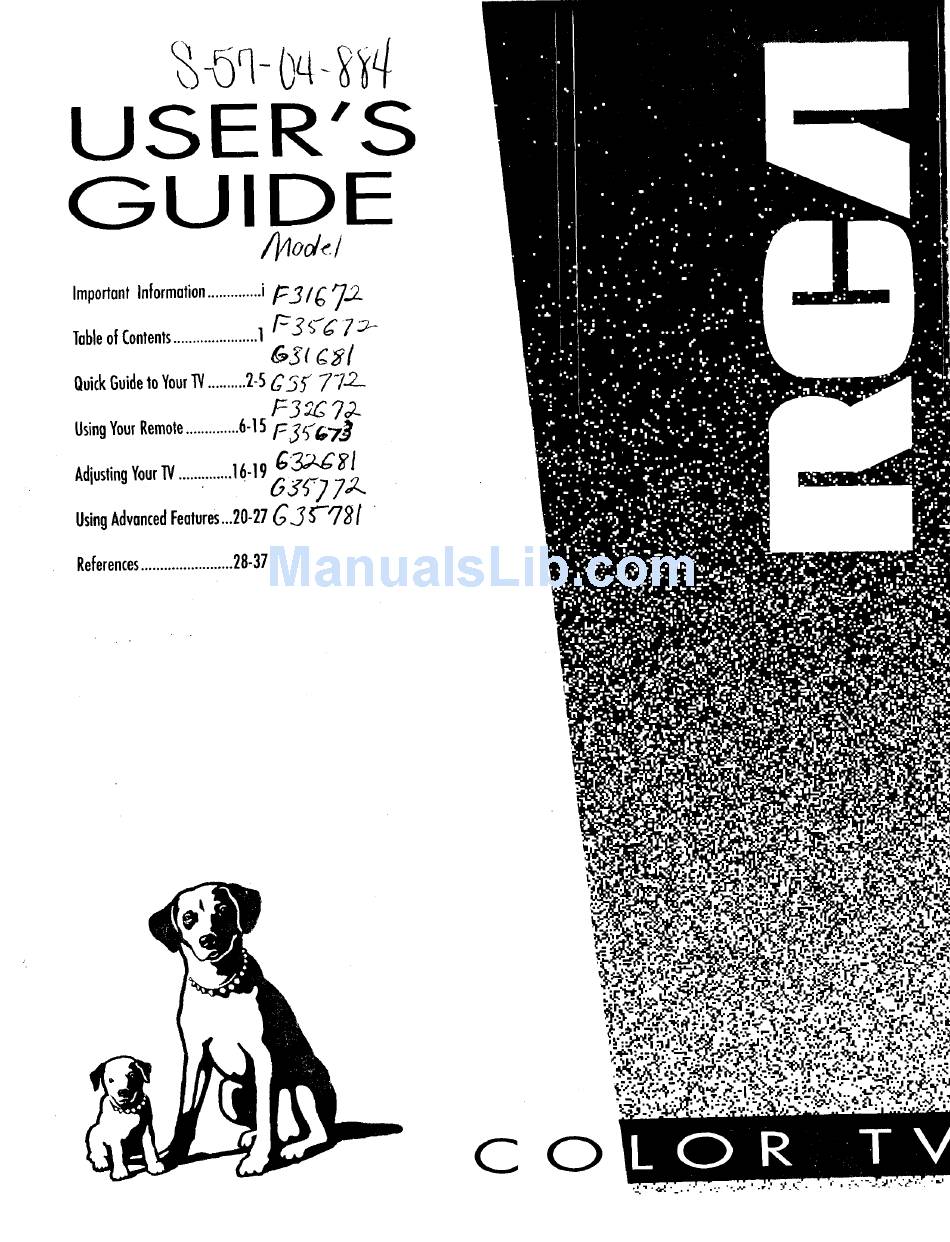

  • Page 1 USER'S GUIDE Important Information ....i F-_ [ _ 7 "._ lab_e ofContents ...... 1 F _ s_C 7 _ t)uic_ Guide to_'out 1 _/ ..2-5 C5_ 7"/.3-- F...I_ 2,_ Using ' _'ou_ Remote ....6-!SF z,;&7,._ Adjusting Your _ ....
  • Page 2 Important Information WARNING TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER To reduce the risk of fire or SERVICEABLE PARTS INSIDE. REFER SERVICING RISK OF ELECTRIC SHOCK DO NOT OPEN shock hazard, do not expose TO QUALIFIED SERVICE PERSONNEL.
  • Page 3 Table of Contents Important Information Warning, Product Registration Quick Guide to Your TV Startup Hook up, Plug in TV, Put Batteries in the Remote, Turn on the TV, Adjust Picture Tilt, Place Channels into Memory, Set the Time Basic Tour of the Remote Basic Button Layout and Functions Menu Basics...
  • Page 4 Quick Guide to Your TV Startup The steps below will get your TV connected and ready for watching. For more details, see the page numbers listed. Hook up any antennas, cables or Hook up your TV other equipment to your TV before Details are in the Connections CONNECTIONS you follow the steps below.
  • Page 5 Quick Guide to Your TV Startup A. Make sure STRENGTH switch 5. Adjust PICTURE TILT. BACK OF TV is in the OFF position. Picture tilt is used to correct a tilt- B. Move STRENGTH switch to the ed picture from the effect of the LOW position.
  • Page 6 Quick Guide to Your TV Basic Tour of the Remote Basic information about your remote is shown below. This will give you a general idea of how your remote works. For more details, see pages 6-15. TV Power Button Turns the TV on. Sets the remote to control the TV.
  • Page 7 Quick Guide to Your TV Menu Basics General information about using the on-screen menu system is shown below. Details on using the remote buttons are on pages 6-7. Many menu items are explained in detail in Using the Advanced Features starting on page 20. Yellow Green Light White...
  • Page 8 Using Your TV and Remote With Remote Buttons DISPLAY POWER Turns off the TV. Shows displays on the screen. Clears menus from the screen. Turns off compatible VCRs. Turns on a component after a component button is pressed. SKIP (Commercial Skip) Allows you to scan other chan- AUDIO, VCR, VCR2-LD, nels during commercials.
  • Page 9 Using Your TV and Remote With Remote Buttons Number Buttons (0-9) MOVE <1and • (left and right) Moves left and right on a menu Selects any channel number. line. See Menu Basics on page 5. Two numbers must be pressed for Changes a feature setting.
  • Page 10 Video Concepts ......14,16 Videosonic ........Quartz ..........Hitachi ....... 05,15,35,36 Wards ..........Quasar ..........Instant Replay ......... 08 .... 05,06,07,08,12,13,15,25,31,35 RCA ....00,05,07,08,28,35,37 JCL ............ Yamaha ......02,14,16,30 Realistic ..02,06,08,09,12,15,19,43 JCPenney ..02,05,07,08,14,16,30,35 Zenith ......... 11,17 JVC ........02,14,16,30 Samsung .......
  • Page 11 Using Your TV and Remote With VCRs: Setting the VCR1 Channel The VCR 1 Channel works with VCR on the remote. If the VCR 1 Channel is set, pressing VCR selects the channel to see the VCR picture. The VCR 1 Channel setting depends on which diagram...
  • Page 12 Using Your TV and Remote With VCRs: Basic Operation If the remote operates your VCR, this page and the next will show you how to use it for basic functions. See page 7for more details on buttons used with your VCR. A.
  • Page 13 Using Your TV and Remote With VCRs: Basic Operation If the remote operates your VCR, this page and page 10 will show you how to use it for basic functions. See page 7for more details on buttons used with your VCR. A.
  • Page 14 Unika ........31,32,41 Pioneer ........18,20,44 ....04,05,15,23,24,25,30,36,46 Viewstar ..........Randtek ........07,08 Hamlin ....... 12,13,34,48 ..07,08,19,21,9.6,28,29,32,33,40,41 RCA ..........00,27 Hitachi ........37,43,46 Warner Amex ........44 Jerrold ............ Regal ..........12,13 Zenith ........... 14,42 ..04,05,15,23,24,25,30,36,45,46,47 Regency ........
  • Page 15 Using Your TV and Remote With a Cable Box: Setting the Cable Channel The Cable Channel works with CABLE on the remote. If the Cable Channel is set, pressing GABLE selects the channel to see cable channels. The Cable Channel setting depends on which channel your cable box must be on to see cable channels.
  • Page 16 Using Your TV and Remote With a Laserdisc Player: Programming and Basic Operation Refer to your Laserdisc Player owner's manual to hook up your Laserdisc Player. The remote may need to be programmed for your laserdisc player. Use the codes below or on the sheet packed in with your remote. A.
  • Page 17 Basic Operation Refer to the Connection Book or your Audio equipment owner's manual to hook up your audio equipment. Your remote controls only RCA audio equipment such as a radio, CD player, tape player, turntable, or amplifier. remote may need to be programmed for your equipment.
  • Page 18 Adjusting Your TV Overall Picture Follow the steps below to tighten or darken the overall picture without changing the color levels. Press MENU,PROG to select the Select the Controls Menu Controls menu. This menu is yel- low. Alarm Ad Press MOVE • (down) to high- 2.
  • Page 19 Adjusting Your TV Picture Settings Follow the steps below to change the picture on the screen to your personal setting. The chart at the bottom of the page explains your options. Select the Adjust Menu Press MENUopROG repeatedly select the Adjust menu. This menu is light blue.
  • Page 20 Adjusting Your TV Sound Settings: Stereo, Expanded Stereo, SAP and Tone Follow these steps to adjust the Stereo, Expanded Stereo, SAP or Tone of your TV. SAP (Second Audio Program) is sometimes used to offer the program being watched in another language.The chart below explains your options.
  • Page 21 Adjusting Your TV Sound Settings: Speakers Follow the steps below to turn the speakers on or off in your TV. The chart below explains your options. 1. Select the Setup Menu Press MENU.PROG repeatedly select the Setup menu. This menu is white.
  • Page 22 Using Advanced Features Placing Channels in Memory (Autoprogramming) Only channels 2-13 appear in the TV's memory when you first turn it on. The channels available in your area must be programmed into the TV's memory when you hook up your TV. Using CHANNEL up or down allows you to scan through these channels.
  • Page 23 Using Advanced Features Naming the Channels You can name the channels using the character list below. Full appears beside Label when the memory is used up. Fixed appears beside Label for channel 00--it cannot be named. Press MENUopROG repeatedly Name a channel to select the Setup menu.
  • Page 24 Using Advanced Features Setting the Sleep Timer You can set your TV to turn itself off. If you're watching TV at night and fall asleep, the TV will turn off for you. A. Press MENU.PROG to select Set Sleep Timer the Controls menu and highlight...
  • Page 25 Using Advanced Features Setting the Alarm Clock The TV can be set to turn on each day like your alarm clock. You can set it to turn on to your favorite channel at a certain time. You can also set it to turn itself off again.
  • Page 26 Using Advanced Features Watching Picture-in-Picture Picture-in-Picture allows you to display a small picture within the big picture of the TV screen. To watch two different programs at once, you must connect a VCR, Laserdisc Player or Camcorder. You may need to disable the VCR1 Channel if you can not get two different programs at once.
  • Page 27 Using Advanced Features Watching Picture-in-Picture Press PIP MOVE to move the Move the small picture small picture to the next corner. Press SWAP to switch the small Swap the big picture with picture with the big picture. the little picture A.
  • Page 28 Using Advanced Features Selecting a Language The on-screen displays in this TV can be displayed in three languages: English, French, and Spanish. When you select a language, most of the displays will be shown on the screen in your preferred language.
  • Page 29 Using Advanced Features Setting Your TV for Antenna or Cable Your TV automatically adjusts this feature when the TV places channels in memory (autoprogram). Follow the steps below to change the setting as needed. Press MENUopROG repeatedly 1. Select the Setup menu select the Setup menu.
  • Page 30 References Front Panel Buttons For details on using buttons with menus, see Menu Basics on page 5. MENU Shows menus on screen. Moves from menu to menu. CH A and v Channel up and down. Scans up and down through channels in the TV's memory.
  • Page 31 References Displays on the Screen Your TV shows the settings of several features on the screen. To see what features have been set on your TV, press DISPLAY on the remote. 12:00 AM KNBC or Video 00, S-Vid Alarm Sleep PIP 00 Volume -.
  • Page 32 References Trouble Checks You may have problems that can be fixed with a few minor adjustments. Look for the type of problem you are having below and then try the suggestions to get your TV going again. For warranty information see page 32. Trouble Checks and Adjustments...
  • Page 33 References Trouble Checks Trouble Checks and Adjustments Remote Buttons don't work when you Press TV to set the remote to control the TV. See buttons on page 6-7. press them Works part or none of the Clear the path between the remote and TV of any objects.
  • Page 34 One year for parts. Two years for picture tube. The warranty period for rental units begins with the first rental. What we will do: Pay any Authorized RCA Television Servicenter the labor charges to repair your television. Pay any Authorized RCA Television...
  • Page 35 This could cause damage the TV and/or personal injury. Stands are not available by mail order. To locate your nearest RCA dealer call this toll-free number: 1-800-336-1900. TV Model Matchin_gStands All specifications and descriptions of parts are subject to...
  • Page 36 References Order Form for Parts U.S. and Canadian Orders USE YOUR CREDIT CARD By Phone: Copy complete account number 1 - 800 - 338 - 0376 Call this toll-free number between IIII I_--F-]l I I IIIII 8AM and 8PM Eastern Standard Time and place your order using your Visa or MasterCard.
  • Page 37 References Glossary Antenna Display Sharpness A device used to receive broadcast A word, words or graphics that Clearness of a picture. signals from TV stations. appear on the TV screen. SKIP See Commerical Skip. Audio Inputs Located on back of the TV for Signal Sound reproduced by the TV.
  • Page 38 References Index CABLE / ANTENNNA Jack ..15 Adding Channels to Memory..20 Delete Channels from Memory .20 Disabled ........Cable Box ......... 12,13 Adjust Menu Autocolor ........17 Cable Box Codes ......12 DISPLAY Button ....... 6,23 CABLE Button ...... 7,12,13 Displays (On-Screen) ....
  • Page 39 Turn on Picture-in-Picture..24,25 Turn on TV ........2 Menu ..........REC / Record Button .... 7,11,15 MENU Buttons ......4,5 References ....... 28-37 Buttons ......... 4,6,28 Menus ..........Glossary ........35 Menu Colors ........5 Guide to ......... 2,3,4 Order Form for Parts ... 33,34 TV Button .........
  • Page 40 Thomson Consumer Electronics is one of the first corporations to take part in a special program to improve environment. Thomson has committed itself to a voluntary initiative program through the U.S. Environmental Protection Agency. The program's purpose is to reduce toxic air emissions and to promote pollution prevention.
