Excell FM User Manual

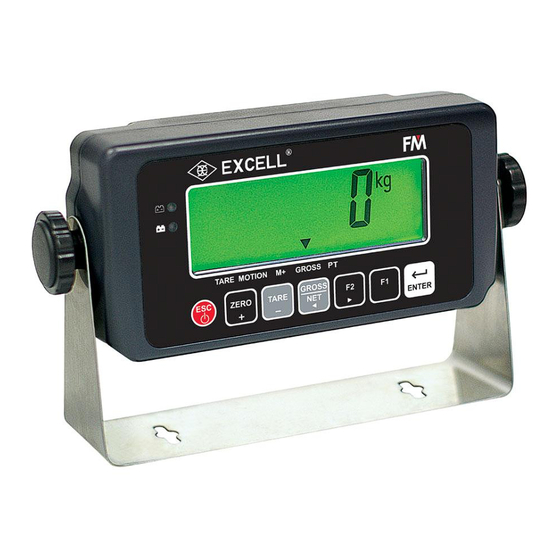

Mini-indicator

Advertisement

EXCELL PRECISION CO., LTD
.

User Manual

© Excell Precision Limited 2006. All rights reserved Worldwide.
The information contained herein is the property of Excell Precision Limited and is supplied
without liability for errors or omissions. No part may be reproduced or used except as
authorised by contract or other written permission.
The copyright and the foregoing
restriction on reproduction and use extend to all media in which the information may be
embodied.
FM User Manual
SME300000119

Advertisement

Table of Contents
loading

Summary of Contents for Excell FM

  • Page 1: User Manual

    User Manual © Excell Precision Limited 2006. All rights reserved Worldwide. The information contained herein is the property of Excell Precision Limited and is supplied without liability for errors or omissions. No part may be reproduced or used except as authorised by contract or other written permission.
  • Page 2: Table Of Contents

    EXCELL PRECISION CO., LTD TABLE OF CONTENT SAFETY PRECAUTION... 3 <CHAPTER 1> FEATURES AND SPECIFICATION... 4 1-1 F ... 4 EATURES 1-2 S ... 5 PECIFICATION <CHAPTER 2> KEYPAD OPERATION INSTRUCTION ... 6 <CHAPTER 3> FRONT & REAR PANELS... 7 3-1 F ...
  • Page 3 EXCELL PRECISION CO., LTD <CHAPTER 7> TRANSMISSION INTERFACE ... 24 7-1 OP-01 RS232 / RS485 S Pin Allocation of Rear Panel...24 Connection Description (RS485) ...25 <CHAPTER 8> FUNCTION PARAMETER SETTING... 26 8-1 F UNCTION ETTING Function Parameter Setting...28 8-2 RS232 S ETTING OP-01 RS232 / RS485 Interface Function ...30...
  • Page 4: Safety Precaution

    EXCELL PRECISION CO., LTD BEFORE USING THE INDICATOR Thanks for purchasing EXCELL FM Mini-indicator. In order to operate smoothly, to last the durability, and to reduce the chance of breakdown for this product, please read the following instructions carefully. Safety Precaution &...
  • Page 5: Chapter 1> Features And Specification

    EXCELL PRECISION CO., LTD <Chapter 1> Features and Specification 1-1 Features l Large and clear LCD (height 25.4mm × 10mm) l LED Backlight, more duration, more energy saving l Auto zero tracking l Weighing calibration in both kilogram and pound l High resolution switch function to display 10 times divisions l Weighing unit shift function &...
  • Page 6: Specification

    EXCELL PRECISION CO., LTD 1-2 Specification Analog Specification Load Cell Current: DC 5V 5% 60mA (Up to Four 350Ω Load Cells) Max. Load Cell Input Voltage: 16 mV Input Sensitivity: 0.12 V/D or more Conversion Rate: Approximately 100 times/sec. (max.)
  • Page 7: Chapter 2> Keypad Operation Instruction

    EXCELL PRECISION CO., LTD <Chapter 2> Keypad Operation Instruction Function General Function Setting Weighing Parameter Setting Calibration Self-diagnosis Mode Adjust calibration switch Default Recover to ON, and then press for All Parameters and hold Default Recovery for General Function Parameters 4 During the operation, use the following keys to complete all the works.
  • Page 8: Chapter 3> Front & Rear Panels

    EXCELL PRECISION CO., LTD <Chapter 3> Front & Rear Panels 3-1 Front Panel TARE MOTION ZERO Indication: : Battery charged status : Battery charging status TARE : Tare status MOTION : Unstable weighing indication : Accumulation status indication GROSS : Gross weight...
  • Page 9: Rear Panel

    EXCELL PRECISION CO., LTD 3-2 Rear Panel 1. Battery Case 2. RS232/485 Input/Output 3. DC 9V Power Input 4. Calibration Switch 5. Load Cell Connect Socket FM User Manual SME300000119...
  • Page 10: Chapter 4> Installation

    EXCELL PRECISION CO., LTD <Chapter 4> Installation 4-1 Load Cell 4-wired (5-wired) Load Cell Short Pin4&5 to connect with EXC+ Short Pin2&3 to connect with EXC- Pin1 connects with SIG+ Pin9 connects with SIG- Pin6, 7, 8 connect with Shield...
  • Page 11: Dimension

    EXCELL PRECISION CO., LTD 4-2 Dimension FM User Manual SME300000119...
  • Page 12: Battery Assembly

    EXCELL PRECISION CO., LTD 4-3 Battery Assembly 將多餘的電線塞入電池孔中 Stuff the surplus wires into the battery case. FM User Manual SME300000119...
  • Page 13: Chapter 5> Internal Calibration

    EXCELL PRECISION CO., LTD <Chapter 5> Internal Calibration Adjust calibration switch to “ON”, and the screen displays: After 2 seconds ZERO Press ZE RO Press Adjust calibration switch back to “OFF”. FM User Manual ENTER Press TARE ENTER Press TARE...
  • Page 14: Specification Setting

    EXCELL PRECISION CO., LTD 5-1 Specification Setting ENTER Press Input the *Parameter Code intended ENTER Press The screen displays the parameters set previously. Input the parameters intended and then press Continue other functions setting or press to escape. E SC...
  • Page 15: Specification Parameter Description

    EXCELL PRECISION CO., LTD 2 Specification Parameter Description Parameter Function Code Parameter Decimal CSP-00 Point 999999 CSP-01 Capacity 000000 CSP-02 Division 1 CSP-03 Division 2 Zero CSP-04 Tracking Setting Unstable CSP-05 Detecting Setting FM User Manual Setting Description Refer to the description on next page.
  • Page 16: Parameter Display Description

    EXCELL PRECISION CO., LTD 2 Parameter Display Description CSP-00 Decimal Point Display CSP-04 Zero Tracking Setting Display CSP-05 Unstable Detecting Setting Display FM User Manual Decimal Point Digit None 1 Digit 2 Digits 3 Digits 4 Digits Division/Period 0.25 D/1 sec 0.5 D/1 sec...
  • Page 17: Zero Calibration

    EXCELL PRECISION CO., LTD 5-2 Internal Weight Calibration Turn on and warm up the machine for 15 to 30 minutes before calibration. Adjust calibration switch to “ON”, and the screen will display TARE ZERO Press to select Procedure ENTER Zero...
  • Page 18: Password Setting

    EXCELL PRECISION CO., LTD 2 Password Setting Adjust calibration switch to “ON” After 2 seconds After complete password setting, when entering calibration mode or function setting mode, the screen displays It’s necessary to input the correct password to continue each setting.
  • Page 19: Internal Function Setting

    EXCELL PRECISION CO., LTD 5-3 Internal Function Setting ENTER Press Input the *Parameter code intended ENTER Press The screen displays the parameters set previously. Input the parameters intended and then press ENTER Continue other functions setting or press to escape.
  • Page 20: Internal Function Parameter Description

    EXCELL PRECISION CO., LTD 2 Internal Function Parameter Description Parameter Function Code Tare or Zero CFN-00 Function under Unstable Status Re-zeroing after CFN-01 Turning on CFN-02 Re-zero Range CFN-03 Filter Strength AD Sampling CFN-04 Rate Animal Scale CFN-05 Mode Animal Scale...
  • Page 21: Error Message

    EXCELL PRECISION CO., LTD 2 Error Message FM User Manual Load Cell or A/D circuit extraordinary Real weighing value ≦ zero value Internal resolution < 0.12μV/D range Incorrect password Turning on zero ≦ zero range Turning on zero ≧ zero range...
  • Page 22: Chapter 6> Special Function

    If the display weight value keeps being lower than zero plus 10d, the screen will display: CFN-05 = 2 (Animal Scale Mode 2: Weight display weather under unstable or stable status) When the weight value reaches the range of CFN-06 and CFN-07 setting, the screen will keep displaying the weight value.
  • Page 23: Dual Range Resolution Switch Function

    EXCELL PRECISION CO., LTD 6-2 Dual Range Resolution Switch Function If the setting of CSP-02 is not the same as CSP-03, the dual range resolution will be activated. CFN-08 = 0 Multi-interval If CFN-09 = 5000 Division 2 最小刻度2 5000 最小刻度1...
  • Page 24: Pre-Tare Function

    EXCELL PRECISION CO., LTD 6-3 Pre-tare Function FNC-02 or FNC-03 setting is at parameter 6. (Pre-tare Function) Under weight display status, press screen will display: Input the pre-tare value intended ENTER Press Back to weight display status (PT indication lights up) Pre-tare Cancellation When the gross weight is displayed as “0”, press...
  • Page 25: Chapter 7> Transmission Interface

    EXCELL PRECISION CO., LTD <Chapter 7> Transmission Interface 7-1 OP-01 RS232/RS485 Serial Output (with RTC) 1 2 3 1 2 3 To short 1 and 2 pins is RS485 output. To short 2 and 3 pins is RS232 output. 2 Pin Allocation of Rear Panel RS485 interface is capable to connect up to 10 mini-indicators.
  • Page 26: Connection Description (Rs485)

    EXCELL PRECISION CO., LTD 2 Connection Description (RS485) Host 4 Notice If the terminal resistant is built-in the host interface, it’s not necessary to connect with another one outside. If the host computer is no signal ground (SG), it’s not necessary to connect with it.
  • Page 27: Chapter 8> Function Parameter Setting

    EXCELL PRECISION CO., LTD <Chapter 8> Function Parameter Setting Under general weight display status, press Press ZER O Press Press Back to general weight display status. FM User Manual ENTER , and the screen will display: ENTER TARE ENTER to escape.
  • Page 28: Function Setting

    EXCELL PRECISION CO., LTD 8-1 Function Setting ENTER Press Input the *parameter code intended Press ENTER Continue other function settings or press FM User Manual *Parameter Code The screen displays the parameters set previously. Input the parameters intended and then press...
  • Page 29: Function Parameter Setting

    EXCELL PRECISION CO., LTD 2 Function Parameter Setting Parameter Function Code Parameter Key Disable FNC-00 DSP Update FNC-01 F1 Key FNC-02 Function Setting F2 Key FNC-03 Function Setting Backlight FNC-04 Setting FM User Manual Setting Description 0000 0000 is corresponding to:...
  • Page 30: Rs232 Setting

    EXCELL PRECISION CO., LTD 8-2 RS232 Setting ENTER Press Input the *Parameter code intended Press ENTER The screen displays the parameters set previously. Input the parameters intended and then press ENTER Continue other functions setting or press to escape. FM User Manual...
  • Page 31: Rs232 / Rs485 Interface Function

    EXCELL PRECISION CO., LTD 2 OP-01 RS232 / RS485 Interface Function Parameter Function Parameter Code Information RS1-00 Pattern Transmission RS1-01 Method Transmission RS1-02 Rate Parity Bit Length RS1-03 Stop Bit Unstable or RS1-04 Over Load Auto Transmission RS1-05 Condition Command...
  • Page 32 EXCELL PRECISION CO., LTD Transmission RS1-08 Times Date Setting RS1-09 Time Setting RS1-10 FM User Manual No Limit 1 times/sec. 2 times/sec 5 times/sec 10 times/sec 20 times/sec SME300000119...
  • Page 33: Transmission Format

    EXCELL PRECISION CO., LTD 2 Transmission Format RS1-00 0 ~ 3 Header 1 Header 2 Header 1 ST : Stable Weight / US : Unstable Weight / OL : Weight Over Load Header 2 GS : Gross Weight / NT : Net Weight / TR : Tare Weight Data ( 8 digits ) The first digit of weight data represents “+/-“...
  • Page 34: Command Mode

    EXCELL PRECISION CO., LTD 2 Command Mode Command Function READ, RW Weight Reading ZERO, MZ Weight Re-zeroing TARE, MT Gross Weight Reducing NTGS Gross / Net Switch Gross Weight Indicating Net Weight Indicating Œ After setting the commands mentioned above, it’s necessary to add the termination code “CR(0DH) and LF(0AH)”.
  • Page 35: Chapter 9> Maintenance

    EXCELL PRECISION CO., LTD <Chapter 9> Maintenance 9-1 Default Recovery for All Parameters (1) Adjust the calibration switch to “ON”, when re-zeroing after turning on, press ENTER and hold simultaneously. (2) The screen will display (3) If decided, press calibration switch to “OFF”.
  • Page 36: Program Version Number

    EXCELL PRECISION CO., LTD 9-3-1 Program Version Number 7-segment display reveals program version number. 9-3-2 7-segment Display Testing 7-segment display reveals “ 9-3-3 Keypad & Calibration Switch Testing Adjust calibration switch to “ON”, and press any key, the corresponding bit will be...
