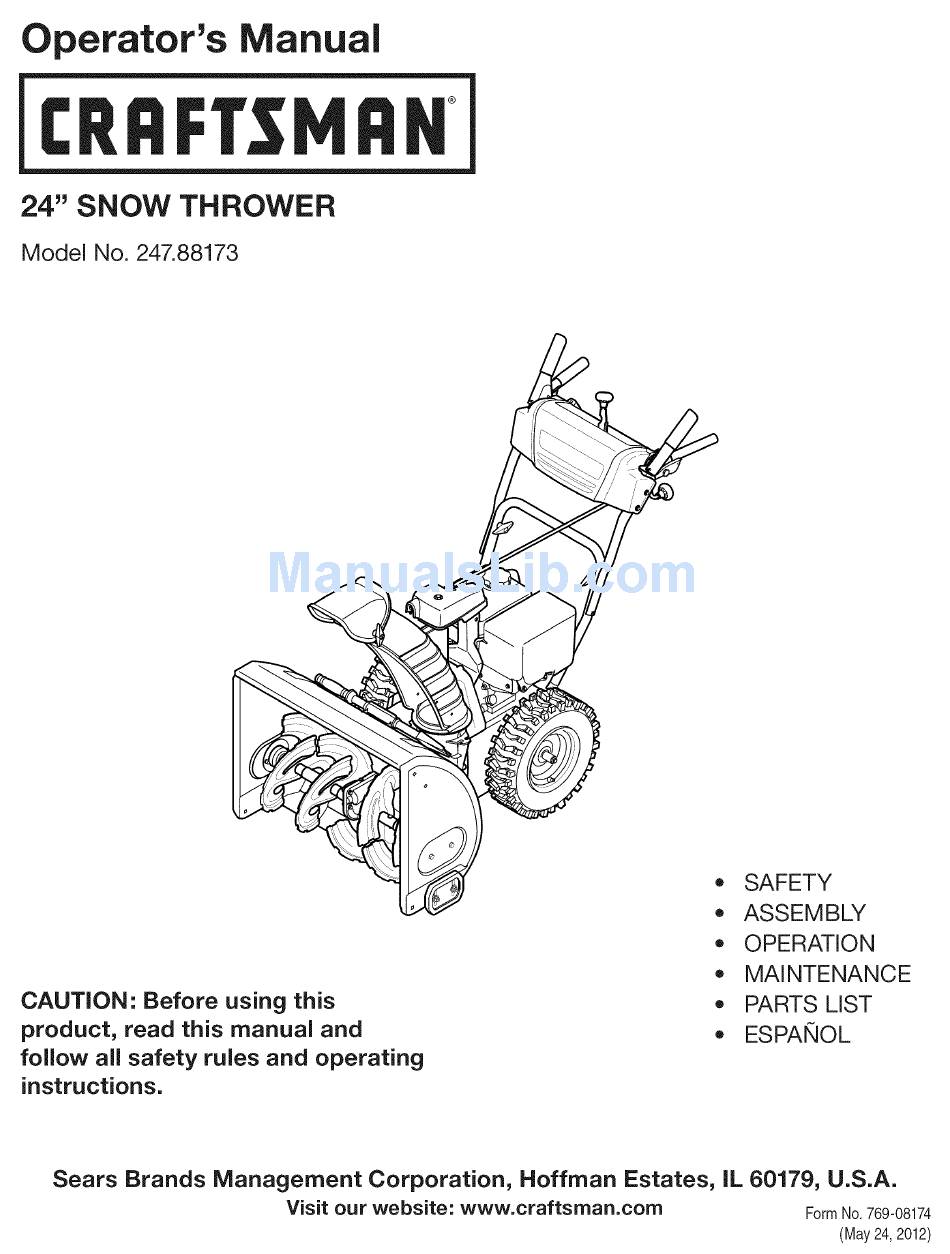

CRAFTSMAN 247.88173 Operator's Manual

24".
Operator's
Manual
CRRFr MRN
24" SNOW THROWER
Model No. 247.88173
CAUTION"
Before
using this
product,
read this manual
and
follow
all safety
rules and operating
instructions.
,, SAFETY
o ASSEMBLY
OPERATION
MAINTENANCE
PARTS LIST
o ESPANOL
Sears Brands
Management
Corporation,
Hoffman
Estates,
IL 60179, U.S.A.
Visit our website:
www.craftsman.com
FormNo. 769-08174
(May24,2012)
