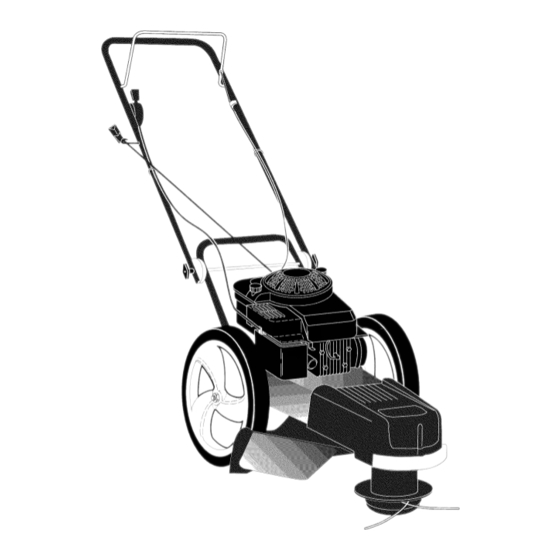

Wheeled weedtrimmer 675 series briggs & stratton engine 22 inch cut

Advertisement

Available languages

Available languages

Owner's Manual
CRRFTSMRN °
LE
E T
675 Series
22
I
E
Briggs & Stratton
Inch Cut
Engine
Model No.
917.773762
• EspaSol, p. 17
LJTION'.
Read and follow all
Safety Rules and Instructions
before operating
this equipment.
Sears, Roebuck
and Co., Hoffman Estates,
IL 60179
Visit our Craftsman website: www.sears.com/craftsman
U.S.A.

Advertisement

Table of Contents
loading

Summary of Contents for Craftsman 917.773762

  • Page 1 Briggs & Stratton Engine Inch Cut Model No. 917.773762 • EspaSol, p. 17 LJTION'. Read and follow all Safety Rules and Instructions before operating this equipment. U.S.A. Sears, Roebuck and Co., Hoffman Estates, IL 60179 Visit our Craftsman website: www.sears.com/craftsman...
  • Page 2: Limited Two-Year Warranty

    Schedule ......Sears Service ......Back Cover LIMITED TWO YEAR WARRANTY ON CRAFTSMAN WEEDTRIMMER For two (2) years from date of purchase, when this Craftsman Weedtrimmer is main- tained, lubricated, and tuned up according to the operating and maintenance instruc- tions in the owner's manual, Sears will repair free of charge any defect in material or workmanship.
  • Page 3: Slope Operation

    • Do not pull machine backwards unless ab- AWARNING" Engine exhaust, some solutely necessary. Always look down and of its constituents, and certain vehicle behind before andwhile moving backwards. components contain or emit chemicals known to the State of California to •...
  • Page 4 Repair Protection Agreements Congratulations on making a smart pur- Fast help by phone - phone sup- chase. Your new Craftsman@ product is port from a Sears representative designed and manufactured for years of products requiring in-home repair, plus dependable operation.
  • Page 5 Serial Number: Date of Purchase: Gasoline Capacity / Type: 1.6 Quarts (Unleaded Regular) Oil Type (API SG-SL): SAE 30 (above 32°F); SAE 5W-30 (below 32°F) Oil Capacity: 20 Ounces Spark Plug (Gap: .030") Champion RJ19LM or J19LM Trimmer Line Length: 18.75 Inches (0.155 Inch Diameter) .
  • Page 6 KNOW YOUR TRIMIVIER READ THIS OWNER'S MANUAL AND ALL SAFETY RULES BEFORE OPERATING YOUR TRIMMER. Compare the illustrations with your trimmer to familiarize yourself with the location of various controls and adjustments. Save this manual for future reference. These symbols may appear on your trimmer or in literature supplied with the product.
  • Page 7: How To Use Your

    TO ADJUST TRIMMING HEIGHT _,CAUTION" Stop the engine and wait for all moving parts to stop. Disconnectspark plug wire from spark plug and place wire where it cannot come in contact with plug. The height of cut can be set to six (6) dif- ferent positionsranging from 1-1/2 inches The operationof any trimmer can result in to 3 inches.
  • Page 8: Add Gasoline

    ADD GASOLINE NOTE: In cooler weather it may be necessary to repeat priming steps. • Fill fuel tank to bottom of gas tank warmer weather overpriming may cause filler neck. Do not overfill. Use fresh, flooding and engine wil! not start. If you clean, regular unleaded gasoline with a minimum of 87 octane.
  • Page 9: Maintenance

    MAINTENANCE FILL IN DATES AS YOU COMPLETE REGULAR SERVICE Check for Loose Fasteners Clean Trimmer Clean Under Engine Cover Check Drive Belt / Pulleys Check / Replace Trimmer Lines Check Engine Oil Level Change Engine Oil t#4'1,2 Clean Air Filter Inspect Muffler Clean or Replace Spark Plug Replace Air Filter Paper Cartridge...
  • Page 10 TRIMMER Always observe safety rules when per- forming any maintenance. TIRES . Keep tires free of gasoline, oil, or insect control chemicals which can harm rub- ber. • Avoid stumps, stones, deep ruts, sharp objects and other hazards that may cause tire damage.
  • Page 11 ENGINE 6. Replace engine oil cap. 7. Reconnect spark plug wire to spark LUBRiCATiON plug. Use only high quality detergent oil rated with API service classification SG-SL. AIR FILTER Select the oil's SAE viscosity grade Your engine will not run properly and may according to your expected operating be damaged by using a dirty air filter.
  • Page 12 Keep finished surfaces and wheels free A:;I, CAUTION: Disconnect spark plug wire of all gasoline, oil, etc. from spark plug and place wire where it We do not recommend using a garden cannot come in contact with plug. hose to clean trimmer unless the elec- •...
  • Page 13 15. Replace chassis cover and tighten Tighten pulley bolts securely. screw securely. NOTE: Be sure belt is inside top belt Always use Craftsman replacement parts keeper on idler assembly. to assure proper fit and long life.
  • Page 14 Immediately prepareyour trimmer for stor- Also, alcohol blended fuels (called gasohol age at the end of the season or if the unit or using ethanol or methanol) can attract will not be usedfor 30 days or more. moisture which leads to separation and formation of acids during storage.
  • Page 15: Troubleshooting

    TROUBLESHOOTING =See appropriate section in manual unless directed to a Sears Parts & Repair Center. PROBLEM CAUSE CORRECTION Does not start 1. Dirty air filter. 1. Clean/replace air filter. 2. Out of fue!. 2. Fill fuel tank. 3. Stale fuel. 3.
  • Page 16 Operate a trimmer across the face of slopes, never up or down slopes. 15 DEGREES Use this guide and do not trim on a slope greater than 15 degrees. A 10 degree slope is a hill that increases in height at appro×imately ! .7 feet in 10 feet.
  • Page 17 Sears reparara gratis todo defecto en el material y la mano de obra. Si la recortadora para mala hierba Craftsman se usa para fines comerciales o de arriendo, esta garantia s61o se aplica por noventa (90) dias a partir de la fecha de compra.
  • Page 18 I. OPERACION GENERAL • Operesolamente conluzdeldiao conuna buenaluzartificial. • Antesde empezar, debefamiliarizarse completamente conloscontroles y el uso • Nooperela maquina bajola influencia del correcto de la maquina. P araesto,debeleer alcohol o delasdrogas. y comprender todaslasinstrucciones que • Nunca operela maquina cuandola hierba aparecen en lamaquina yen losmanuales estemojada.
  • Page 19 Reparaci6n Congratulaciones por su buena compra. Ayuda rapida pot telefono - soporte tele= nuevo producto Craftsman® esta diseSado f6nico por parte de un representento Sears y fabricado para funcionar de modo liable pot sobre productos que requieren un arreglo en muchos a_os.
  • Page 20 NOmerode Serie: Fecha de Compra: Capacidad y Tipo de Gasolina: 1.6 Cuartos (Regularsin Plomo) Tipo de Aceite (API SG-SL): SAE 30 (Sobre 32°F); SAE 5W-30 (Debajo 32°F) Capacidad de Aceite: 20 Onzas Bujia (Abertura: .030") Champion RJ19LM o J19LM Longitud (0.155 Inches Diametro) de la Iinea de la recortadora: 18.75...
  • Page 21 FAMILIARiCESE CON SU RECORTADORA LEA ESTE MANUAL DE USUARIO Y LAS REGLAS DE SEGURIDAD ANTES DE OPERAR SU RECORTADORA. Compare las ilustraciones con su recortadora para familiarizarse con la ubi- caci6n de los diversos controles y ajustes. Guarde este manual para referencia en el futuro. Estos simbolos pueden aparecer sobre su recortadora...
  • Page 22 SEGURIDAD Cabeza de recortadora La operaci6n de cualquier recortadora puede Tabulaci6n hacer que salten objetos extrafios dentro de de la placa sus ojos, Io que puede producir dafios graves de bloque en estos. Siempre use anteojos de seguridad o protecci6n para los ojos mientras opere su recortadora o cuando haga ajustes o reparacio- nes.
  • Page 23 GASOLINA * Llene el estanque de combustible hasta la parte inferior del cuello de relleno del estanque de gasolina. No Io Ilene demasiado. Use gasolina regular, sin plomo, nueva y lim- pia con el minimo de 87 octanos. No mezcle el aceite con la gasolina.
  • Page 24 °..A.T..TO S+f.+'J LLENE LAS FECHAS 0_.!. _ _9,_,_ 'O A MEDIDA QUE COMPLETE ___FECHAS S OSE V,O,O E U Revisar si hay sujetadores sueltos Limpiar la recortadora Limpiar debajo de la cubierta del motor ip#'? Revisar las correas y las poleas impulsadas Verifique / reemplazar...
  • Page 25 _I, PRECAUCl6N: Utilice s61o la linea de Con la extremidad de la linea plagada en el lado trasero del clip del sujetador, empujar recortadora recomendada. No utilice otros la linea hacia afuera hasta que la linea este materiales como cables, cuerdas, cintas, completamente colocada debajo del clip del etc.
  • Page 26 Revise el nivel del aceite del carter antes de Instale el cartucho, luego vuelva a poner la arrancar el motor y despues de cada cinco (5) cubierta asegurandose que las orejas esten horas de uso continuado. Apriete el tap6n del alineadas con las ranuras en la plancha aceite en forma segura cada vez que revise el trasera.
  • Page 27 PARA REMOVER/AJUSTAR LA CORREA DE ADVERTENClA: Para evitar lesi6nes serias IMPULSI6N DEL CABEZAL DE LA RE- ntes de dar cualquier sercicio o de hacer CORTADORA ajustes: Remueva el tornillo en el frente de la cubi- Pare el motor. erta del chasis. AsegQrese que las lineas rotatorias y que Gire la cubierta hacia arriba y a distancia de todas las partes movibles se hayan detenido...
  • Page 28 Remueva la correa de la polea del cabezal 12. Instale la correa y el conjunto del piton Ioco de la recortadora. en la recortadora, vuelva a conectar un Observe la posicidn del cable de control y resorte del piton Ioco y monte el piton Ioco del resorte de Ilamada del piton Ioco.
  • Page 29 formaci6n de acidos durante almacemamiento. Prepare inmediatamente su recortadora para el la gasolina acideca puede na_ar el sistema de alma cenamiento al final de cada temporada o si la unidad no se va a usar pot 30 dias o mas. combustible de un motor durante el perido de alcamenmiento.
  • Page 30 SOLUCION DE PROBLEMAS - Yea la secci6n apropiada en el manual amenos est_ dirigido a un centro de servico Sears. PROBLEMA CAUSA CORRECClON No arranca 1. Filtro de aire sucio. 1. Limpie/cambie el filtro de aire. 2. Sin combustible. 2. Llene el estanque de combus tible.
  • Page 31 CLINACIO I """.._.o_D@,_ VEA Y DETENGA ESTA GUIA DE NlVEL CON UN ARBOL EN POSICION .. : "..7..VERTICAL, LA ESQUINA DE UNA ESTRUCTURA, UN POSTE DE LUZ O UNA CERCA. Opere una recortadora de rnaleza en sentido diagonal a tra- v_s de las cuestas, nunca cuesta...
  • Page 32 CRAFTSMAN WEED TRIMMER - - MODEL NUMBER 917.77:3762 16 10...
  • Page 33 CRAFTSMAN WEED TRIMMER - - MODEL NUMBER 917.77:3762 PART DESCRiPTiON Engine, Briggs & Stratton, _ _ _ Model No. 126L02-1379-F1 (See Breakdown) 150406 Bolt, Engine Mounting 3/8-16 179466 Pulley, Engine 88348 Washer, Flat 169821X479 Handle, Lower 428867 Screw, Hex Washer Head...
  • Page 34: Model Number

    CRAFTSMAN WEED TRIMMER " " MODEL NUMBER 47 21 27"...
  • Page 35 CRAFTSMAN WEED TRIMMER - - MODEL NUMBER 917.77:3762 PART DESCRIPTION 174031X615 Chassis Assembly 182133 Line, Trimmer .155 diameter x 18.75 long 173715 Screw, Self-Tapping 5/16-18 x 1 185476 V-Belt 172145X004 Bracket, Idler 166042 Pulley, Idler, V-Groove 173716 Bolt, Hex Head 3/8-16 x 1.25...
  • Page 36 BRIGGS & STRATTON 4-CYCLE ENGINE MODEL NUMBER 126L02=1379=F1 48 SHORT BLOCK 1058 OPERATOR'S MANUAL ' 1329 REPLACEMENT ENGINE " [1330 REPAIR MANUAL ..q 81_, >_ 54 _ [847 r .... 3j + 27 _J 404 c_ 358 ENGINE GASKET 51 _ 1095 VALVE GASKET...
  • Page 37 BRIGGS & STRATTON 4-CYCLE ENGINE MODEL NUMBER 126L02=1379=F1 ...._1o8 _ j ©, 633A _ _ __>, 137 (_ ,--_ 276 ,G_# _76_ 188 ,_ 2o9 _ J 2o2_:!_...
  • Page 38 BRIGGS & STRATTON 4-CYCLE ENGINE MODEL NUMBER 126L02=1379-F1 1036 EMISSIONS LABEL 608 i 1211 1210 689 (#_> _i. --? 305 _ 334 _) lOO5D,-)_'_F_ ..%?_I :,X.
  • Page 39 BRIGGS & STRATTON 4-CYCLE ENGINE MODEL NUMBER 126L02=1379-F1 121 CARBURETOR OVERHAUL 104 \_% 127 _ 358 ENGINE GASKET 177 ___ 617 ,_i ,/0/ 883 _ 1095 VALVE GASKET Engine Power Rating information The gross power rating for individual gas engine models is labeled in accordance with SAE (So- ciety of Automo-tive Engineers) code J11940 (Small Engine Power &...
  • Page 40 BRIGGS & STRATTON 4-CYCLE ENGINE MODEL NUMBER 126L02=1379=F1 PART PART DESCRIPTION DESCRIPTION 697322 298909 Cylinder Assembly Pin-Piston (Used After 399269 Kit=Bushing / Seal Code Date 09041600). 499423 (Magneto Side) Pin-Piston (Used Before 299819s Seal-Oil (Magneto Side) Code Date 09041700). 493279 797306 Sump-Engine Rod-Connecting...
  • Page 41 BRIGGS & STRATTON 4-CYCLE ENGINE MODEL NUMBER 126L02=1379=F1 PART PART DESCRIPTION DESCRIPTION 790143 Bracket=Control 393760 Deflector=Muffler 690783 Lever=Governor Control 690661 Screw (Muffler Deflector) 298090s Filter=Fuel 690345 Screw (Breather Cover) 271716 Washer-Sealing 691855 Spring=Friction 690940 Screw (Dipstick Tube) 696309 Clip (Debris Shield) 692038 Muffler 690959...
  • Page 42 SERVICE NOTES...
  • Page 43 SERVICE NOTES...
  • Page 44: Need More Help

    NEED MORE HELP? YOu']_[ fiTld theanswer a;_id moreor_,. maaagemyhomeo{om - forfree[ o Find this and at[ your other product manua[s online. o Get answers from our team of home experts. o Get a persona[ized maintenance plan for your home. o Find information and tools to help with home projects.
