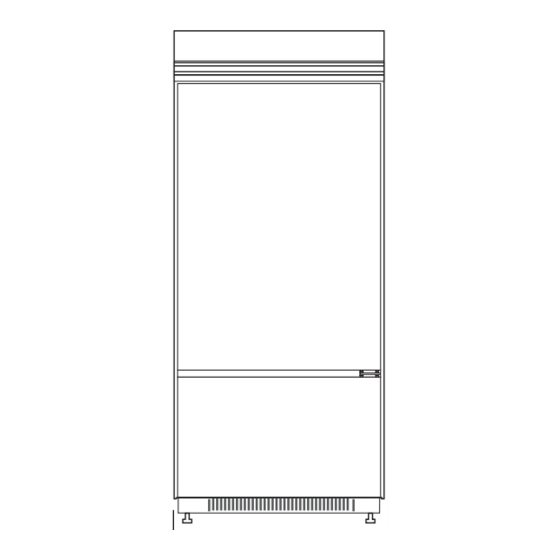

- Page 1 CABINET PARTS 36" BOTTOM MOUNT For Model: KBLC36MHB01, KBLC36MHT01, KBLC36MHW01 BUILT IN REFRIGERATOR (Black) (Biscuit) (White) 11−00 Litho In U.S.A. (mek) Part No. 4398948...
-
Page 2: Cabinet Parts
CABINET PARTS For Model: KBLC36MHB01, KBLC36MHT01, KBLC36MHW01 (Black) (Biscuit) (White) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2005007 Grommet, 2005920 Bushing−Arm, LITERATURE PARTS Flexible Extension LIT2005193 Use & Care Guide 488500 Screw 2006388 Gap, Cover LIT2005194 Energy Label 2006442 Mounting Bracket, (Bottom) LIT2207484 Service &... - Page 3 CABINET AND BREAKER TRIM PARTS For Model: KBLC36MHB01, KBLC36MHT01, KBLC36MHW01 (Black) (Biscuit) (White) Illus. Part DESCRIPTION Cabinet, Trim Right Side 2209475B Black 2209475T Biscuit 2209475W White 2003857 Screw 1163283 Screw 487246 Repair, Screw 2209073 Cabinet, Trim (Bottom) 486194 Screw 2003645 Cabinet, Trim Top 2005786 Breaker Trim 2005782 Cover, Hinge 2005925 Seal−Trim,...
- Page 4 TOP GRILLE AND UNIT COVER PARTS For Model: KBLC36MHB01, KBLC36MHT01, KBLC36MHW01 (Black) (Biscuit) (White) Illus. Part DESCRIPTION Top Grille Assembly 2209098B Black 2209098T Biscuit 2209098W White 2005549 Cover, Unit 488908 Screw 2002484 Grille, Bracket 2001415 Screw Nameplate 2005292 Black 2209118T Biscuit 2209118W White 2005534 Guard, Compressor Wiring...
- Page 5 LINER PARTS For Model: KBLC36MHB01, KBLC36MHT01, KBLC36MHW01 (Black) (Biscuit) (White) 4398948...
- Page 6 LINER PARTS For Model: KBLC36MHB01, KBLC36MHT01, KBLC36MHW01 (Black) (Biscuit) (White) Illus. Part DESCRIPTION Liner, Refrigerator (Not Servicable) Liner,Freezer (Not Servicable) 2005775 Wiring Channel Side 2005932 Diffuser Cap, Left Side 2005931 Diffuser Cap, Right Side 2171846 Release Valve 487539 Screw, 8−15 x .500 489464 Screw 548268 Grommet 2006148 Wiring Channel,...
-
Page 7: Control Panel Parts
CONTROL PANEL PARTS For Model: KBLC36MHB01, KBLC36MHT01, KBLC36MHW01 (Black) (Biscuit) (White) 4398948... - Page 8 CONTROL PANEL PARTS For Model: KBLC36MHB01, KBLC36MHT01, KBLC36MHW01 (Black) (Biscuit) (White) Illus. Part DESCRIPTION 2005489 Control Panel 2005940 Overlay, Control Panel 2005585 Circuit Board 2005414 Slide, Control 2172906 Grommet, Light Fiber 1118894 Switch, Rocker Arm 2005935 Heat Shield, Lamp 489260 Screw (3) 2179920 Fiber Optic 2207475 Thermostat 2005043 Socket, Light...
-
Page 9: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Model: KBLC36MHB01, KBLC36MHT01, KBLC36MHW01 (Black) (Biscuit) (White) 4398948... - Page 10 REFRIGERATOR SHELF PARTS For Model: KBLC36MHB01, KBLC36MHT01, KBLC36MHW01 (Black) (Biscuit) (White) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2005429 Air Damper, Deli 2005477 Glass, Crisper Slide, Freezer 2005151 Rail−Rear, Deli Shelf Basket 2005478 Rail−Rear, 2005152 Glass Shelf, Deli 2207520 Right Side Crisper Shelf 2005153 Rail−Front, Deli...
- Page 11 FREEZER DOOR AND BASKET PARTS For Model: KBLC36MHB01, KBLC36MHT01, KBLC36MHW01 (Black) (Biscuit) (White) 4398948...
- Page 12 FREEZER DOOR AND BASKET PARTS For Model: KBLC36MHB01, KBLC36MHT01, KBLC36MHW01 (Black) (Biscuit) (White) Illus. Part DESCRIPTION 2207525 Freezer Door Panel (F.I.P.) 2204525 Divider, Basket 2207429 Clamp, Divider 2207415 Nut, Crimp 488649 Screw 2005400 Foam, Filler 2006139 Spacer, Door Edge Side 2006138 Spacer, Door Edge Top &...
-
Page 13: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Model: KBLC36MHB01, KBLC36MHT01, KBLC36MHW01 (Black) (Biscuit) (White) 4398948... - Page 14 REFRIGERATOR DOOR PARTS For Model: KBLC36MHB01, KBLC36MHT01, KBLC36MHW01 (Black) (Biscuit) (White) Illus. Part DESCRIPTION 2005168 Refrigerator Door (Includes Item 9) Skin, Door 2209105B Black 2209105T Biscuit 2209105W White 2005171 Hinge Assembly, 2004520 Spacer−Hinge, 489282 Screw, 10−32 x .750 2003985 Hinge Assembly, Bottom 2005397 Filler, Foam 2006140 Spacer, Door Edge...
- Page 15 UPPER UNIT PARTS For Model: KBLC36MHB01, KBLC36MHT01, KBLC36MHW01 (Black) (Biscuit) (White) 4398948...
- Page 16 UPPER UNIT PARTS For Model: KBLC36MHB01, KBLC36MHT01, KBLC36MHW01 (Black) (Biscuit) (White) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 487522 Screw 2003398 Assembly, Unit 851095 Wire Tie (2) Following Parts Not Illustrated Base 2202581 Drier and Optional Parts Not Included 2163787 Clip, Compressor 2208903 Motor, Fan Mounting (4)
- Page 17 LOWER UNIT AND TUBE PARTS For Model: KBLC36MHB01, KBLC36MHT01, KBLC36MHW01 (Black) (Biscuit) (White) 4398948...
- Page 18 LOWER UNIT AND TUBE PARTS For Model: KBLC36MHB01, KBLC36MHT01, KBLC36MHW01 (Black) (Biscuit) (White) Illus. Part DESCRIPTION 2207482 Defrost Bi−Metal 486194 Screw 2003271 Sleeve 2002171 Sleeve 2005577 Condenser Inlet Tube 2005576 Sleeve 2003015 Tube, Connect (Drier) 2004545 Heater, Drain Pan 1113062 Hanger, Heater 2005908 Shield, Drain Pan 2002448 Sleeve 2002995 Tube, Discharge...
-
Page 19: Icemaker Parts
ICEMAKER PARTS For Model: KBLC36MHB01, KBLC36MHT01, KBLC36MHW01 (Black) (Biscuit) (White) 4398948... - Page 20 ICEMAKER PARTS For Model: KBLC36MHB01, KBLC36MHT01, KBLC36MHW01 (Black) (Biscuit) (White) Illus. Part DESCRIPTION 841707 Insert, Tube 628379 Clip, Fuse 2005009 Water Inlet Tube Assembly 1106508 Seal Gasket 2154472 Connector 2006766 Valve, Solenoid 627018 Nut, Compression 227991 Connector, Wire 2003457 Plug, Water Valve 489348 Clamp, Nylon Valve 488946 Clamp Tube...
